Description

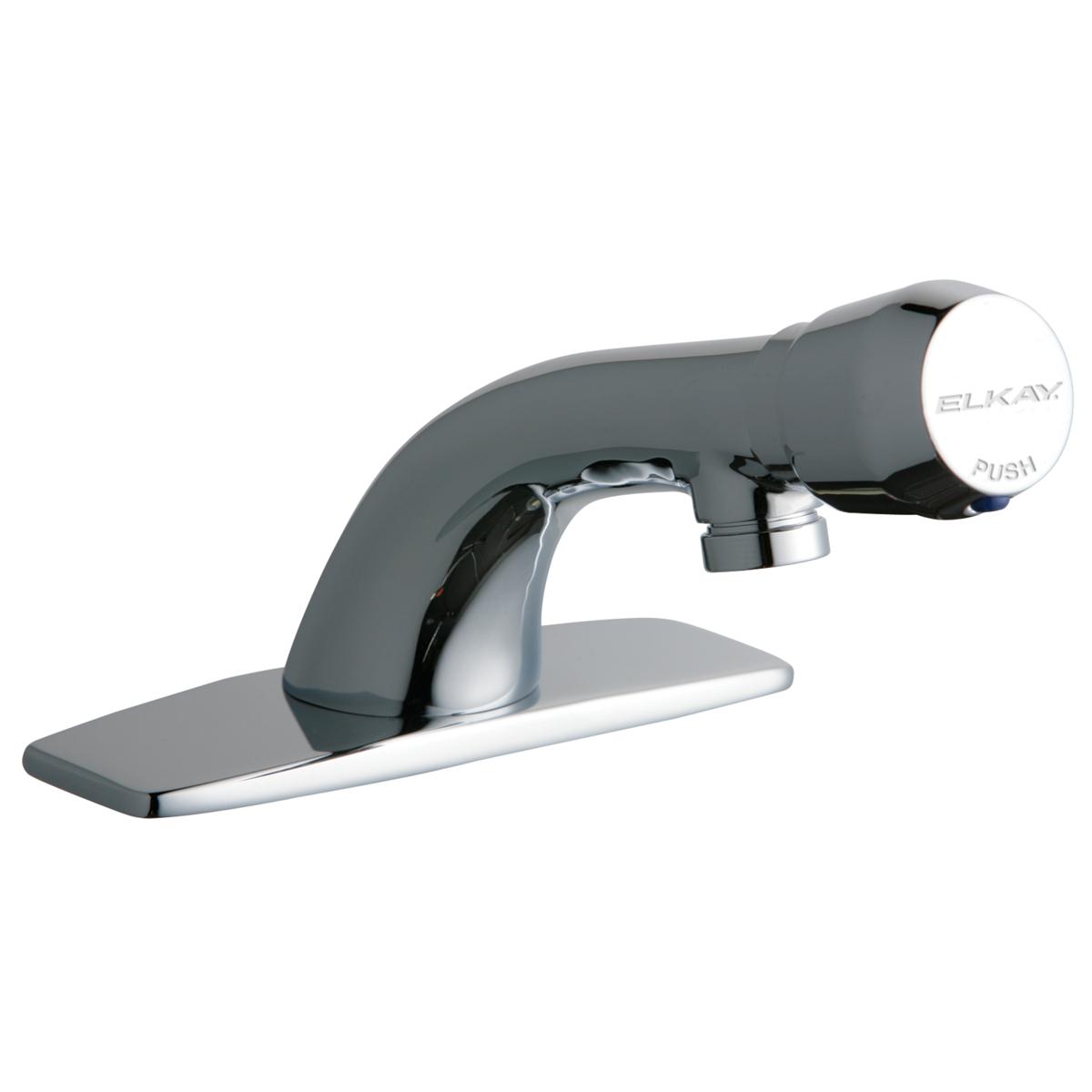

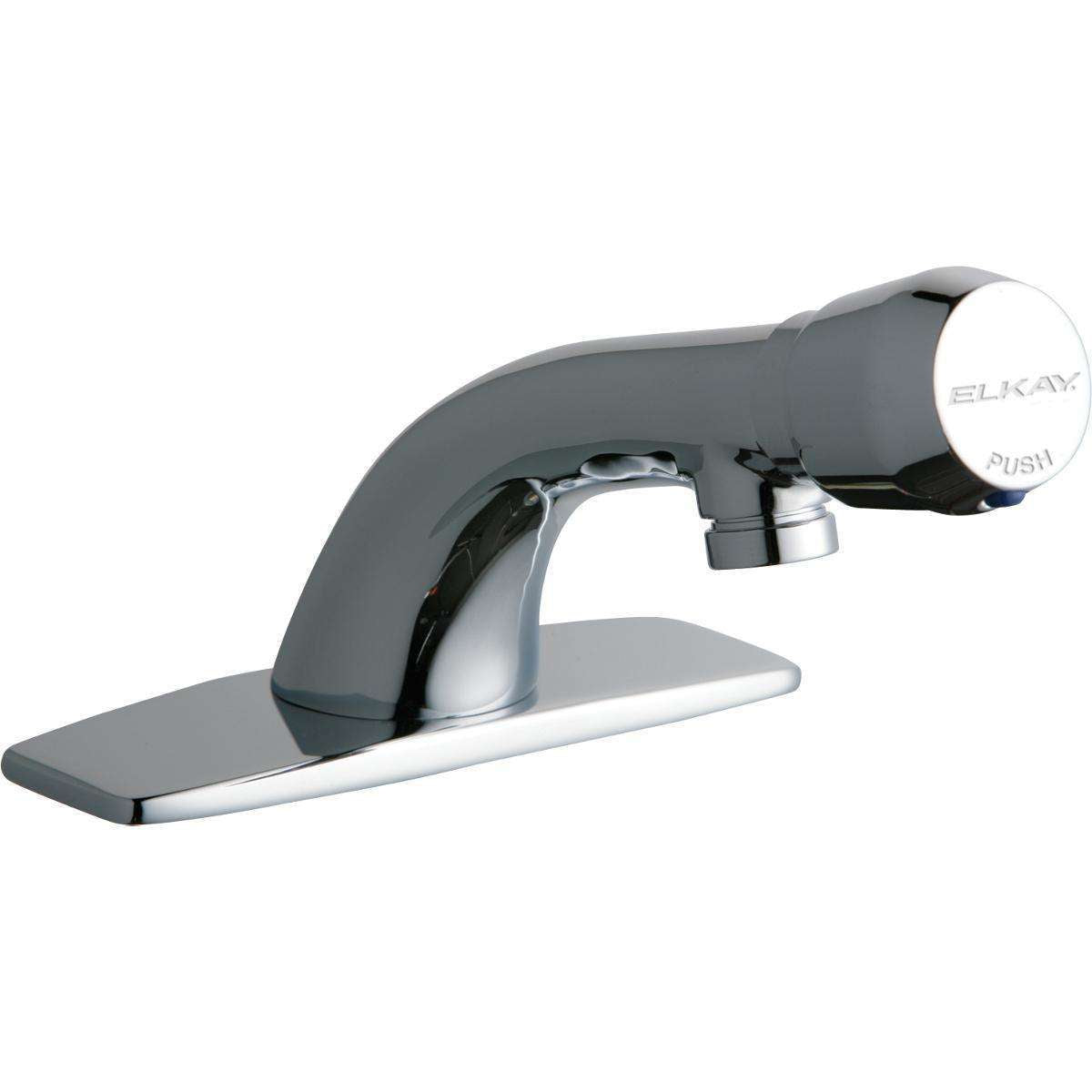

The Elkay LK652 is a lead-free single hole deck mount metered lavatory faucet with cast fixed spout push button handle with escutcheon chrome. It features a brass body. This model is certified lead-free for potable-water installations.
Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Features
- ADA COMPLIANT: Faucet is ADA compliant.
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- SOLID BRASS CONSTRUCTION: Built for long-term durability.
- VANDAL-RESISTANT AERATOR: Includes a special key to remove and change out the aerator; ideal for public spaces.
- 3 FAUCET HOLES: Faucet designed to be installed using three faucet holes.
- 4" HOLE SPREAD: Faucets designed to be installed using 4" hole spread.
Specifications
- Type: Single Hole Deck Mount Metered Lavatory Faucet with Cast Fixed Spout Push Button Handle with Escutcheon Chrome
- Inlet Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Country of Origin: United States
- MPN: LK652
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, ADA
- Lead-Free: Yes
- Cartridge Type: Ceramic 1/4-Turn
- Centers: Single-Hole
- Spout Type: Fixed
- Deck Clearance (in): 2.125
- Mount Type: Deck-Mount
- Handle Style: Push Button
- Coating / Finish: Polished Chrome
- Faucet Holes: 3
- Overall Length (in): 6.25
- Overall Width (in): 7.75
- Overall Height (in): 6.875
- Spout Reach (in): 4.125
- Spout Height (in): 4.5
- Handles: 1
Product Information

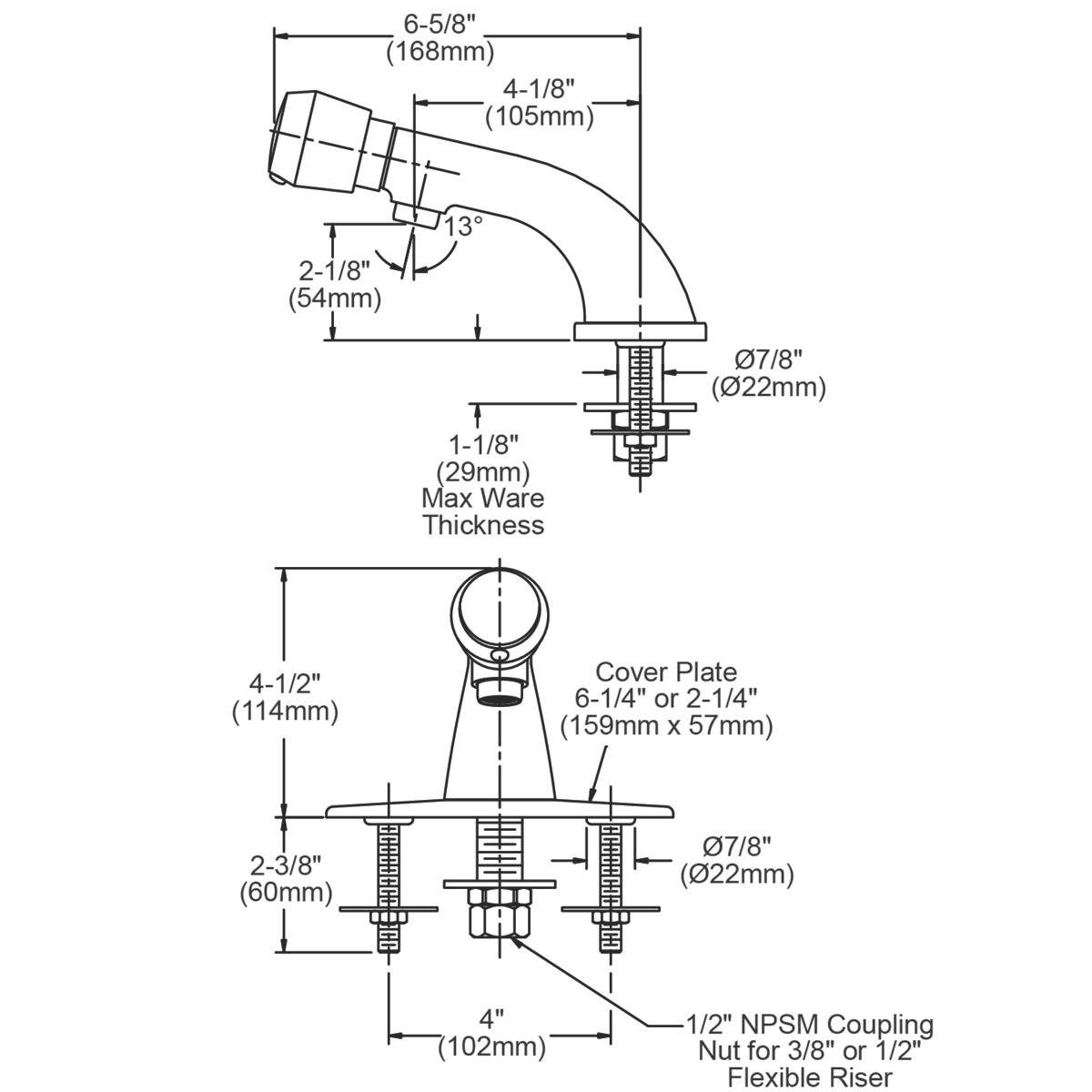

Dimensions
| Inlet Size | 1/2" | End Connection | NPSM |
Details
| Series | LK652 | Device Type | Single Hole Deck Mount Metered Lavatory Faucet with Cast Fixed Spout Push Button Handle with Escutcheon Chrome |
| Lead Free | Yes | Body Material | Brass |
| Coating | Polished Chrome | Handle style | Push Button |
| Hole count | 3 | Mount type | Deck-Mount |
| Overall height in | 6.875 in | Overall length in | 6.25 in |
| Overall width in | 7.75 in | Cartridge type | Ceramic 1/4-Turn |
| Centers | Single-Hole | Deck clearance in | 2.125 |
| Handle count | 1 | Spout height in | 4.5 |
| Spout reach in | 4.125 | Spout type | Fixed |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
| NSF-372 | ADA |
Compare with similar products
| Series | LK652
| Z86100-XL-3M
| Z86100-XL-CP4
| Z86100-XL
| Z86500-XL
| LK656
|
| Country Of Origin | United States
| — | — | — | — | United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Single Hole Deck Mount Metered Lavatory Faucet with Cast Fixed Spout Push Button Handle with Escutcheon Chrome
| Single Basin, Metering Faucet (Lead Free)
| Single Basin, Metering Faucet (Lead Free)
| Single Basin, Metering Faucet (Lead Free)
| 4" Centerset, Deck-Mount, Temperature Control, Metering Faucet
| Single Hole Deck Mount Metered Lavatory Faucet with 4" Cast Fixed Spout Push Button Handles Chrome
|
| Inlet Size | 1/2"
| — | — | — | — | 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPSM
| NPSM
| NPSM
| NPSM
| — | NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Operation | — | Metering (Self-Closing)
| Metering (Self-Closing)
| Metering (Self-Closing)
| Metering (Self-Closing)
| — |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, ADA
| NSF-372, ASME A112.18.1/CSA B125.1, ADA
| NSF-372, ASME A112.18.1/CSA B125.1, ADA
| NSF-372, ASME A112.18.1/CSA B125.1, ADA
| NSF-372, ASME A112.18.1/CSA B125.1, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, ADA
|
