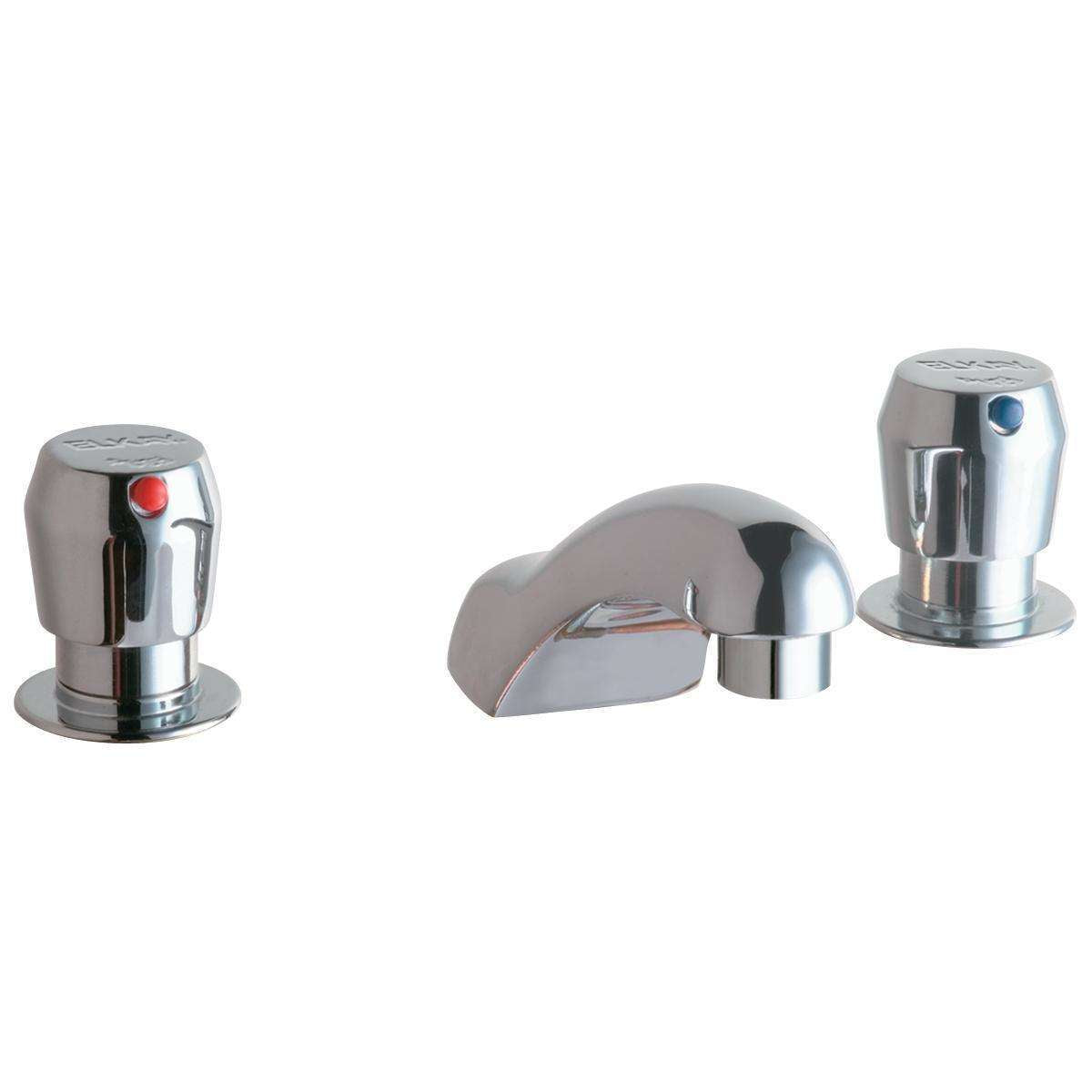

Elkay 8" Centerset with Concealed Deck Metered Lavatory Faucet with Cast Fixed Spout Push Button Handles Chrome LK651

Elkay 8" Centerset with Concealed Deck Metered Lavatory Faucet with Cast Fixed Spout Push Button Handles Chrome

• Spout Height: 2.375
• Spout Reach: 5
• Spout Type: Fixed Spout
• Spray Type: None
• Number of Handles: 2
• Handle Type: Push Button

Features
• LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
• SOLID BRASS CONSTRUCTION: Built for long-term durability.
• VANDAL-RESISTANT AERATOR: Includes a special key to remove and change out the aerator; ideal for public spaces.
• 3 FAUCET HOLES: Faucet designed to be installed using three faucet holes.
• 4" HOLE SPREAD: Faucets designed to be installed using 4" hole spread.
• Cycle time: 2-25 seconds across a 20-80 PSI pressure range (0.35 - 2.2 GPM flow rate). Factory setting: 8-12 seconds at 60 PSI.

Product Compliance
• Is ADA Compliant: Yes
• ADA & ICC A117.1| ASME A112.18.1/CSA B125.1| CEC| NSF 61| NSF 372 (lead free)
