Description

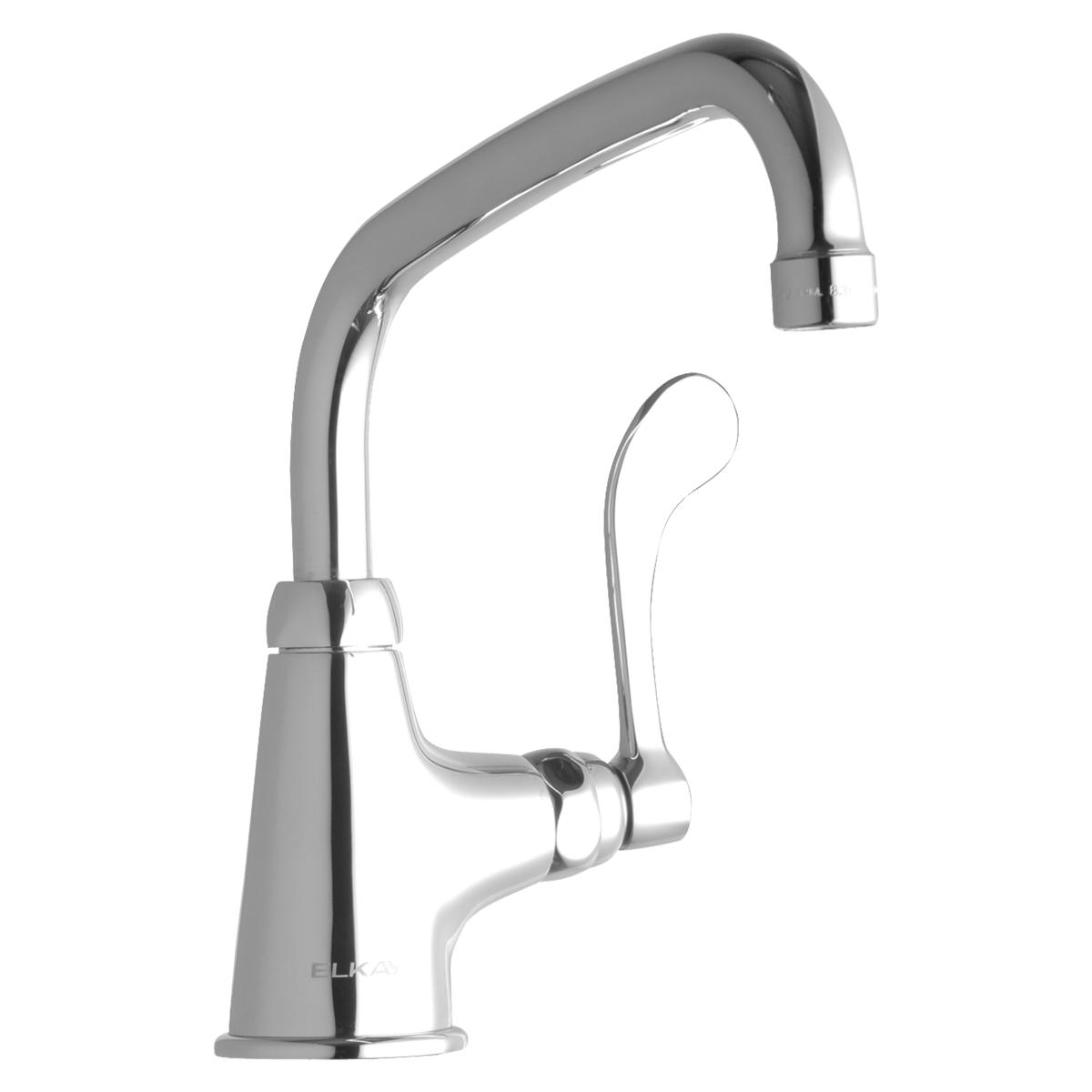

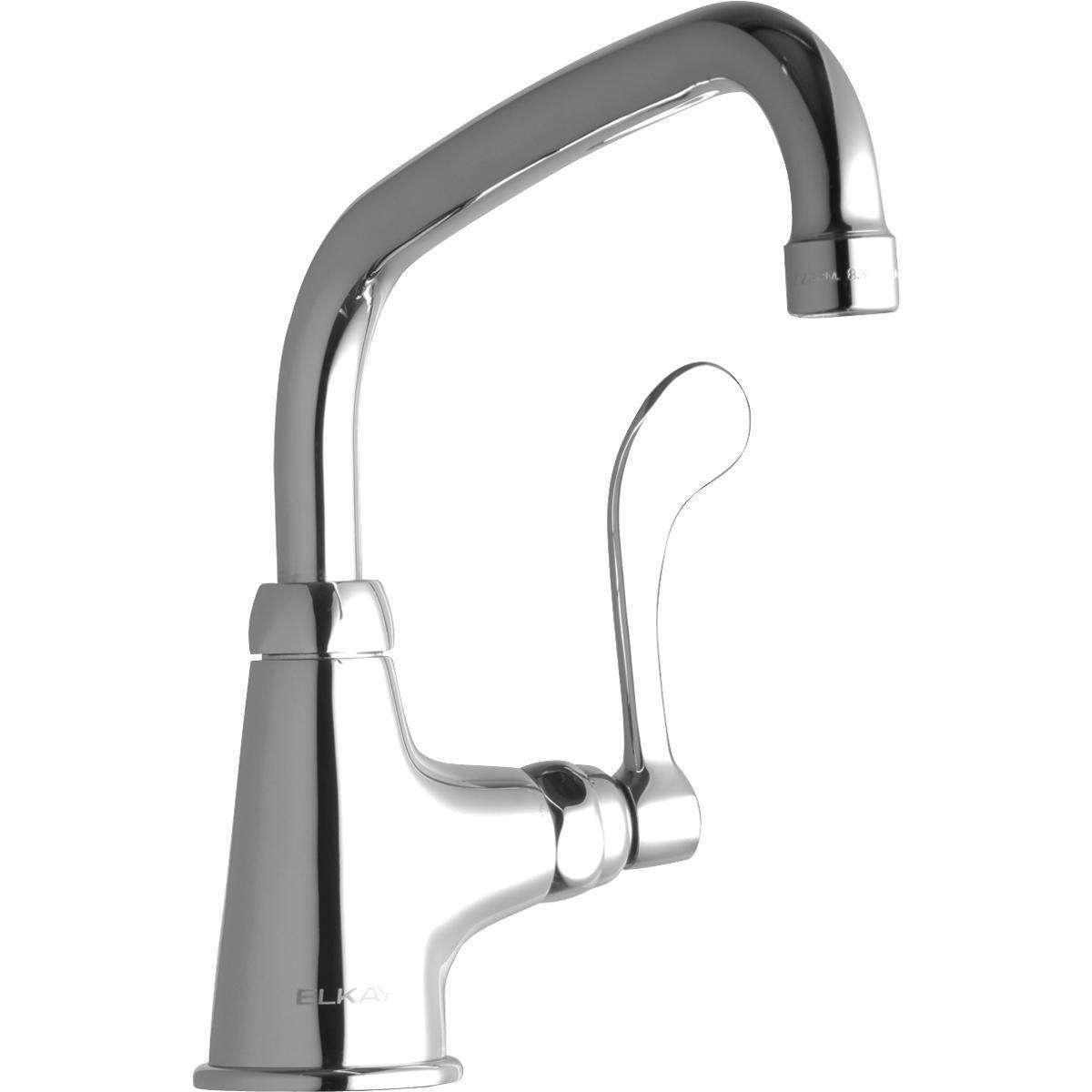

The Elkay LK535AT08T4 is a lead-free single hole with single control faucet with 8" arc tube spout 4" wristblade handle chrome. It delivers 1.5 GPM. It features a brass body. This model is certified lead-free for potable-water installations.
Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Features
- ADA COMPLIANT: Faucet is ADA compliant.
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- LOW FLOW: Includes water-saving features.
- SOLID BRASS CONSTRUCTION: Built for long-term durability.
- INCLUDES VANDAL-RESISTANT AERATOR: Comes installed with 1.5 GPM water-saving, vandal-resistant aerator; 2.2 and .5 GPM aerator inserts included.
- SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
- 1 FAUCET HOLE: Faucet designed to be installed using one faucet hole.
Common Questions
- What is the flow rate?
- 1.5 GPM as shipped.
Specifications
- Type: Single Hole with Single Control Faucet with 8" Arc Tube Spout 4" Wristblade Handle Chrome
- Inlet Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Country of Origin: China
- MPN: LK535AT08T4
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
- Lead-Free: Yes
- Cartridge Type: Ceramic 1/4-Turn
- Centers: Single-Hole
- Spout Type: Arc Tube
- Deck Clearance (in): 6.5
- Mount Type: Deck-Mount
- Handle Style: Wristblade
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Faucet Holes: 1
- Overall Length (in): 4.25
- Overall Width (in): 9.6875
- Overall Height (in): 9.125
- Spout Reach (in): 8.0
- Spout Height (in): 9.125
- Handles: 1
- Handle Length (in): 4.0
Product Information

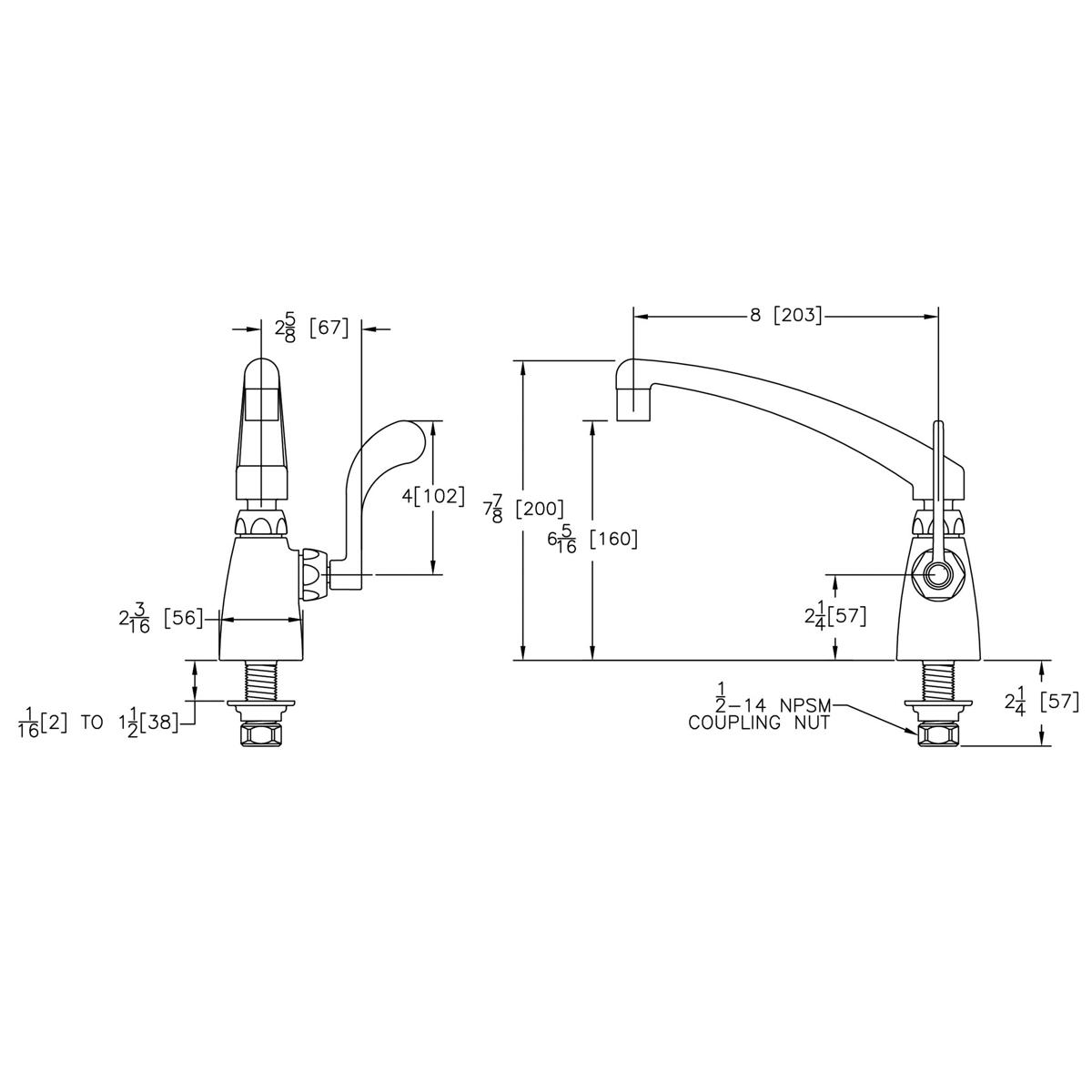

Dimensions
| Inlet Size | 1/2" | End Connection | NPSM |
Details
| Series | LK535AT08T4 | Device Type | Single Hole with Single Control Faucet with 8" Arc Tube Spout 4" Wristblade Handle Chrome |
| Lead Free | Yes | Body Material | Brass |
| Coating | Polished Chrome | Flow rate gpm | 1.5 GPM |
| Handle style | Wristblade | Hole count | 1 |
| Mount type | Deck-Mount | Overall height in | 9.125 in |
| Overall length in | 4.25 in | Overall width in | 9.6875 in |
| Cartridge type | Ceramic 1/4-Turn | Centers | Single-Hole |
| Deck clearance in | 6.5 | Handle count | 1 |
| Handle length in | 4.0 | Spout height in | 9.125 |
| Spout reach in | 8.0 | Spout type | Arc Tube |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
| NSF-372 | IAPMO |
| ADA | — |
Compare with similar products
| Series | LK535AT08T4
| LKDVR208513LC
| LKDVR208513C
| LKD20888C
| LKD208813C
| LKD20858C
|
| Country Of Origin | China
| China
| China
| China
| China
| China
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Single Hole with Single Control Faucet with 8" Arc Tube Spout 4" Wristblade Handle Chrome
| Single Hole 12-1/2" Vandal Resistant Deck Mount Faucet with Gooseneck Spout Lever Handle on Left Side Chrome
| Single Hole 12-1/2" Vandal Resistant Deck Mount Faucet with Gooseneck Spout Lever Handle on Right Side Chrome
| Single Hole 8-5/8" Deck Mount Faucet with Gooseneck Spout Twin Lever Handles Chrome
| Single Hole 12-1/2" Deck Mount Faucet with Gooseneck Spout Twin Lever Handles Chrome
| Single Hole 8-5/8" Deck Mount Faucet with Gooseneck Spout Lever Handle on Right Side Chrome
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
|
