Elkay Single Hole with Concealed Deck Faucet with 10" Arc Tube Spout 4" Wristblade Handles Chrome LK500AT10T4

Elkay Single Hole with Concealed Deck Faucet with 10" Arc Tube Spout 4" Wristblade Handles Chrome

• Spout Height: 9.125
• Spout Reach: 10
• Spout Type: Arc Tube
• Spray Type: None
• Number of Handles: 2
• Handle Type: 4" Wristblade Handle

Features
• LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
• LOW FLOW: Includes water-saving features.
• SOLID BRASS CONSTRUCTION: Built for long-term durability.
• INCLUDES VANDAL-RESISTANT AERATOR: Comes installed with 1.5 GPM water-saving, vandal-resistant aerator; 2.2 and .5 GPM aerator inserts included.
• SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
• 1 FAUCET HOLE: Faucet designed to be installed using one faucet hole.
• 1.5 GPM VR aerator installed with 2.2 and .5 GPM inserts included

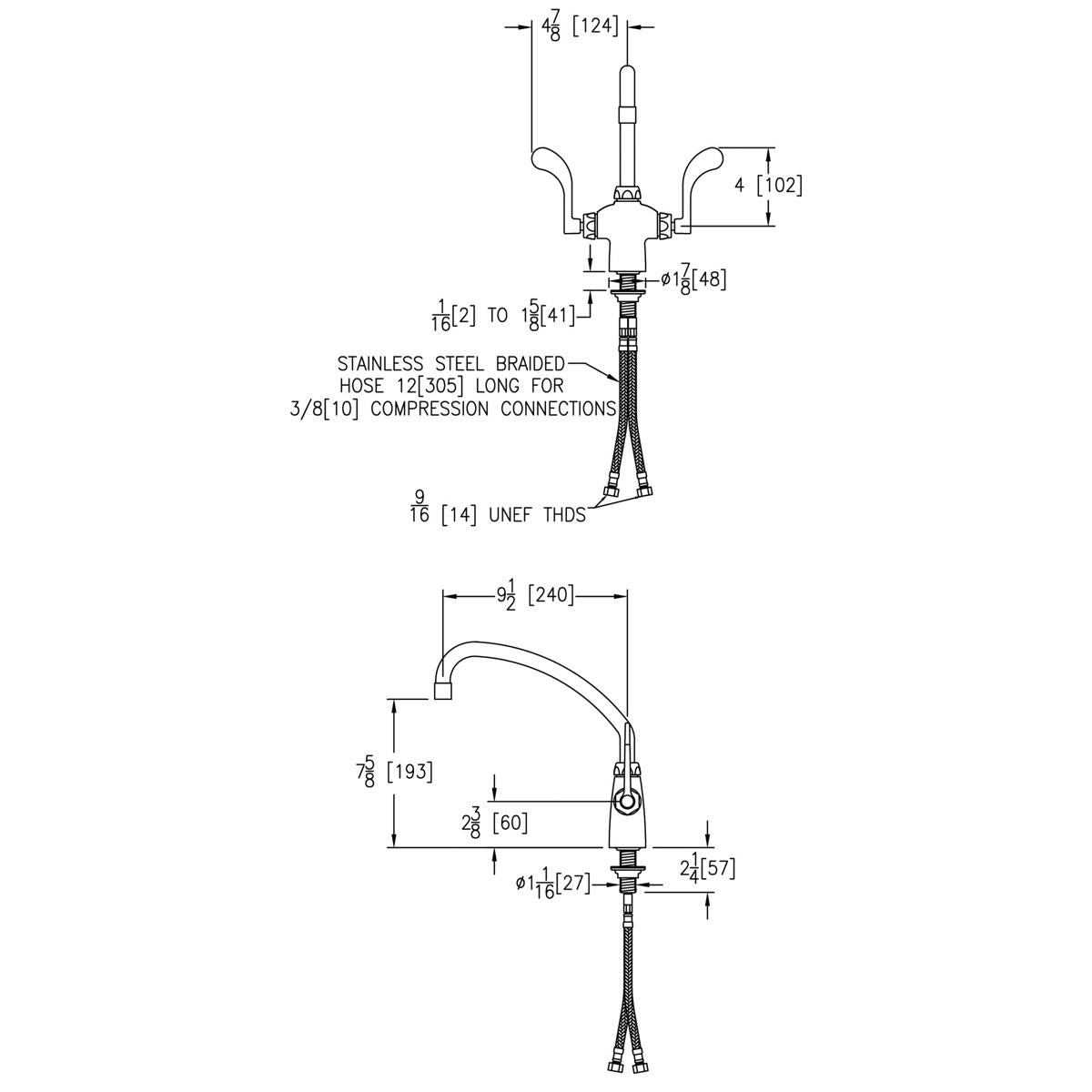

• Item Dimensions: 7-7/8 x 11-11/16 x 11-5/8

Product Compliance
• Is ADA Compliant: Yes
• ADA & ICC A117.1| ASME A112.18.1/CSA B125.1| CEC| NSF 61| NSF 372 (lead free)
Downloads

Spec Sheet

Installation Instructions
