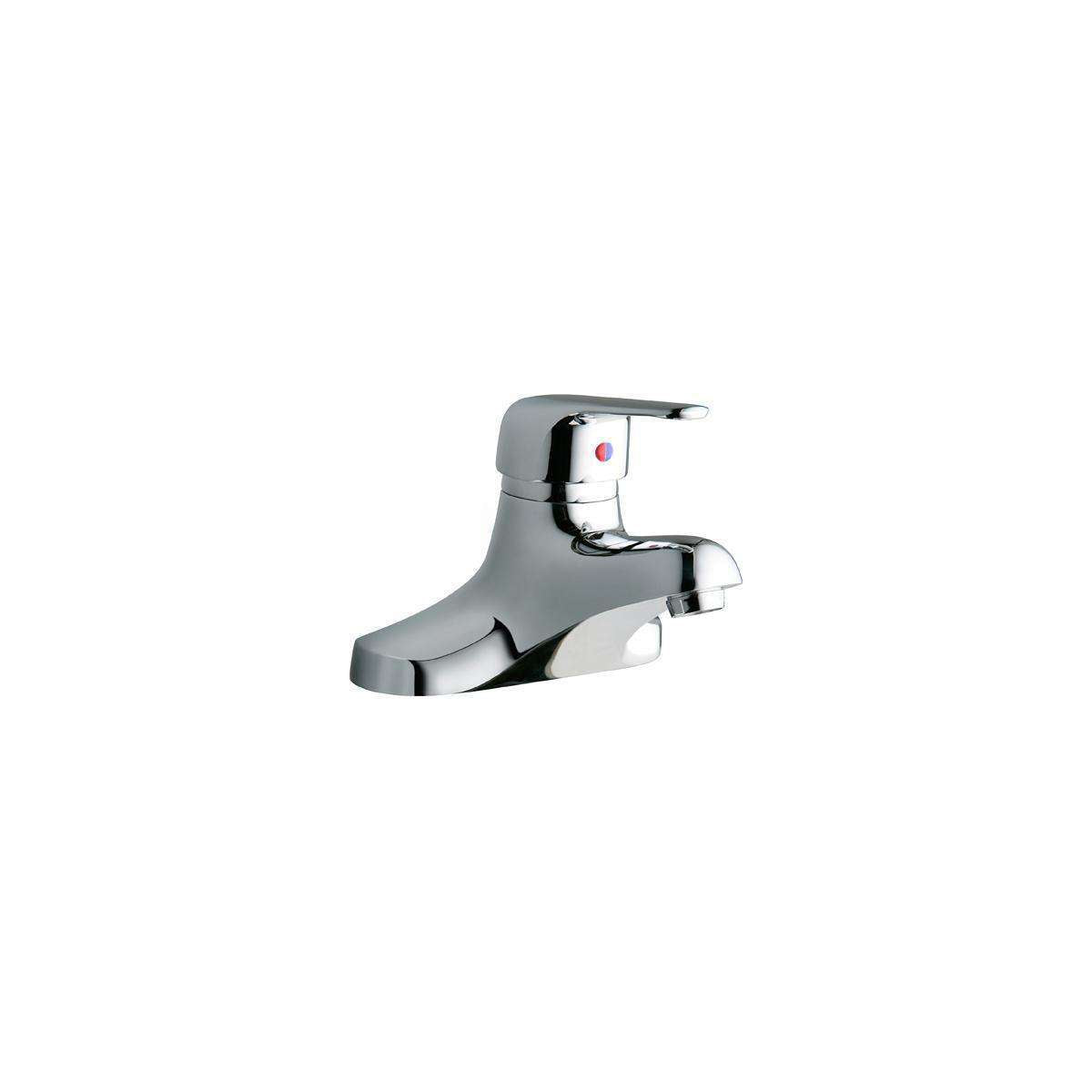

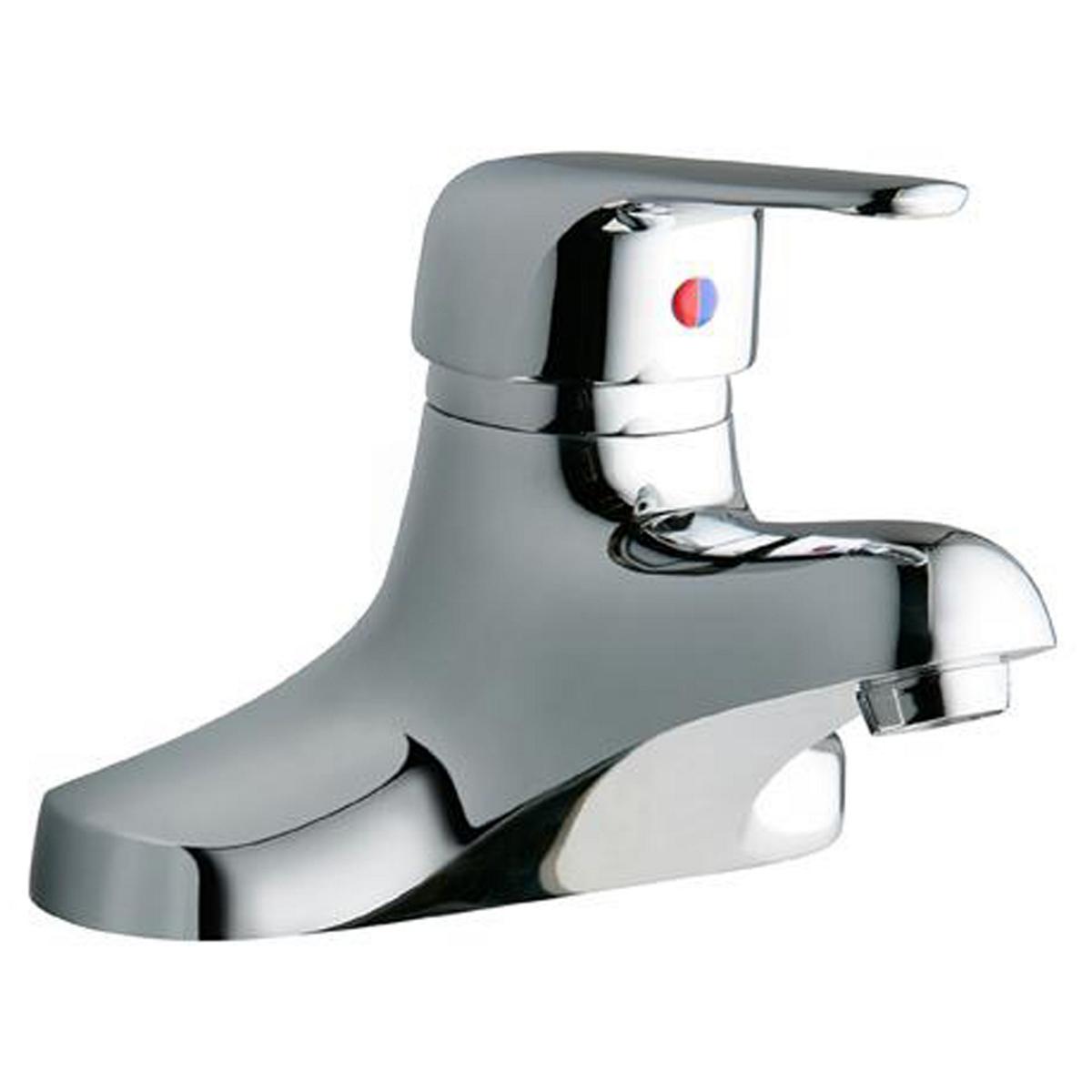

The Elkay LK422L4 is a lead-free 4" centerset with exposed deck lavatory faucet integral spout single control 4" wristblade handle chrome. It delivers 0.5 GPM. It features a brass body. This model is certified lead-free for potable-water installations.
Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Features
- ADA COMPLIANT: Faucet is ADA compliant.
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- SOLID BRASS CONSTRUCTION: Built for long-term durability.
- 2 FAUCET HOLES: Faucet designed to be installed using two faucet holes.
- 4" HOLE SPREAD: Faucets designed to be installed using 4" hole spread.
- FLOW RATE: Max flow rate is 0.5 GPM.
Common Questions
- What is the flow rate?
- 0.5 GPM as shipped.
Specifications
- Type: 4" Centerset with Exposed Deck Lavatory Faucet Integral Spout Single Control 4" Wristblade Handle Chrome
- Inlet Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Country of Origin: China
- MPN: LK422L4
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
- Lead-Free: Yes
- Cartridge Type: Ceramic 1/4-Turn
- Centers: 4"
- Spout Type: Fixed
- Deck Clearance (in): 2.0
- Mount Type: Deck-Mount
- Handle Style: Wristblade
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 0.5
- Faucet Holes: 2

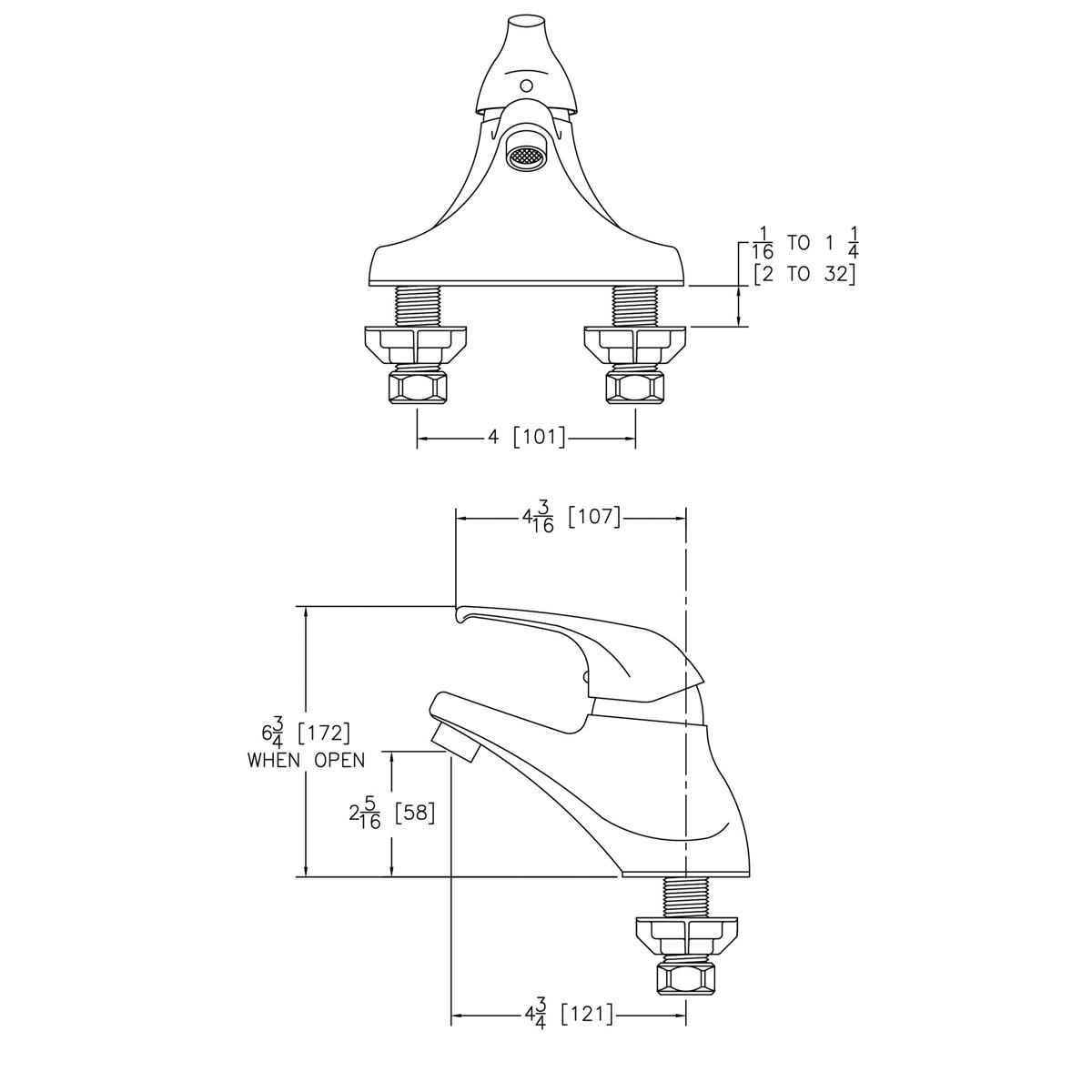

- Overall Length (in): 6.0
- Overall Width (in): 6.625
- Overall Height (in): 7.4375
- Spout Reach (in): 4.75
- Spout Height (in): 5.125
- Handles: 1
- Handle Length (in): 4.0
Product Information
Dimensions
| Inlet Size | 1/2" | End Connection | NPSM |
Details
| Series | LK422L4 | Device Type | 4" Centerset with Exposed Deck Lavatory Faucet Integral Spout Single Control 4" Wristblade Handle Chrome |
| Lead Free | Yes | Body Material | Brass |
| Coating | Polished Chrome | Flow rate gpm | 0.5 GPM |
| Handle style | Wristblade | Hole count | 2 |
| Mount type | Deck-Mount | Overall height in | 7.4375 in |
| Overall length in | 6.0 in | Overall width in | 6.625 in |
| Cartridge type | Ceramic 1/4-Turn | Centers | 4" |
| Deck clearance in | 2.0 | Handle count | 1 |
| Handle length in | 4.0 | Spout height in | 5.125 |
| Spout reach in | 4.75 | Spout type | Fixed |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
| NSF-372 | IAPMO |
| ADA | — |
Compare with similar products
| Series | LK422L4
| Z871B1-XL
| Z812A4-XL-FC0.5
| Z812A4-XL-3F
| Z812A4-XL-FC
| Z871B4-XL
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | 4" Centerset with Exposed Deck Lavatory Faucet Integral Spout Single Control 4" Wristblade Handle Chrome
| 8" Brass Deck Faucet with a 5-3/8" Centerline Rigid or Swing Gooseneck Spout
| AquaSpec Centerset 3-1/2" Gooseneck Faucet with 4" Wrist Blade Handles
| AquaSpec Centerset 3-1/2" Gooseneck Faucet with 4" Wrist Blade Handles
| AquaSpec Centerset 3-1/2" Gooseneck Faucet with 4" Wrist Blade Handles
| 8" Brass Deck Faucet with a 5-3/8" Centerline Rigid or Swing Gooseneck Spout and 4" Wrist Blade Handles
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPSM
| NPSM
| NPSM
| NPSM
| NPSM
| NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| NSF-372, ASME A112.18.1/CSA B125.1, ADA
| NSF-61, NSF-372, ASME A112.18.1/CSA B125.1, ADA, WaterSense
| NSF-61, NSF-372, ASME A112.18.1/CSA B125.1, ADA, WaterSense
| NSF-61, NSF-372, ASME A112.18.1/CSA B125.1, ADA, WaterSense
| NSF-372, ADA
|
