Specifications
Description
The Elkay LK406LGN05T6 is a lead-free 4" centerset with exposed deck laminar flow faucet with 5" gooseneck spout 6" wristblade handles chrome. It delivers 1.5 GPM. It features a brass body. This model is certified lead-free for potable-water installations.
Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Features
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- LOW FLOW: Includes water-saving features.
- SOLID BRASS CONSTRUCTION: Built for long-term durability.
- 2 FAUCET HOLES: Faucet designed to be installed using two faucet holes.
- 4" HOLE SPREAD: Faucets designed to be installed using 4" hole spread.
- ADA COMPLIANT: Faucet is ADA compliant.
Common Questions
- What is the flow rate?
- 1.5 GPM as shipped.
Specifications
- Type: 4" Centerset with Exposed Deck Laminar Flow Faucet with 5" Gooseneck Spout 6" Wristblade Handles Chrome
- Inlet Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Country of Origin: United States
- MPN: LK406LGN05T6
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
- Lead-Free: Yes
- Cartridge Type: Ceramic 1/4-Turn
- Centers: 4"
- Spout Type: Gooseneck
- Deck Clearance (in): 8.125
- Mount Type: Deck-Mount
- Handle Style: Wristblade
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Faucet Holes: 2
- Overall Length (in): 16.0
- Overall Width (in): 6.5
- Overall Height (in): 12.8125
- Spout Reach (in): 5.0
- Spout Height (in): 10.75
- Handles: 2
- Handle Length (in): 6.0
Product Information

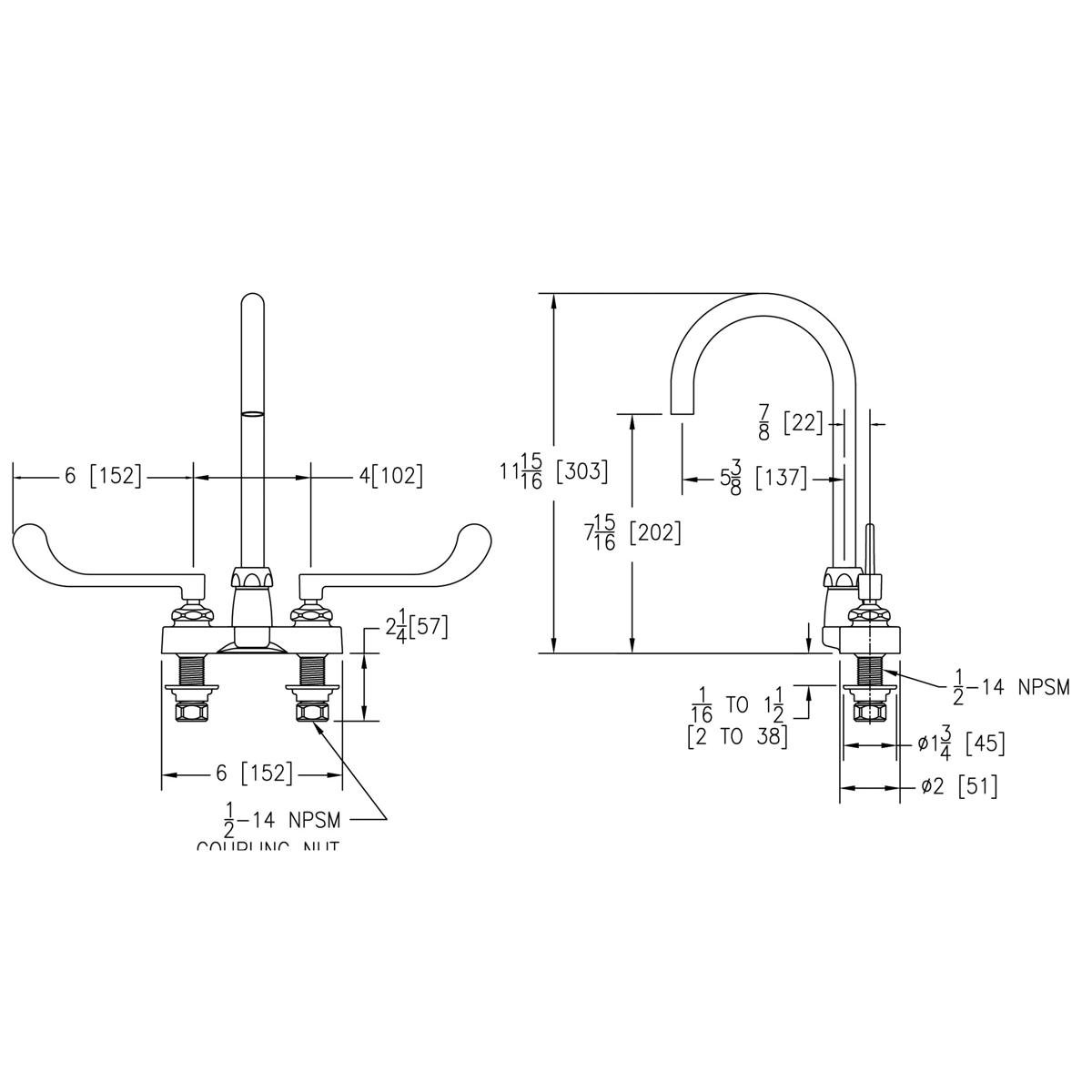

Dimensions
| Inlet Size | 1/2" | End Connection | NPSM |
Details
| Series | LK406LGN05T6 | Device Type | 4" Centerset with Exposed Deck Laminar Flow Faucet with 5" Gooseneck Spout 6" Wristblade Handles Chrome |
| Lead Free | Yes | Body Material | Brass |
| Coating | Polished Chrome | Flow rate gpm | 1.5 GPM |
| Handle style | Wristblade | Hole count | 2 |
| Mount type | Deck-Mount | Overall height in | 12.8125 in |
| Overall length in | 16.0 in | Overall width in | 6.5 in |
| Cartridge type | Ceramic 1/4-Turn | Centers | 4" |
| Deck clearance in | 8.125 | Handle count | 2 |
| Handle length in | 6.0 | Spout height in | 10.75 |
| Spout reach in | 5.0 | Spout type | Gooseneck |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
| NSF-372 | IAPMO |
| ADA | — |
Compare with similar products
| Series | LK406LGN05T6
| LK500GN08T4
| LK500GN05L2
| LK406GN08T4
| LK406GN05L2
| LK406GN05T4
|
| Country Of Origin | United States
| China
| China
| China
| China
| China
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | 4" Centerset with Exposed Deck Laminar Flow Faucet with 5" Gooseneck Spout 6" Wristblade Handles Chrome
| Single Hole with Concealed Deck Faucet with 8" Gooseneck Spout 4" Wristblade Handles Chrome
| Single Hole with Concealed Deck Faucet with 5" Gooseneck Spout 2" Lever Handles Chrome
| 4" Centerset with Exposed Deck Faucet with 8" Gooseneck Spout 4" Wristblade Handles Chrome
| 4" Centerset with Exposed Deck Faucet with 5" Gooseneck Spout 2" Lever Handles Chrome
| 4" Centerset with Exposed Deck Faucet with 5" Gooseneck Spout 4" Wristblade Handles Chrome
|
| Inlet Size | 1/2"
| 1-1/8"
| 1-1/8"
| 1/2"
| 1/2"
| 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPSM
| Unified Screw Thread
| Unified Screw Thread
| NPSM
| NPSM
| NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
|
