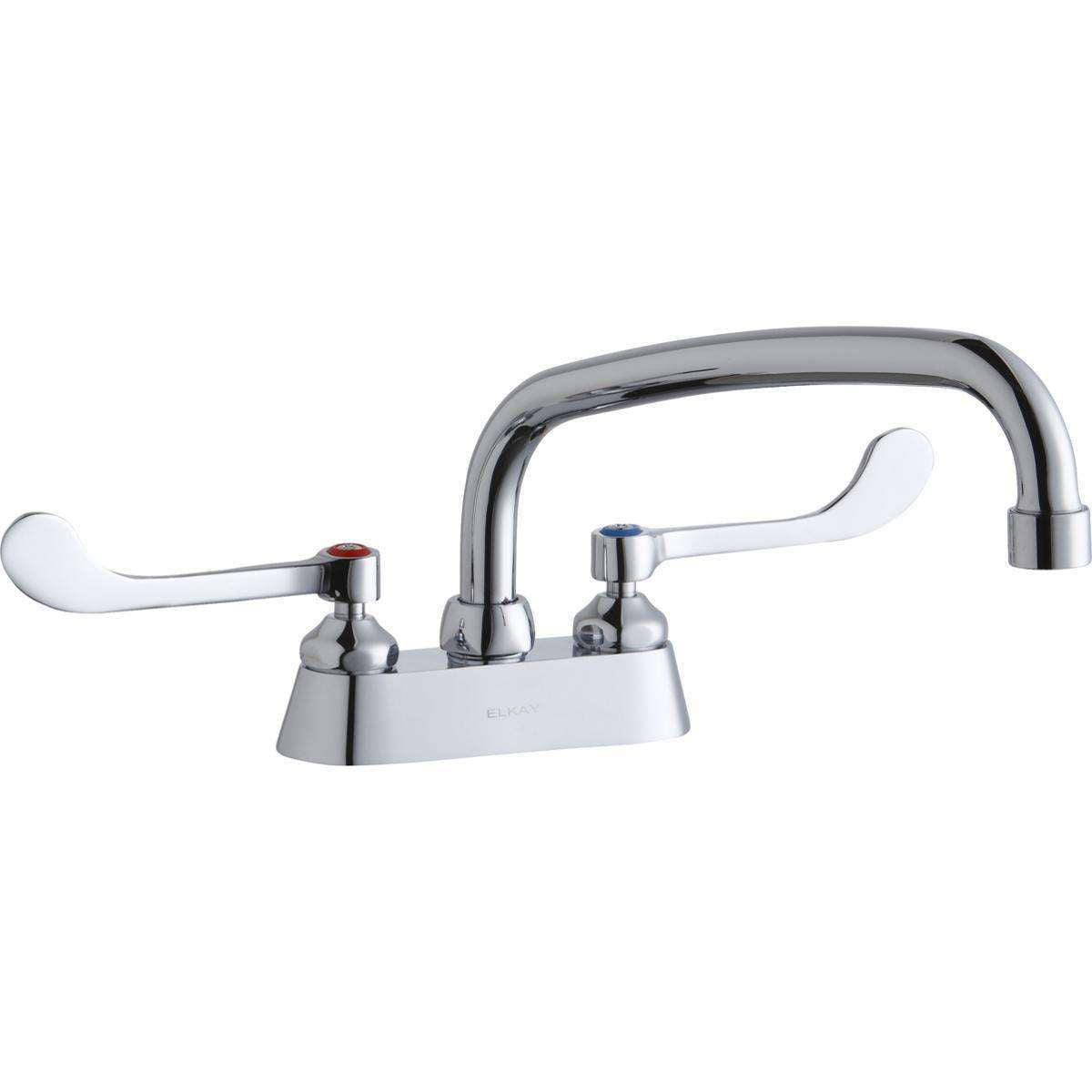

Elkay 4" Centerset with Exposed Deck Faucet with 10" Arc Tube Spout 6" Wristblade Handles LK406AT10T6

Elkay 4" Centerset with Exposed Deck Faucet with 10" Arc Tube Spout 6" Wristblade Handles

• Spout Height: 6.5
• Spout Reach: 10
• Spout Type: Arc Tube
• Spray Type: None
• Number of Handles: 2
• Handle Type: 6" Wristblade Handle

Features
• LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
• LOW FLOW: Includes water-saving features.
• SOLID BRASS CONSTRUCTION: Built for long-term durability.
• INCLUDES TWO AERATORS: Comes installed with 1.5 GPM water-saving aerator; optional 2.2 GPM aerator insert included.
• SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
• 2 FAUCET HOLES: Faucet designed to be installed using two faucet holes.
• 4" HOLE SPREAD: Faucets designed to be installed using 4" hole spread.
• 1.5 GPM flow regulator installed (2.2 GPM flow regulator also included with faucet)
• Item Dimensions: 16 x 11-1/2 x 8-3/8

Product Compliance
• Is ADA Compliant: Yes
• ADA & ICC A117.1| ASME A112.18.1/CSA B125.1| CEC| NSF 61| NSF 372 (lead free)
Downloads

Spec Sheet

Installation Instructions
