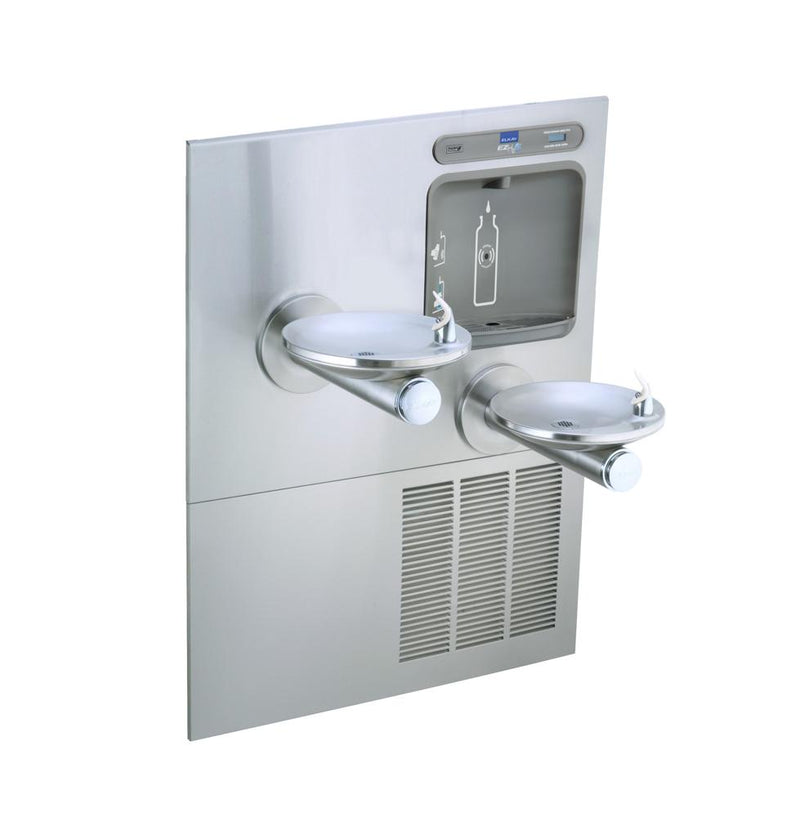

Elkay ezH2O Bottle Filling Station w/ Bi-Level Integral SwirlFlo Fountain Refrigerated, Non-Filtered EZWS-ERPBM28K

The Elkay EZWS-ERPBM28K is a non-filtered bi-level bottle filling station, in-wall, 8.0 GPH. It features a stainless steel body.

ezH2O® Bottle Filling Station w/ Bi-Level Integral SwirlFlo® Fountain Refrigerated Non-Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial*, Green Ticker™, Hands Free, Laminar Flow, Real Drain. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (Inwall Frame/Plate), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.

Features

• Mechanically-Activated unit continues to supply water in
• Green Ticker: Informs user of number of 20 oz. plastic water
• Laminar flow provides clean fill with minimal splash.
• Key plastic components are manufactured with silver ion
• Real Drain System eliminates standing water.
• Compressor: Hermetically-sealed, reciprocating type,
• Condenser: Fan cooled, copper tube with aluminum
• Cooling Unit: Combination tube-tank type. Continuous
• Refrigerant Control: Refrigerant R-134a is controlled by
• Temperature Control: Easily accessible enclosed

Common Questions

Is this unit filtered?

No, this is a non-filtered unit.

Does this satisfy the ADA hi/lo pair requirement?

Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.

How much chilled water does it deliver?

8.0 GPH of 50°F water per ASHRAE 18 test conditions.

What electrical supply does it need?

115V/60Hz, 370W.

How does this mount?

In-Wall installation.

Specifications

• Type: ezH2O® Bottle Filling Station w/ Bi-Level Integral SwirlFlo®
• Body Material: Stainless Steel
• Operation: Sensor
• MPN: EZWS-ERPBM28K
• Certifications: ADA, NSF-61, UL-399, UL
• Chilling Capacity (GPH): 8.0
• Refrigerated: Yes
• Filtered: No
• Stations Served: 2
• Bi-Level: Yes
• Bubbler Style: Flexi-Guard Safety Bubbler
• Electrical Requirement: 115V/60Hz
• Rated Watts: 370
• Full Load Amps: 1.0
• Installation Location: Indoor
• Overall Length (in): 38.5
• Overall Width (in): 19.0
• Overall Height (in): 55.0625
