Specifications
Description

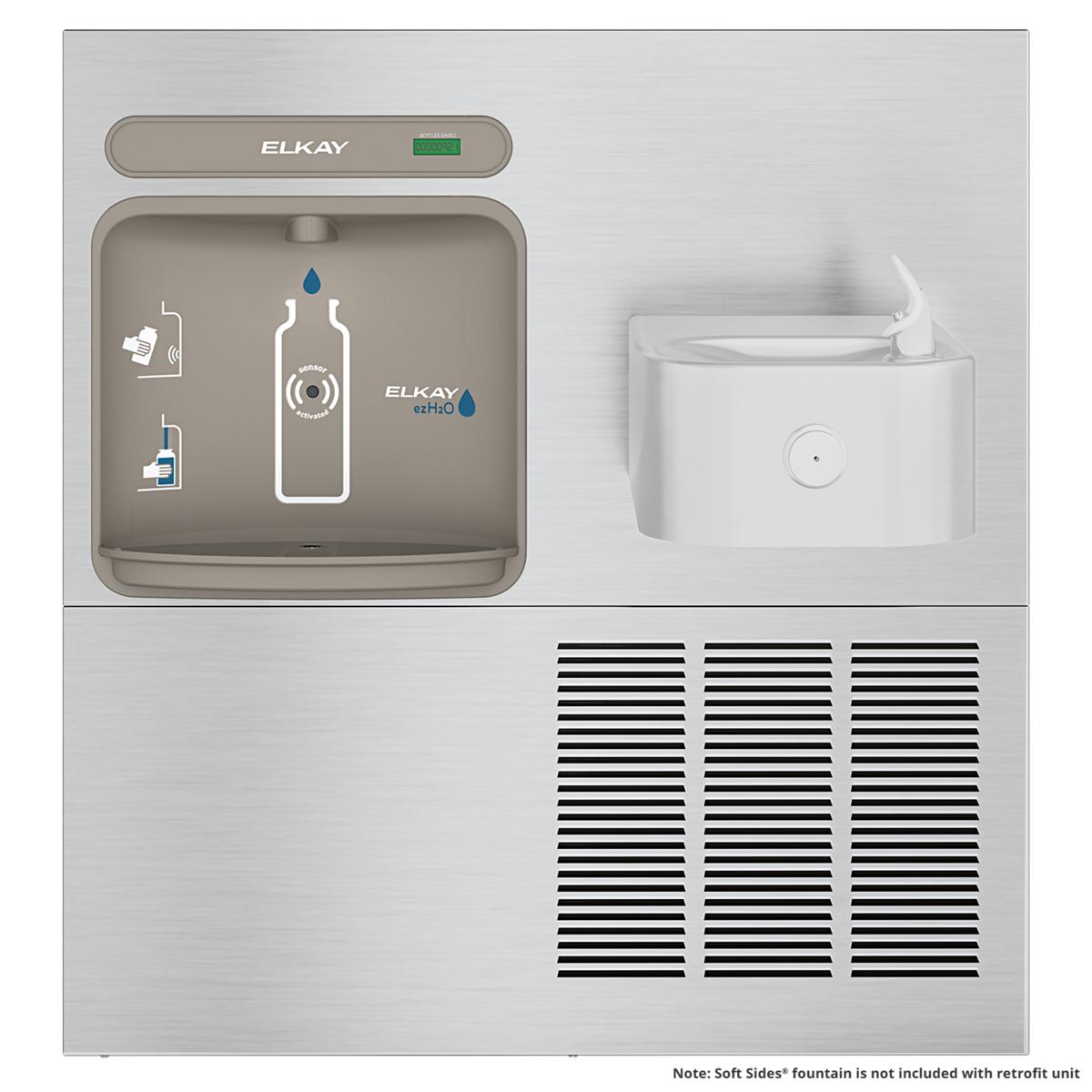

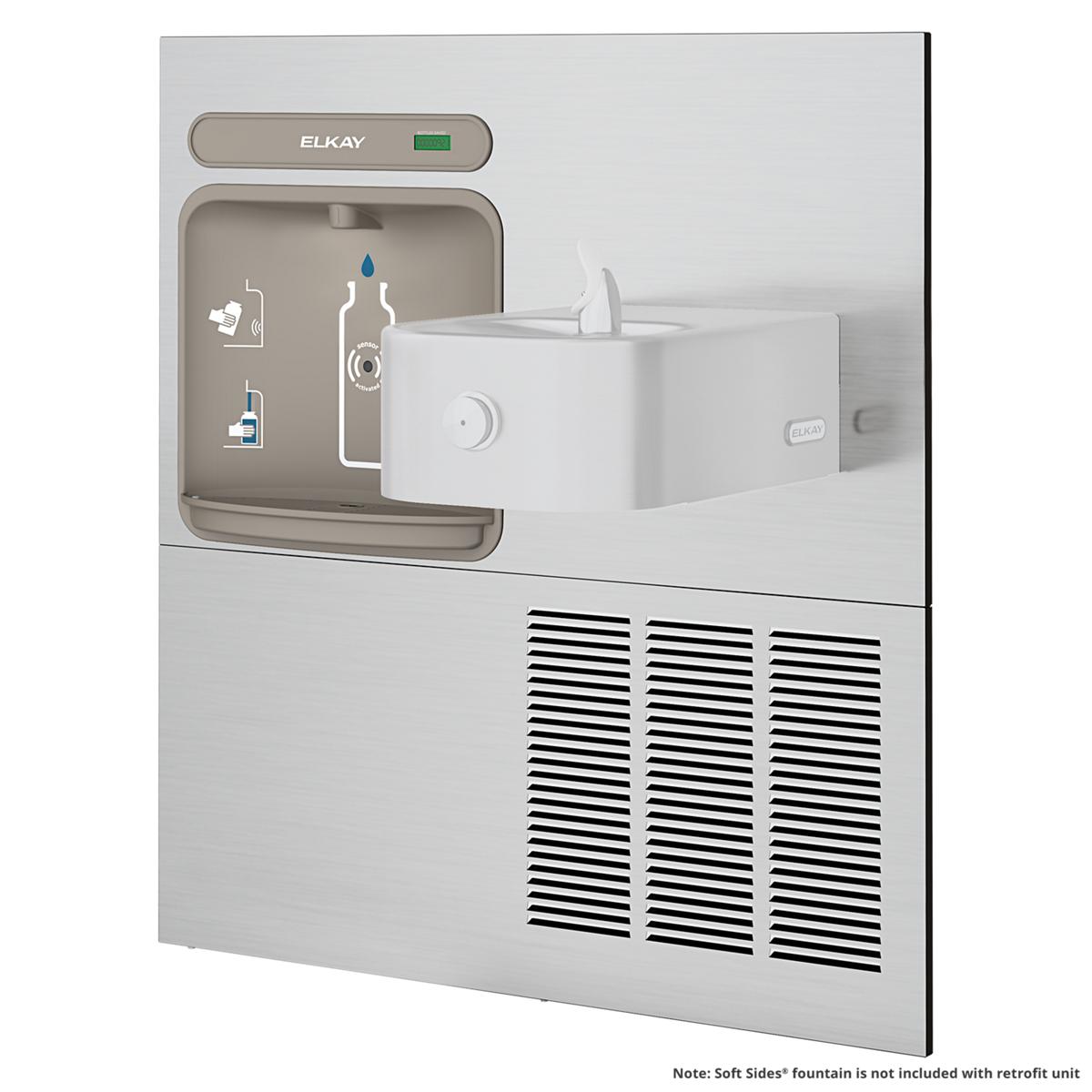

The Elkay EZWS-ERFP8-RF is a non-filtered bottle filling station, in-wall, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Designed to retrofit existing bi-level refrigerated Soft Sides fountains. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
Features
- Touchless, sensor activation (bottle filler) designed to retrofit with an existing refrigerated push-button fountain.
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
- Fill rate is 1.1 GPM.
- Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
- Ships with new top panel, frame and integral ezH2O station.
- Real drain system eliminates standing water.
- Rated for indoor use.
- Bottle filler meets ADA guidelines for reach range; fountain meets ADA guidelines for wheelchair access.
Common Questions
- Is this unit filtered?
- No, this is a non-filtered unit.
- Is this ADA compliant?
- Yes, this model meets ADA / ICC A117.1 accessibility requirements.
- How much chilled water does it deliver?
- 8.0 GPH of 50°F water per ASHRAE 18 test conditions.
- What electrical supply does it need?
- 115V/60Hz, 15W.
- How does this mount?
- In-Wall installation.
Specifications
- Type: ezH2O Retrofit Bottle Filling Station & Soft Sides Fountain Non-Filtered Refrigerated Stainless
- Body Material: Stainless Steel
- Operation: Sensor + Push Button
- Country of Origin: United States
- MPN: EZWS-ERFP8-RF
- Certifications: NSF-61, NSF-372, UL-399, cUL, UL, ADA
- Lead-Free: Yes
- Chilling Capacity (GPH): 8.0
- Refrigerated: Yes
- Filtered: No
- Stations Served: 2
- Bubbler Style: Flexi-Guard Safety Bubbler
- Electrical Requirement: 115V/60Hz
- Rated Watts: 15
- Full Load Amps: 1.0
- Installation Location: Indoor
- Overall Length (in): 38.5
- Overall Width (in): 19.25
- Overall Height (in): 40.8125
Product Information
Details
| Series | EZWS-ERFP8-RF | Device Type | ezH2O Retrofit Bottle Filling Station & Soft Sides Fountain Non-Filtered Refrigerated Stainless |
| Lead Free | Yes | Body Material | Stainless Steel |
| Operation | Sensor + Push Button | Baa | USA |
| Electrical requirement | 115V/60Hz | Full load amps | 1.0 |
| Installation location | Indoor | Overall height in | 40.8125 in |
| Overall length in | 38.5 in | Overall width in | 19.25 in |
| Rated watts | 15 | Bubbler style | Flexi-Guard Safety Bubbler |
| Chilling capacity gph | 8.0 | Refrigerated | Yes |
| Stations | 2 | — | — |
Certifications & Standards
| NSF-61 | NSF-372 |
| UL-399 | cUL |
| UL | ADA |
Compare with similar products
| For Use With | — | EZ Family
| — | — | EZ Family
| — |
| Series | EZWS-ERFP8-RF
| EZWSRK
| LZWS-ERPB8-RF
| LZWS-ERFP8-RF
| LZWSRK
| EZWS-ERPB8-RF
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | ezH2O Retrofit Bottle Filling Station & Soft Sides Fountain Non-Filtered Refrigerated Stainless
| ezH2O RetroFit Bottle Filling Station Kit for EZ Family Non-Filtered Non-Refrigerated
| ezH2O Retrofit Bottle Filling Station with SwirlFlo Fountain Filtered Refrigerated Stainless
| ezH2O Retrofit Bottle Filling Station for Soft Sides Fountain Filtered Refrigerated Stainless
| ezH2O RetroFit Bottle Filling Station Kit for EZ Family Filtered Non-Refrigerated
| ezH2O Retrofit Bottle Filling Station with SwirlFlo Fountain Non-Filtered Refrigerated Stainless
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Operation | Sensor + Push Button
| Sensor
| Sensor + Push Button
| Sensor + Push Button
| Sensor
| Sensor + Push Button
|
| Certifications | NSF-61, NSF-372, UL-399, cUL, UL, ADA
| NSF-61, NSF-372, UL-399, cUL, UL, ADA
| NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| NSF-61, NSF-372, UL-399, cUL, UL, ADA
|
