Specifications
Description

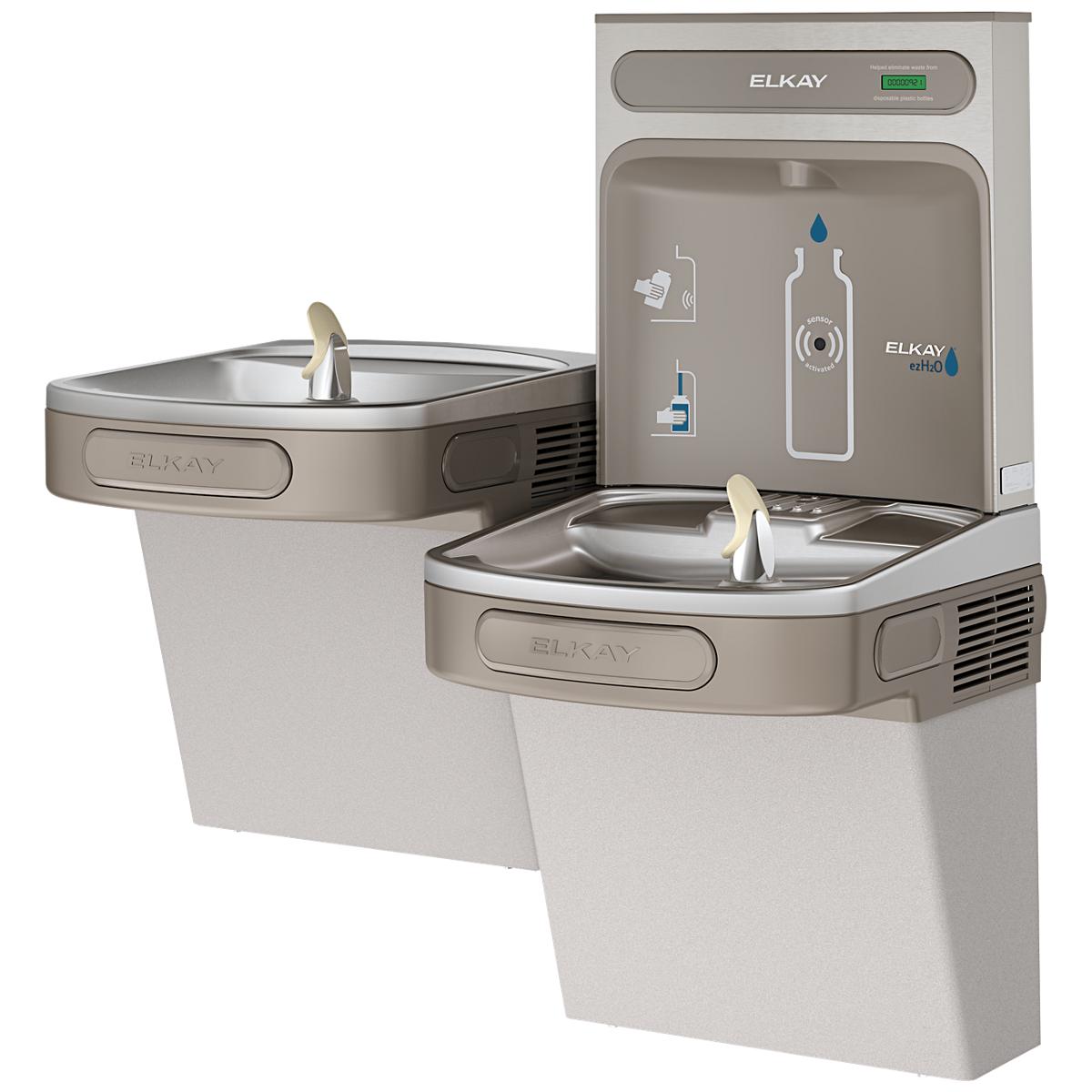

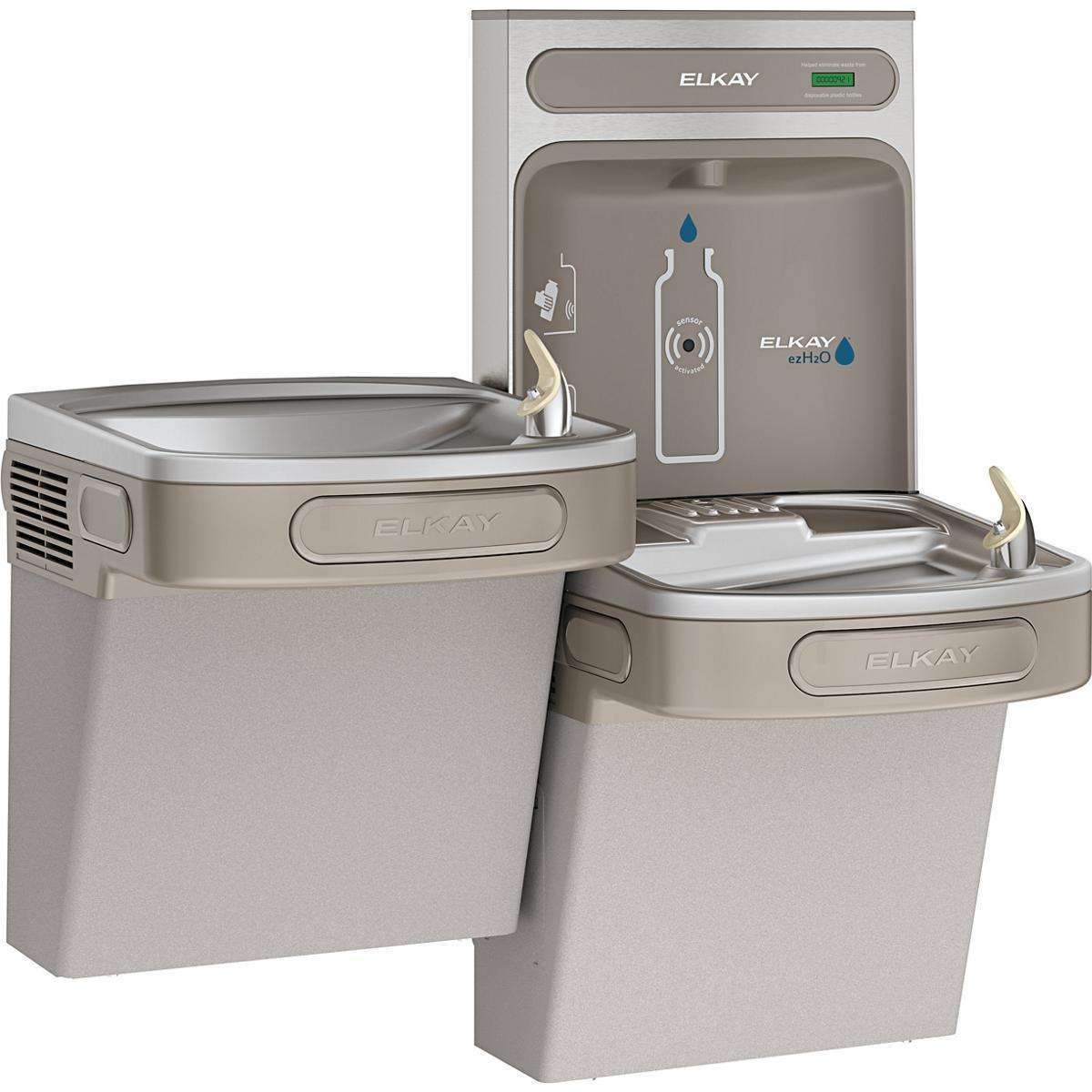

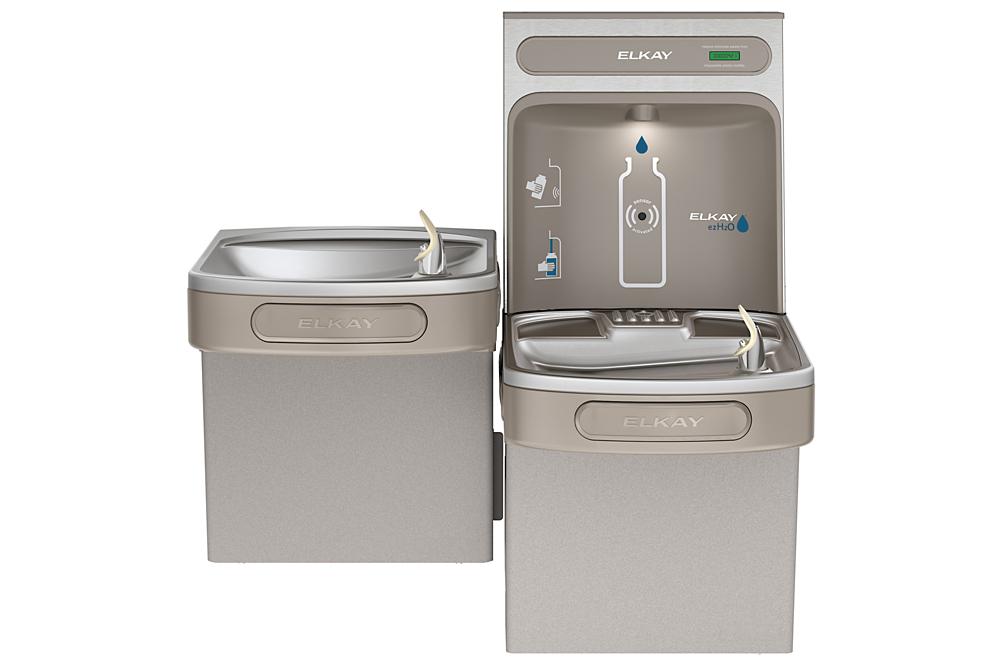

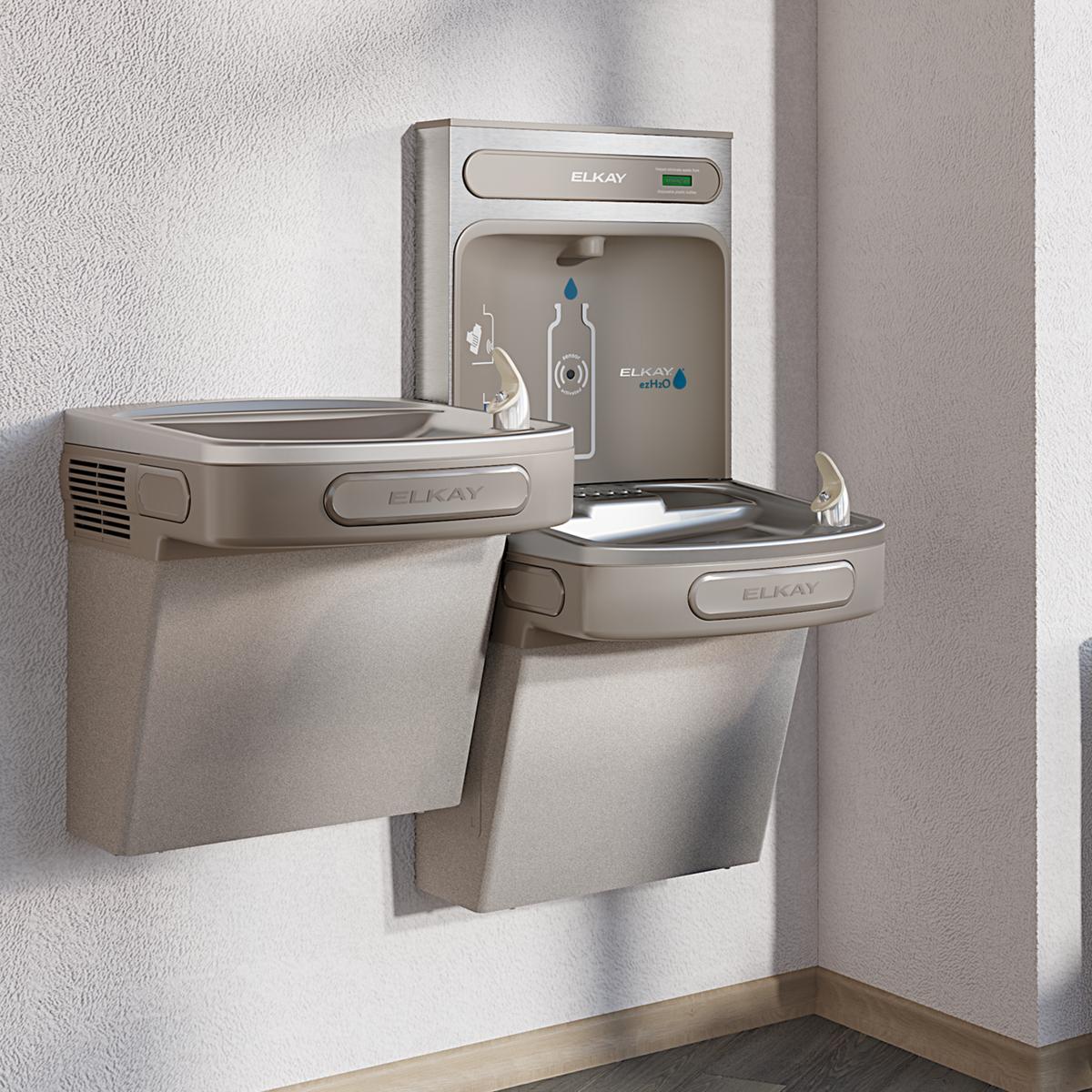

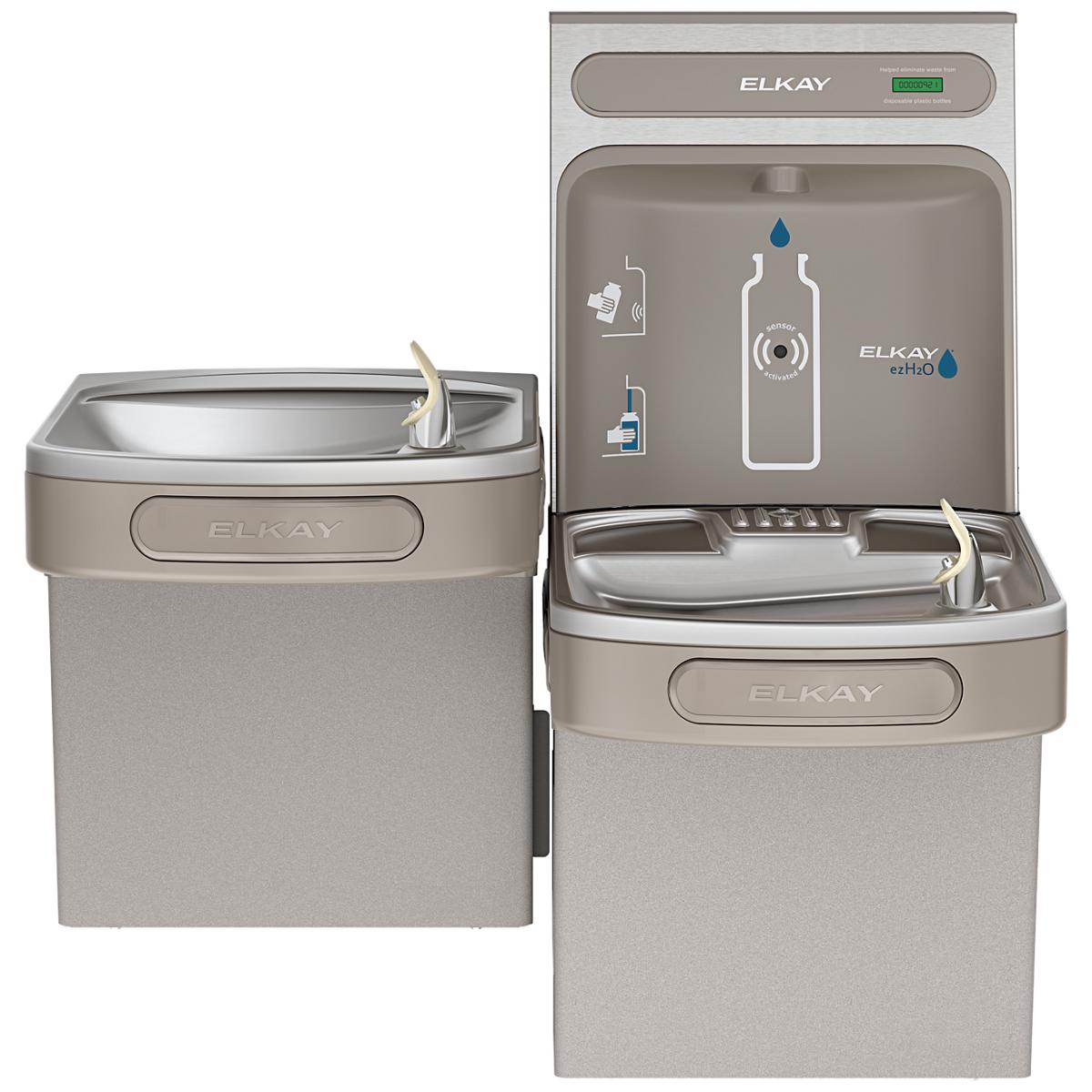

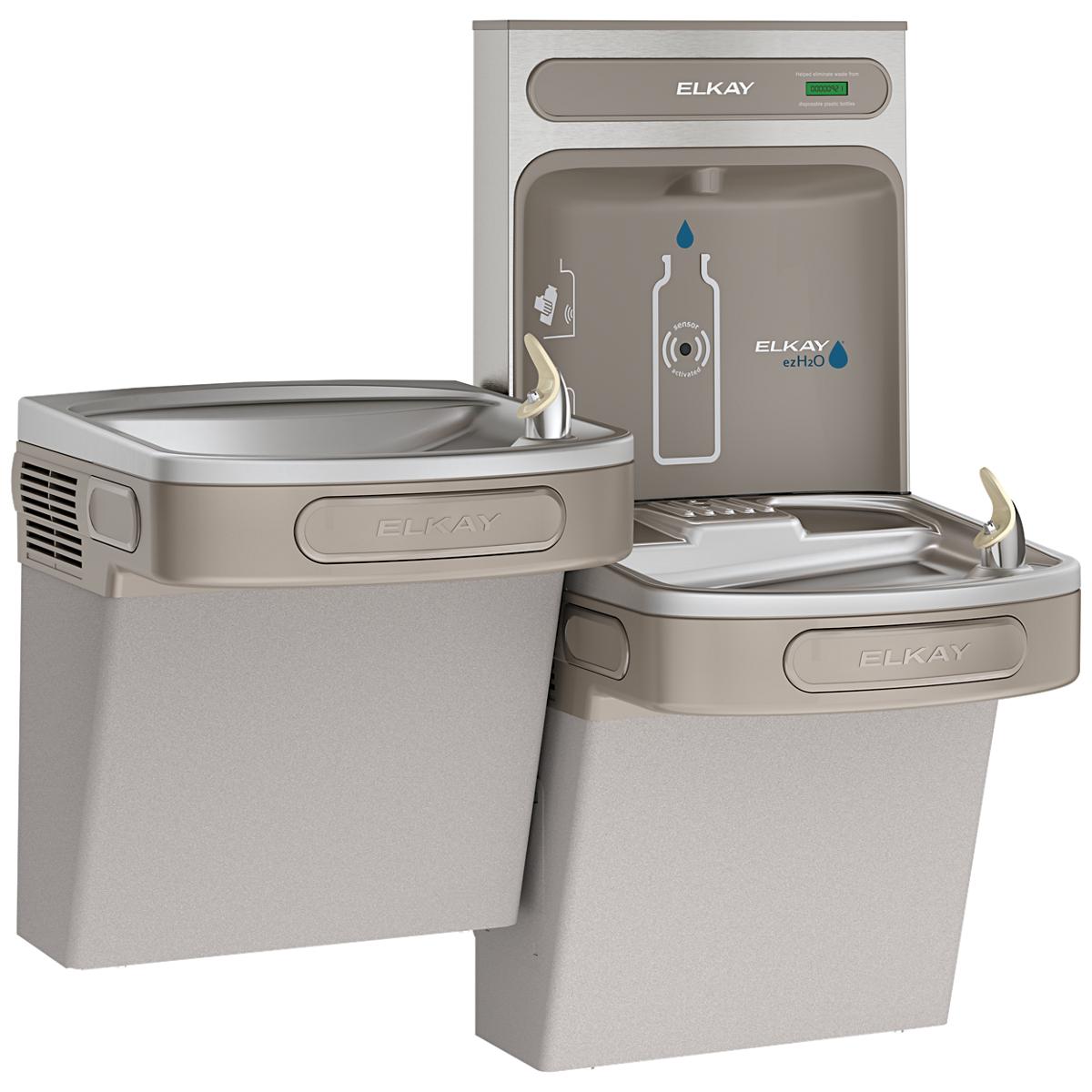

The Elkay EZSTL8WSLK is a non-filtered bi-level bottle filling station, wall-mount, 8.0 GPH. This model is certified lead-free for potable-water installations.
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.
Features
- Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
- Fill rate is 1.1 GPM.
- Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
- Real drain system eliminates standing water.
- Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
- Rated for indoor use.
Common Questions
- Is this unit filtered?
- No, this is a non-filtered unit.
- Does this satisfy the ADA hi/lo pair requirement?
- Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.
- How much chilled water does it deliver?
- 8.0 GPH of 50°F water per ASHRAE 18 test conditions.
- What electrical supply does it need?
- 115V/60Hz, 370W.
- How does this mount?
- Wall-Mount installation.
Specifications
- Type: ezH2O Bottle Filling Station & Versatile Bi-Level ADA Cooler Non-Filtered Refrigerated Light Gray
- Operation: Sensor + Pushbar
- Country of Origin: United States
- MPN: EZSTL8WSLK
- Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
- Lead-Free: Yes
- Chilling Capacity (GPH): 8.0
- Refrigerated: Yes
- Filtered: No
- Stations Served: 2
- Bi-Level: Yes
- Bubbler Style: Flexi-Guard Safety Bubbler
- Electrical Requirement: 115V/60Hz
- Rated Watts: 370
- Full Load Amps: 6.0
- Installation Location: Indoor
- Overall Length (in): 36.75
- Overall Width (in): 19.0
- Overall Height (in): 39.0625
Product Information
Details
| Series | EZSTL8WSLK | Device Type | ezH2O Bottle Filling Station & Versatile Bi-Level ADA Cooler Non-Filtered Refrigerated Light Gray |
| Lead Free | Yes | Operation | Sensor + Pushbar |
| Baa | USA | Electrical requirement | 115V/60Hz |
| Full load amps | 6.0 | Installation location | Indoor |
| Overall height in | 39.0625 in | Overall length in | 36.75 in |
| Overall width in | 19.0 in | Rated watts | 370 |
| Bilevel | Yes | Bubbler style | Flexi-Guard Safety Bubbler |
| Chilling capacity gph | 8.0 | Refrigerated | Yes |
| Stations | 2 | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-61 |
| NSF-372 | UL-399 |
| cUL | UL |
| ADA | — |
Compare with similar products
| Series | EZSTL8WSLK
| LZOOSTL8SC
| LZOOSTL8LC
| EZOOSTL8LC
| LZOTL8WSSK
| LZOTL8WSLK
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | ezH2O Bottle Filling Station & Versatile Bi-Level ADA Cooler Non-Filtered Refrigerated Light Gray
| Dual Hands-free Activation Bi-level ADA Cooler Filtered Refrigerated Stainless
| Dual Hands-free Activation Bi-level ADA Cooler Filtered Refrigerated Light Gray
| Dual Hands-free Activation Bi-level ADA Cooler Non-filtered Refrigerated Light Gray
| ezH2O Bottle Filling Station with Bi-Level ADA Cooler Hands Free Activation Refrigerated Stainless
| ezH2O Bottle Filling Station with Bi-Level ADA Cooler Hands Free Activation Filtered Refrigerated Light Gray
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | — | Stainless Steel
| — | — | Stainless Steel
| — |
| Operation | Sensor + Pushbar
| Sensor
| Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
|
