Specifications
Description

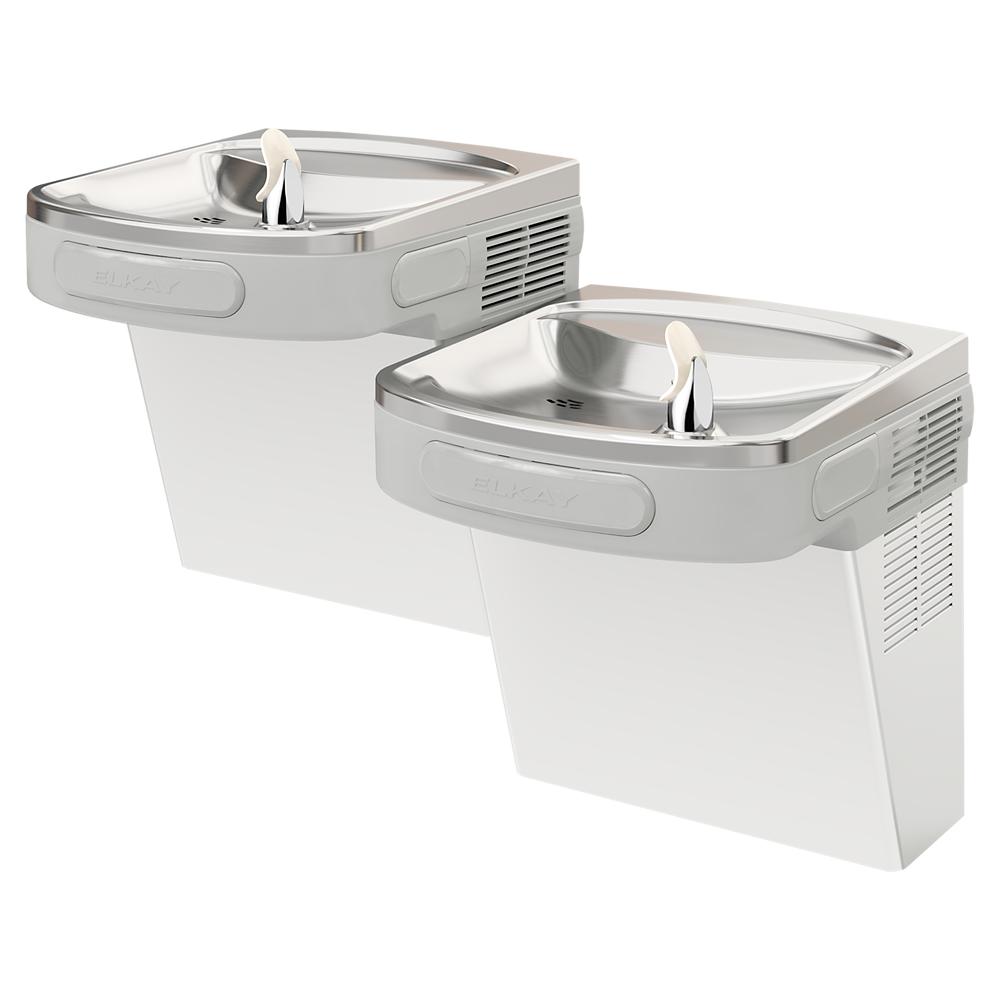

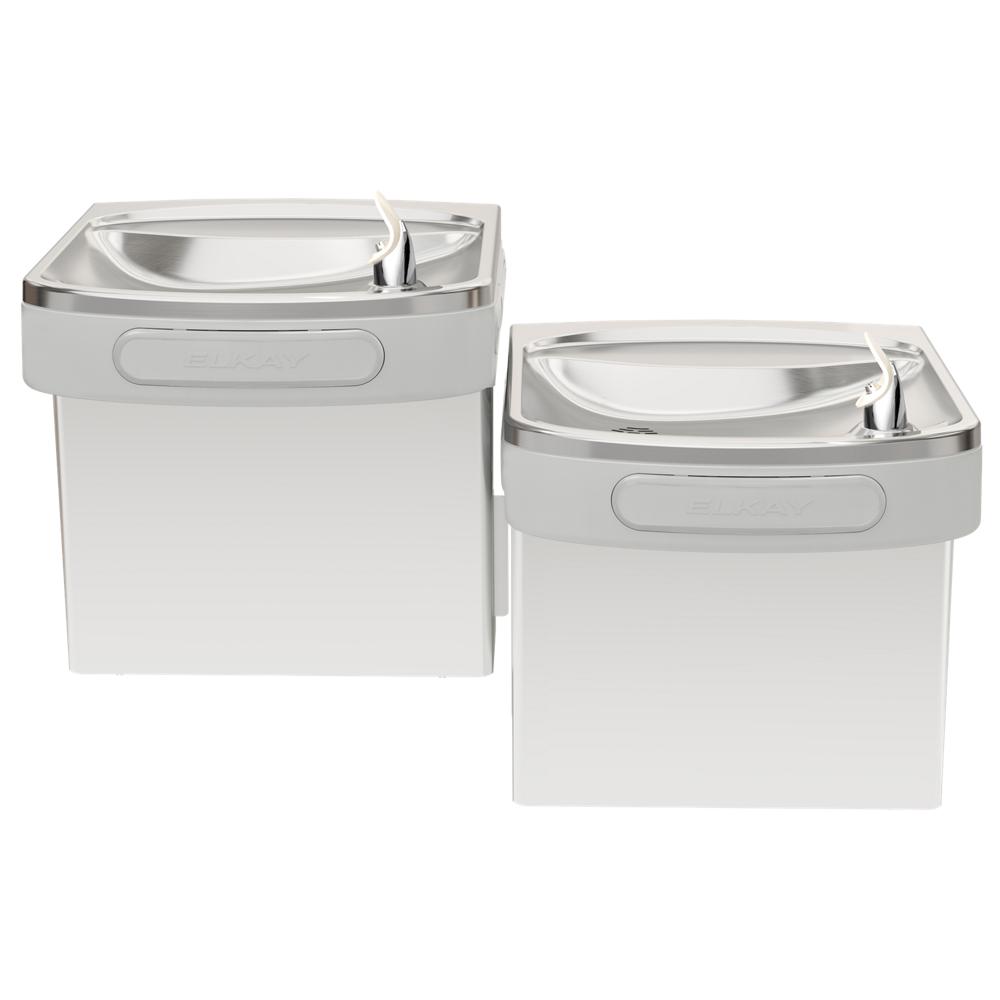

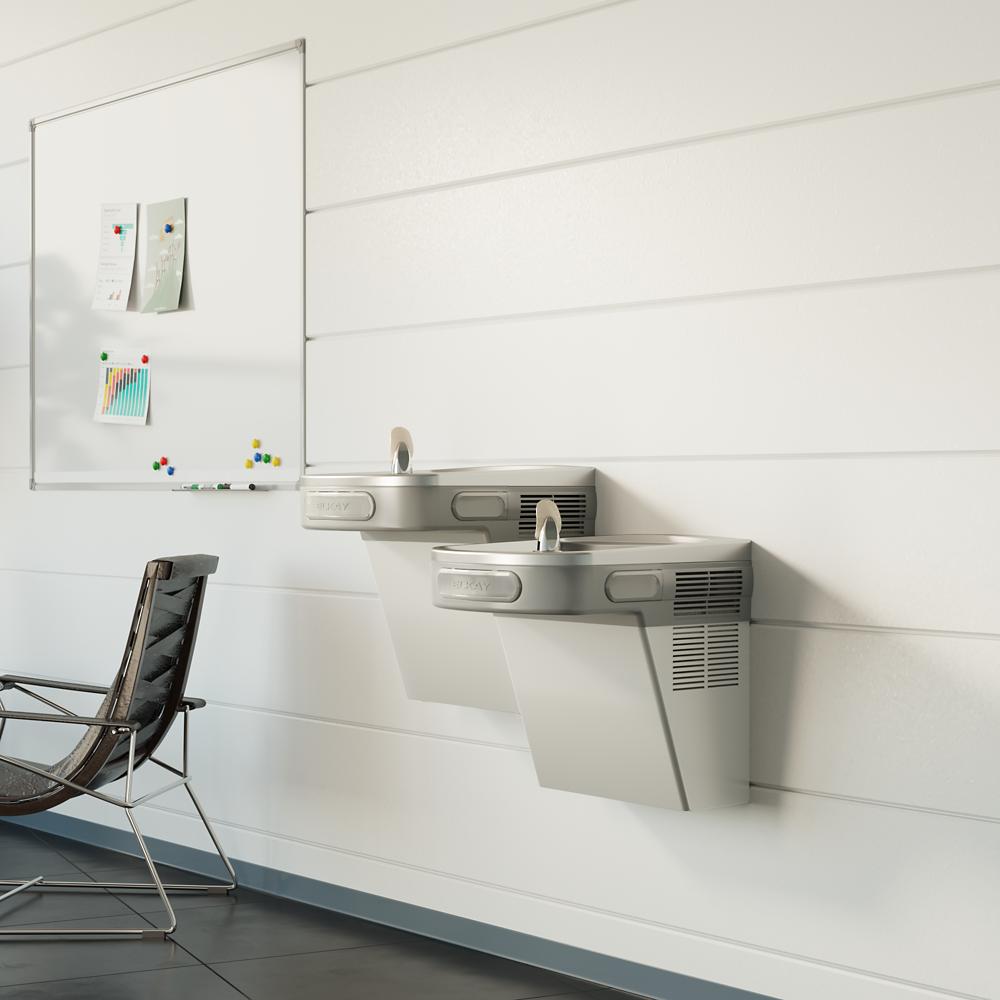

The Elkay EZSTL8SC is a non-filtered bi-level water cooler, wall-mount, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.
The Elkay EZ models are our most popular water cooler series. The space saving ADA compliant design meets adult or child standards when properly installed. NEW Versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation.
Features
- Attractive, contemporary design matches modern architecture.
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
- Electronic bubbler push bars for easy activation.
- Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.
- Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
- Stainless steel finish is corrosion resistant and attractive.
- Rated for indoor use.
Common Questions
- Is this unit filtered?
- No, this is a non-filtered unit.
- Does this satisfy the ADA hi/lo pair requirement?
- Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.
- How much chilled water does it deliver?
- 8.0 GPH of 50°F water per ASHRAE 18 test conditions.
- What electrical supply does it need?
- 115V/60Hz, 370W.
- How does this mount?
- Wall-Mount installation.
Specifications
- Type: Versatile Wall Mount Bi-level ADA Cooler Non-filtered Refrigerated Stainless
- Body Material: Stainless Steel
- Operation: Pushbar
- Country of Origin: United States
- MPN: EZSTL8SC
- Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
- Lead-Free: Yes
- Chilling Capacity (GPH): 8.0
- Refrigerated: Yes
- Filtered: No
- Stations Served: 2
- Bi-Level: Yes
- Bubbler Style: Flexi-Guard Safety Bubbler
- Electrical Requirement: 115V/60Hz
- Rated Watts: 370
- Full Load Amps: 5.0
- Installation Location: Indoor
- Overall Length (in): 36.75
- Overall Width (in): 19.0
- Overall Height (in): 25.3125
Product Information
Details
| Series | EZSTL8SC | Device Type | Versatile Wall Mount Bi-level ADA Cooler Non-filtered Refrigerated Stainless |
| Lead Free | Yes | Body Material | Stainless Steel |
| Operation | Pushbar | Baa | USA |
| Electrical requirement | 115V/60Hz | Full load amps | 5.0 |
| Installation location | Indoor | Overall height in | 25.3125 in |
| Overall length in | 36.75 in | Overall width in | 19.0 in |
| Prop65 | Yes | Rated watts | 370 |
| Bilevel | Yes | Bubbler style | Flexi-Guard Safety Bubbler |
| Chilling capacity gph | 8.0 | Refrigerated | Yes |
| Stations | 2 | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-61 |
| NSF-372 | UL-399 |
| cUL | UL |
| ADA | — |
Compare with similar products
| Series | EZSTL8SC
| LZOOSTL8SC
| LZOOSTL8LC
| EZOOSTL8LC
| LZSTL8WS_P_FAMILY
| LZSTL8WSSP-W1
|
| Country Of Origin | United States
| United States
| United States
| United States
| — | — |
| Spec Sheet | ||||||
| Install Sheet | — | |||||
| Device Type | Versatile Wall Mount Bi-level ADA Cooler Non-filtered Refrigerated Stainless
| Dual Hands-free Activation Bi-level ADA Cooler Filtered Refrigerated Stainless
| Dual Hands-free Activation Bi-level ADA Cooler Filtered Refrigerated Light Gray
| Dual Hands-free Activation Bi-level ADA Cooler Non-filtered Refrigerated Light Gray
| Enhanced Filtered Connected Bottle Filling Station & Bi-Level ADA Cooler Midnight Black Lead Reduction Drop Down Wrapper
| Enhanced Connected Bottle Filler & Bi-Level ADA Cooler
|
| Lead Free | Yes | Yes | Yes | Yes | — | — |
| Body Material | Stainless Steel
| Stainless Steel
| — | — | Stainless Steel
| Stainless Steel
|
| Operation | Pushbar
| Sensor
| Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ADA, NSF-42, UL-399, UL
| ADA, NSF-42, UL-399, UL
|
