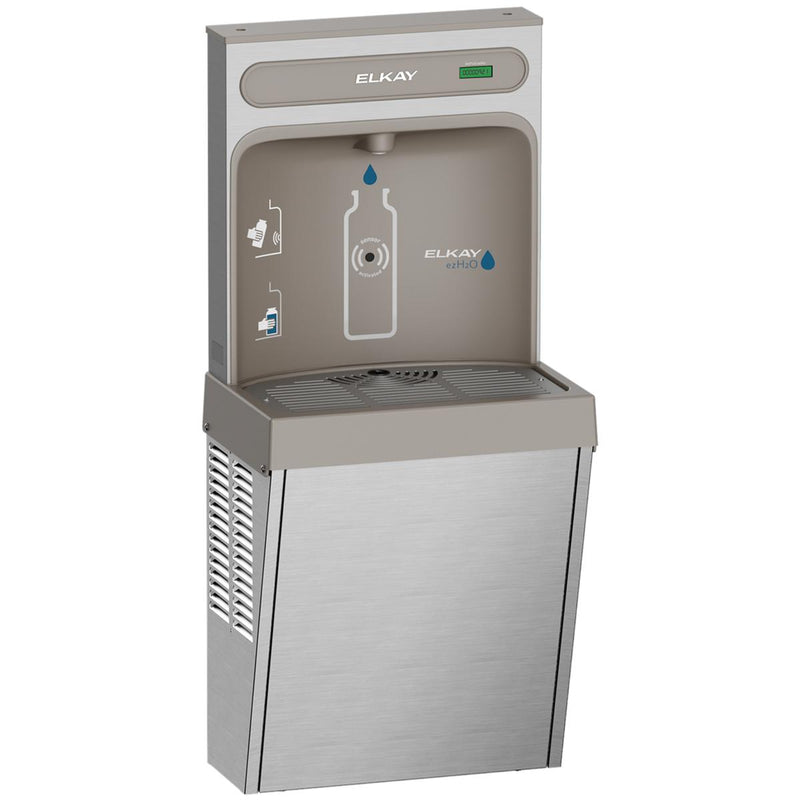

Elkay ezH2O Refrigerated Surface Mount Bottle Filling Station Non-Filtered 8GPH, Stainless Steel EZ8WSSSMC

The Elkay EZ8WSSSMC is a non-filtered bottle filling station, wall-mount, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.

The Elkay ezH2O® refrigerated surface mount bottle filling station delivers a clean, quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. Ideal for installations with limited space. Sanitary no-touch sensor activation features an automatic 20-second shut-off timer.

Features

• Reduced 12" wall projection.
• Stainless steel grate for convenient hands-free filling; grate is removable for easy cleaning of the basin.
• Rough-in replacement compatible with EZ and EMAB Elkay models.
• Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
• Touchless, sensor activation (bottle filler) designed for easy use.
• Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash.
• Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
• Real drain system eliminates standing water.
• Rated for indoor use.

Common Questions

Is this unit filtered?

No, this is a non-filtered unit.

Is this ADA compliant?

Yes, this model meets ADA / ICC A117.1 accessibility requirements.

How much chilled water does it deliver?

8.0 GPH of 50°F water per ASHRAE 18 test conditions.

What electrical supply does it need?

115V/60Hz, 15W.

How does this mount?

Wall-Mount installation.

Specifications

• Type: ezH2O Refrigerated Surface Mount Bottle Filling Station Non-Filtered 8GPH Stainless Steel
• Body Material: Stainless Steel
• Operation: Sensor
• Country of Origin: United States
• MPN: EZ8WSSSMC
• Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
• Lead-Free: Yes
• Chilling Capacity (GPH): 8.0
• Refrigerated: Yes
• Filtered: No
• Stations Served: 1
• Bi-Level: No
• Bubbler Style: No Bubbler
• Electrical Requirement: 115V/60Hz
• Rated Watts: 15
• Full Load Amps: 5.0
• Installation Location: Indoor
• Overall Length (in): 17.875
• Overall Width (in): 11.875
• Overall Height (in): 41.25
