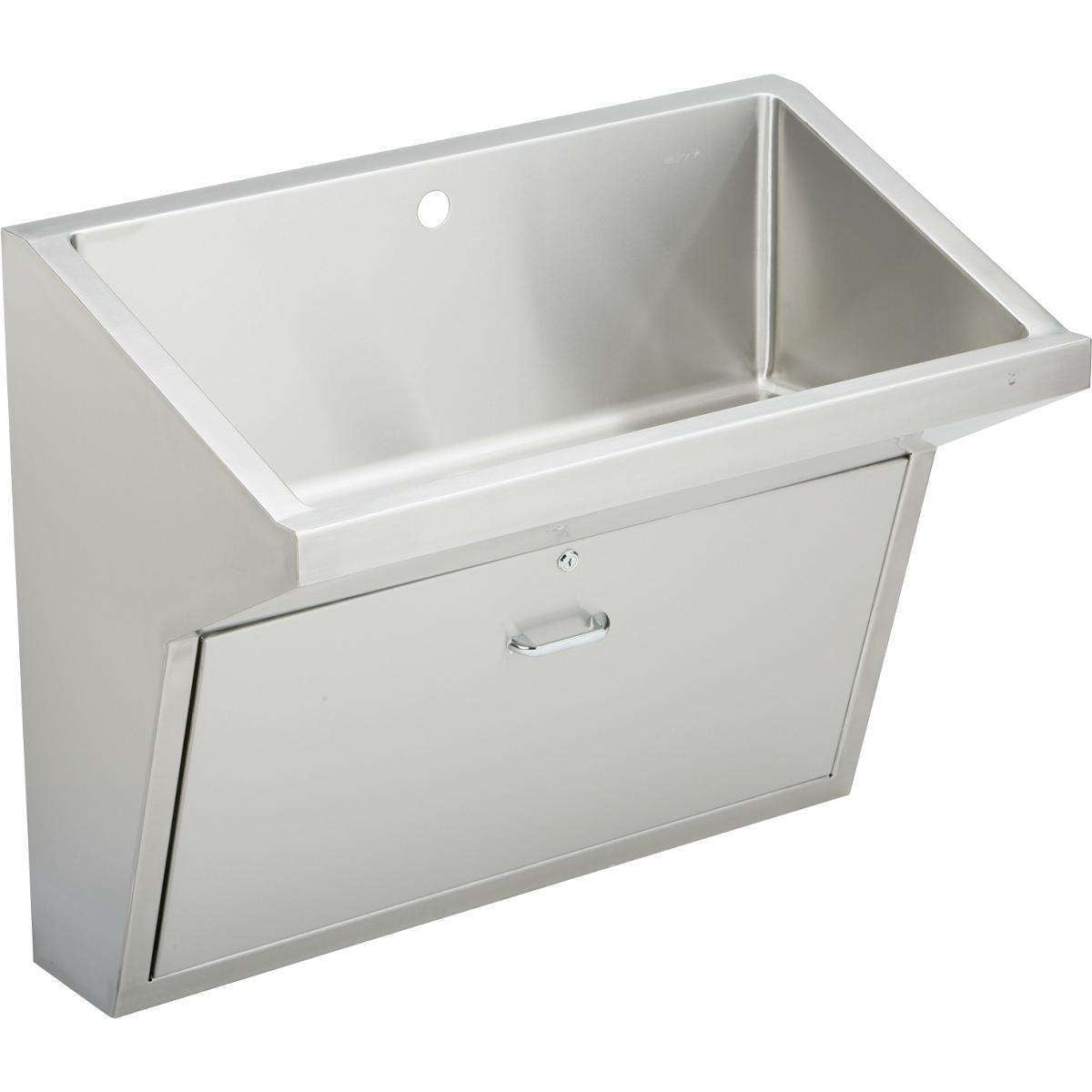

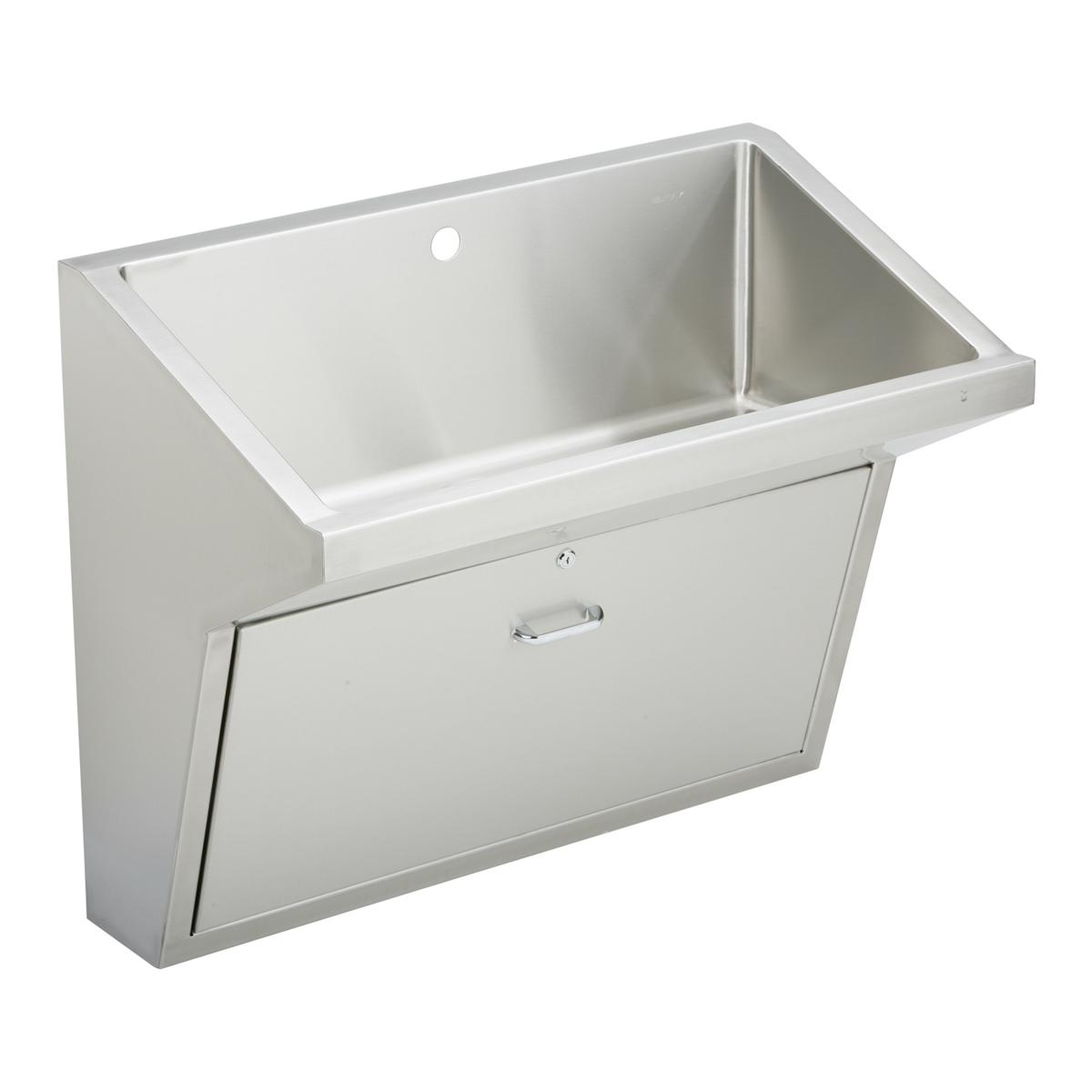

The Elkay EWSFAD136201 is a Stainless Steel 33" x 16-13/16" x 30" Wall Hung Single Station Surgeon Scrub Sink. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- 16-gauge, Type 304 stainless steel.
- Keyed access door(s) to hide plumbing.
- 4" high, full-length backsplash.
- Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
- Product is ADA compliant when properly installed.
- Coved corners, wall hanger and full enclosure.
- Exposed surfaces are polished to a uniform lustrous finish.
- 3-1/2" drain opening.
Common Questions
- What does 16-gauge mean?
- 16 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
- Is this ADA compliant?
- Yes, this model meets ADA accessibility requirements for bowl depth.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 1.
Specifications
- Type: Stainless Steel 33" x 16-13/16" x 30" Wall Hung Single Station Surgeon Scrub Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: China
- MPN: EWSFAD136201
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO, ADA
- Number of Bowls: 1
- Bowl Dimensions: 33" x 16-1/2" x 6-1/2"
- Drain Location: Rear Center
- Gauge: 16
- Mount Type: Wall-Mount
- Coating / Finish: Buffed Satin
- Faucet Holes: 1
- Overall Length (in): 33.0
- Overall Width (in): 16.8125
- Overall Height (in): 30.0
Product Information
| SKU | UPC | Country of Origin | Spec Sheet |
|---|---|---|---|
| EWSFAD136201 | 094902337005 | China | Download |
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | EWSFAD136201 | Device Type | Stainless Steel 33" x 16-13/16" x 30" Wall Hung Single Station Surgeon Scrub Sink |
| Body Material | Stainless Steel | Coating | Buffed Satin |
| Hole count | 1 | Mount type | Wall-Mount |
| Overall height in | 30.0 in | Overall length in | 33.0 in |
| Overall width in | 16.8125 in | Bowl count | 1 |
| Bowl dimensions | 33" x 16-1/2" x 6-1/2" | Drain location | Rear Center |
| Gauge | 16 | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
| ADA | — |
Compare with similar products
| Contents | — | EWSF13026 sink, one LK394A spout, one LK18B drain
| EWSF13026 sink, one LK394A spout, one LK18B drain
| EWSF39026 sink, three LK394A spouts, three LK18B drains
| EWSF39026 sink, three LK394A spouts, three LK18B drains
| EWSF26026 sink, two LK394A spouts, two LK18B drains
|
| Series | EWSFAD136201
| EWSF13026KWSC
| EWSF13026KWC
| EWSF39026KWSC
| EWSF39026KWC
| EWSF26026KWSC
|
| Country Of Origin | China
| China
| United States
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | — | |||||
| Device Type | Stainless Steel 33" x 16-13/16" x 30" Wall Hung Single Station Surgeon Scrub Sink
| Stainless Steel 30" x 23" x 26" Wall Hung Single Bowl Surgeon Scrub Sink Kit
| Stainless Steel 30" x 23" x 26" Wall Hung Single Bowl Surgeon Scrub Sink Kit
| Stainless Steel 90" x 23" x 26" Wall Hung Triple Station Surgeon Scrub Sink Kit
| Stainless Steel 90" x 23" x 26" Wall Hung Triple Station Surgeon Scrub Sink Kit
| Stainless Steel 60" x 23" x 26" Wall Hung Double Station Surgeon Scrub Sink Kit
|
| Outlet Size | 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
|
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Certifications | ASME A112.19.3/CSA B45.4, IAPMO, ADA
| ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4, IAPMO
|
