Specifications
Description

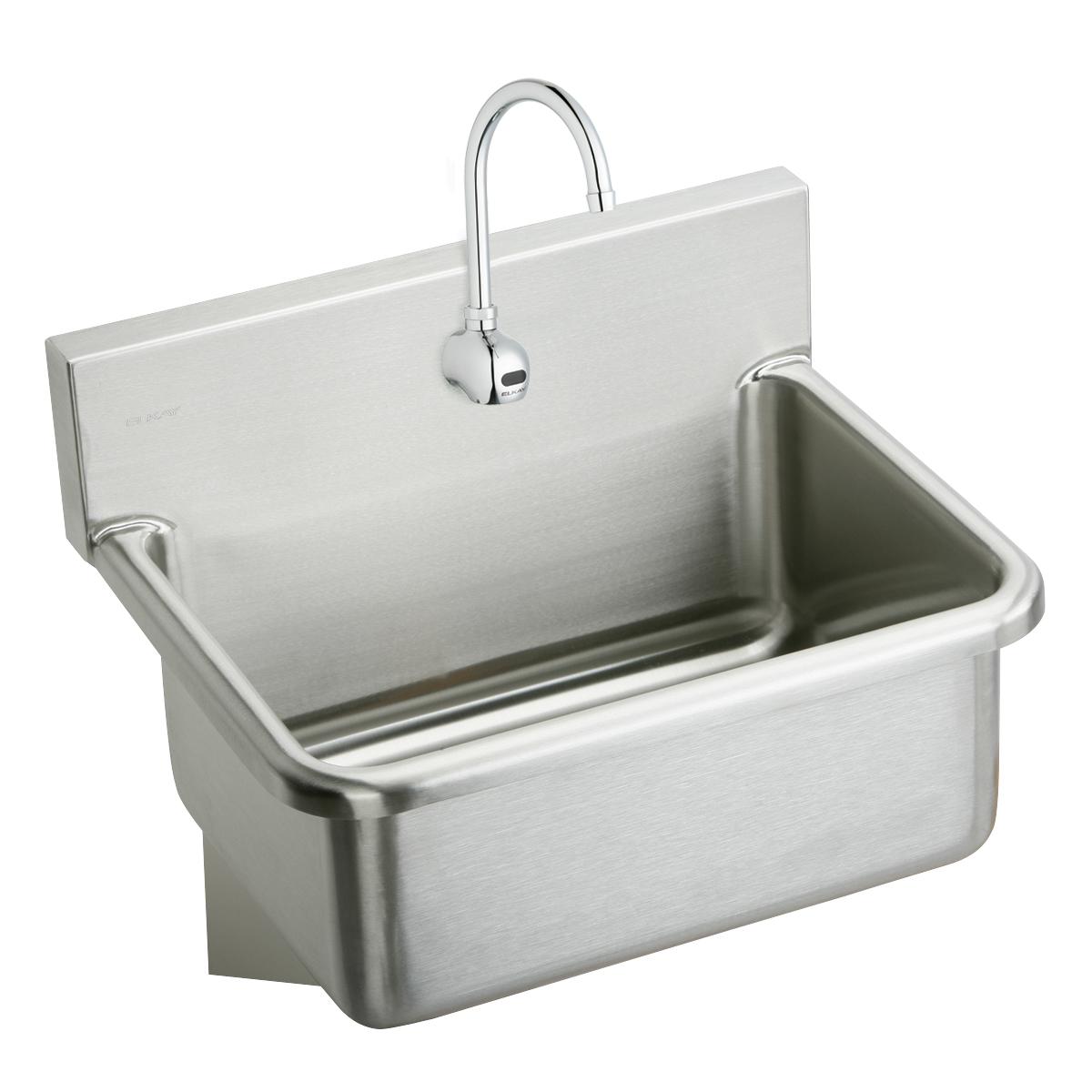

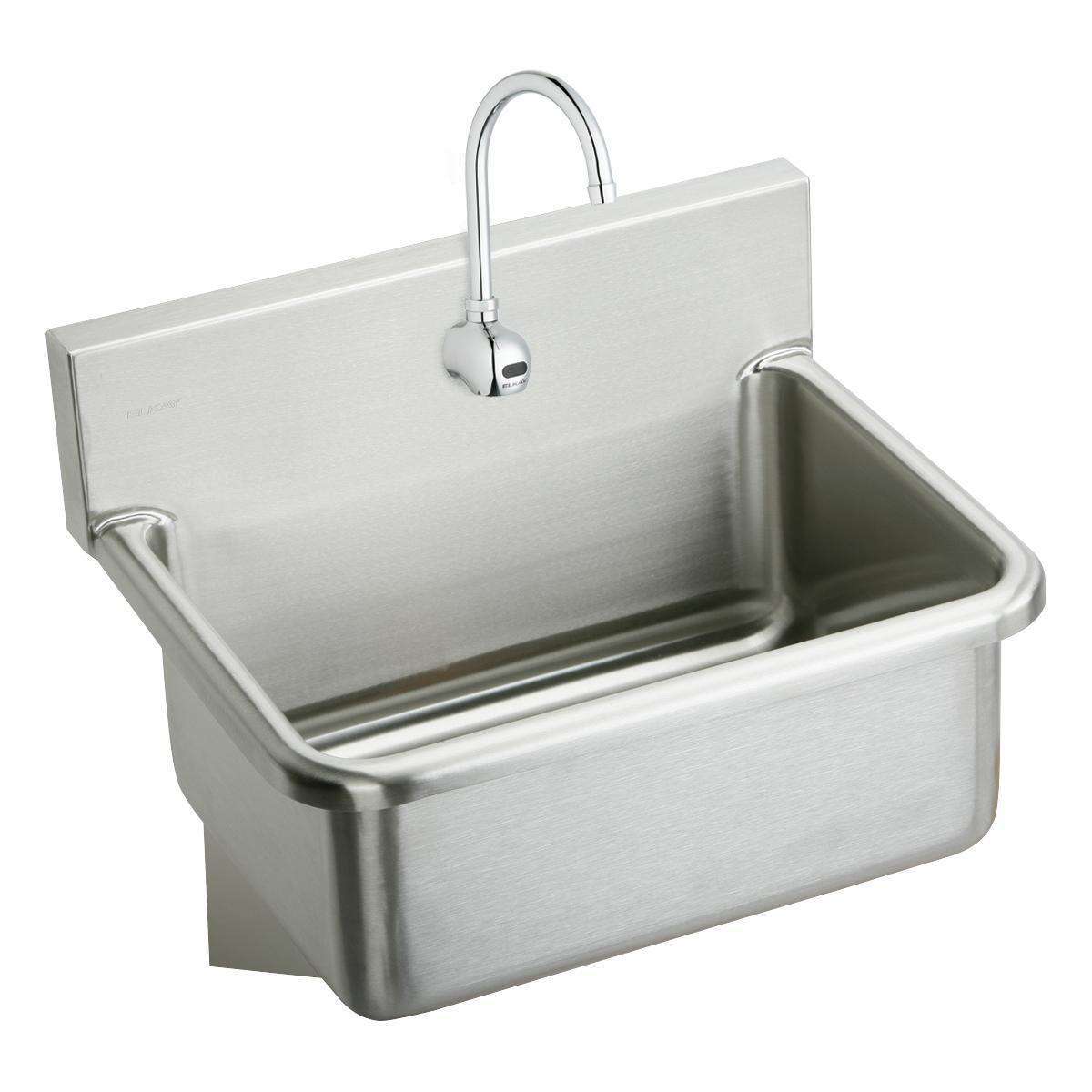

The Elkay EWS3120SACTMC is a Stainless Steel 31" x 19.5" x 10-1/2" Wall Hung Single Bowl Hand Wash Sink Kit. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- 14-gauge, Type 304 stainless steel.
- 1-3/4" radius coved corners.
- 1-1/2" rolled rims.
- Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
- Exposed surfaces are blended by hand to a uniform lustrous satin finish.
- 3-1/2" drain opening.
- Furnished with wall hanger and stainless steel support brackets.
- 6" high, full-length backsplash.

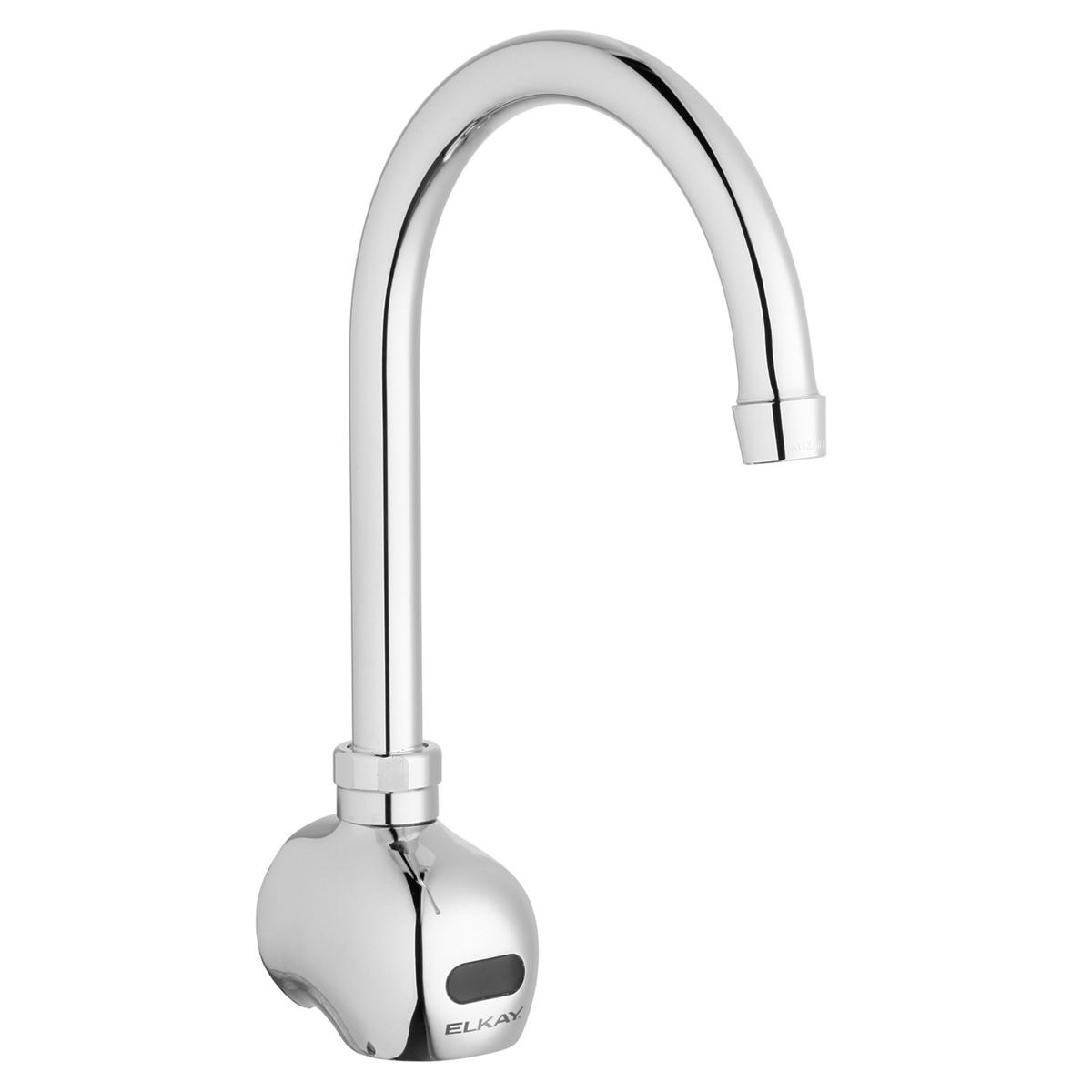

- KIT INCLUDES: EWS3120 sink, one LKB722C AC/battery-powered sensor faucet, and one LK723 thermostatic mixing valve.
Common Questions
- What does 14-gauge mean?
- 14 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 1.
- What is included in the kit?
- This kit includes: EWS3120 sink and one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve.
Specifications

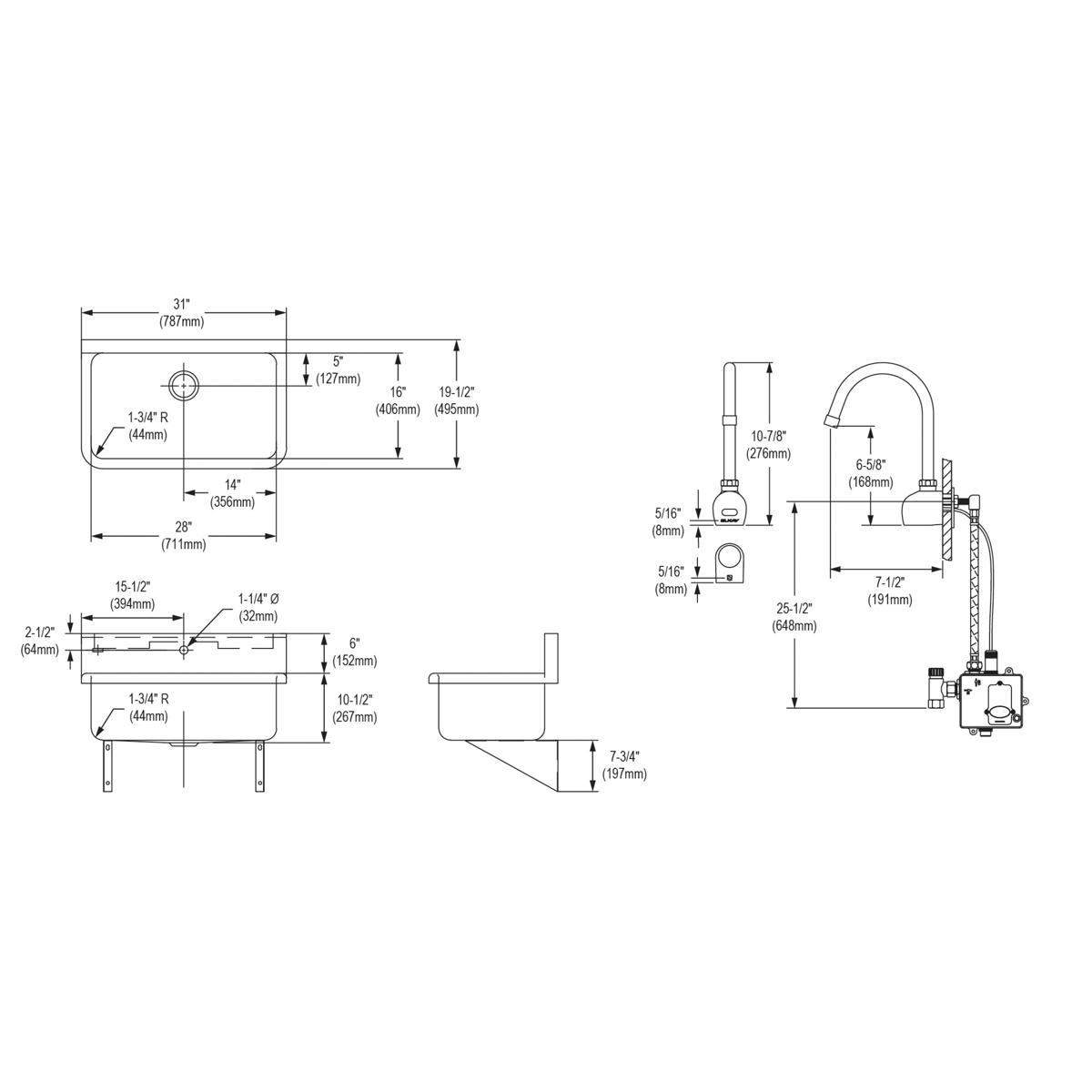

- Type: Stainless Steel 31" x 19.5" x 10-1/2" Wall Hung Single Bowl Hand Wash Sink Kit
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- MPN: EWS3120SACTMC
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO
- Number of Bowls: 1
- Bowl Dimensions: 28" x 16" x 10-1/2"
- Drain Location: Center
- Gauge: 14
- Mount Type: Wall-Mount
- Coating / Finish: Buffed Satin
- Faucet Holes: 1
- Overall Length (in): 31.0
- Overall Width (in): 19.5
- Overall Height (in): 24.375
- Kit Includes: EWS3120 sink and one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | EWS3120SACTMC | Device Type | Stainless Steel 31" x 19.5" x 10-1/2" Wall Hung Single Bowl Hand Wash Sink Kit |
| Body Material | Stainless Steel | Contents | EWS3120 sink and one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve |
| Baa | USA | Coating | Buffed Satin |
| Hole count | 1 | Mount type | Wall-Mount |
| Overall height in | 24.375 in | Overall length in | 31.0 in |
| Overall width in | 19.5 in | Bowl count | 1 |
| Bowl dimensions | 28" x 16" x 10-1/2" | Drain location | Center |
| Gauge | 14 | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
Compare with similar products
| Contents | EWS3120 sink and one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve
| EWSF13026 sink, one LK394A spout, one LK18B drain
| EWSF13026 sink, one LK394A spout, one LK18B drain
| EWSF39026 sink, three LK394A spouts, three LK18B drains
| EWSF39026 sink, three LK394A spouts, three LK18B drains
| EWSF26026 sink, two LK394A spouts, two LK18B drains
|
| Series | EWS3120SACTMC
| EWSF13026KWSC
| EWSF13026KWC
| EWSF39026KWSC
| EWSF39026KWC
| EWSF26026KWSC
|
| Country Of Origin | — | China
| United States
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Stainless Steel 31" x 19.5" x 10-1/2" Wall Hung Single Bowl Hand Wash Sink Kit
| Stainless Steel 30" x 23" x 26" Wall Hung Single Bowl Surgeon Scrub Sink Kit
| Stainless Steel 30" x 23" x 26" Wall Hung Single Bowl Surgeon Scrub Sink Kit
| Stainless Steel 90" x 23" x 26" Wall Hung Triple Station Surgeon Scrub Sink Kit
| Stainless Steel 90" x 23" x 26" Wall Hung Triple Station Surgeon Scrub Sink Kit
| Stainless Steel 60" x 23" x 26" Wall Hung Double Station Surgeon Scrub Sink Kit
|
| Outlet Size | 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
|
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Certifications | ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4, IAPMO
|
