Description

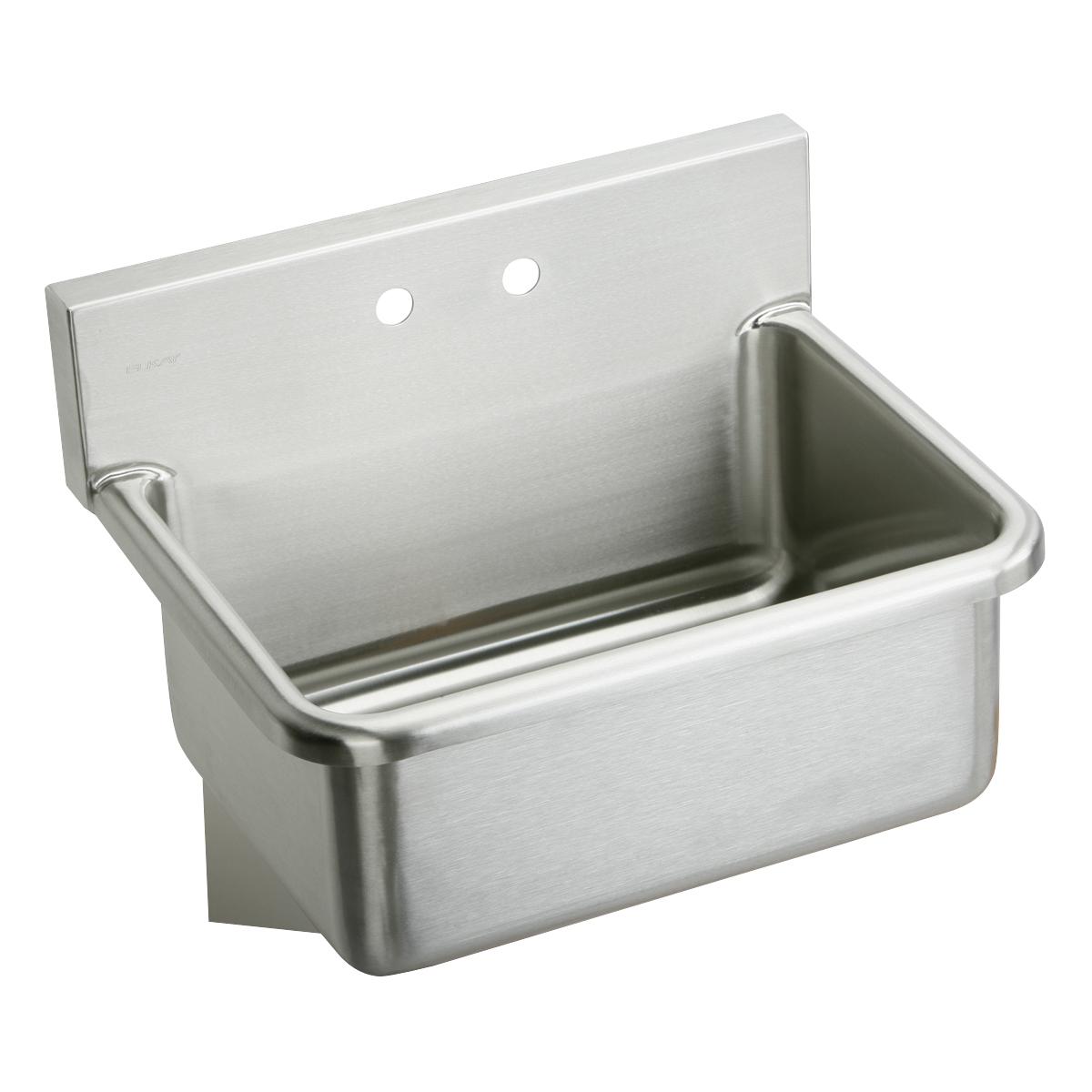

The Elkay EWS31202 is a Stainless Steel 31" x 19.5" x 10-1/2" Wall Hung Single Bowl Hand Wash Sink. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- 14-gauge, Type 304 stainless steel.
- 1-3/4" radius coved corners.
- 1-1/2" rolled rims.
- Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
- Exposed surfaces are blended by hand to a uniform lustrous satin finish.
- 3-1/2" drain opening.
- Furnished with wall hanger and stainless steel support brackets.
- 6" high, full-length backsplash.
Common Questions
- What does 14-gauge mean?
- 14 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 2.
Specifications
- Type: Stainless Steel 31" x 19.5" x 10-1/2" Wall Hung Single Bowl Hand Wash Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: United States
- MPN: EWS31202
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO
- Number of Bowls: 1

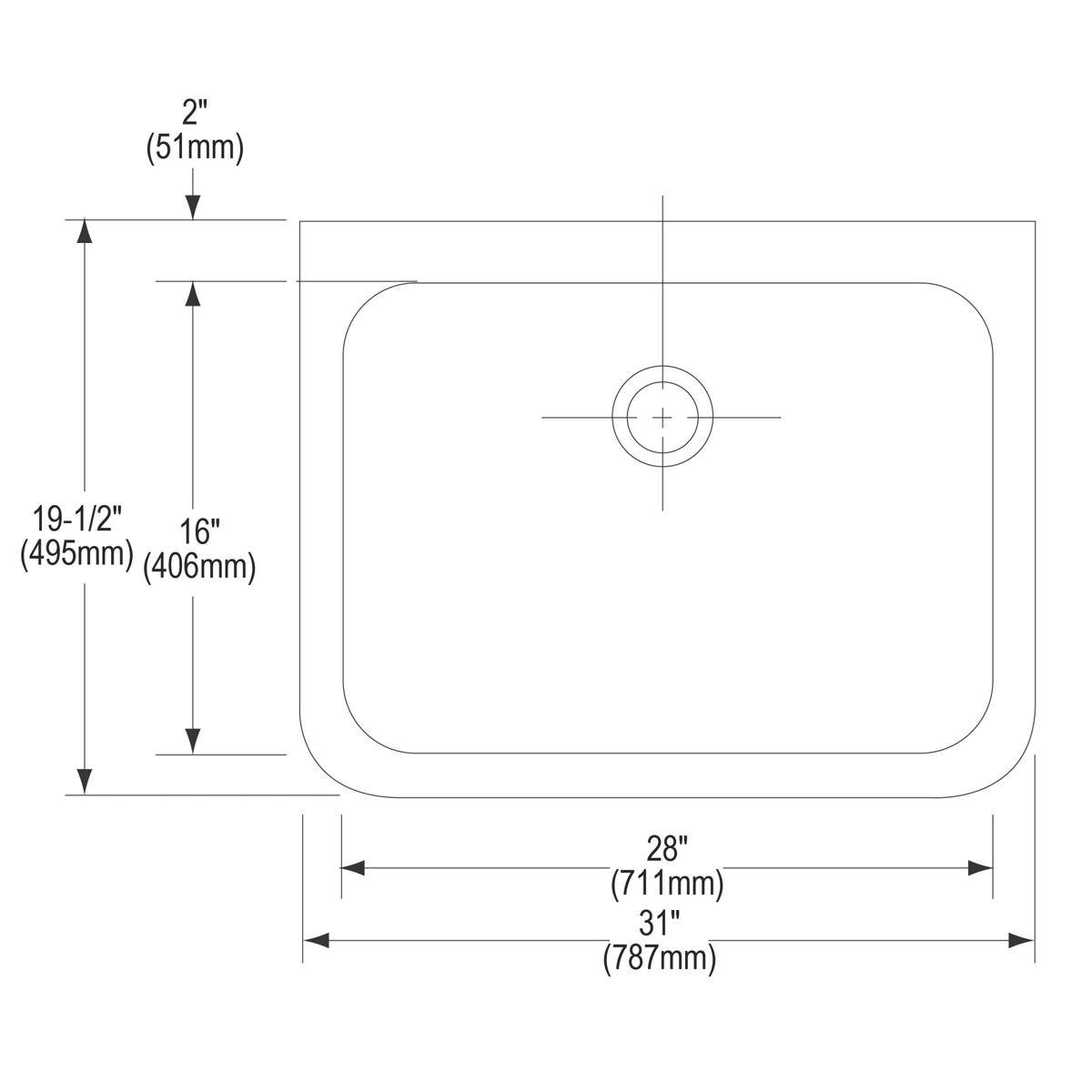

- Bowl Dimensions: 28" x 16" x 10-1/2"
- Drain Location: Center
- Gauge: 14
- Mount Type: Wall-Mount
- Coating / Finish: Buffed Satin
- Faucet Holes: 2
- Overall Length (in): 31.0
- Overall Width (in): 19.5
- Overall Height (in): 24.375
Product Information
| SKU | UPC | Country of Origin | Spec Sheet |
|---|---|---|---|
| EWS31202 | 094902190198 | United States | Download |
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | EWS31202 | Device Type | Stainless Steel 31" x 19.5" x 10-1/2" Wall Hung Single Bowl Hand Wash Sink |
| Body Material | Stainless Steel | Baa | USA |
| Coating | Buffed Satin | Hole count | 2 |
| Mount type | Wall-Mount | Overall height in | 24.375 in |
| Overall length in | 31.0 in | Overall width in | 19.5 in |
| Bowl count | 1 | Bowl dimensions | 28" x 16" x 10-1/2" |
| Drain location | Center | Gauge | 14 |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
