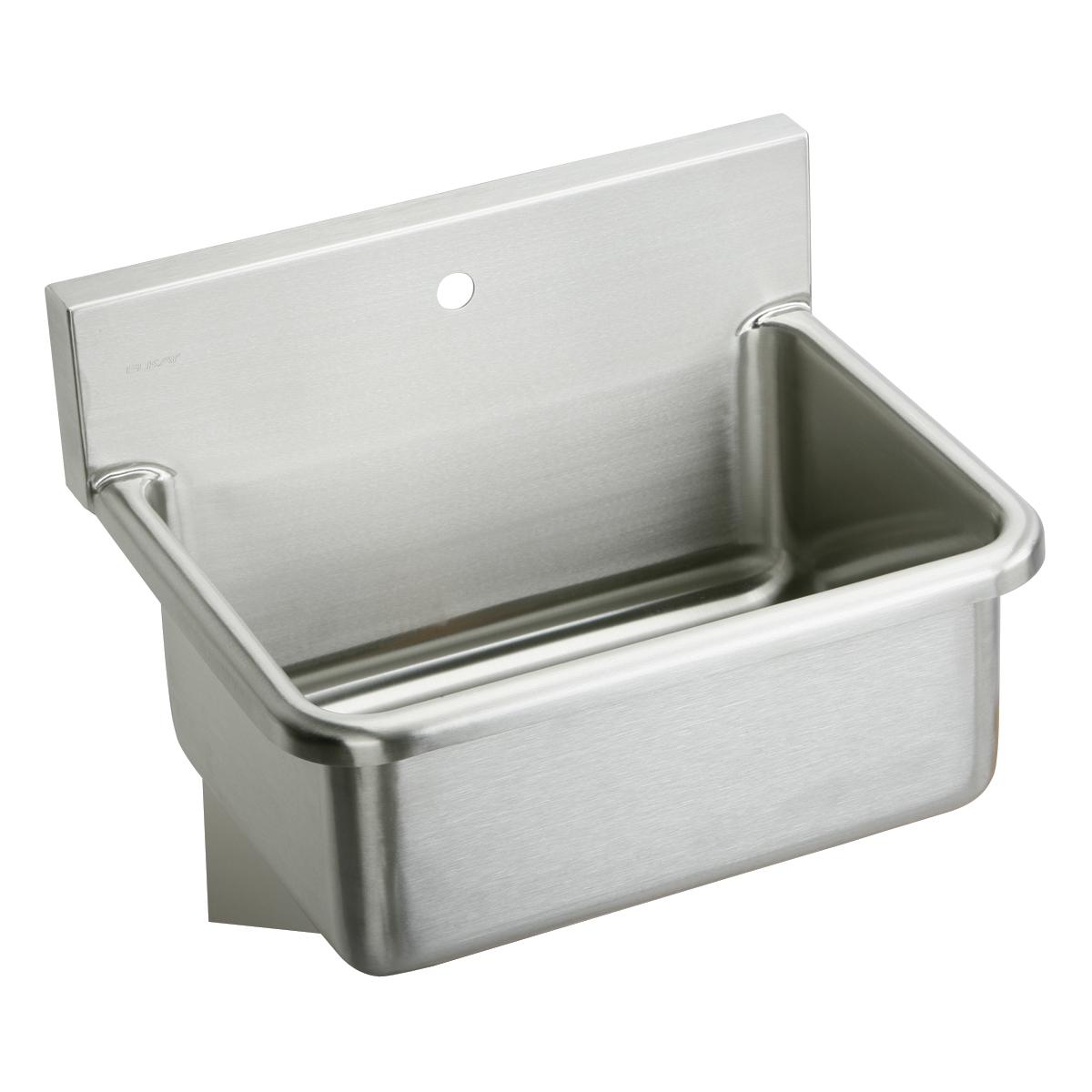

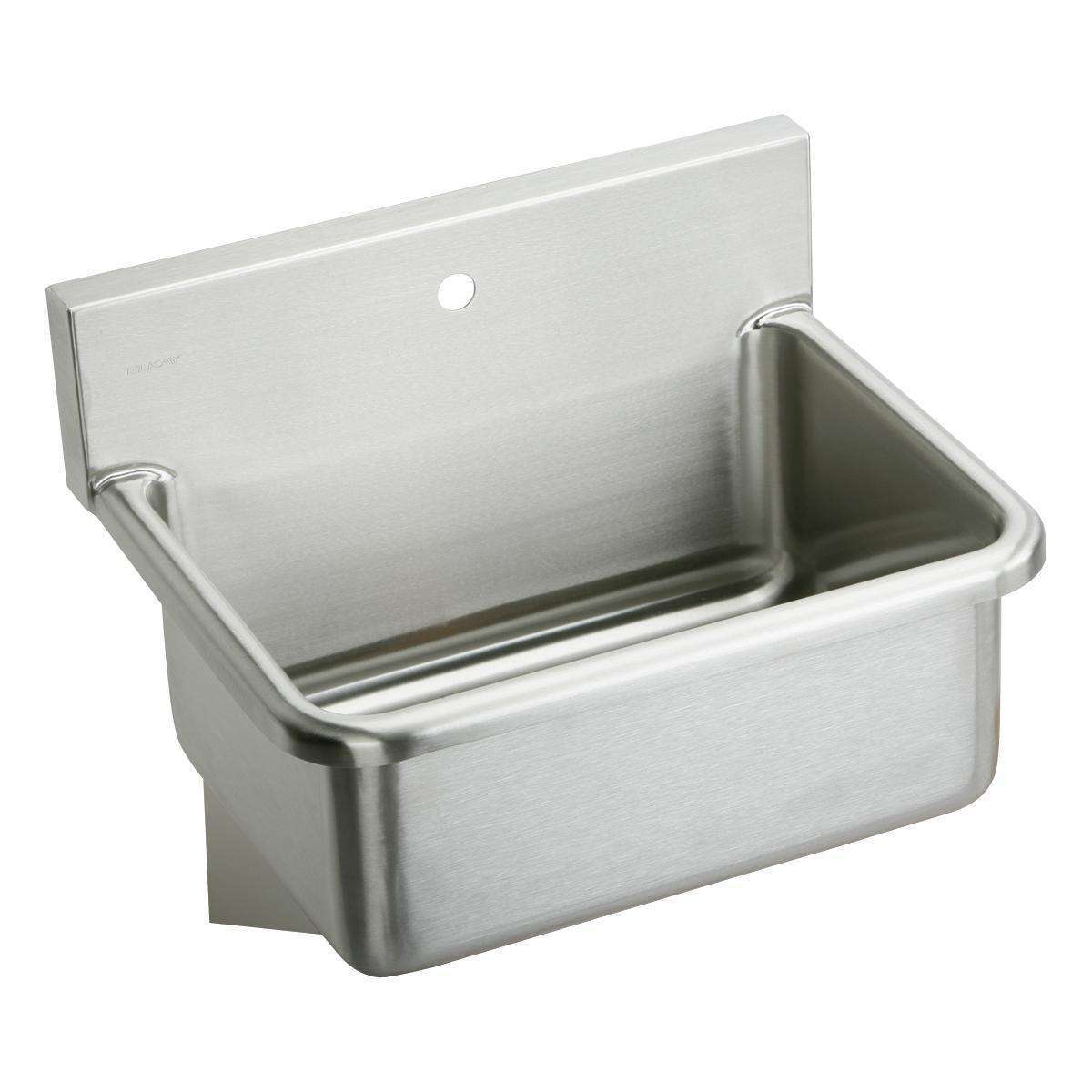

Elkay Stainless Steel 31" x 19.5" x 10-1/2", Wall Hung Single Bowl Hand Wash Sink EWS31201

SKU: EWS31201
Price:
Sale price$2,598.75 Regular price$3,465.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $2,598.75

Free shipping over $200

Key Features

Bowls 1
Mount Type Wall-Mount
Gauge 14
Spec Sheet Download
See all product information

Similar products

Chicago Faucets 8" Wall Mounted Straight Sink Faucet 897 Series
Chicago Faucets 1-100XTDAB CartridgeChicago Faucets 1-100Xtdab Left Hand Quaturn Unit
Chicago Faucets Chicago Faucets 1-100XTDAB Cartridge
Sale price$31.26 Regular price$43.23
Chicago Faucets 1-099XTDAB CartridgeChicago Faucets Right Hand Quaturn Unit 1-099XTDAB
Chicago Faucets Chicago Faucets 1-099XTDAB Cartridge
Sale price$31.26 Regular price$43.23
Compare Products

Specifications

Description

The Elkay EWS31201 is a Stainless Steel 31" x 19.5" x 10-1/2" Wall Hung Single Bowl Hand Wash Sink. It features a stainless steel body.

Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.

Features

  • 14-gauge, Type 304 stainless steel.
  • 1-3/4" radius coved corners.
  • 1-1/2" rolled rims.
  • Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
  • Exposed surfaces are blended by hand to a uniform lustrous satin finish.
  • 3-1/2" drain opening.
  • Furnished with wall hanger and stainless steel support brackets.
  • 6" high, full-length backsplash.

Common Questions

What does 14-gauge mean?
14 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
Will my faucet fit?
Check your existing hole pattern against this sink's drilling: 1.

Specifications

  • Type: Stainless Steel 31" x 19.5" x 10-1/2" Wall Hung Single Bowl Hand Wash Sink
  • Outlet Size: 3-1/2"
  • Body Material: Stainless Steel
  • Country of Origin: United States
  • MPN: EWS31201
  • Certifications: ASME A112.19.3/CSA B45.4, IAPMO
  • Number of Bowls: 1

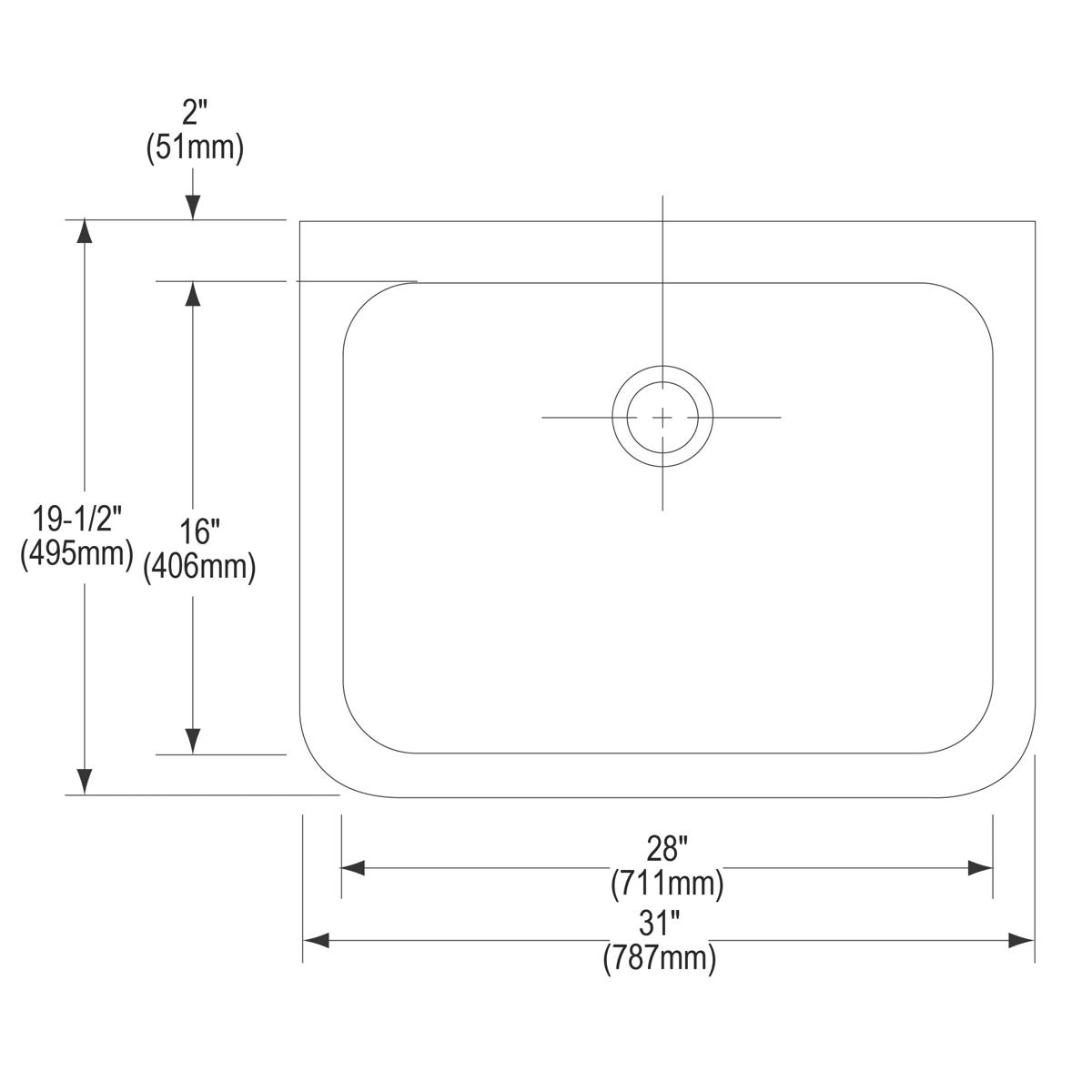

  • Bowl Dimensions: 28" x 16" x 10-1/2"
  • Drain Location: Center
  • Gauge: 14
  • Mount Type: Wall-Mount
  • Coating / Finish: Buffed Satin
  • Faucet Holes: 1
  • Overall Length (in): 31.0
  • Overall Width (in): 19.5
  • Overall Height (in): 24.375

Product Information

SKUUPCCountry of OriginSpec Sheet
EWS31201 094902190181 United States Download

Dimensions

Outlet Size 3-1/2" ——

Details

Series EWS31201 Device Type Stainless Steel 31" x 19.5" x 10-1/2" Wall Hung Single Bowl Hand Wash Sink
Body Material Stainless Steel Baa USA
Coating Buffed Satin Hole count 1
Mount type Wall-Mount Overall height in 24.375 in
Overall length in 31.0 in Overall width in 19.5 in
Bowl count 1 Bowl dimensions 28" x 16" x 10-1/2"
Drain location Center Gauge 14

Certifications & Standards

ASME A112.19.3/CSA B45.4 IAPMO
