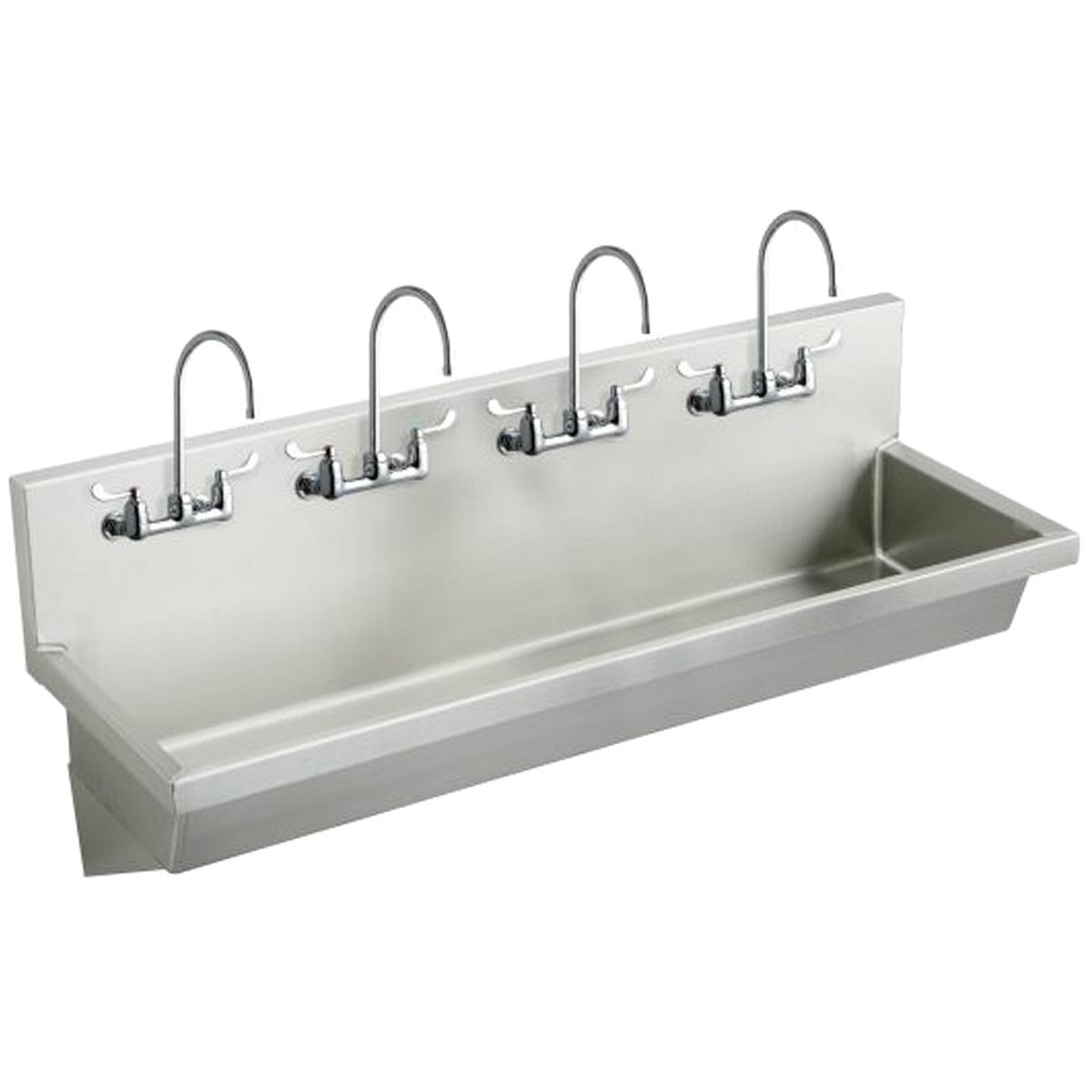

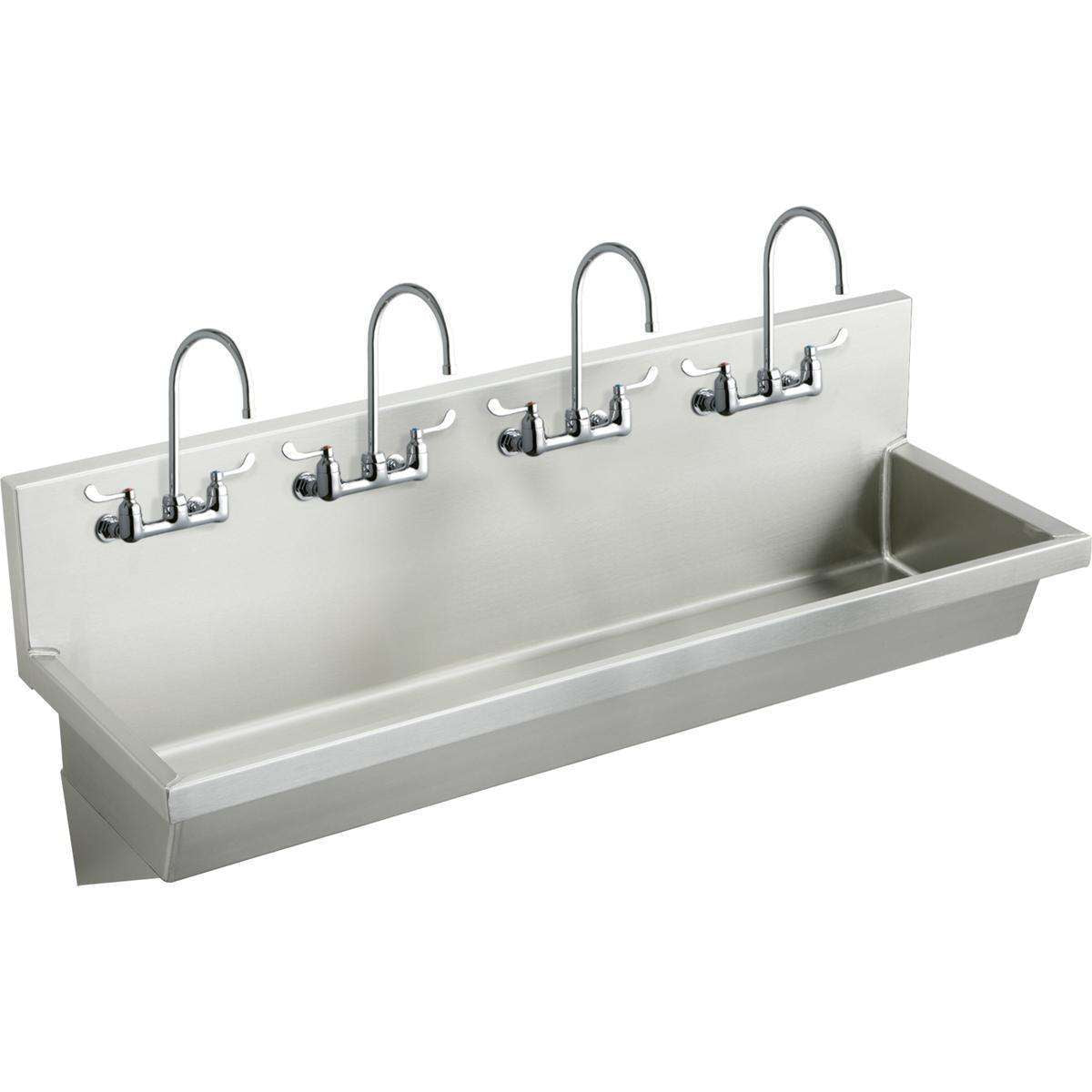

The Elkay EWMA9620C is a Stainless Steel 96" x 20" x 8" Wall Hung Multiple Station Hand Wash Sink Kit. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- 14-gauge, Type 304 stainless steel.
- 1/4" coved corners.
- 1-1/2" wide inward sloping top channel rims with 2" flat apron.
- 10" high, full-length backsplash.
- Square rim corners.
- 3-1/2" drain opening.
- Exposed surfaces are blended by hand to a uniform lustrous finish.
- _x0083_Furnished with wall hanger and stainless steel support brackets.

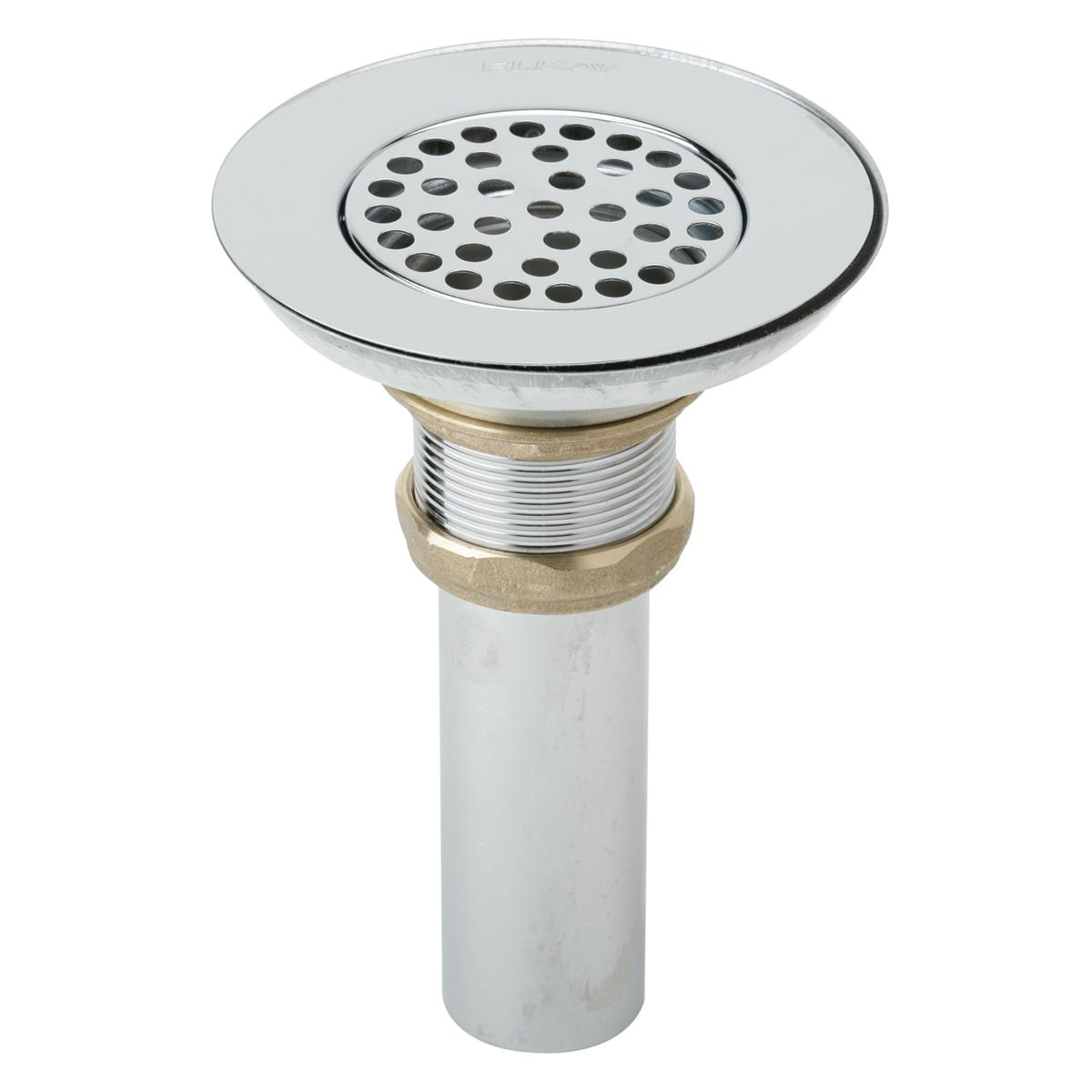

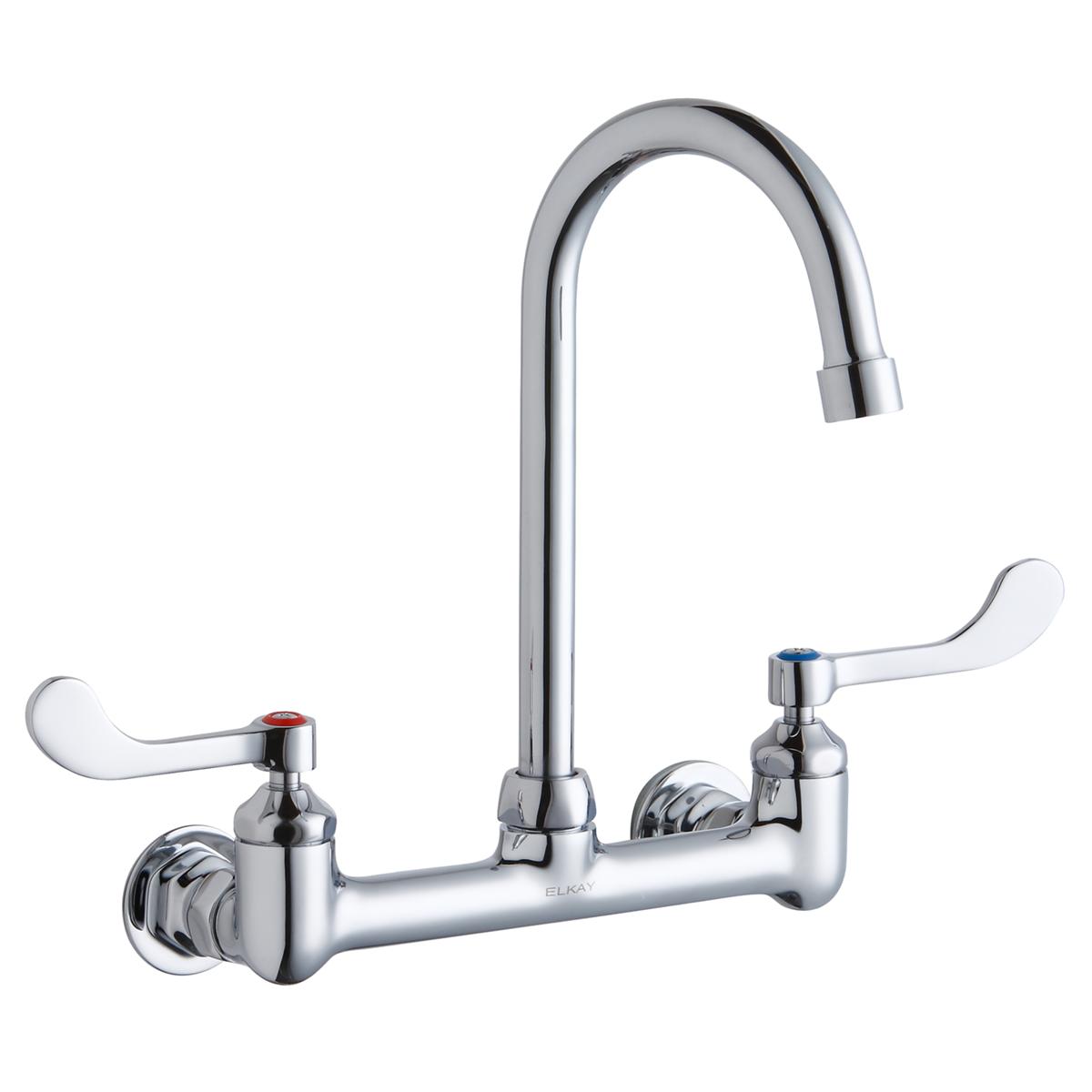

- KIT INCLUDES: EWMA9620 sink, four LK940GN05T4H faucets, and one LK18B drain; save time having to purchase each piece separately.
Common Questions
- What does 14-gauge mean?
- 14 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 8.
- What is included in the kit?
- This kit includes: EWMA9620 sink, four LK940GN05T4H faucets, one LK18B drain.
Specifications
- Type: Stainless Steel 96" x 20" x 8" Wall Hung Multiple Station Hand Wash Sink Kit
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- MPN: EWMA9620C
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO
- Number of Bowls: 1
- Bowl Dimensions: 93" x 16-1/2" x 8"
- Drain Location: Center
- Gauge: 14
- Mount Type: Wall-Mount
- Coating / Finish: Buffed Satin
- Faucet Holes: 8
- Overall Length (in): 96.0
- Overall Width (in): 20.0
- Overall Height (in): 25.75
- Kit Includes: EWMA9620 sink, four LK940GN05T4H faucets, one LK18B drain
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | EWMA9620C | Device Type | Stainless Steel 96" x 20" x 8" Wall Hung Multiple Station Hand Wash Sink Kit |
| Body Material | Stainless Steel | Contents | EWMA9620 sink, four LK940GN05T4H faucets, one LK18B drain |
| Baa | USA | Coating | Buffed Satin |
| Hole count | 8 | Mount type | Wall-Mount |
| Overall height in | 25.75 in | Overall length in | 96.0 in |
| Overall width in | 20.0 in | Bowl count | 1 |
| Bowl dimensions | 93" x 16-1/2" x 8" | Drain location | Center |
| Gauge | 14 | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
