Description

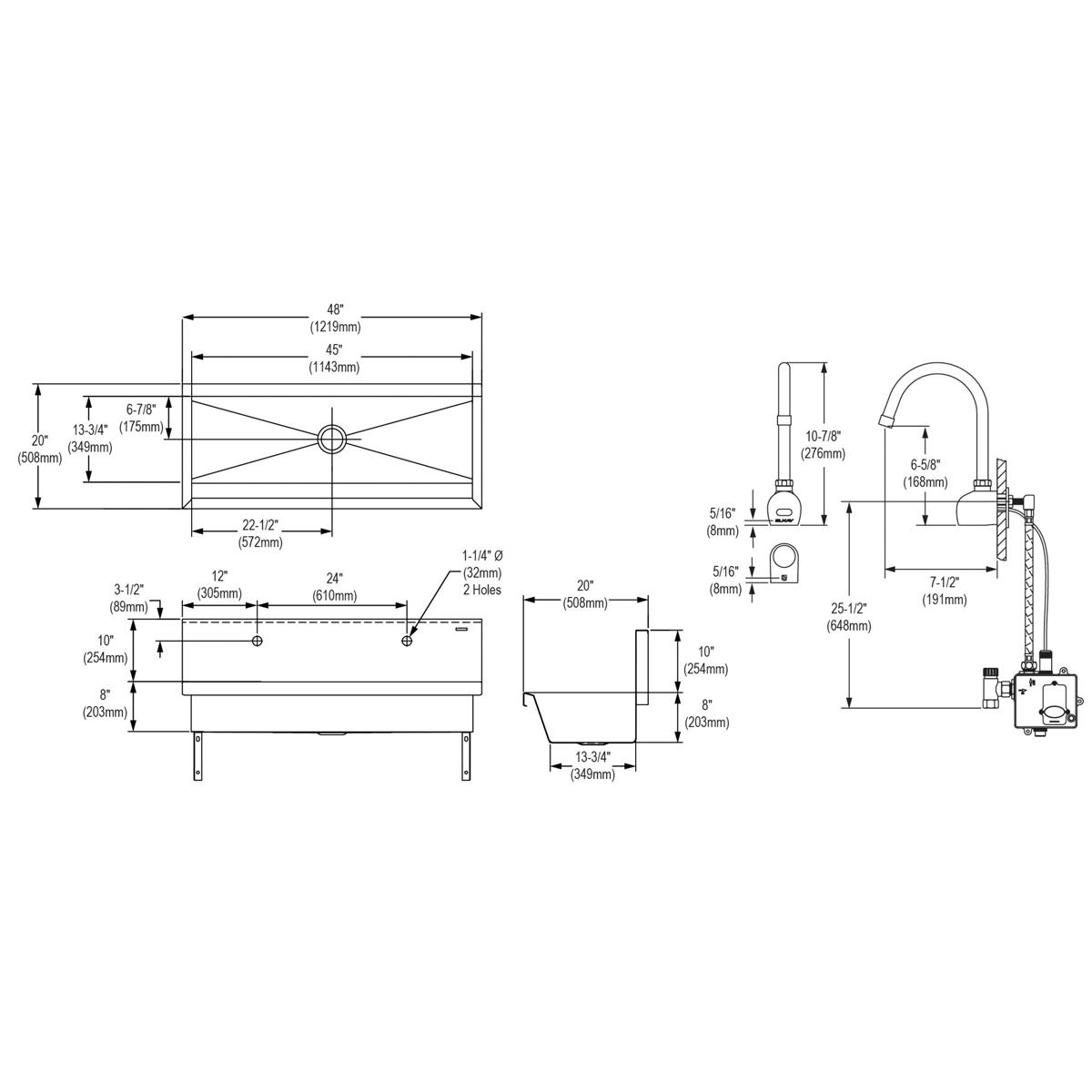

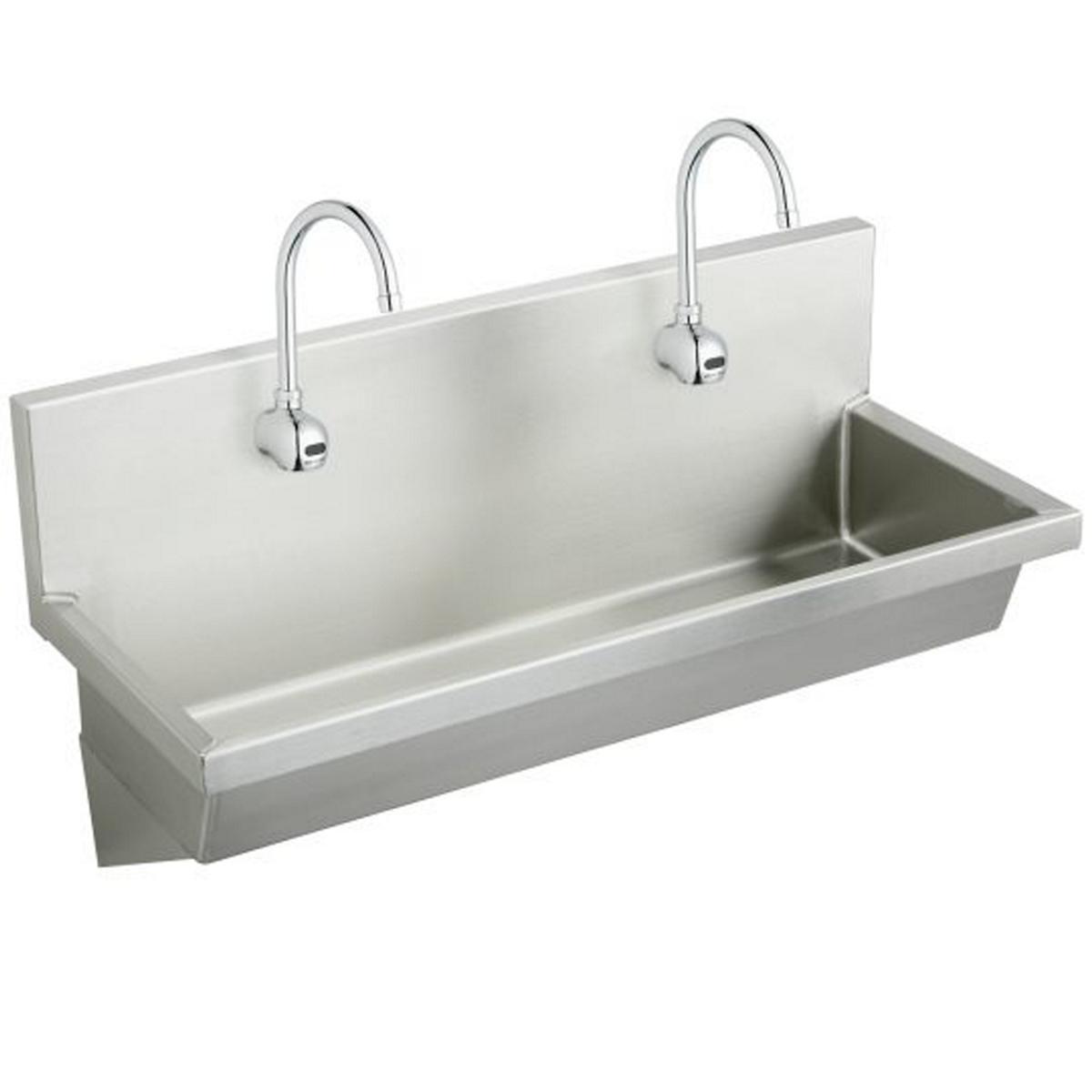

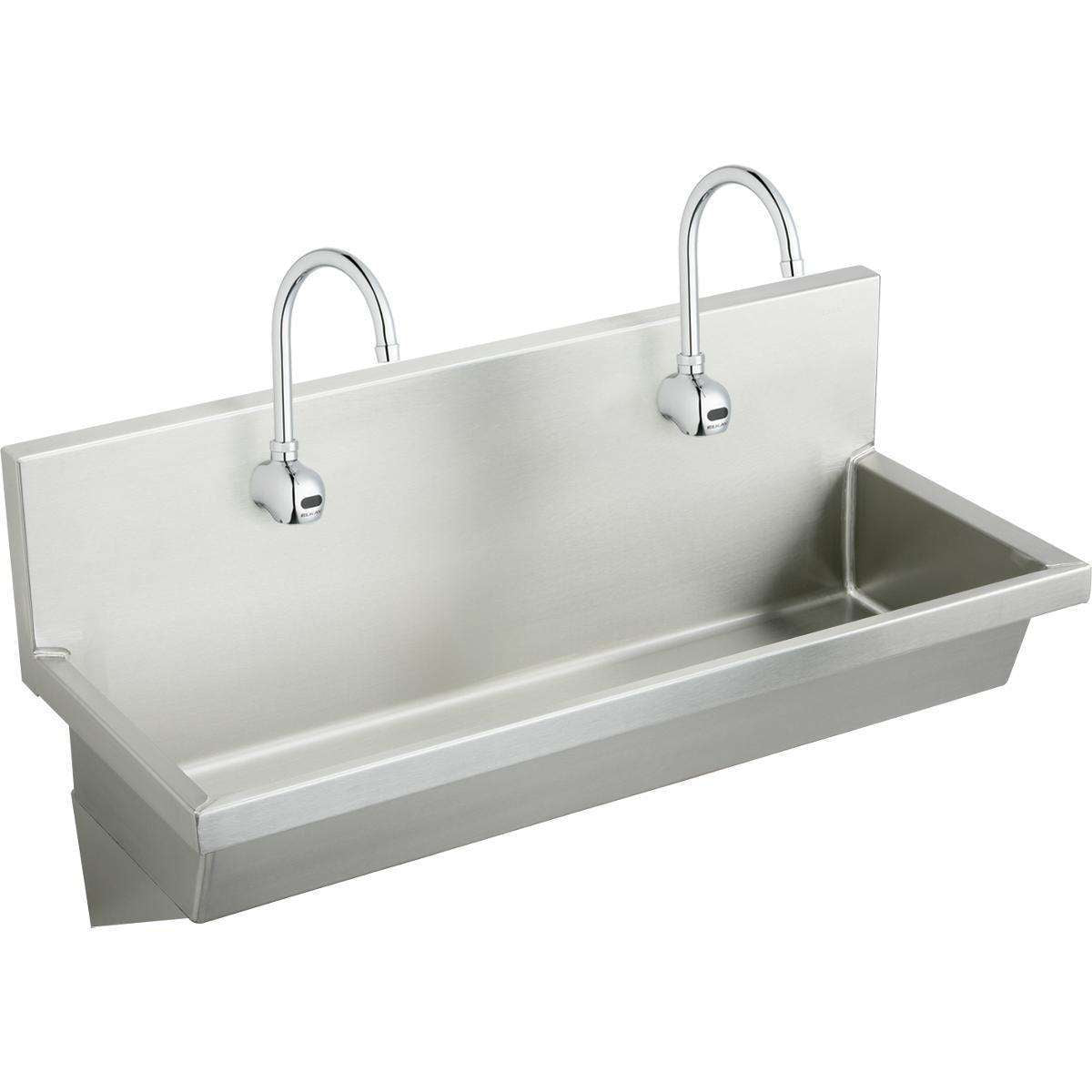

The Elkay EWMA4820SACMC is a Stainless Steel 48" x 20" x 8" Wall Hung Multiple Station Hand Wash Sink Kit. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- 14-gauge, Type 304 stainless steel.
- 1/4" coved corners.
- 1-1/2" wide inward sloping top channel rims with 2" flat apron.
- 10" high, full-length backsplash.
- Square rim corners.
- 3-1/2" drain opening.
- Exposed surfaces are blended by hand to a uniform lustrous finish.
- _x0083_Furnished with wall hanger and stainless steel support brackets.

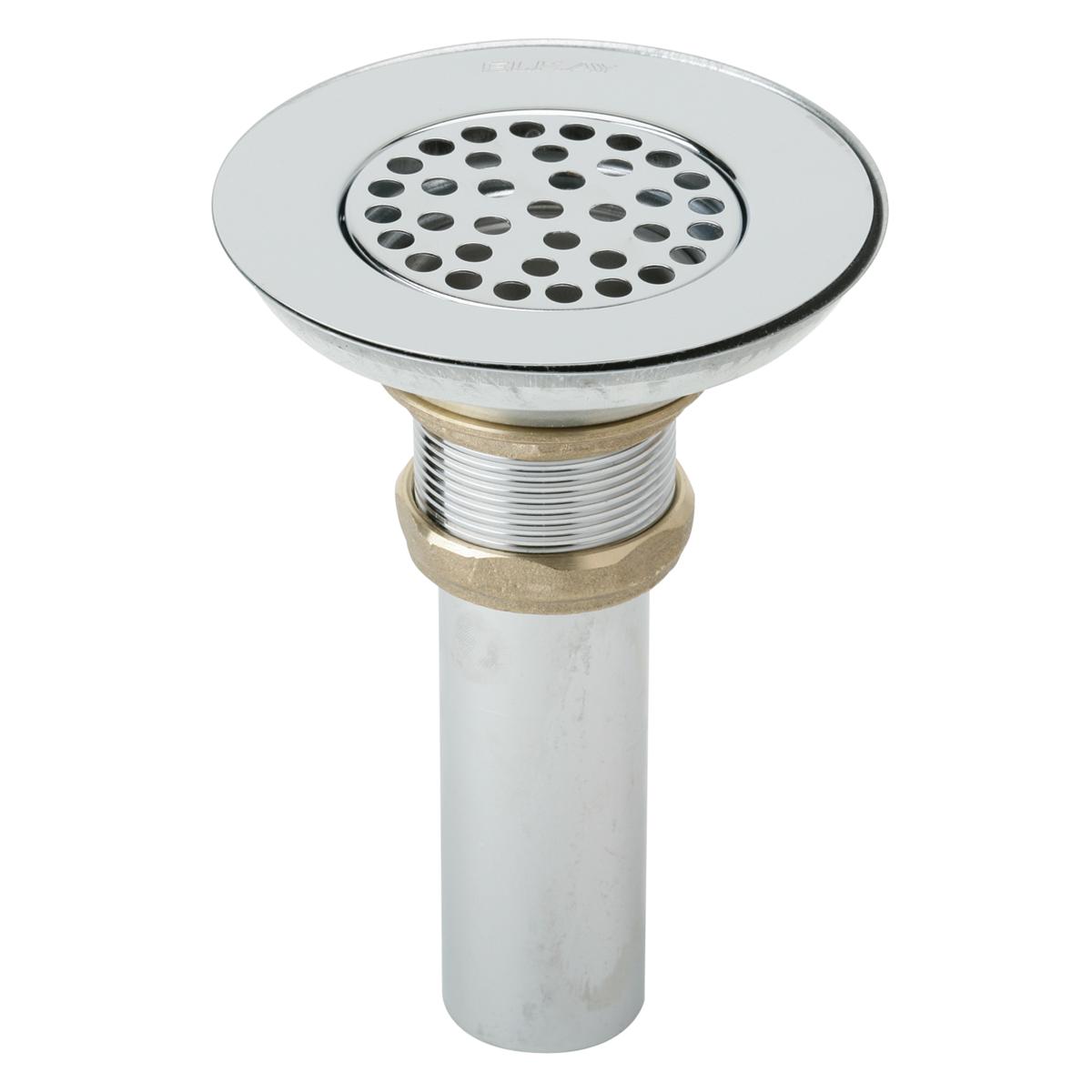

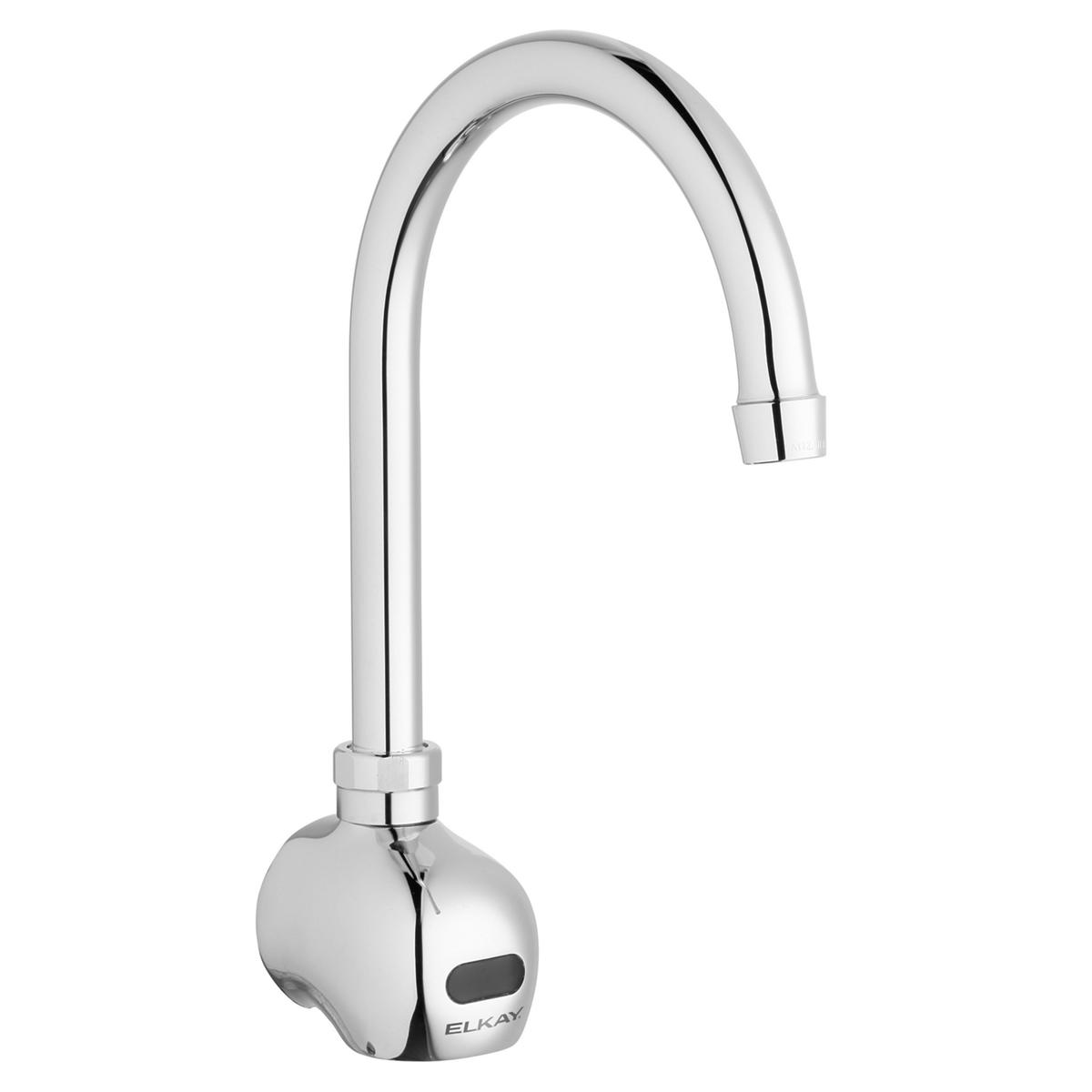

- KIT INCLUDES: EWMA4820 sink, two LKB722C AC/battery-powered sensor faucets, two LK724 mechanical mixing valves, and one LK18B grid drain.
Common Questions
- What does 14-gauge mean?
- 14 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 1.
- What is included in the kit?
- This kit includes: EWMA4820 sink, two LKB722C sensor faucets AC plug-in / 8 AA batteries, two LK724 mechanical mixing valves, one LK18B grid drain.
Specifications
- Type: Stainless Steel 48" x 20" x 8" Wall Hung Multiple Station Hand Wash Sink Kit
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- MPN: EWMA4820SACMC
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO
- Number of Bowls: 1
- Bowl Dimensions: 45" x 16-1/2" x 8"
- Drain Location: Center
- Gauge: 14
- Mount Type: Wall-Mount
- Coating / Finish: Buffed Satin
- Faucet Holes: 1
- Overall Length (in): 48.0
- Overall Width (in): 20.0
- Overall Height (in): 18.0
- Kit Includes: EWMA4820 sink, two LKB722C sensor faucets AC plug-in / 8 AA batteries, two LK724 mechanical mixing valves, one LK18B grid drain
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | EWMA4820SACMC | Device Type | Stainless Steel 48" x 20" x 8" Wall Hung Multiple Station Hand Wash Sink Kit |
| Body Material | Stainless Steel | Contents | EWMA4820 sink, two LKB722C sensor faucets AC plug-in / 8 AA batteries, two LK724 mechanical mixing valves, one LK18B grid drain |
| Baa | USA | Coating | Buffed Satin |
| Hole count | 1 | Mount type | Wall-Mount |
| Overall height in | 18.0 in | Overall length in | 48.0 in |
| Overall width in | 20.0 in | Bowl count | 1 |
| Bowl dimensions | 45" x 16-1/2" x 8" | Drain location | Center |
| Gauge | 14 | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
Compare with similar products
| Contents | EWMA4820 sink, two LKB722C sensor faucets AC plug-in / 8 AA batteries, two LK724 mechanical mixing valves, one LK18B grid drain
| CHSP1716 sink, LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK8 grid drain fitting, one LK500 P-trap
| CHSP1716 sink, one LK399A foot control, one LK395A spout, one LK8 grid drain fitting, and one LK500 P-trap
| CHS1716 sink, one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve, one LK8 drain fitting, one LK500 P-trap
| CHS1716 sink, one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK724 mechanical mixing valve, one LK8 drain fitting, one LK500 P-trap
| CHS1716 sink, one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK8 drain fitting, one LK500 P-trap
|
| Series | EWMA4820SACMC
| CHSP1716SACC
| CHSP1716LRSC
| CHS1716SACTMC
| CHS1716SACMC
| CHS1716SACC
|
| Country Of Origin | — | — | — | United States
| China
| — |
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Stainless Steel 48" x 20" x 8" Wall Hung Multiple Station Hand Wash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
|
| Outlet Size | 3-1/2"
| 1-1/2"
| 1-1/2"
| 2"
| 2"
| 2"
|
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Certifications | ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
|
