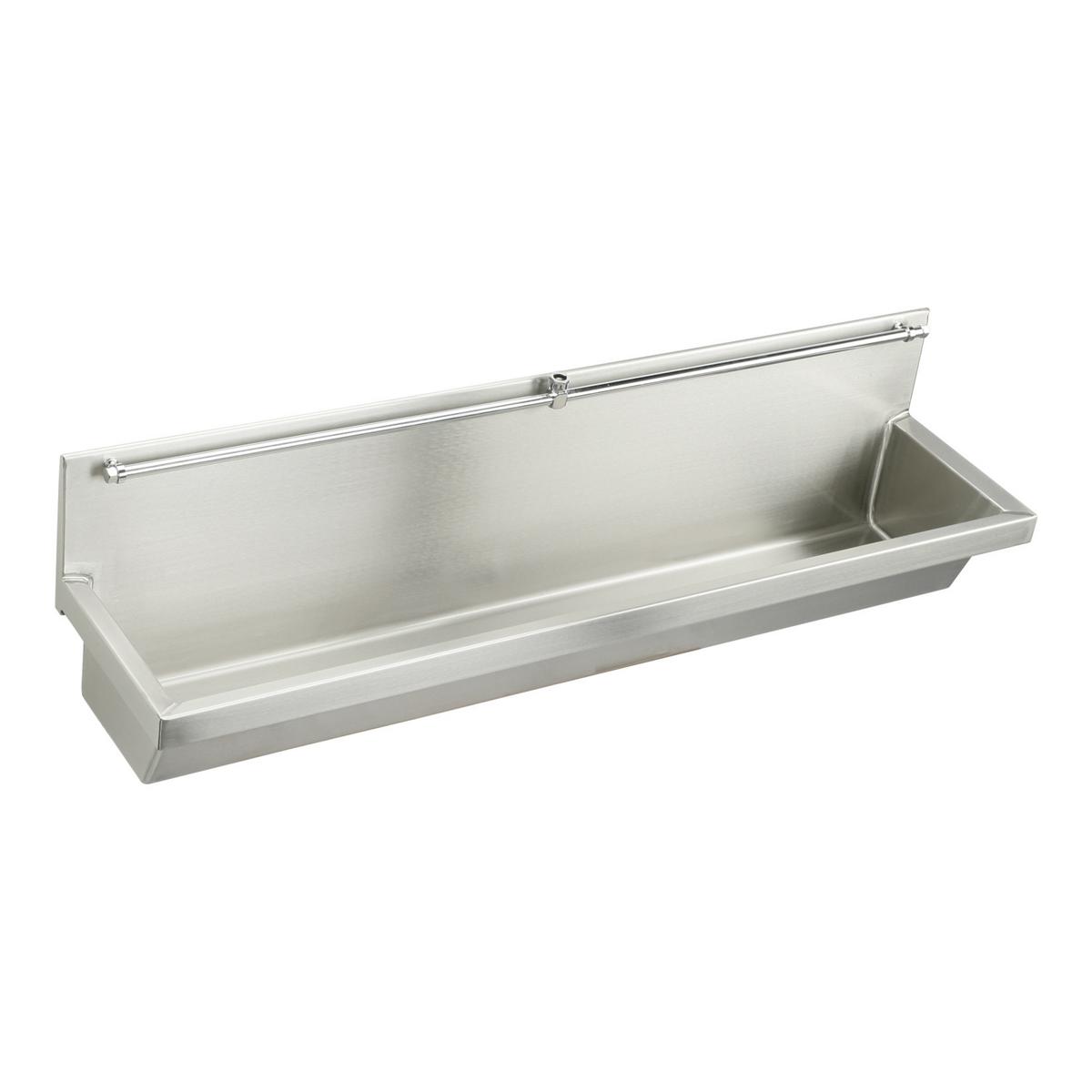

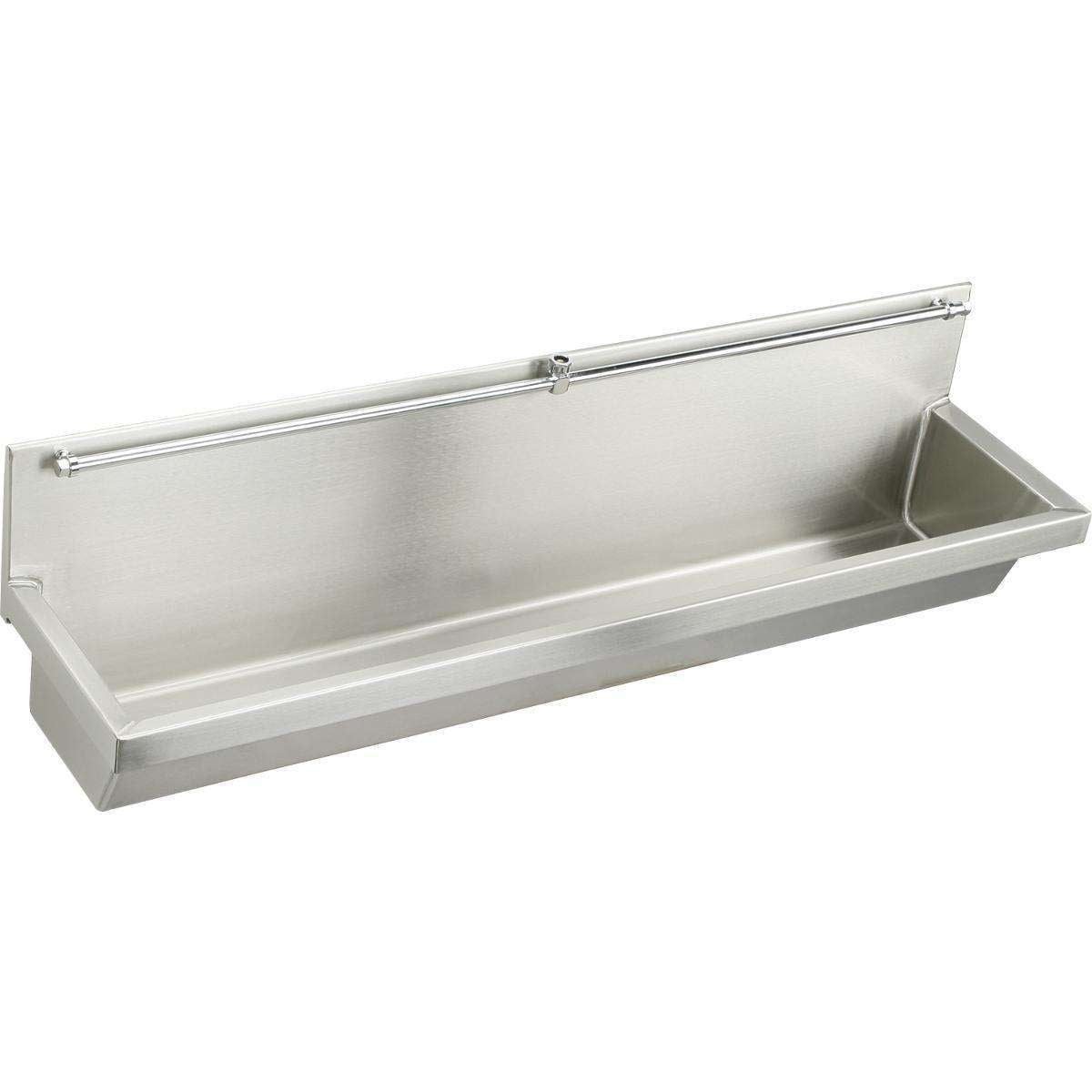

Elkay Stainless Steel 48" x 14" x 8", Wall Hung Multiple Station Urinal Kit

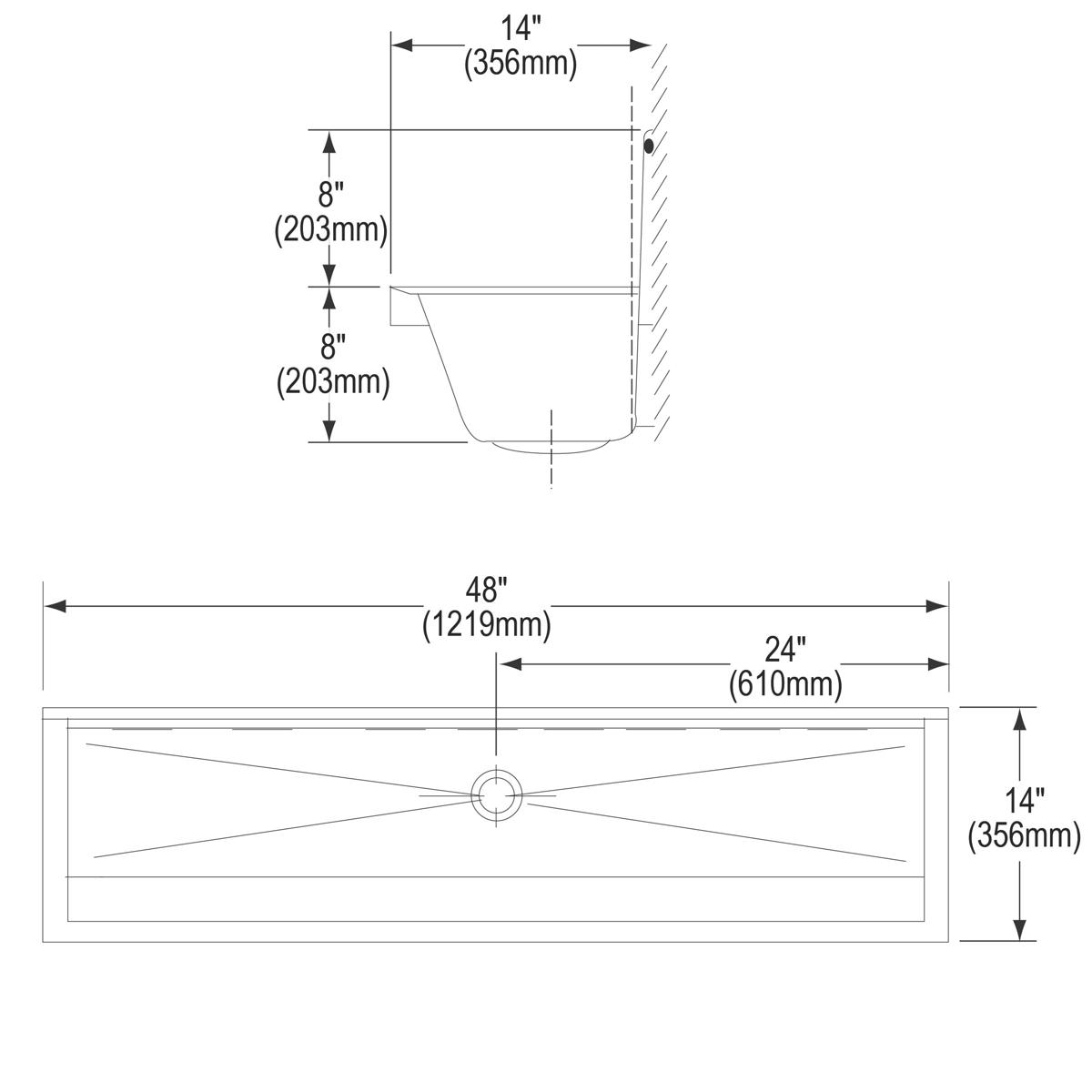

Features14-gauge, Type 304 stainless steel.Welded seamless 1/4" coved corners.Full-length sloping backsplash with flush pipe.1-1/2" wide top channel rims with 2" flat front apron.Sound-deadening material minimizes sound and vibration for a quieter time at the sink.Furnished with continuous-length wall hanger and integral stainless steel mounting "Z" brackets.Exposed surfaces polished to a satin finish; easy to clean and sanitize.Designed for use with any water control flush valve, time valve or tank.Water control valve and trap not included.KIT INCLUDES: EU4814 urinal, LK388 flush pipe, and one LK177 strainer; save time having to purchase each piece separately.Item Dimensions: 48 x 14 x 16Includes- EU4814urinal, one LK177 strainer
Product Compliance
- Is ADA Compliant: No
- ASME A112.19.3/CSA B45.4|Buy American Act
- ASME A112.18.2/CSA B125.2
Downloads
