Specifications
Description

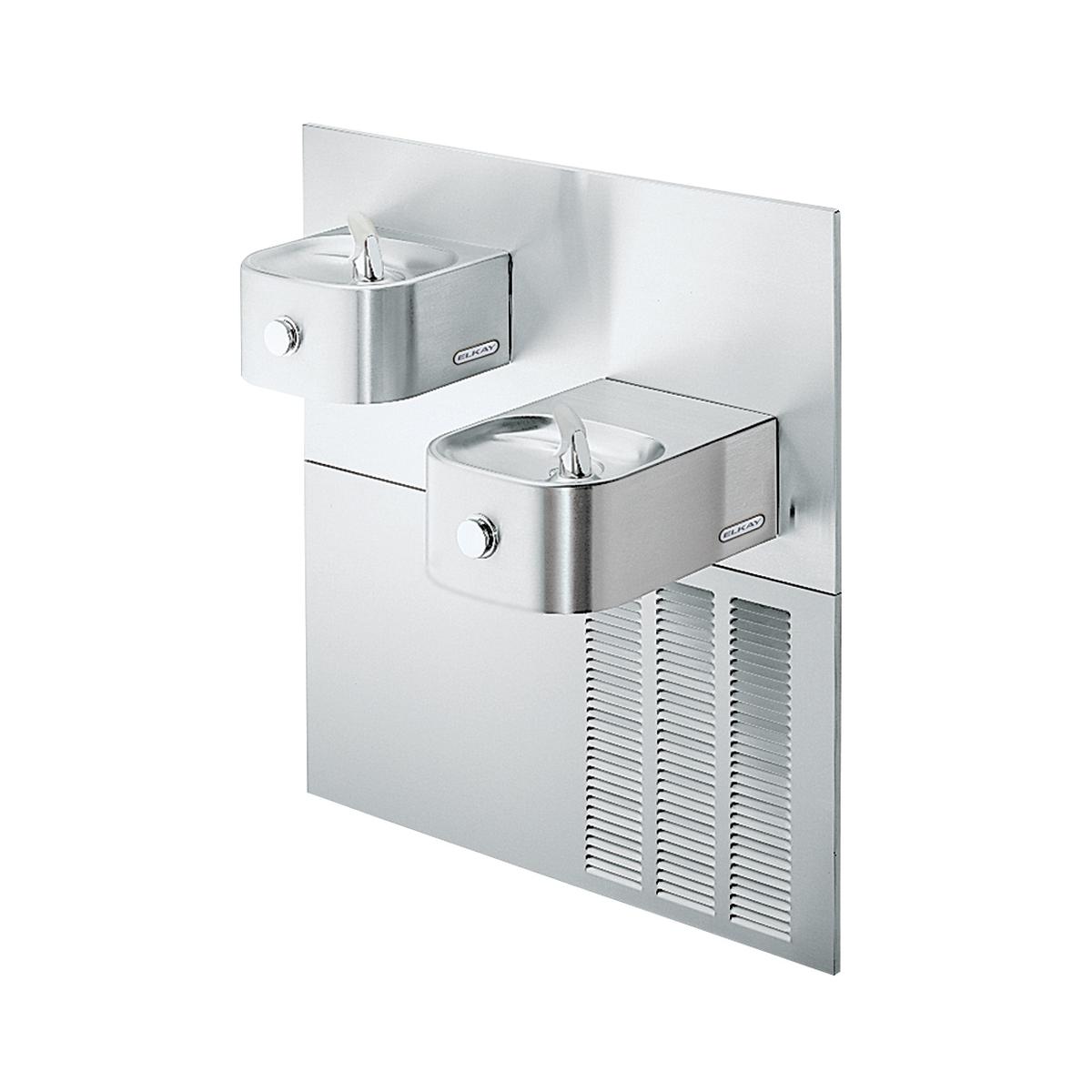

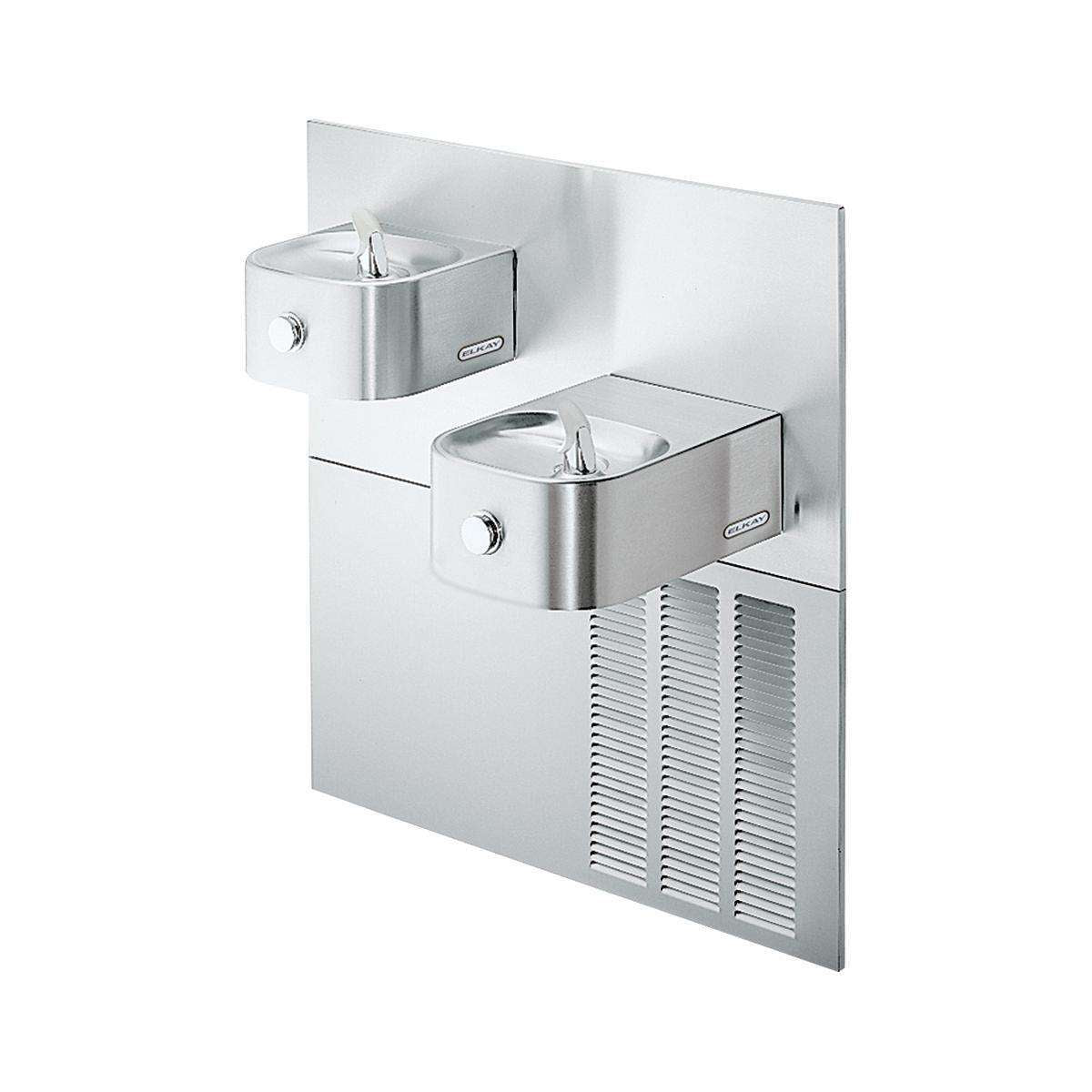

The Elkay ERFP28K is a non-filtered bi-level water cooler, in-wall, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.
Soft Sides® architectural refrigerated fountains feature softly rounded corners and a Contoured basin designed to provide a splash-resistant surface.
Features
- Contoured fountain provides an attractive and safe product.
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
- Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.
- Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
- Stainless steel finish is corrosion resistant and attractive.
- Bottom cover plate conceals plumbing and internal components.
- Rated for indoor use.
Common Questions
- Is this unit filtered?
- No, this is a non-filtered unit.
- Does this satisfy the ADA hi/lo pair requirement?
- Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.
- How much chilled water does it deliver?
- 8.0 GPH of 50°F water per ASHRAE 18 test conditions.
- What electrical supply does it need?
- 115V/60Hz, 370W.
- How does this mount?
- In-Wall installation.
Specifications
- Type: Soft Sides Bi-level ADA Fountain Non-filtered Refrigerated Stainless
- Body Material: Stainless Steel
- Operation: Push Button
- Country of Origin: United States
- MPN: ERFP28K
- Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
- Lead-Free: Yes
- Chilling Capacity (GPH): 8.0
- Refrigerated: Yes
- Filtered: No
- Stations Served: 2
- Bi-Level: Yes
- Bubbler Style: Flexi-Guard Safety Bubbler
- Electrical Requirement: 115V/60Hz
- Rated Watts: 370
- Installation Location: Indoor
- Overall Length (in): 38.5
- Overall Width (in): 18.625
- Overall Height (in): 40.8125
Product Information
Details
| Series | ERFP28K | Device Type | Soft Sides Bi-level ADA Fountain Non-filtered Refrigerated Stainless |
| Lead Free | Yes | Body Material | Stainless Steel |
| Operation | Push Button | Baa | USA |
| Electrical requirement | 115V/60Hz | Installation location | Indoor |
| Overall height in | 40.8125 in | Overall length in | 38.5 in |
| Overall width in | 18.625 in | Rated watts | 370 |
| Bilevel | Yes | Bubbler style | Flexi-Guard Safety Bubbler |
| Chilling capacity gph | 8.0 | Refrigerated | Yes |
| Stations | 2 | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-61 |
| NSF-372 | UL-399 |
| cUL | UL |
| ADA | — |
Compare with similar products
| Series | ERFP28K
| LRPBGRNM28K
| LRPBM8K
| LRPBM28RAK
| LBWDC00
| LBWDC00
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Soft Sides Bi-level ADA Fountain Non-filtered Refrigerated Stainless
| SwirlFlo Bi-level High Efficiency ADA Fountain with Mounting Frame Filtered Refrigerated Stainless
| SwirlFlo ADA Fountain with Mounting Frame Filtered Refrigerated Stainless
| SwirlFlo Bi-level Reverse ADA Fountain with Mounting Frame Filtered Refrigerated Stainless
| ezH2O Liv Pro In-Wall Commercial Filtered Water Dispenser Non-refrigerated Aspen White
| ezH2O Liv Pro In-Wall Commercial Filtered Water Dispenser Non-refrigerated Midnight
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| — | — |
| Operation | Push Button
| Push Button
| Push Button
| Push Button
| Sensor
| Sensor
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
|
