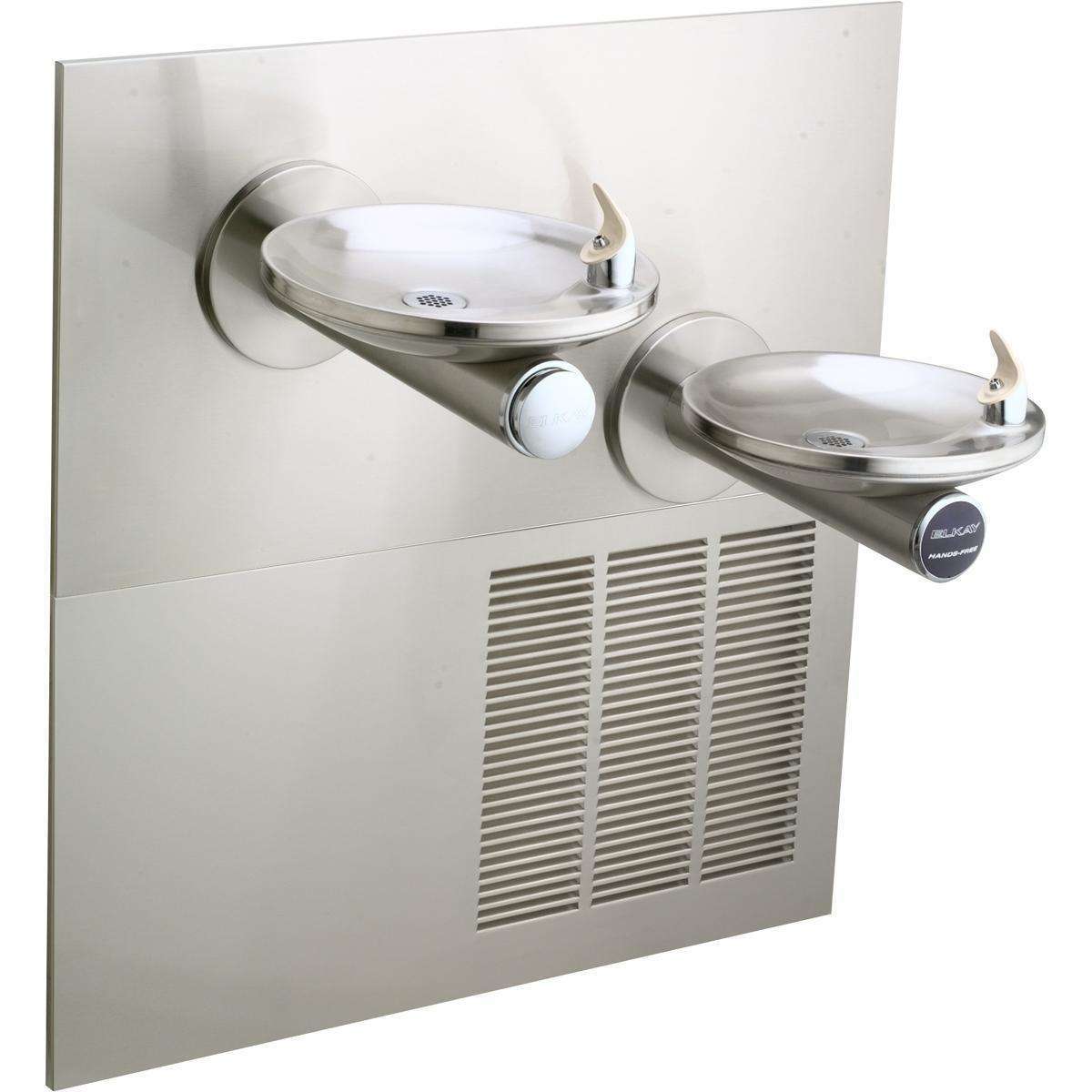

Elkay SwirlFlo Fountain Bi-Level ADA Hands-Free Non-Filtered Refrigerated, Stainless ENOBM28K

The Elkay ENOBM28K is a non-filtered bi-level water cooler, in-wall, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.

SwirlFlo® architectural refrigerated fountains feature sleek styling with a Contoured oval basin designed to provide a splash-resistant surface.

Features

• Patented stainless steel design enhances any architectural design, whether classic landmark or cutting edge.
• Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
• Touchless, sensor-activated units are designed for easy use and improved hygiene.
• Mechanical push-button bubbler activation on standard arm continues to provide water when electrical service is interrupted.
• Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
• Mounting frame included.
• Rated for indoor use.

Common Questions

Is this unit filtered?

No, this is a non-filtered unit.

Does this satisfy the ADA hi/lo pair requirement?

Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.

How much chilled water does it deliver?

8.0 GPH of 50°F water per ASHRAE 18 test conditions.

What electrical supply does it need?

115V/60Hz, 370W.

How does this mount?

In-Wall installation.

Specifications

• Type: SwirlFlo Hands-free Activation Bi-level ADA Fountain with Mounting Frame Hands-free Non-filtered Refrigerated Stainless
• Body Material: Stainless Steel
• Operation: Sensor
• Country of Origin: United States
• MPN: ENOBM28K
• Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
• Lead-Free: Yes
• Chilling Capacity (GPH): 8.0
• Refrigerated: Yes
• Filtered: No
• Stations Served: 2
• Bi-Level: Yes
• Bubbler Style: Flexi-Guard Safety Bubbler
• Electrical Requirement: 115V/60Hz
• Rated Watts: 370
• Full Load Amps: 4.5
• Installation Location: Indoor
• Overall Length (in): 38.5
• Overall Width (in): 19.0
• Overall Height (in): 40.8125
