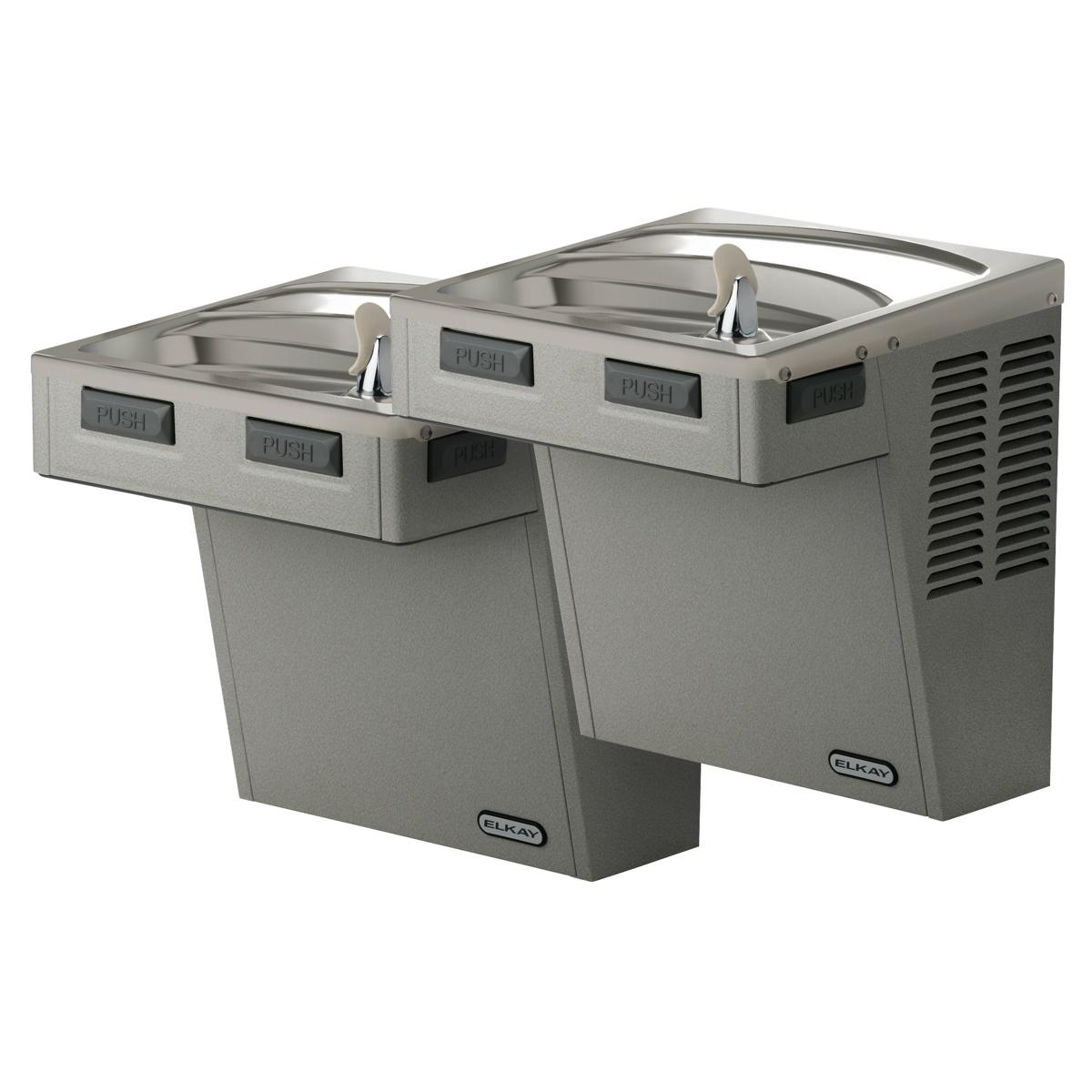

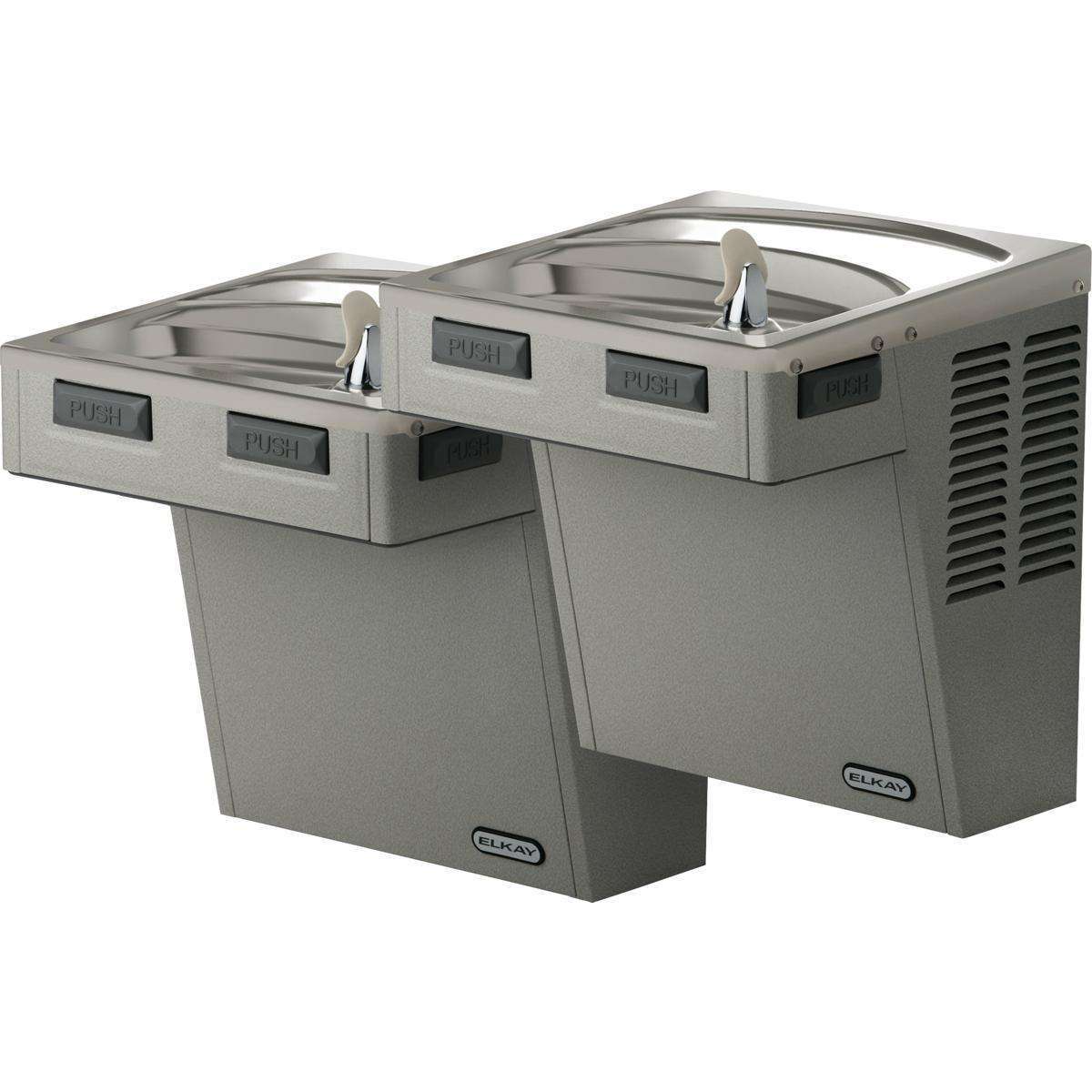

Elkay Wall Mount Bi-Level Reverse ADA Cooler, Non-Filtered Refrigerated Light Gray Granite EMABFTLR8LC

The Elkay EMABFTLR8LC is a non-filtered bi-level water cooler, wall-mount, 8.0 GPH. This model is certified lead-free for potable-water installations.

Mechanically-activated water cooler ideal for areas prone to service disruptions. Easy-to-operate front and side pushbar activation.

Features

• Classic design fits well in all building designs.
• Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
• Mechanical bubbler push bars continue to provide water when electrical service is interrupted.
• Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
• Vinyl clad finish is durable and attractive.
• Provides refreshing, chilled water.
• Rated for indoor use.

Common Questions

Is this unit filtered?

No, this is a non-filtered unit.

Does this satisfy the ADA hi/lo pair requirement?

Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.

How much chilled water does it deliver?

8.0 GPH of 50°F water per ASHRAE 18 test conditions.

What electrical supply does it need?

115V/60Hz, 370W.

How does this mount?

Wall-Mount installation.

Specifications

• Type: Wall Mount Bi-level Reverse ADA Cooler Non-filtered Refrigerated Light Gray Granite
• Operation: Pushbar
• Country of Origin: United States
• MPN: EMABFTLR8LC
• Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
• Lead-Free: Yes
• Chilling Capacity (GPH): 8.0
• Refrigerated: Yes
• Filtered: No
• Stations Served: 2
• Bi-Level: Yes
• Bubbler Style: Flexi-Guard Safety Bubbler
• Electrical Requirement: 115V/60Hz
• Rated Watts: 370
• Full Load Amps: 5.0
• Installation Location: Indoor
• Overall Length (in): 36.25
• Overall Width (in): 18.625
• Overall Height (in): 27.0
