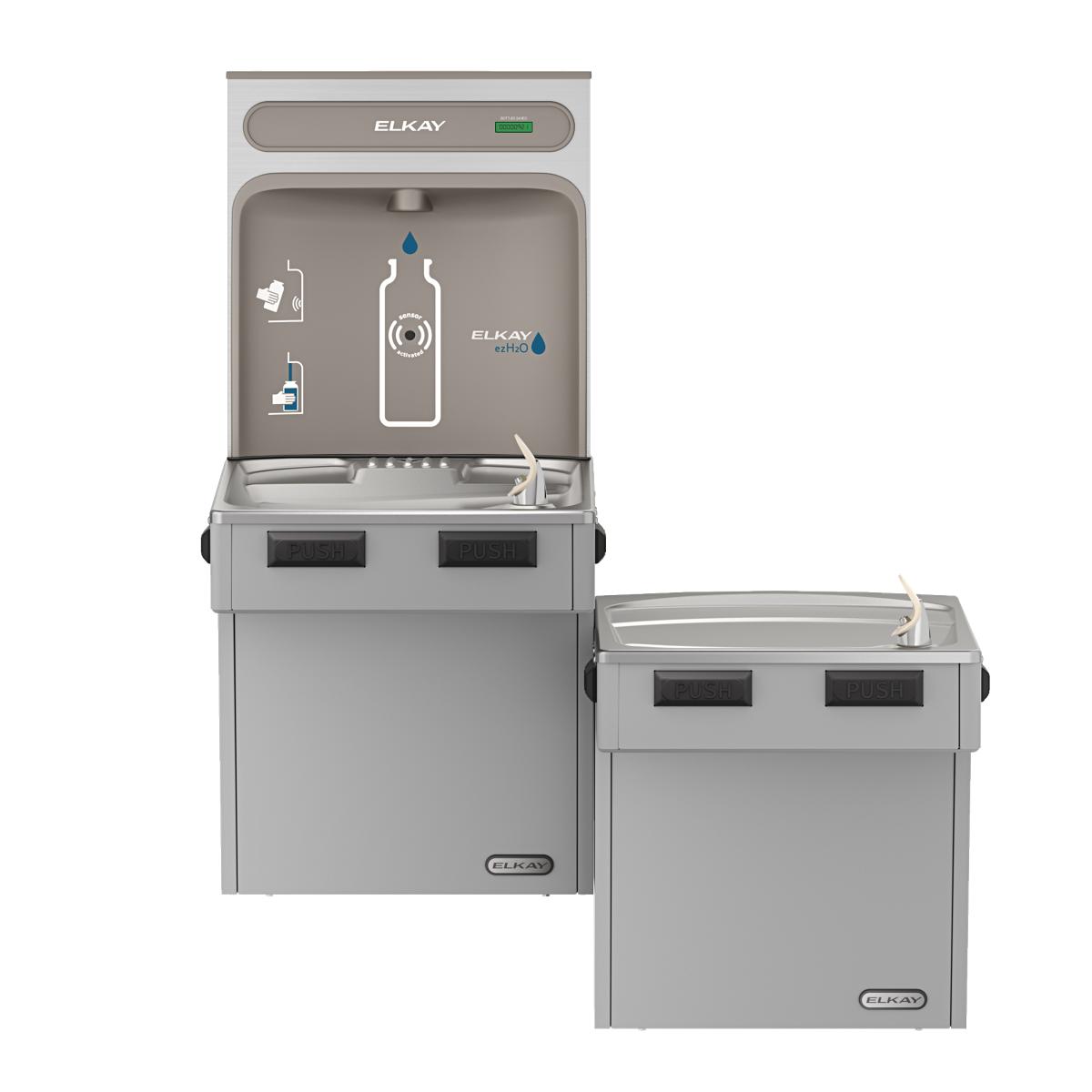

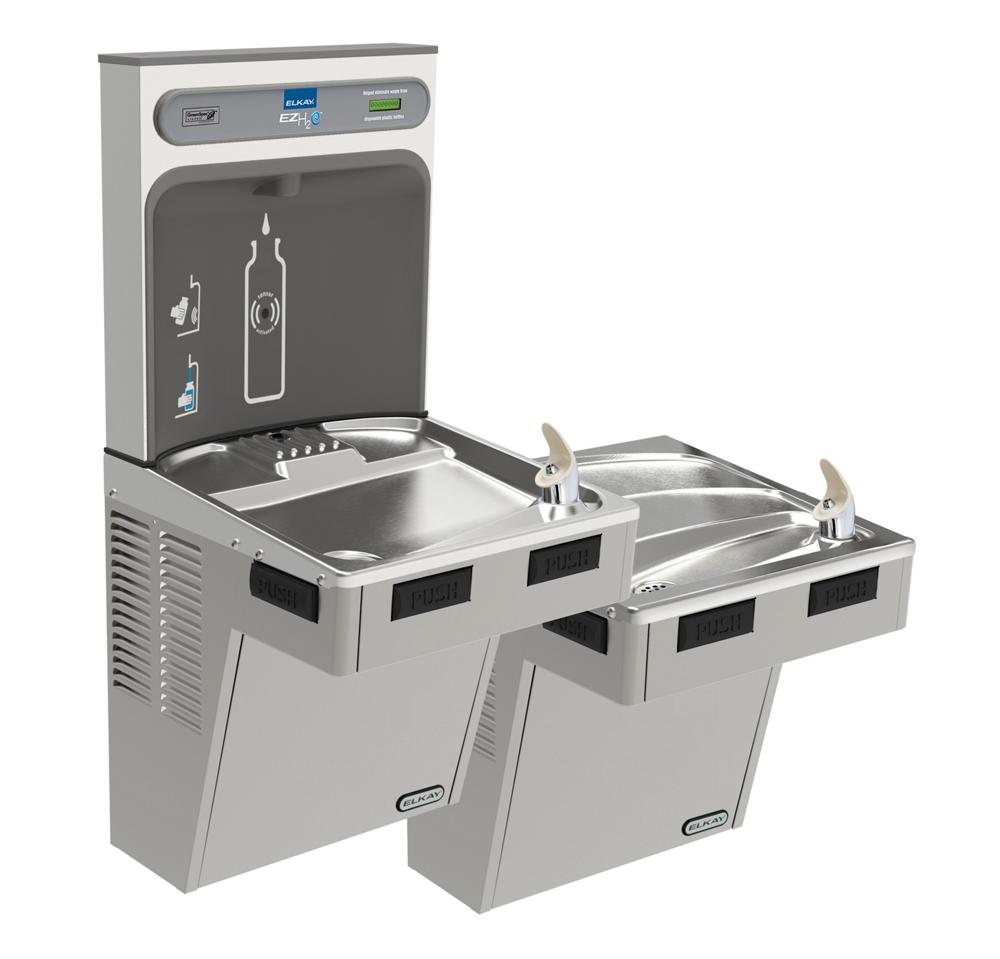

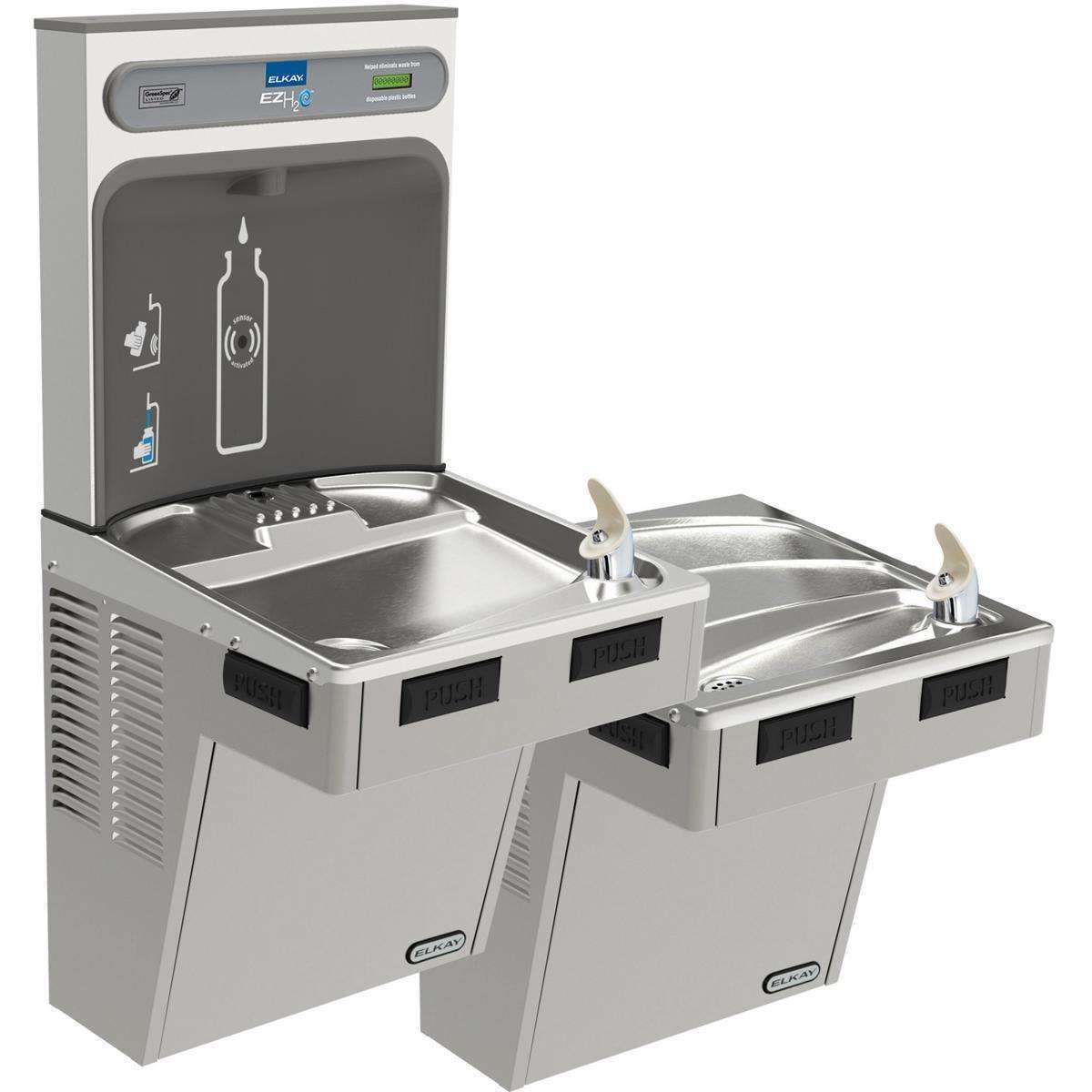

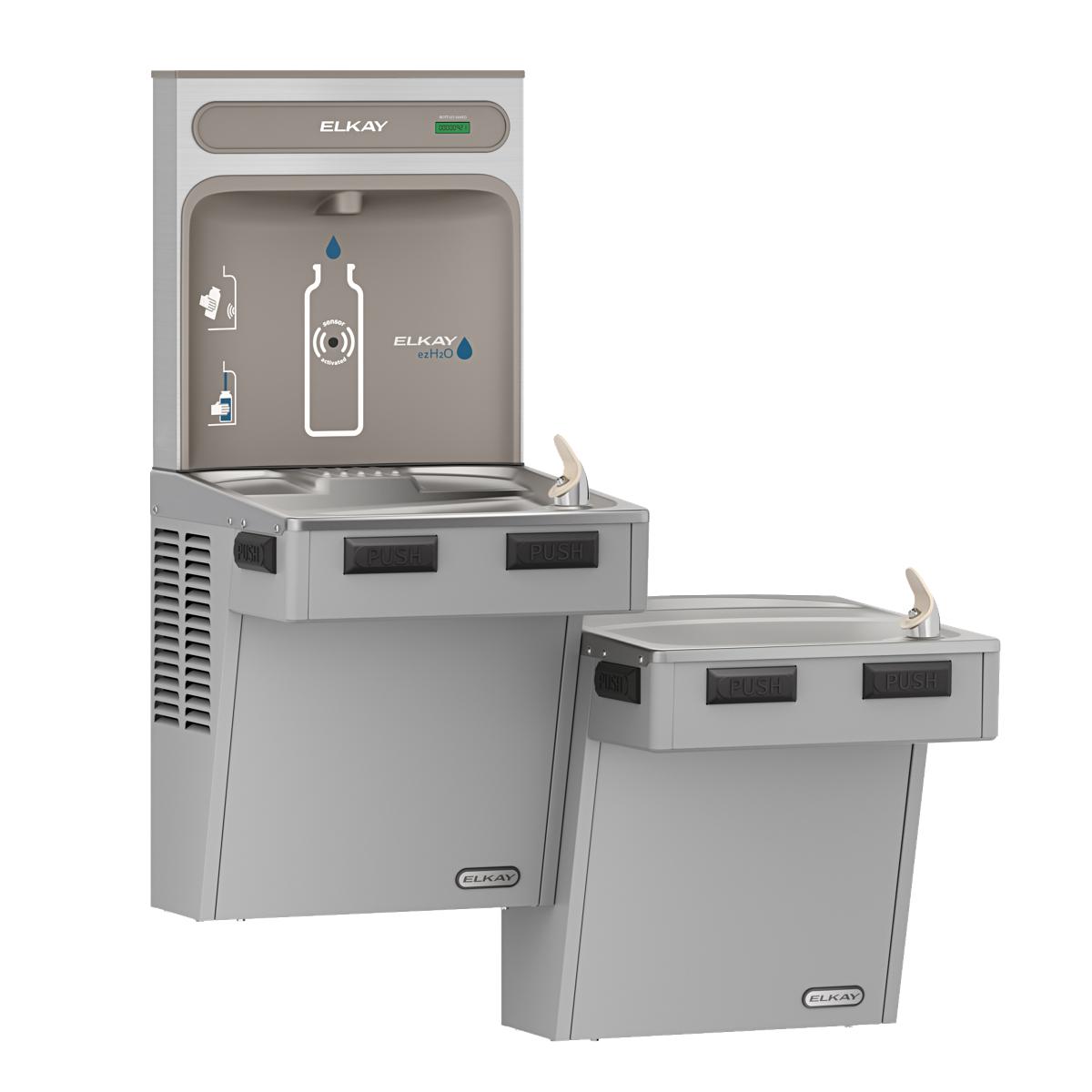

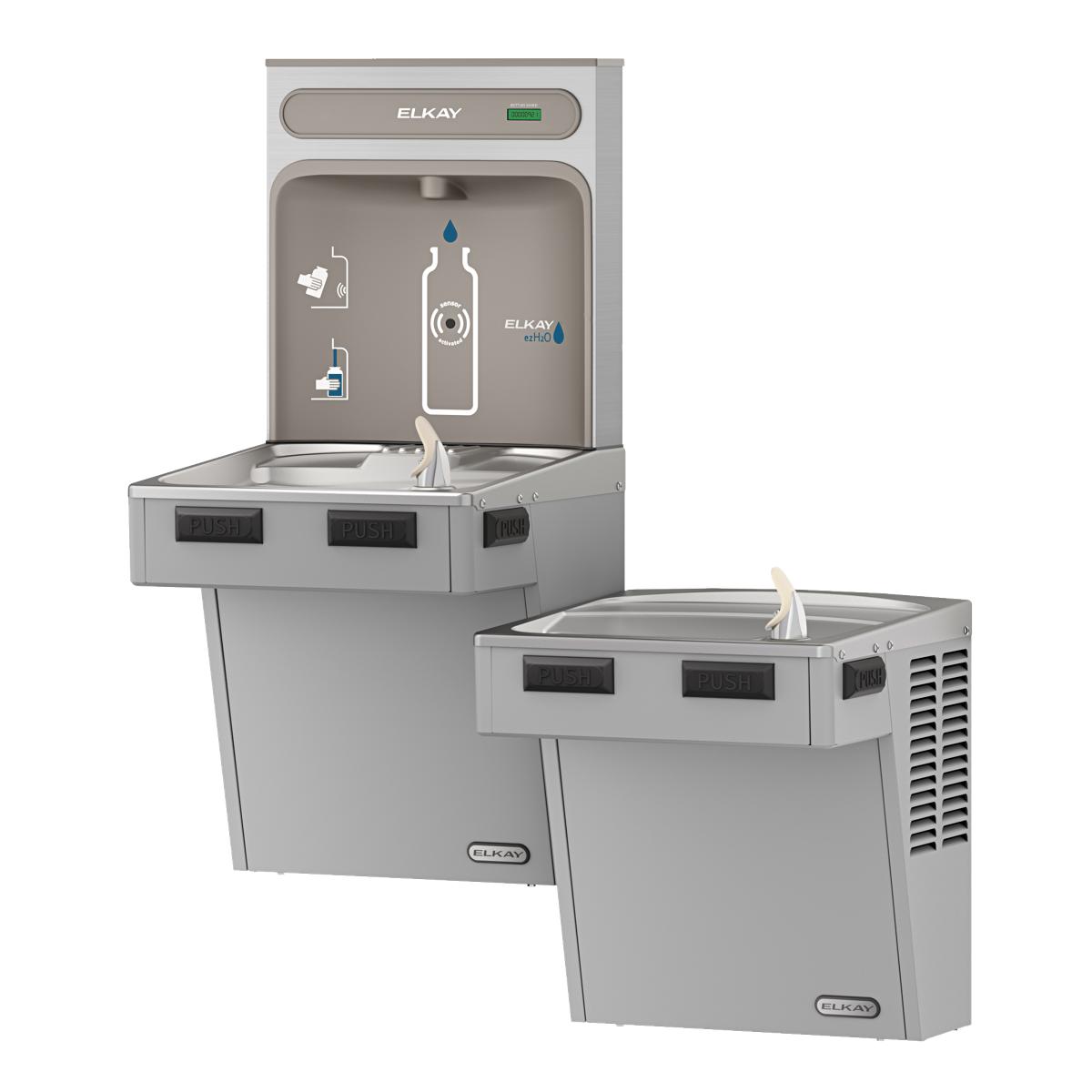

Elkay ezH2O Bottle Filling Station with Mechanically Activated Bi-Level ADA Cooler Non-Filtered Refrigerated Light EMABFTL8WSLK

The Elkay EMABFTL8WSLK is a non-filtered bi-level bottle filling station, wall-mount, 8.0 GPH. This model is certified lead-free for potable-water installations.

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.

Features

• Touchless, sensor-activated bottle filler, designed for easy use; mechanically-activated bubbler continues to supply water in service disruptions.
• Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
• Fill rate is 1.1 GPM.
• Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
• Laminar flow provides clean fill with minimal splash.
• Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
• Real drain system eliminates standing water.
• Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
• Rated for indoor use.

Common Questions

Is this unit filtered?

No, this is a non-filtered unit.

Does this satisfy the ADA hi/lo pair requirement?

Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.

How much chilled water does it deliver?

8.0 GPH of 50°F water per ASHRAE 18 test conditions.

What electrical supply does it need?

115V/60Hz, 370W.

How does this mount?

Wall-Mount installation.

Specifications

• Type: ezH2O Bottle Filling Station with Mechanically Activated Bi-Level ADA Cooler Non-Filtered Refrigerated Light Gray
• Operation: Sensor + Pushbar
• Country of Origin: United States
• MPN: EMABFTL8WSLK
• Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
• Lead-Free: Yes
• Chilling Capacity (GPH): 8.0
• Refrigerated: Yes
• Filtered: No
• Stations Served: 2
• Bi-Level: Yes
• Bubbler Style: Flexi-Guard Safety Bubbler
• Electrical Requirement: 115V/60Hz
• Rated Watts: 370
• Full Load Amps: 6.0
• Installation Location: Indoor
• Overall Length (in): 36.25
• Overall Width (in): 18.625
• Overall Height (in): 46.25
