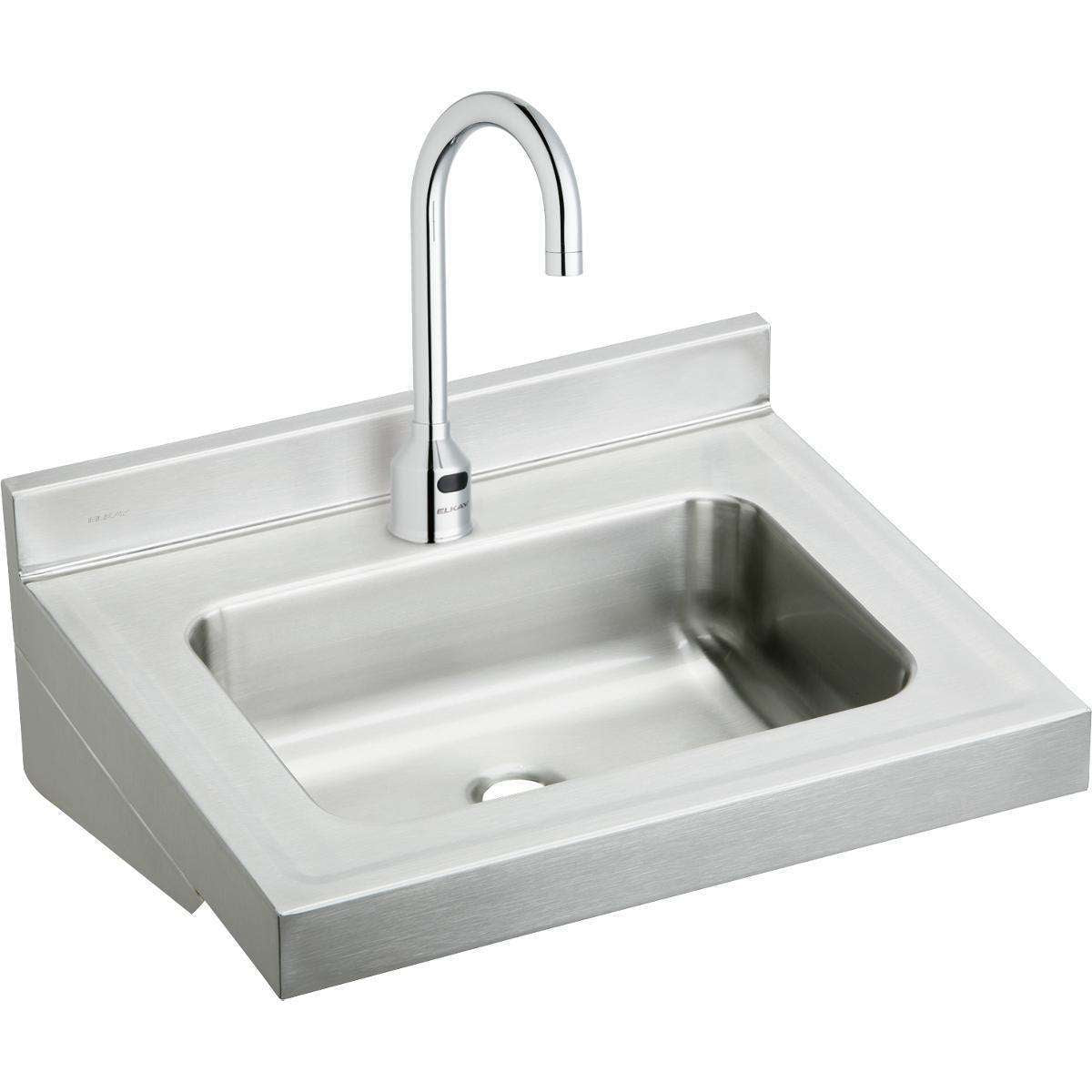

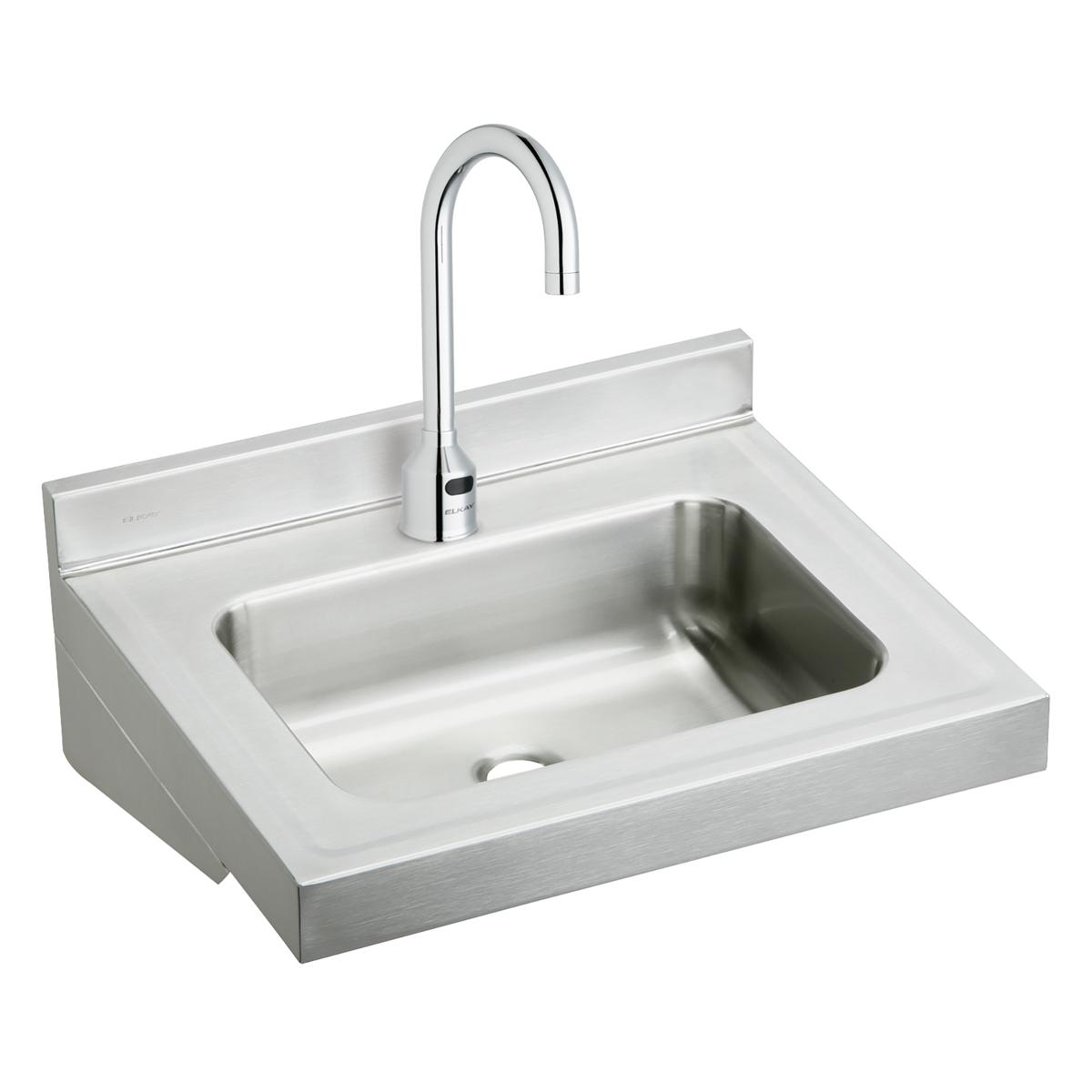

The Elkay ELV2219SACTMC is a Stainless Steel 22" x 19" x 5-1/2" Wall Hung Lavatory Sink Kit. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- 18-gauge, Type 304 stainless steel.
- 1-3/4" coved corners, 2½" high backsplash, and 2½" apron front and sides.
- Front and side decks with raised rim.
- Exposed surfaces blended by hand to a uniform lustrous satin finish.
- Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
- Drain placement provides more usable space on the bottom of the sink.
- 1-5/8" drain opening.
- Furnished with wall hanger and integral stainless steel support brackets.
- Product is ADA compliant when properly installed.

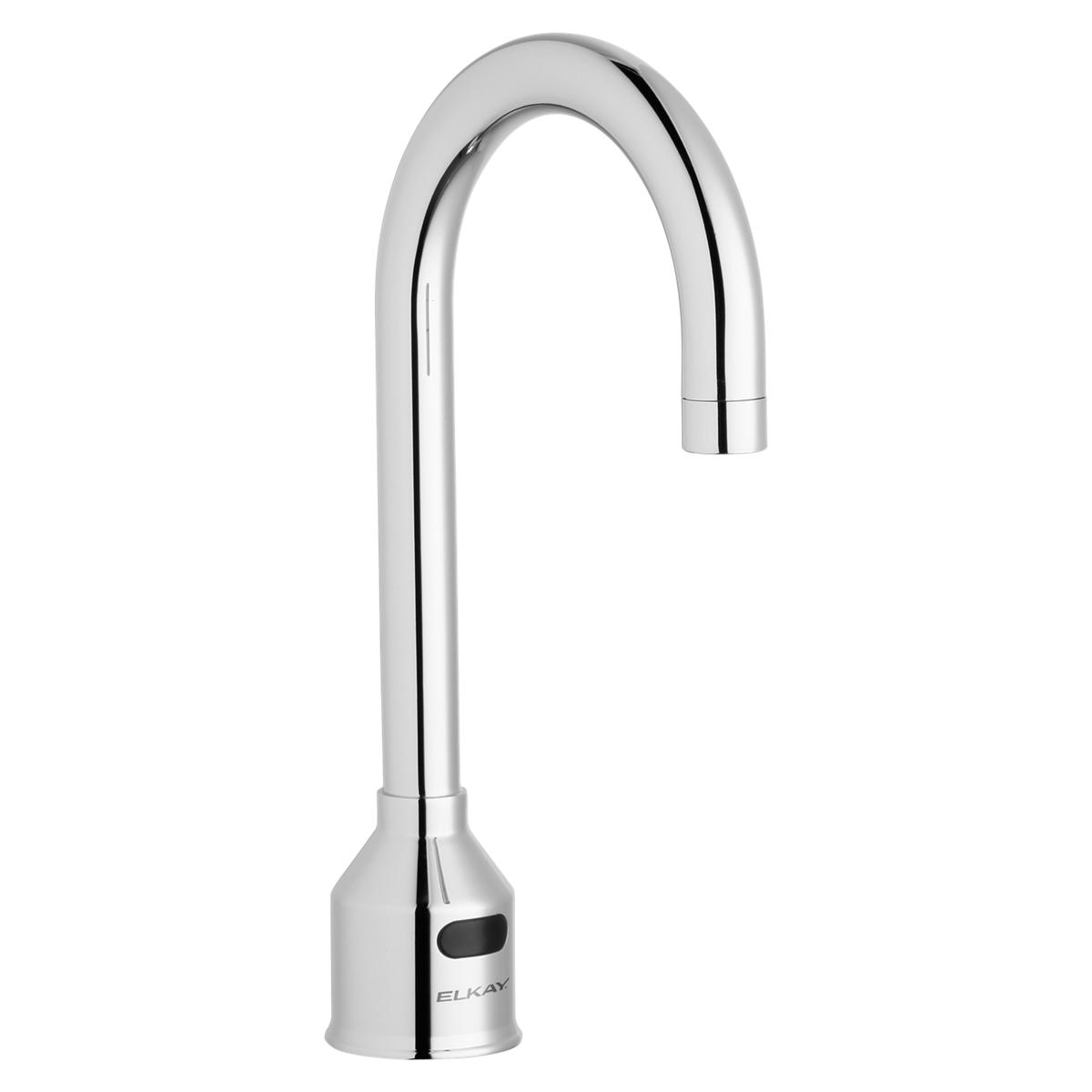

- KIT INCLUDES: ELV2219 sink, one LKB721C AC/battery-powered sensor faucet, and one LK723 thermostatic mixing valve.
Common Questions
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- Is this ADA compliant?
- Yes, this model meets ADA accessibility requirements for bowl depth.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 1.
- What is included in the kit?
- This kit includes: ELV2219 sink, one LKB721C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve.
Specifications
- Type: Stainless Steel 22" x 19" x 5-1/2" Wall Hung Lavatory Sink Kit
- Outlet Size: 1-1/2"
- Body Material: Stainless Steel
- MPN: ELV2219SACTMC
- Certifications: NSF-2, ADA
- Number of Bowls: 1
- Bowl Dimensions: 16" x 11-1/2" x 5-1/2"
- Drain Location: Rear Center
- Gauge: 18
- Sound Deadening: Bottom only pads
- Mount Type: Wall-Mount
- Coating / Finish: Buffed Satin
- Faucet Holes: 1
- Overall Length (in): 22.0
- Overall Width (in): 19.0
- Overall Height (in): 19.125
- Kit Includes: ELV2219 sink, one LKB721C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve

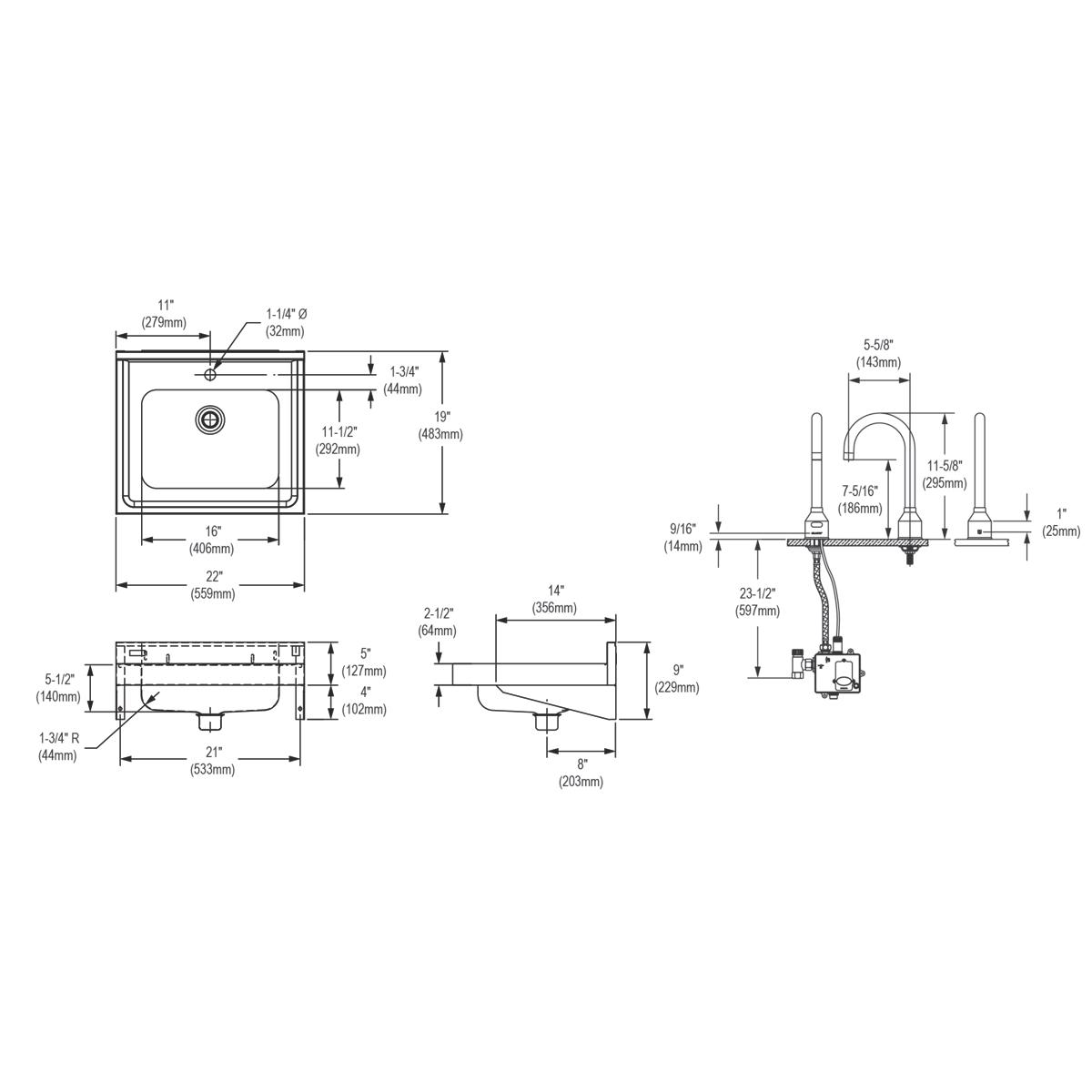

Dimensions
| Outlet Size | 1-1/2" | — | — |
Details
| Series | ELV2219SACTMC | Device Type | Stainless Steel 22" x 19" x 5-1/2" Wall Hung Lavatory Sink Kit |
| Body Material | Stainless Steel | Contents | ELV2219 sink, one LKB721C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve |
| Baa | USA | Coating | Buffed Satin |
| Hole count | 1 | Mount type | Wall-Mount |
| Overall height in | 19.125 in | Overall length in | 22.0 in |
| Overall width in | 19.0 in | Bowl count | 1 |
| Bowl dimensions | 16" x 11-1/2" x 5-1/2" | Drain location | Rear Center |
| Gauge | 18 | Sound deadening | Bottom only pads |
Certifications & Standards
| NSF-2 | ADA |
