Description

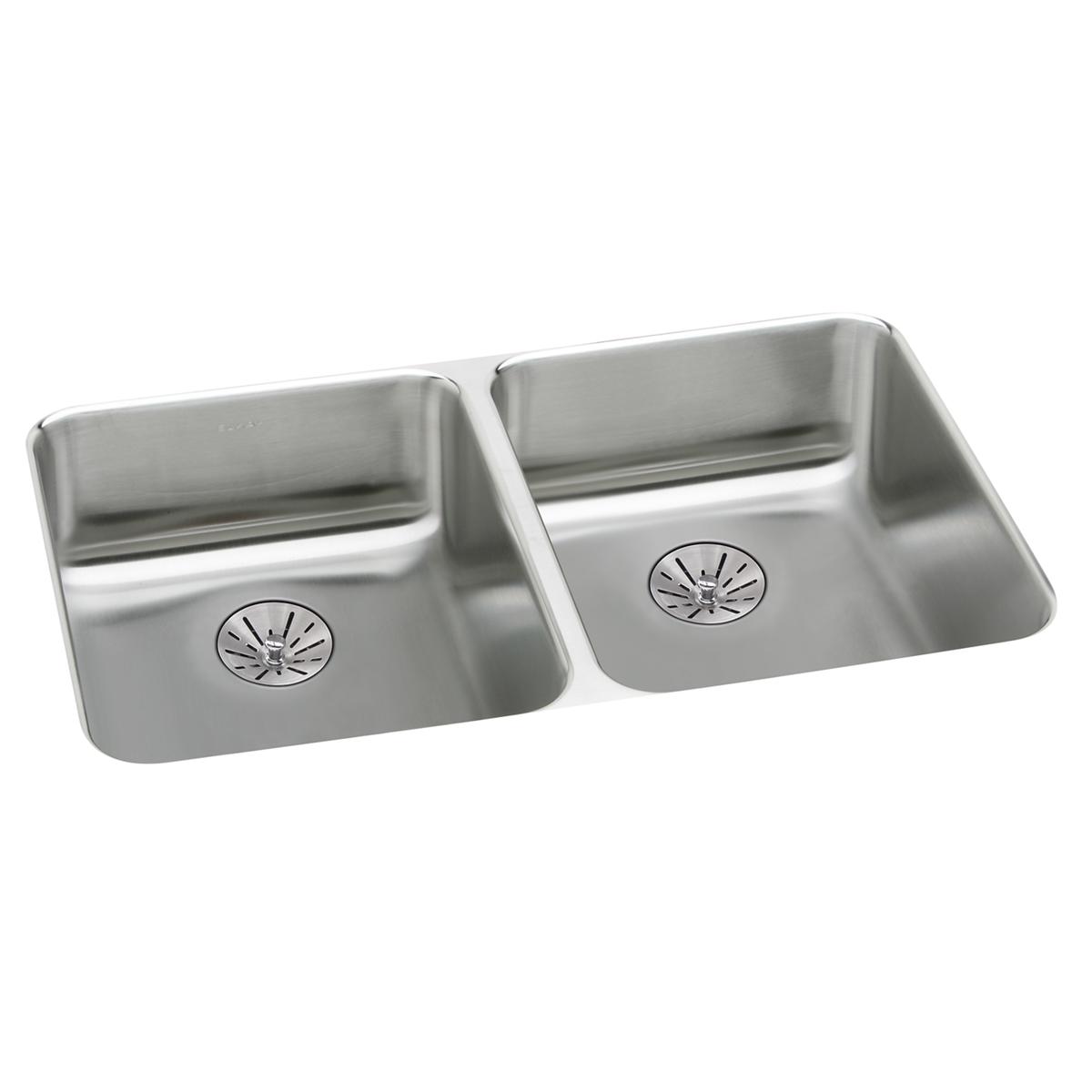

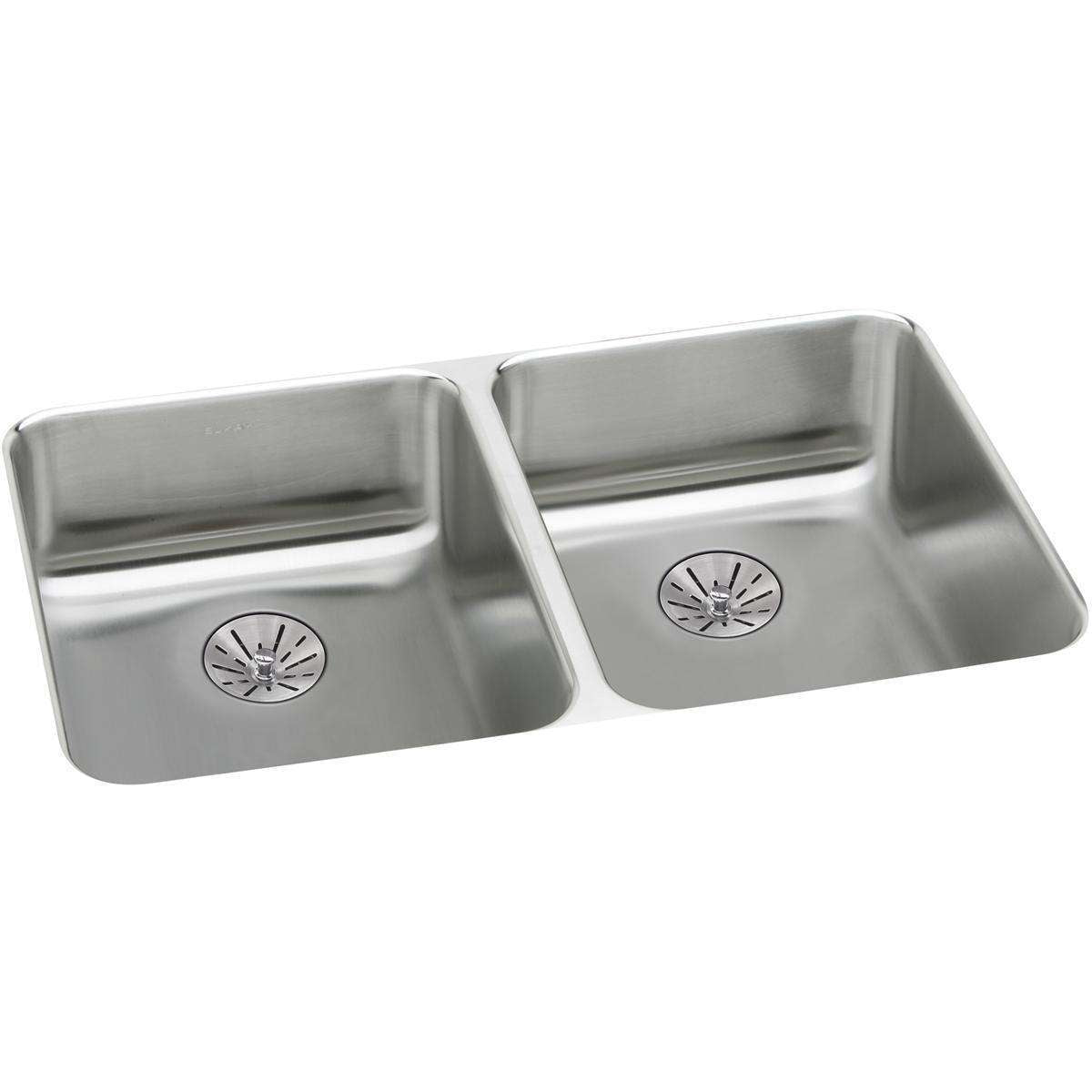

The Elkay ELUHAD321655PD is a Lustertone Classic Stainless Steel 31-3/4" x 16-1/2" x 5-3/8", Double Bowl Undermount ADA Sink w/Perfect Drain. It features a stainless steel body.
An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.
Features
- ADA COMPLIANT: Product is ADA compliant when properly installed.
- PERFECT DRAIN: Edgeless drain eliminates the gap around the drain for a cleaner, more hygienic sink; food and gunk go right down the drain.
- REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
- UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop.
- DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
- CABINET SIZE: Minimum cabinet size for this sink is 36".
- INCLUDES: Two LKPD1 Perfect Drains and strainers.
Common Questions
- What size cabinet does this need?
- A minimum 36" wide base cabinet.
- Undermount or drop-in?
- This is an undermount sink -- it mounts beneath the countertop for a seamless look and needs a fabricator to cut the counter opening.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- Is this ADA compliant?
- Yes, this model meets ADA accessibility requirements for bowl depth.
- What is included in the kit?
- This kit includes: Two LKPD1 Perfect Drains and strainers..
Specifications

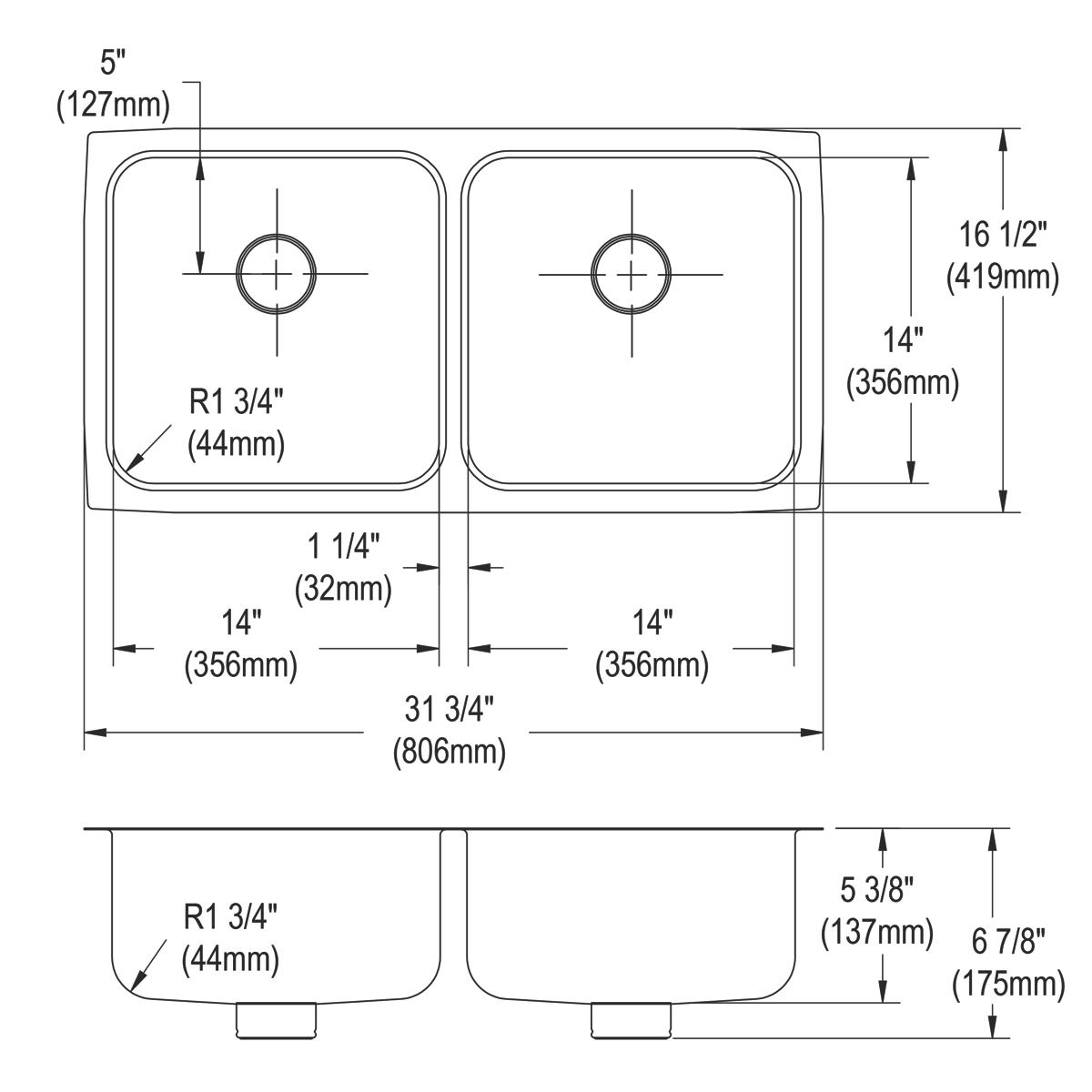

- Type: Lustertone Classic Stainless Steel 31-3/4" x 16-1/2" x 5-3/8", Double Bowl Undermount ADA Sink w/Perfect Drain
- Outlet Size: 3-3/8"
- Body Material: Stainless Steel
- MPN: ELUHAD321655PD
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO, ADA
- Number of Bowls: 2
- Bowl Configuration: Equal Double
- Minimum Cabinet Size (in): 36
- Bowl Dimensions: 14" x 14" x 5-1/2";14" x 14" x 5-1/2"
- Drain Size, Bowl 2 (in): 3.375
- Drain Location: Rear Center
- Gauge: 18
- Sound Deadening: Bottom only pads
- Template Included: Yes
- Mounting Hardware: Undermount brackets sold separately
- Drain Style: Flush-Mount Gap-Free
- Mount Type: Undermount
- Coating / Finish: Lustrous Satin
- Overall Length (in): 31.75
- Overall Width (in): 16.5
- Overall Height (in): 5.375
- Kit Includes: Two LKPD1 Perfect Drains and strainers.
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001292.dxf
Dimensions
| Outlet Size | 3-3/8" | — | — |
Details
| Series | ELUHAD321655PD | Device Type | Lustertone Classic Stainless Steel 31-3/4" x 16-1/2" x 5-3/8", Double Bowl Undermount ADA Sink w/Perfect Drain |
| Body Material | Stainless Steel | Contents | Two LKPD1 Perfect Drains and strainers. |
| Baa | USA | Coating | Lustrous Satin |
| Mount type | Undermount | Overall height in | 5.375 in |
| Overall length in | 31.75 in | Overall width in | 16.5 in |
| Bowl configuration | Equal Double | Bowl count | 2 |
| Bowl dimensions | 14" x 14" x 5-1/2", 14" x 14" x 5-1/2" | Cutout template url | View |
| Drain location | Rear Center | Drain size bowl2 in | 3.375 in |
| Drain style | Flush-Mount Gap-Free | Gauge | 18 |
| Minimum cabinet size in | 36 | Mounting hardware | Undermount brackets sold separately |
| Sound deadening | Bottom only pads | Template included | Yes |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
| ADA | — |
