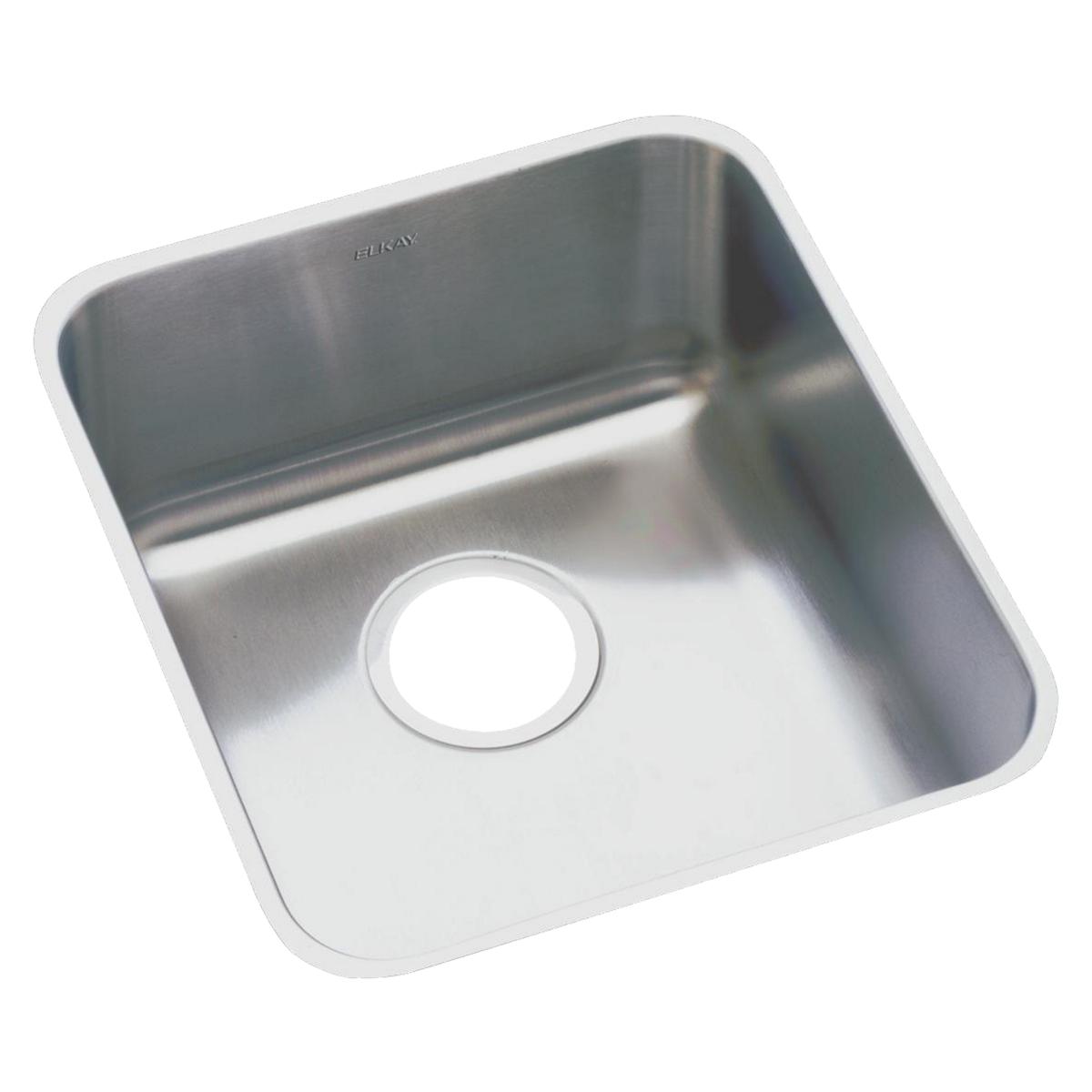

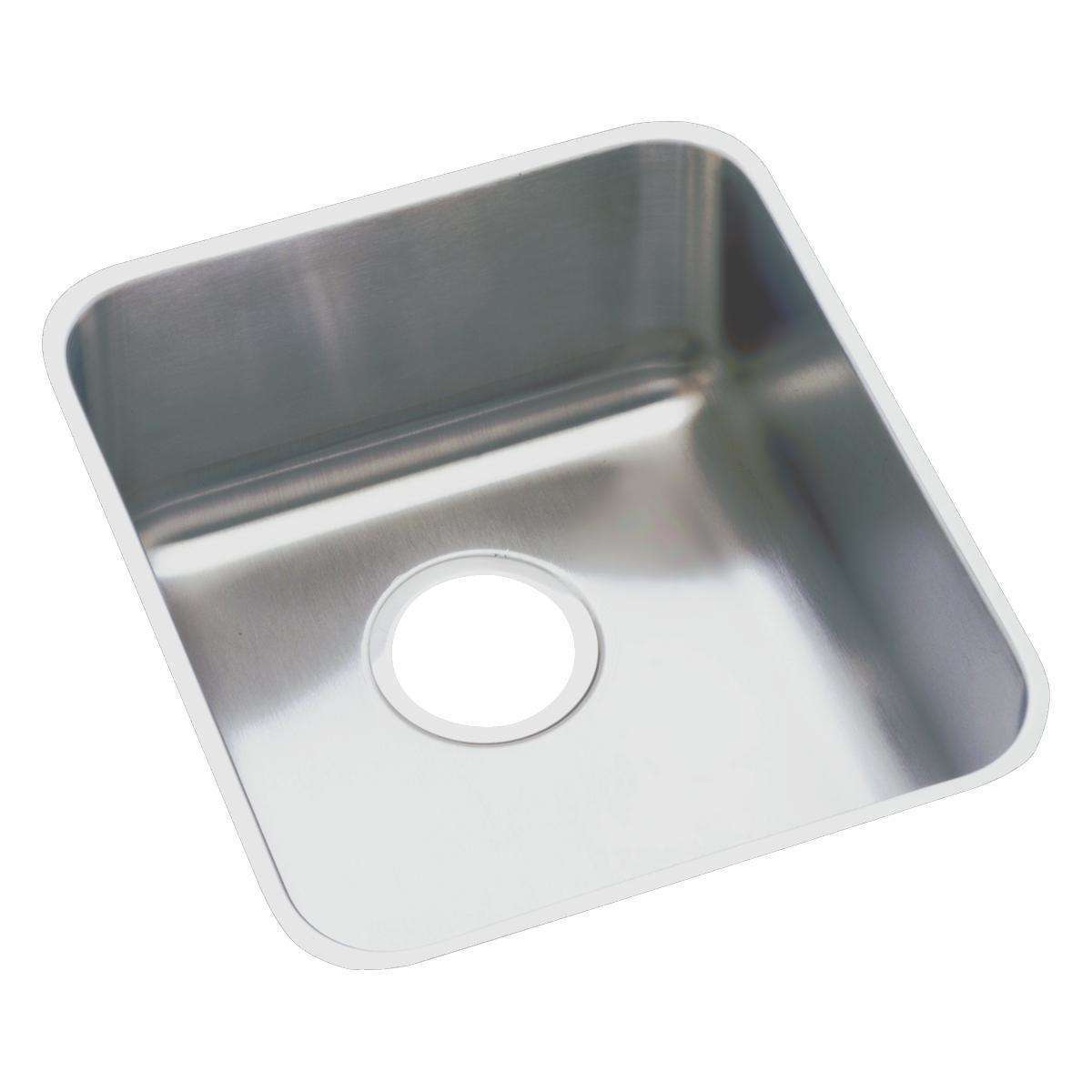

The Elkay ELUHAD161650 is a Lustertone Classic Stainless Steel, 18-1/2" x 18-1/2" x 4-7/8", Single Bowl Undermount ADA Sink. It features a stainless steel body.
An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.
Features
- ADA COMPLIANT: Product is ADA compliant when properly installed.
- REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
- UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop.
- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- SOUND GUARD® TECHNOLOGY: Large pads enhance sound-deadening performance for a quieter time at the sink.
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
- MADE IN THE USA: This Elkay product is proudly made in the USA.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.
- CABINET SIZE: Minimum cabinet size for this sink is 24".
Common Questions
- What size cabinet does this need?
- A minimum 24" wide base cabinet.
- Undermount or drop-in?
- This is an undermount sink -- it mounts beneath the countertop for a seamless look and needs a fabricator to cut the counter opening.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- Is this ADA compliant?
- Yes, this model meets ADA accessibility requirements for bowl depth.
Specifications
- Type: Lustertone Classic Stainless Steel, 18-1/2" x 18-1/2" x 4-7/8", Single Bowl Undermount ADA Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: United States
- MPN: ELUHAD161650
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO, ADA
- Number of Bowls: 1
- Minimum Cabinet Size (in): 24

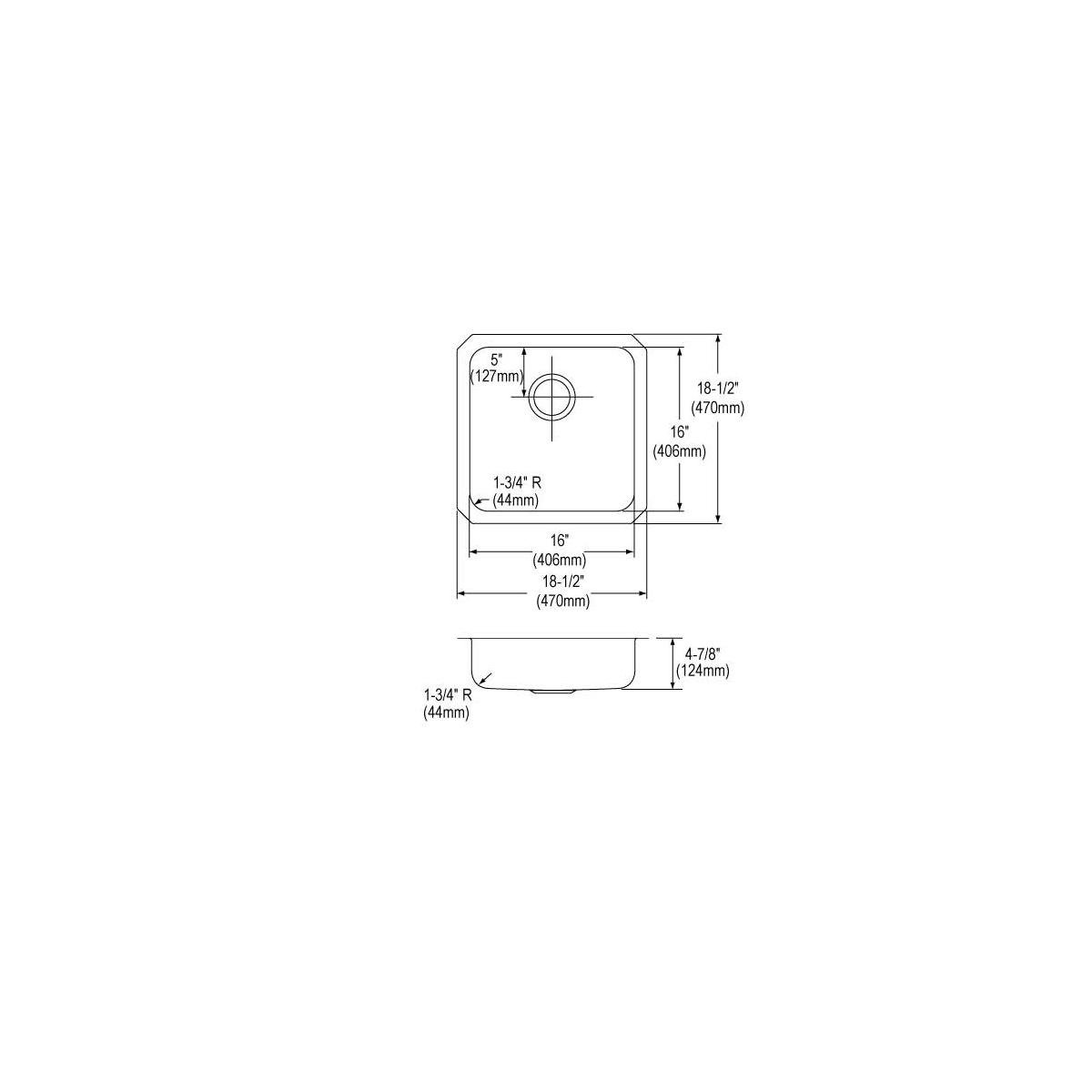

- Bowl Dimensions: 16" x 16" x 4-7/8"
- Drain Location: Rear Center
- Gauge: 18
- Sound Deadening: Bottom only pads
- Template Included: Yes
- Mounting Hardware: Undermount brackets sold separately
- Mount Type: Undermount
- Coating / Finish: Lustrous Satin
- Overall Length (in): 18.5
- Overall Width (in): 18.5
- Overall Height (in): 4.875
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001420.dxf
Product Information
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | ELUHAD161650 | Device Type | Lustertone Classic Stainless Steel, 18-1/2" x 18-1/2" x 4-7/8", Single Bowl Undermount ADA Sink |
| Body Material | Stainless Steel | Baa | USA |
| Coating | Lustrous Satin | Mount type | Undermount |
| Overall height in | 4.875 in | Overall length in | 18.5 in |
| Overall width in | 18.5 in | Bowl count | 1 |
| Bowl dimensions | 16" x 16" x 4-7/8" | Cutout template url | View |
| Drain location | Rear Center | Gauge | 18 |
| Minimum cabinet size in | 24 | Mounting hardware | Undermount brackets sold separately |
| Sound deadening | Bottom only pads | Template included | Yes |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
| ADA | — |
