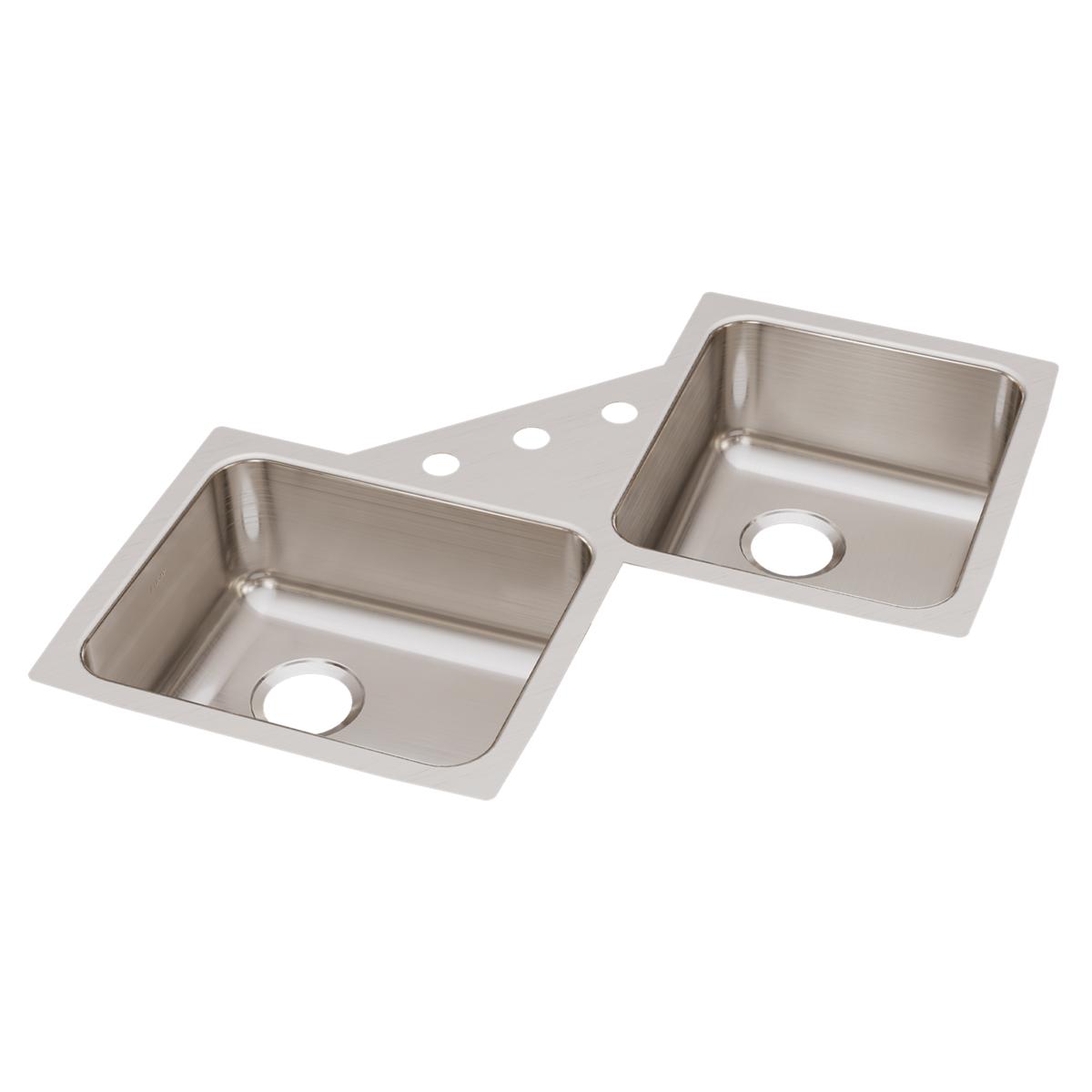

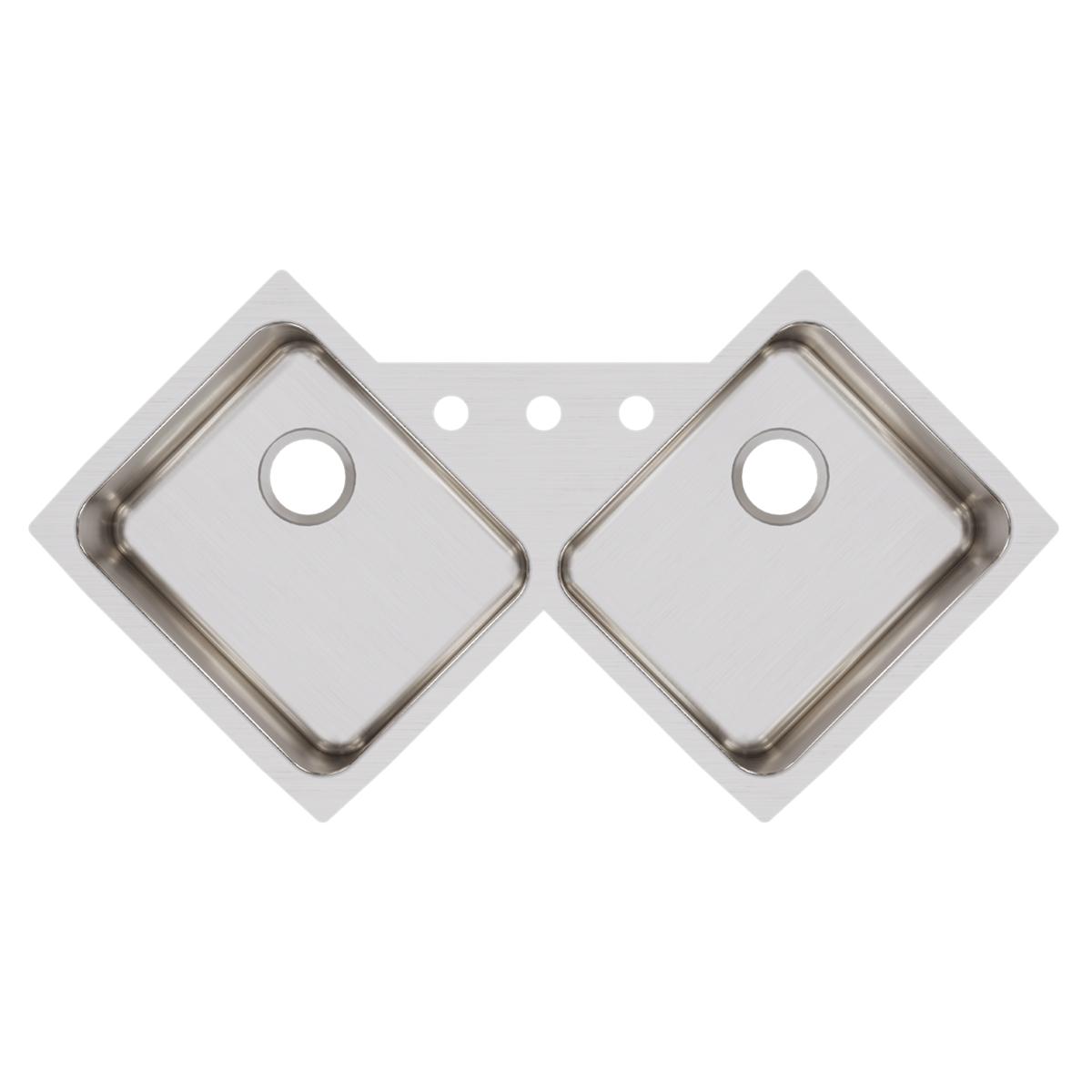

The Elkay ELUH3232 is a Lustertone Classic Stainless Steel 32" x 32" x 7-7/8", Equal Double Bowl Corner Sink. It features a stainless steel body.
An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.
Features
- REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
- DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
- LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
- MADE IN THE USA: This Elkay product is proudly made in the USA.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.
- CABINET SIZE: Minimum cabinet size for this sink is 36".
Common Questions
- What size cabinet does this need?
- A minimum 36" wide base cabinet.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has sides and bottom pads for added quiet.
Specifications
- Type: Lustertone Classic Stainless Steel 32" x 32" x 7-7/8", Equal Double Bowl Corner Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: United States
- MPN: ELUH3232
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO
- Number of Bowls: 2
- Bowl Configuration: Equal Double
- Minimum Cabinet Size (in): 36

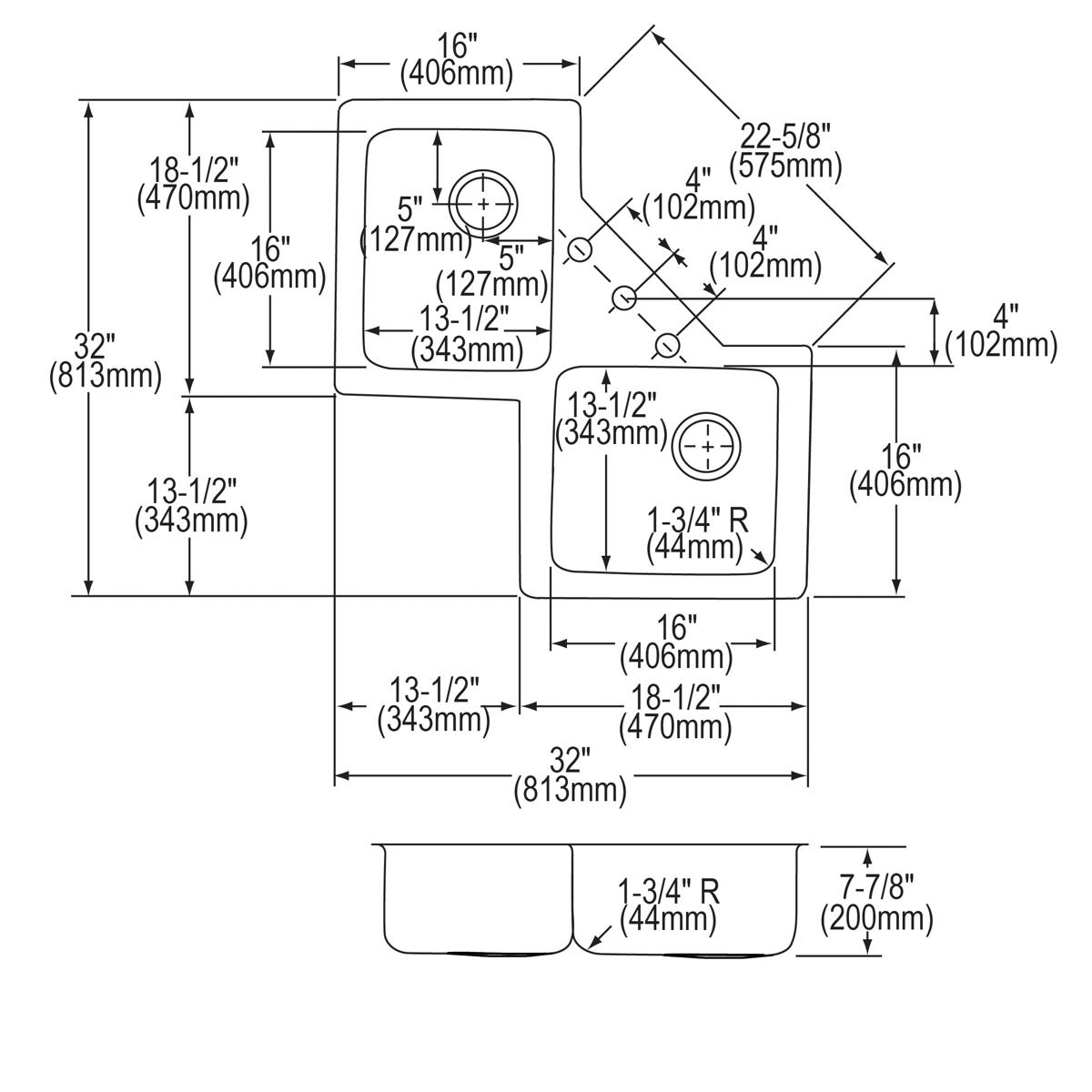

- Bowl Dimensions: 13-1/2" x 16" x 7-7/8";13-1/2" x 16" x 7-7/8"
- Drain Size, Bowl 2 (in): 3.5
- Drain Location: Rear Right
- Gauge: 18
- Sound Deadening: Sides and Bottom pads
- Template Included: Yes
- Mounting Hardware: Undermount brackets sold separately
- Coating / Finish: Lustrous Satin
- Overall Length (in): 32.0
- Overall Width (in): 32.0
- Overall Height (in): 7.875
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001387.dxf
Product Information
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | ELUH3232 | Device Type | Lustertone Classic Stainless Steel 32" x 32" x 7-7/8", Equal Double Bowl Corner Sink |
| Body Material | Stainless Steel | Baa | USA |
| Coating | Lustrous Satin | Overall height in | 7.875 in |
| Overall length in | 32.0 in | Overall width in | 32.0 in |
| Bowl configuration | Equal Double | Bowl count | 2 |
| Bowl dimensions | 13-1/2" x 16" x 7-7/8", 13-1/2" x 16" x 7-7/8" | Cutout template url | View |
| Drain location | Rear Right | Drain size bowl2 in | 3.5 in |
| Gauge | 18 | Minimum cabinet size in | 36 |
| Mounting hardware | Undermount brackets sold separately | Sound deadening | Sides and Bottom pads |
| Template included | Yes | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
