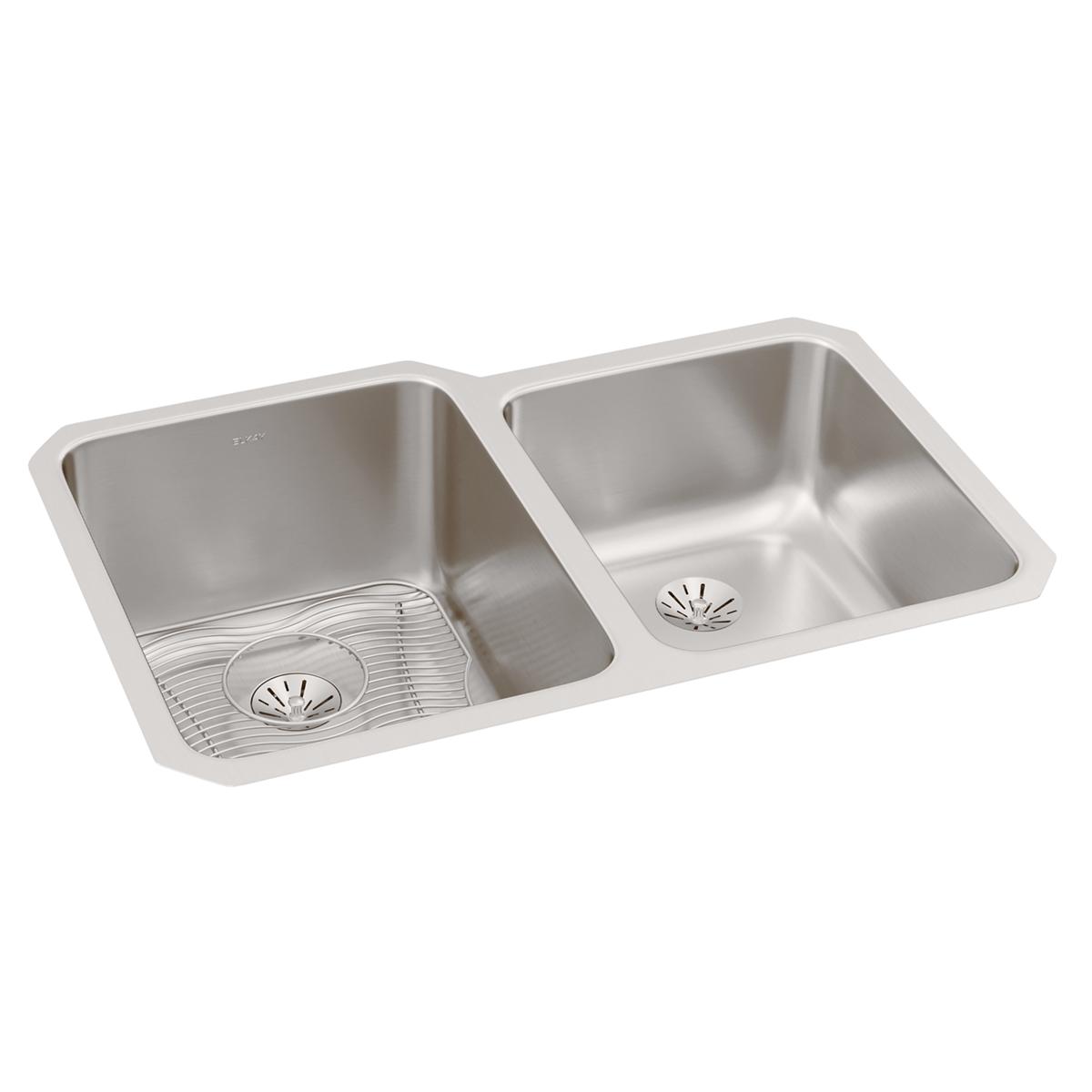

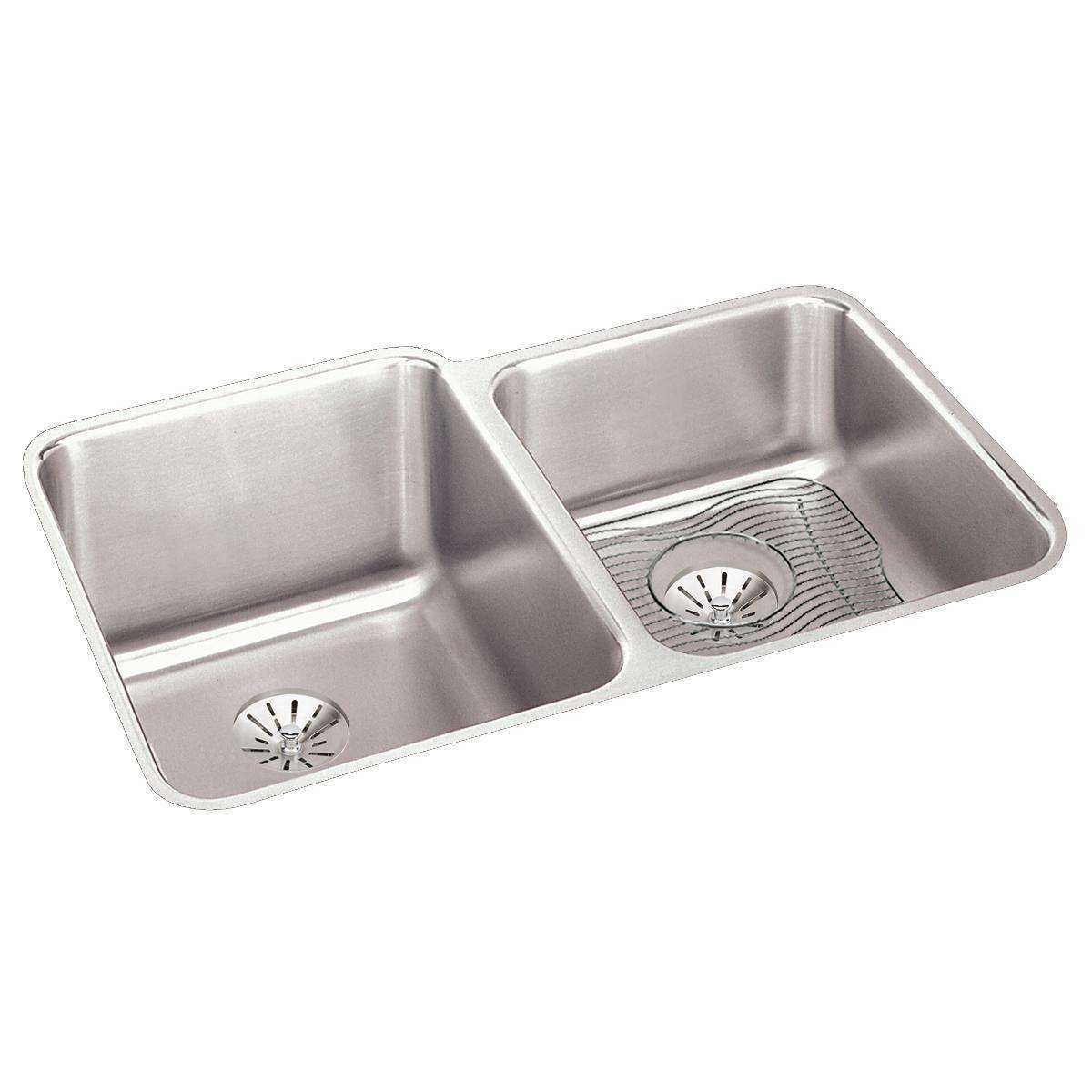

Elkay Lustertone Classic Stainless Steel 31-1/4" x 20-1/2" x 9-7/8" Double Bowl Undermount Sink Kit with Right Perfect Drain ELUH3120RPDBG

The Elkay ELUH3120RPDBG is a Lustertone Classic Stainless Steel, 31-1/4" x 20-1/2" x 9-7/8", Double Bowl Undermount Sink Kit with Right Perfect Drain. It features a stainless steel body.

An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.

Features

• PERFECT DRAIN: Edgeless drain eliminates the gap around the drain for a cleaner, more hygienic sink; food and gunk go right down the drain.
• REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
• UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop.
• 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
• QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
• OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
• LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
• EXTRA DEEP BOWLS: High-capacity bowls offer more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters.
• TWO BOWLS, DIFFERENT SIZES: Use bowls independently; wash dishes on one side, while keeping the other bowl available for smaller tasks.

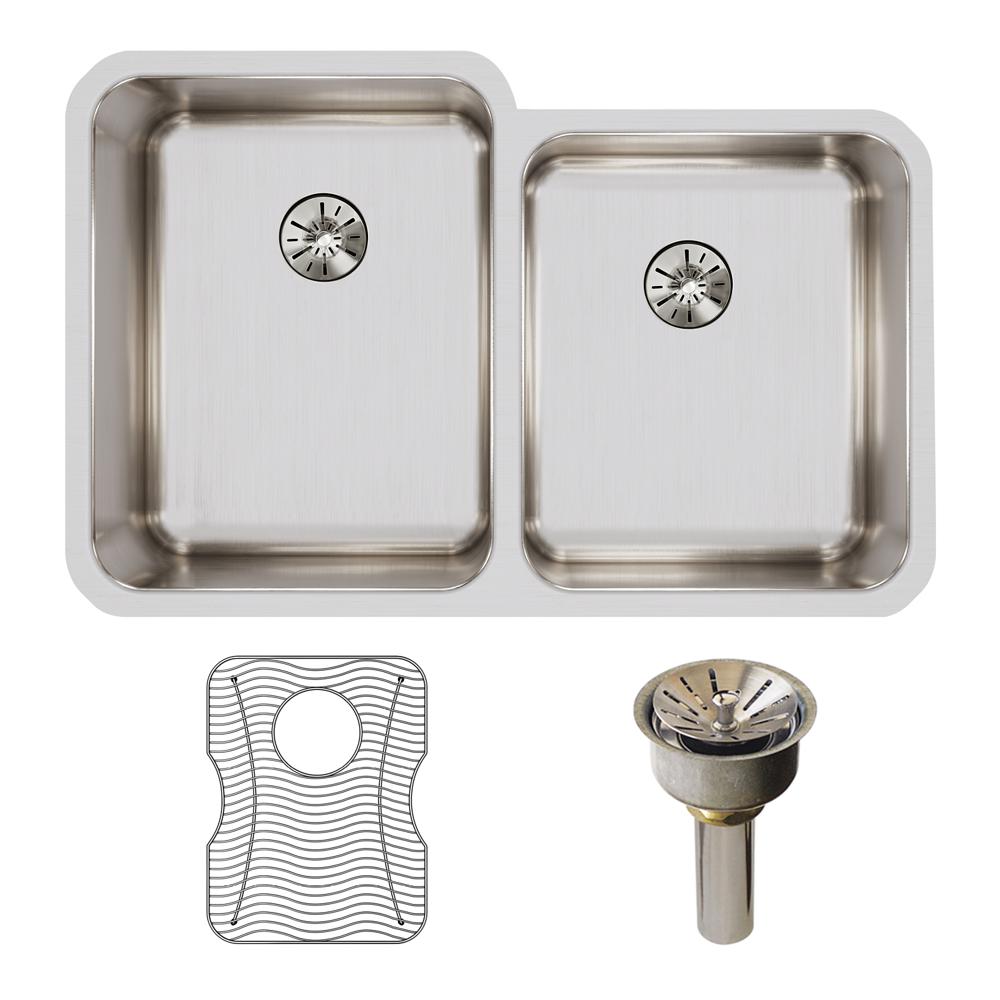

• KIT INCLUDES: ELUH3120RPD sink, one LKWOBG1418SS bottom grid, two LKPD1 Perfect Drains and strainers; conveniently packaged together to save you time.

Common Questions

What size cabinet does this need?

A minimum 36" wide base cabinet.

Undermount or drop-in?

This is an undermount sink -- it mounts beneath the countertop for a seamless look and needs a fabricator to cut the counter opening.

What does 18-gauge mean?

18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has sides and bottom pads for added quiet.

What is included in the kit?

This kit includes: one LKWOBG1418SS bottom grid, two LKPD1 Perfect Drains and strainers..

Specifications

• Type: Lustertone Classic Stainless Steel, 31-1/4" x 20-1/2" x 9-7/8", Double Bowl Undermount Sink Kit with Right Perfect Drain
• Outlet Size: 3-3/8"
• Body Material: Stainless Steel
• MPN: ELUH3120RPDBG
• Certifications: ASME A112.19.3/CSA B45.4
• Number of Bowls: 2
• Bowl Configuration: Offset 60/40
• Minimum Cabinet Size (in): 36
• Bowl Dimensions: 14" x 18" x 9-7/8";13-1/2" x 16" x 7-7/8"
• Drain Size, Bowl 2 (in): 3.375
• Drain Location: Rear Center
• Gauge: 18
• Sound Deadening: Sides and Bottom pads
• Template Included: Yes
• Mounting Hardware: Undermount brackets sold separately
• Drain Style: Flush-Mount Gap-Free
• Mount Type: Undermount
• Coating / Finish: Lustrous Satin
• Overall Length (in): 31.25
• Overall Width (in): 20.5
• Overall Height (in): 11.375
• Kit Includes: one LKWOBG1418SS bottom grid, two LKPD1 Perfect Drains and strainers.
• Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001389.dxf
