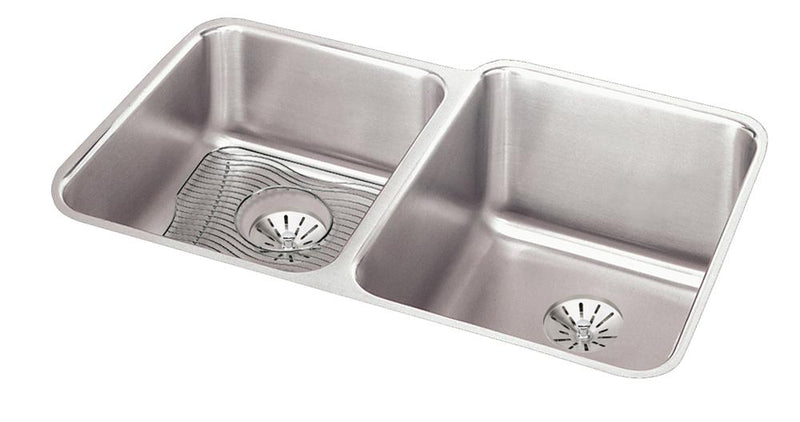

The Elkay ELUH3120LPDBG is a Lustertone Classic Stainless Steel 31-1/4" x 20-1/2" x 9-7/8" Double Bowl Undermount Sink Kit with Left Perfect Drain. It features a stainless steel body.
An Elkay Lustertone® Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.
Features
- Perfect Drain®: Edgeless drain eliminates the gap around the drain for a cleaner, more hygienic sink; food and gunk go right down the drain
- FORGIVING FINISH: Finish is scratch resistant, standing up to everyday use. Deep scratches are repairable. Grain radiates light for a luminous look
- UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below
- LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean
- EXTRA-DEEP BOWL: High-capacity 12" bowl offers room inside for scrubbing stains from jerseys and cleaning paintbrushes after little masterpieces
- TWO BOWLS, DIFFERENT SIZES: Use bowls independently; wash dishes on one side, while keeping the other bowl available for smaller tasks
- KIT INCLUDES: ELUH3120LPD sink, one LKWOBG1418SS bottom grid, two LKPD1 Perfect Drains and strainers; conveniently packaged together to save you time
Common Questions
- What size cabinet does this need?
- A minimum 36" wide base cabinet.
- Undermount or drop-in?
- This is an undermount sink -- it mounts beneath the countertop for a seamless look and needs a fabricator to cut the counter opening.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has sides and bottom pads for added quiet.
- What is included in the kit?
- This kit includes: one LKWOBG1418SS bottom grid two LKPD1 Perfect Drains and strainers..
Specifications
-
Type: Lustertone® Classic Stainless Steel 31-1/4" x 20-1/2" x 9-7/8" Double Bowl Undermount Sink Kit with Left Perfect Drain®
-
Outlet Size: 3-3/8"
-
Body Material: Stainless Steel
-
MPN: ELUH3120LPDBG
-
Certifications: ASME A112.19.3/CSA B45.4, ASME A112.18.2, IAPMO
-
Number of Bowls: 2
-
Minimum Cabinet Size (in): 36
-
Bowl Dimensions: 13-1/2" x 16" x 7-7/8";14" x 18" x 9-7/8"
-
Drain Size, Bowl 2 (in): 3.375
-
Drain Location: Rear Center
-
Gauge: 18
-
Sound Deadening: Sides and Bottom pads
-
Template Included: Yes
-
Mounting Hardware: Undermount brackets sold separately
-
Drain Style: Flush-Mount Gap-Free
-
Design Features: Forgiving Finish;Quiet;Offset Drain;Large Capacity;Extra-Deep Bowl
-
Mount Type: Undermount
-
Coating / Finish: Lustrous Satin
-
Overall Length (in): 31.25
-
Overall Width (in): 20.5
-
Overall Height (in): 11.375
-
Kit Includes: one LKWOBG1418SS bottom grid two LKPD1 Perfect Drains and strainers.
