Elkay Quartz Classic 33" x 22" x 5-1/2" Double Bowl Drop-in ADA Sink with Perfect Drain Greystone ELGAD3322PDGS0

The Elkay ELGAD3322PDGS0 is a Quartz Classic 33" x 22" x 5-1/2", Double Bowl Drop-in ADA Sink with Perfect Drain, Greystone. It features a quartz body.

Elkay Quartz Classic sinks have a smooth surface and a visible depth to their structure. They're crafted from natural quartz and come in a range of UV-stable neutral colors in shades of black, brown, gray and white that allow you to add an unexpected pop of color to your space. Whether it's a kitchen sink or a prep, bar or laundry sink, this composite sink has the durability you need to take on tough tasks. Available in ADA depths.

Features

• ADA-ACCOMMODATING BOWL DEPTH: Sink bowls are 5½" deep for ease of reach and accessibility.
• PERFECT DRAIN: Edgeless drain eliminates the gap around the drain for a cleaner, more hygienic sink; food and gunk go right down the drain.
• DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
• DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
• EASY TO CLEAN & STAIN RESISTANT: Coordinate your sink color with your décor and style; washes clean with soapy water; food and liquid won't stain.
• IMPACT, HEAT & SCRATCH RESISTANT: Molded from fine quartz sand to resist banging, chipping and scratches; heat safe up to 535° Fahrenheit.
• HYGIENE PROTECTION: Material's ultrafine, nonporous structure means food and liquid won't stick to surface.
• QUIET: Material is naturally sound-deadening, minimizing sound and vibration for a quieter time at the sink.
• OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
• INCLUDES: Two LKPDQ1CR Perfect Drain and strainers.

Common Questions

What size cabinet does this need?

A minimum 36" wide base cabinet.

Undermount or drop-in?

This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.

Is this ADA compliant?

Yes, this model meets ADA accessibility requirements for bowl depth.

Will my faucet fit?

Check your existing hole pattern against this sink's drilling: Pre-scored for up to 5.

What is included in the kit?

This kit includes: Two LKPDQ1CR Perfect Drains and strainers..

Specifications

• Type: Quartz Classic 33" x 22" x 5-1/2", Double Bowl Drop-in ADA Sink with Perfect Drain, Greystone
• Outlet Size: 3-5/8"
• Body Material: Quartz
• Country of Origin: Germany
• MPN: ELGAD3322PDGS0
• Certifications: IAPMO, CSA B45.5/IAPMO Z124, ADA
• Number of Bowls: 2
• Bowl Configuration: Equal Double
• Minimum Cabinet Size (in): 36

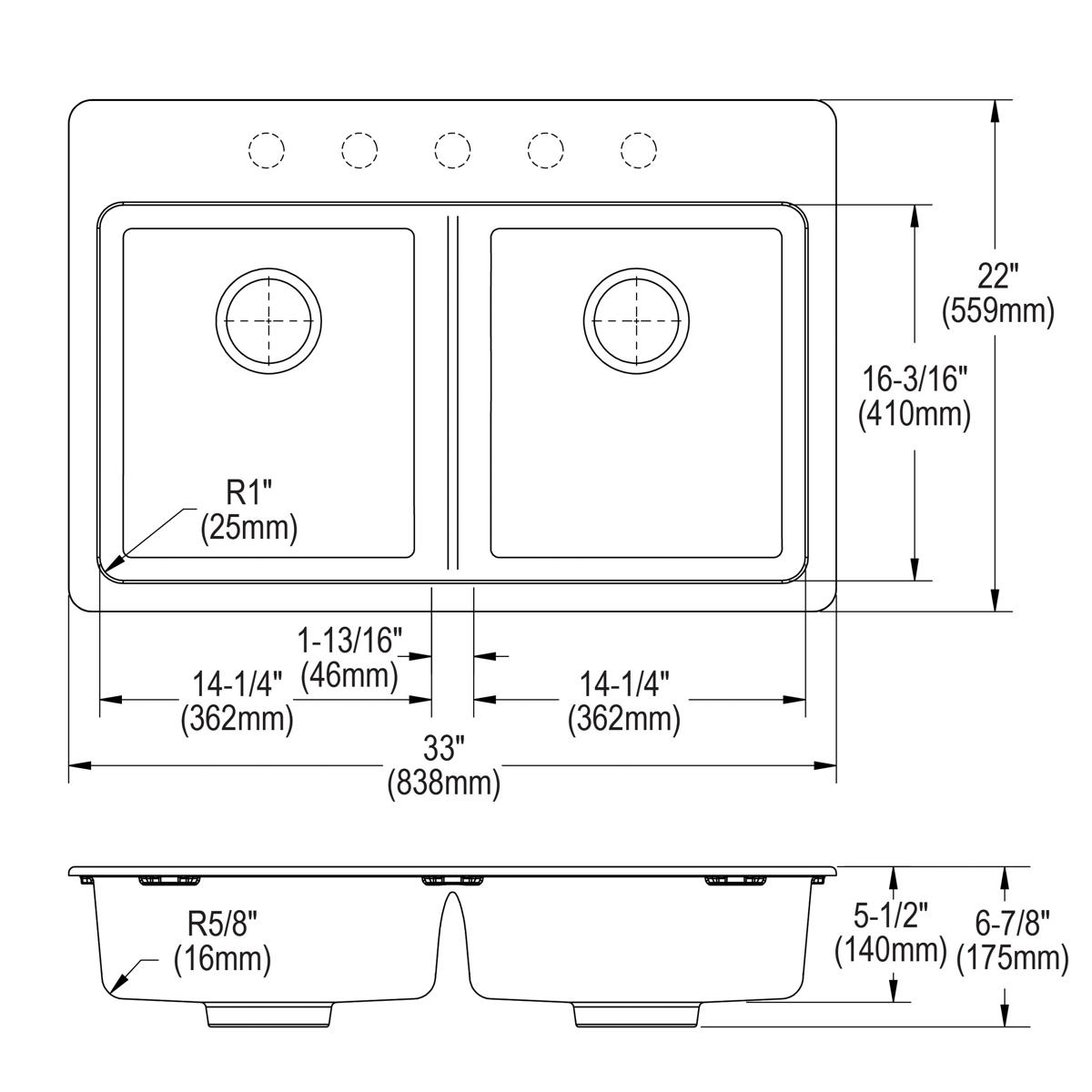

• Bowl Dimensions: 14-1/4" x 16-3/16" x 5-1/2";14-1/4" x 16-3/16" x 5-1/2"
• Drain Size, Bowl 2 (in): 3.625
• Drain Location: Rear Center
• Template Included: No
• Mounting Hardware: Part # 64090408 included for countertops up to 1-3/4" (44mm) thick
• Drain Style: Flush-Mount Gap-Free
• Mount Type: Drop-In
• Coating / Finish: Greystone
• Faucet Holes: Pre-scored for up to 5
• Overall Length (in): 33.0
• Overall Width (in): 22.0
• Overall Height (in): 6.875
• Kit Includes: Two LKPDQ1CR Perfect Drains and strainers.
• Countertop Cutout: 32-3/8" x 21-3/8" (822mm x 543mm) with 11/16" (17mm) corner radius
• Cutout Template (DXF): https://www.elkayfiles.com/templates/0000001442.dxf
