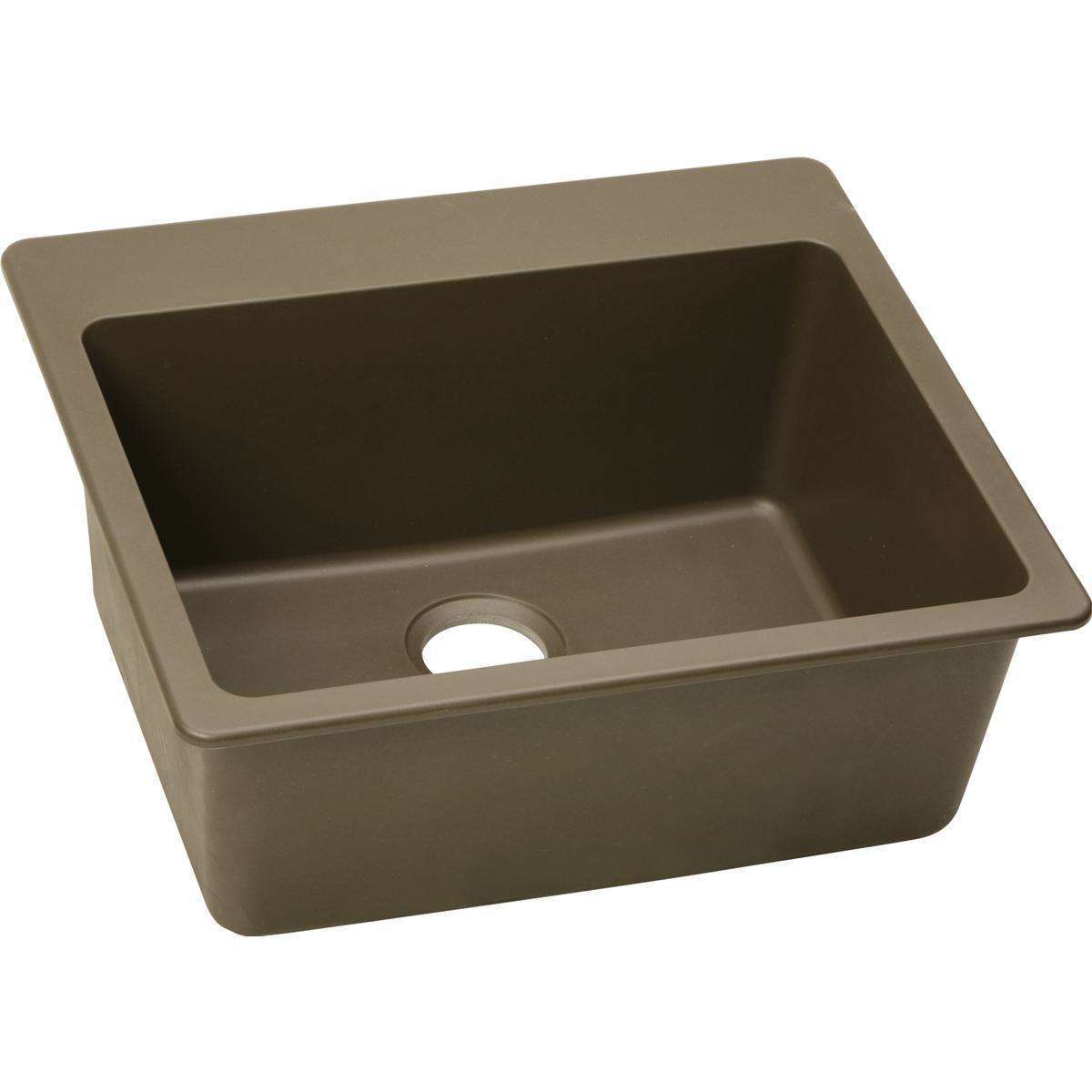

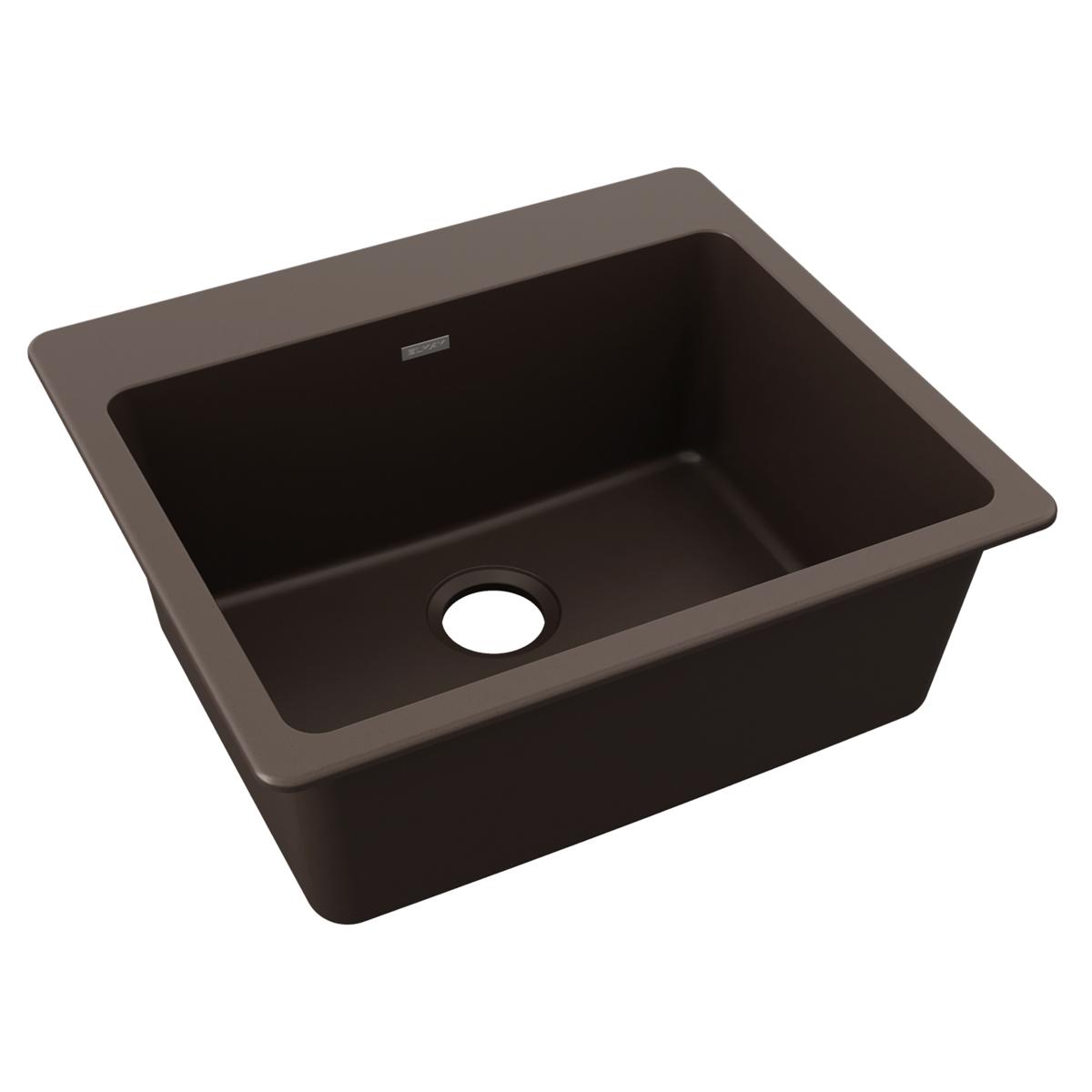

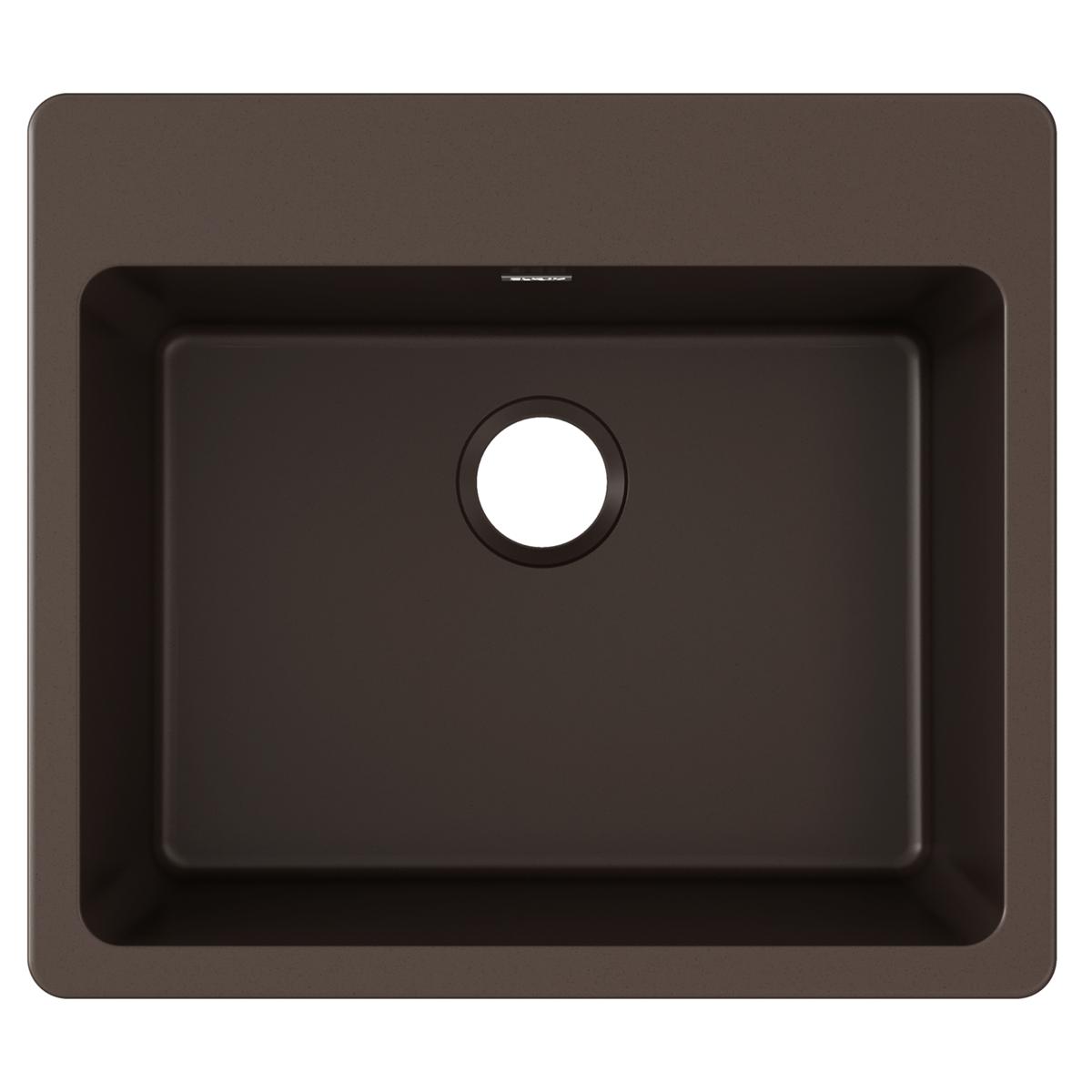

Elkay Quartz Classic 25" x 22" x 9-1/2", Single Bowl Drop-in Sink, Mocha ELG2522MC0

The Elkay ELG2522MC0 is a Quartz Classic 25" x 22" x 9-1/2", Single Bowl Drop-in Sink, Mocha. It features a quartz body.

Elkay Quartz Classic sinks have a smooth surface and a visible depth to their structure. They're crafted from natural quartz and come in a range of UV-stable neutral colors in shades of black, brown, gray and white that allow you to add an unexpected pop of color to your space. Whether it's a kitchen sink or a prep, bar or laundry sink, this composite sink has the durability you need to take on tough tasks. Available in ADA depths.

Features

• DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
• SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
• EASY TO CLEAN & STAIN RESISTANT: Coordinate your sink color with your décor and style; washes clean with soapy water; food and liquid won't stain.
• IMPACT, HEAT & SCRATCH RESISTANT: Molded from fine quartz sand to resist banging, chipping and scratches; heat safe up to 535° Fahrenheit.
• MOCHA: A cozy and indulgent medium-brown hue.
• HYGIENE PROTECTION: Material's ultrafine, nonporous structure means food and liquid won't stick to surface.
• QUIET: Material is naturally sound-deadening, minimizing sound and vibration for a quieter time at the sink.
• OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
• EXTRA DEEP BOWL: High-capacity bowl offers more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters.
• DRAIN OPENING: Sink drain opening measures 3-1/2".
• DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.

Common Questions

What size cabinet does this need?

A minimum 30" wide base cabinet.

Undermount or drop-in?

This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.

Will my faucet fit?

Check your existing hole pattern against this sink's drilling: Pre-scored for up to 5.

Specifications

• Type: Quartz Classic 25" x 22" x 9-1/2", Single Bowl Drop-in Sink, Mocha
• Outlet Size: 3-1/2"
• Body Material: Quartz
• Country of Origin: Germany
• MPN: ELG2522MC0
• Certifications: IAPMO, CSA B45.5/IAPMO Z124
• Number of Bowls: 1
• Minimum Cabinet Size (in): 30

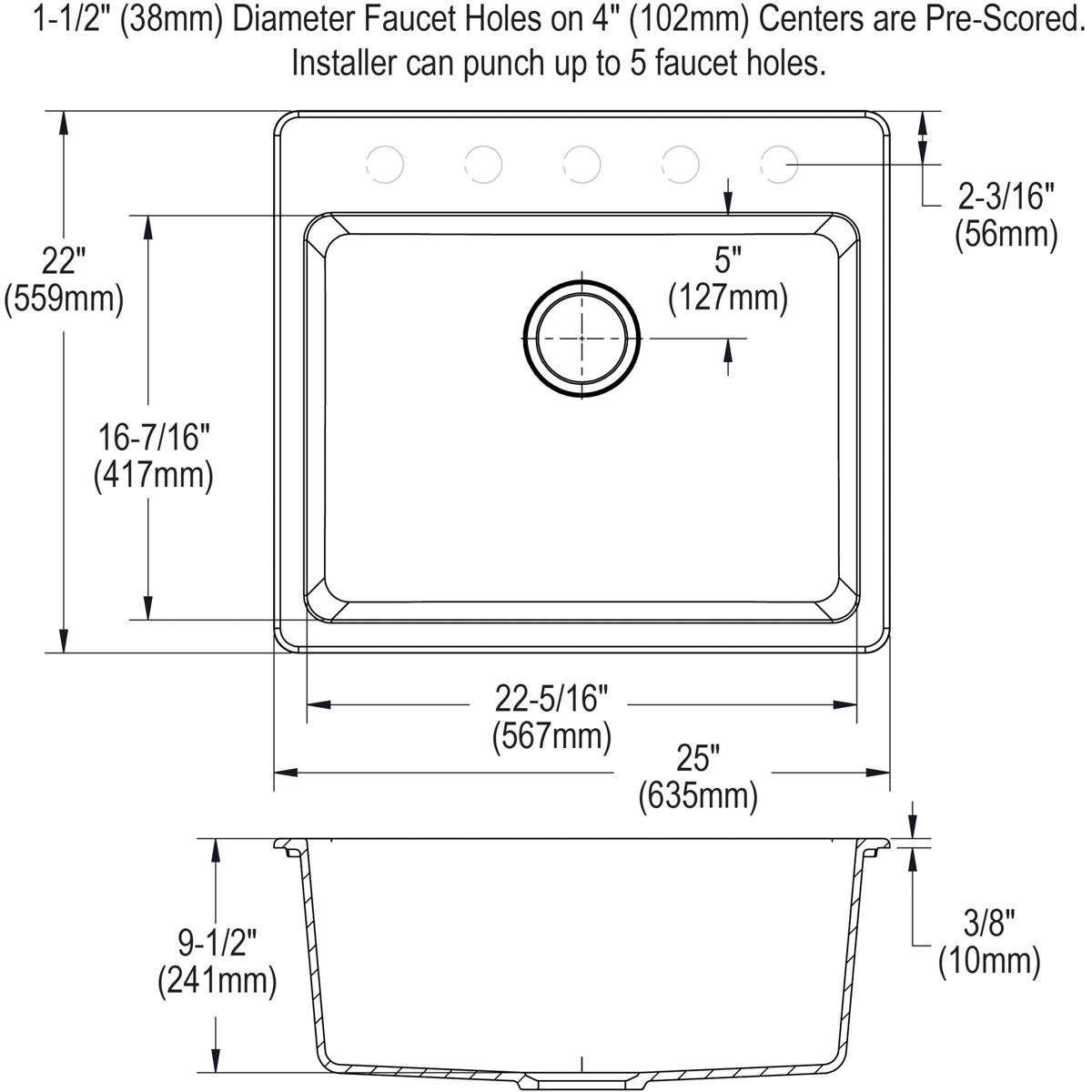

• Bowl Dimensions: 22-5/16" x 16-7/16" x 9-1/2"
• Drain Location: Rear Center
• Template Included: No
• Mounting Hardware: Part # 64090404 included for countertops up to 1-3/4" (44mm) thick
• Mount Type: Drop-In
• Coating / Finish: Mocha
• Faucet Holes: Pre-scored for up to 5
• Overall Length (in): 25.0
• Overall Width (in): 22.0
• Overall Height (in): 9.5
• Countertop Cutout: 24-3/8" x 21-3/8" (619mm x 543mm) with 11/16" (17mm) corner radius
• Cutout Template (DXF): https://www.elkayfiles.com/templates/0000001438.dxf
