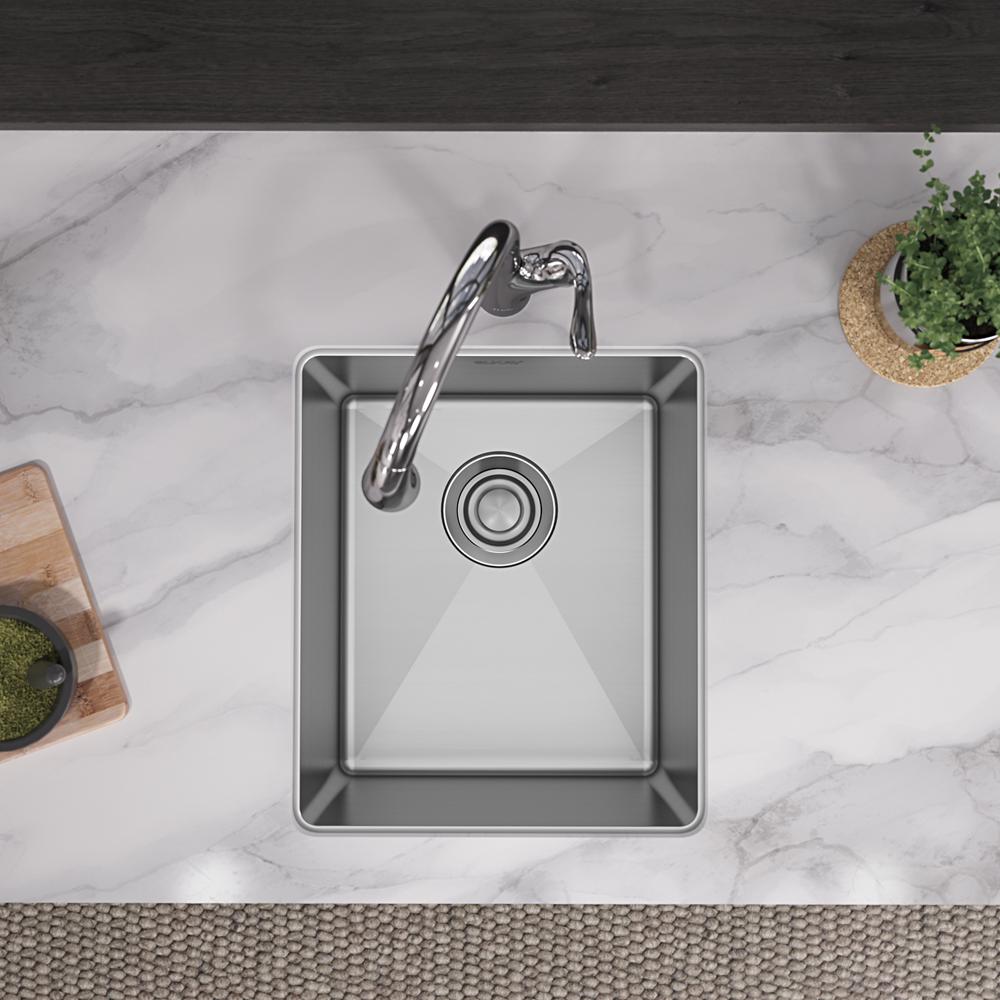

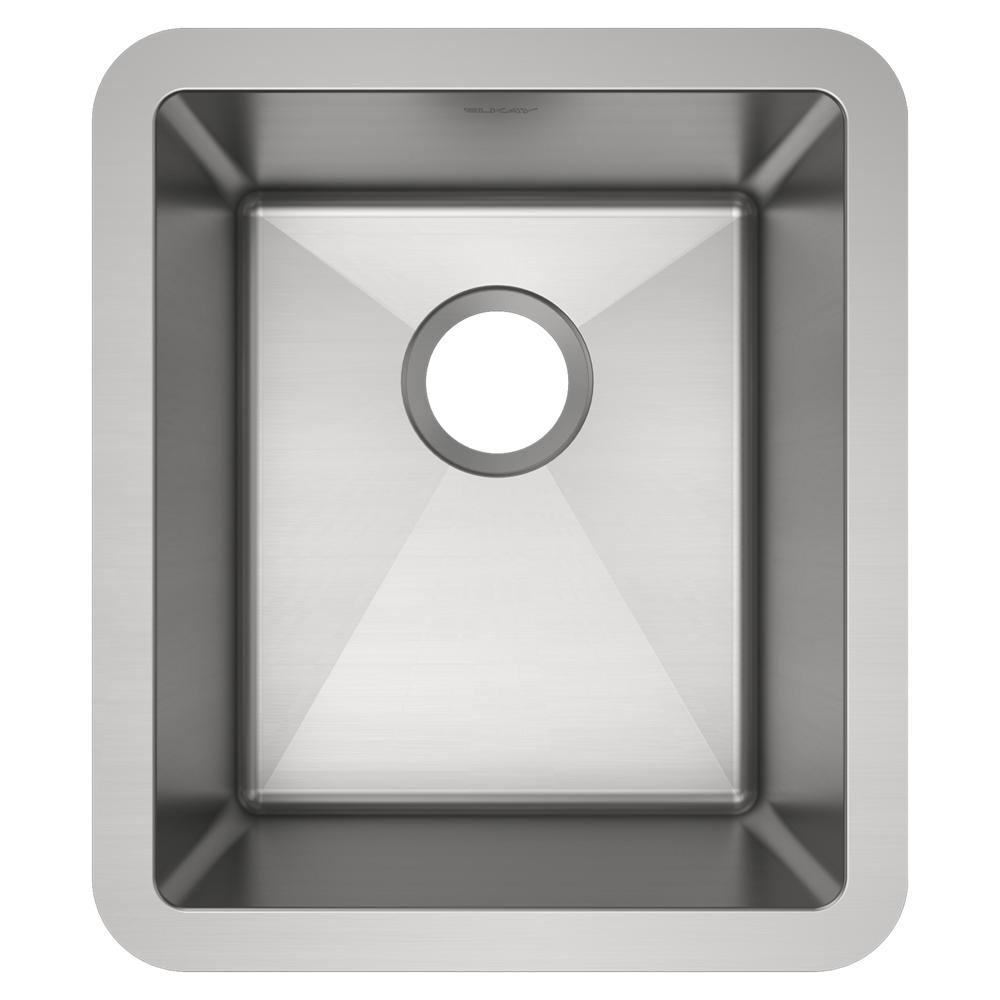

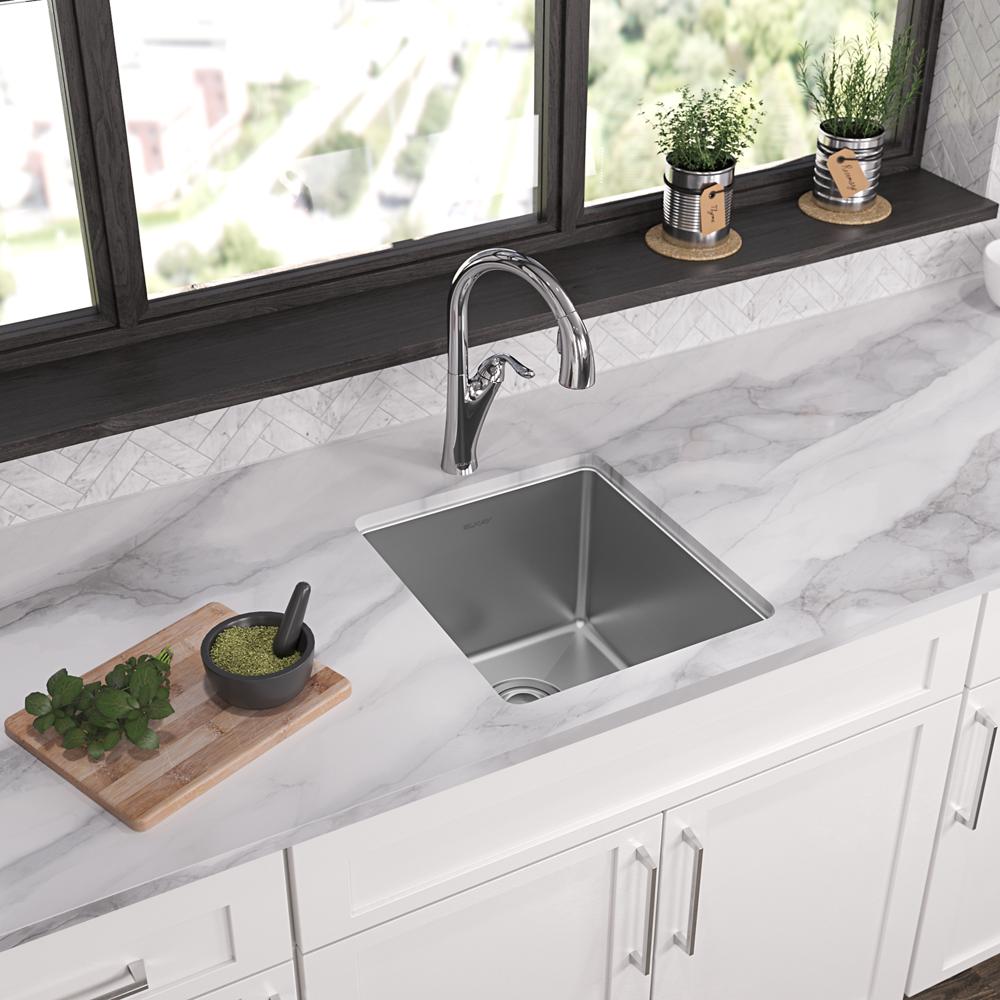

The Elkay EFRU131610T is a Crosstown 16 Gauge Stainless Steel 16" x 18-1/2" x 10", Single Bowl Undermount Sink. It features a stainless steel body.
The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
Features
- UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop.
- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
- 16-GAUGE STAINLESS STEEL: Premium 16-gauge thickness and Type 304 stainless steel for immense durability, performance and lustrous beauty.
- SOUND GUARD: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink.
- TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
- LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
- EXTRA DEEP BOWL: High-capacity bowl offers more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters.
- CROSS BREAKS: Creased accent lines in the sink bottom deliver superior drainage and give the sink a professional appearance.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.
Common Questions
- What size cabinet does this need?
- A minimum 21" wide base cabinet.
- Undermount or drop-in?
- This is an undermount sink -- it mounts beneath the countertop for a seamless look and needs a fabricator to cut the counter opening.
- What does 16-gauge mean?
- 16 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has full spray sides and bottom with sides and bottom pads for added quiet.
Specifications
- Type: Crosstown 16 Gauge Stainless Steel 16" x 18-1/2" x 10", Single Bowl Undermount Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: China
- MPN: EFRU131610T
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO
- Number of Bowls: 1
- Minimum Cabinet Size (in): 21

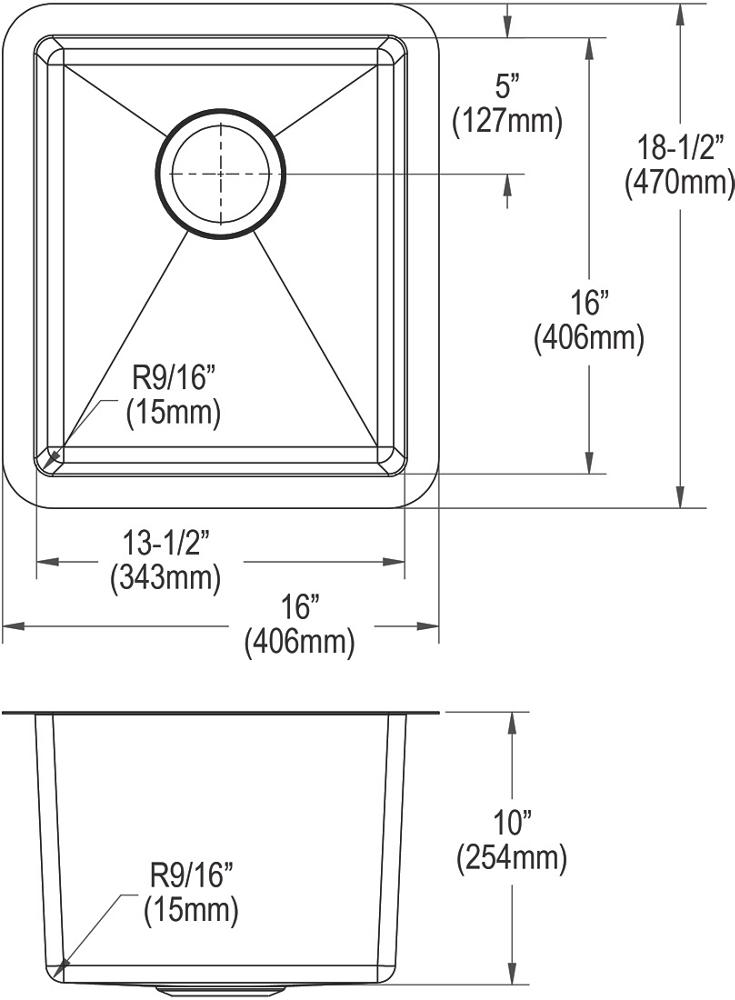

- Bowl Dimensions: 13-1/2" x 16" x 10"
- Drain Location: Rear Center
- Gauge: 16
- Sound Deadening: Full spray sides and bottom with Sides and Bottom pads
- Template Included: Yes
- Mounting Hardware: Part # 54300008 included
- Mount Type: Undermount
- Coating / Finish: Polished Satin
- Overall Length (in): 16.0
- Overall Width (in): 18.5
- Overall Height (in): 10.0
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001306.dxf
Product Information
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | EFRU131610T | Device Type | Crosstown 16 Gauge Stainless Steel 16" x 18-1/2" x 10", Single Bowl Undermount Sink |
| Body Material | Stainless Steel | Coating | Polished Satin |
| Mount type | Undermount | Overall height in | 10.0 in |
| Overall length in | 16.0 in | Overall width in | 18.5 in |
| Prop65 | Yes | Bowl count | 1 |
| Bowl dimensions | 13-1/2" x 16" x 10" | Cutout template url | View |
| Drain location | Rear Center | Gauge | 16 |
| Minimum cabinet size in | 21 | Mounting hardware | Part # 54300008 included |
| Sound deadening | Full spray sides and bottom with Sides and Bottom pads | Template included | Yes |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
