Specifications
Description

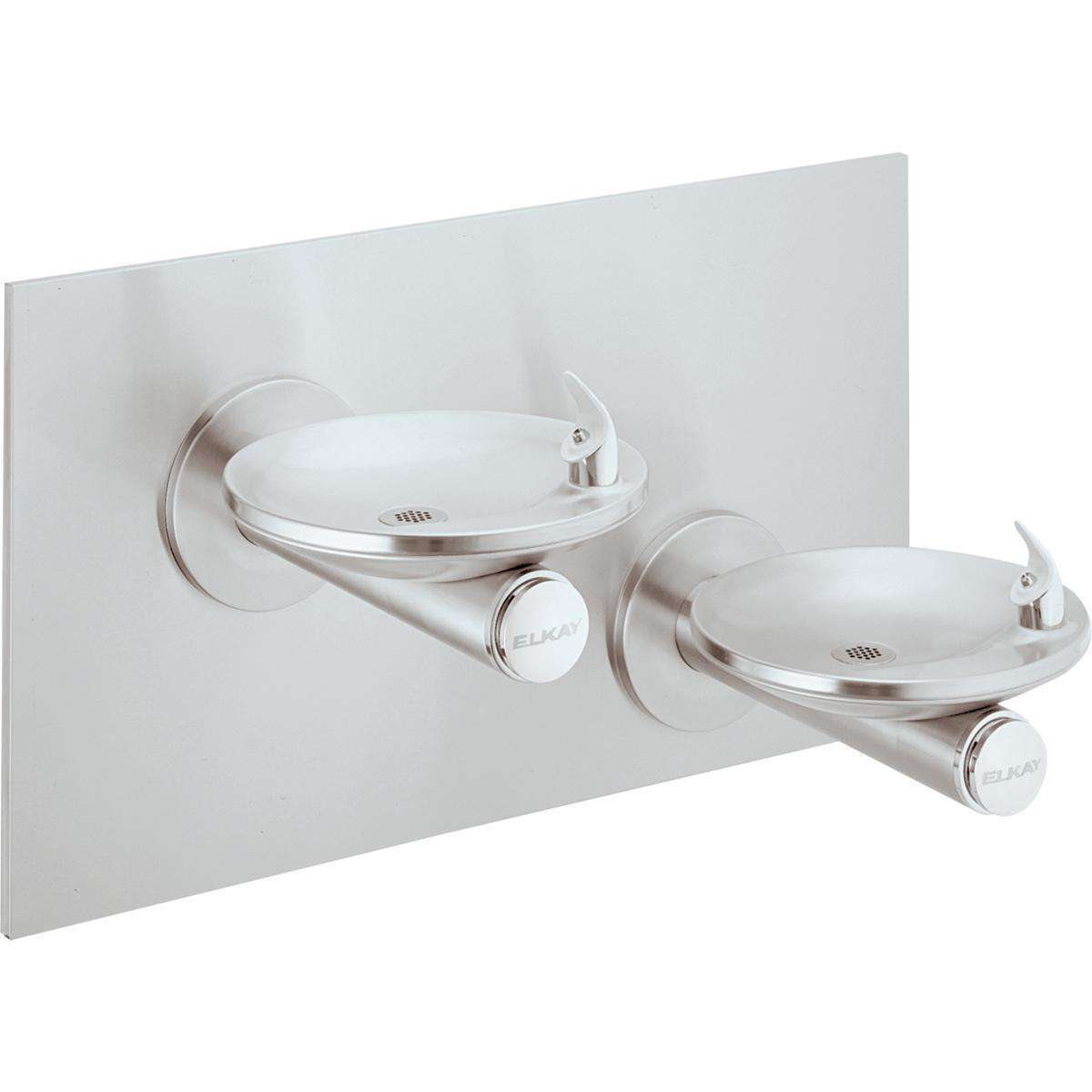

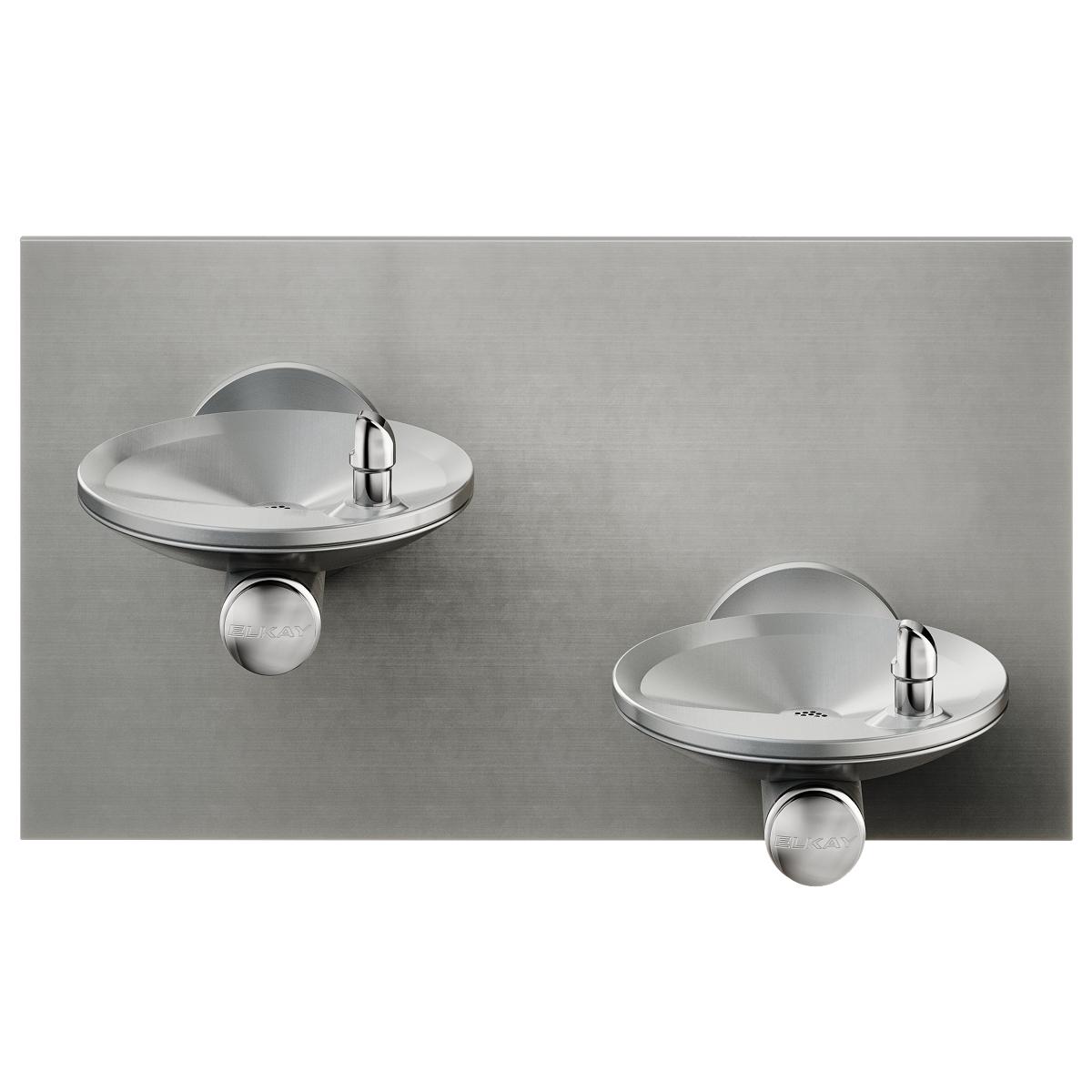

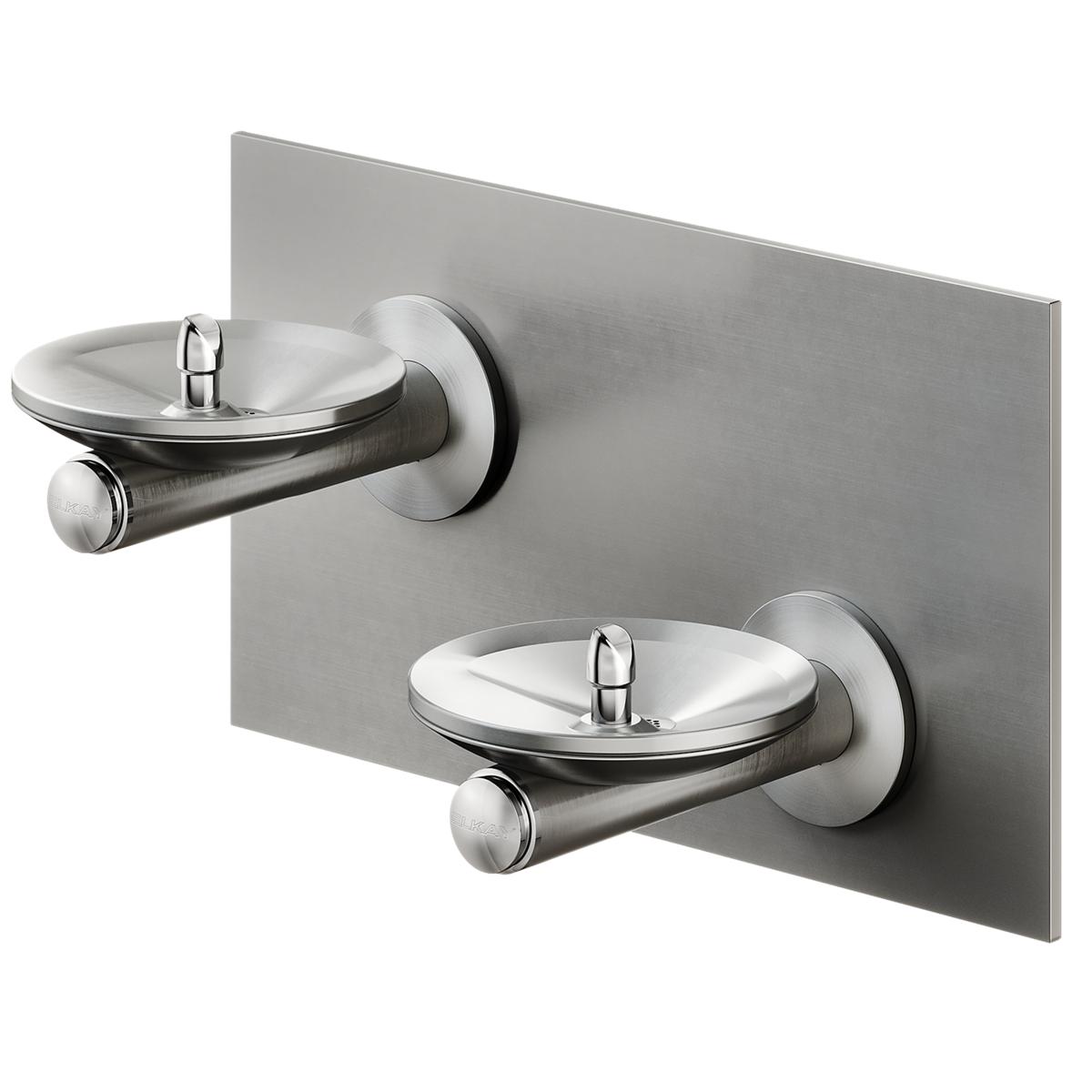

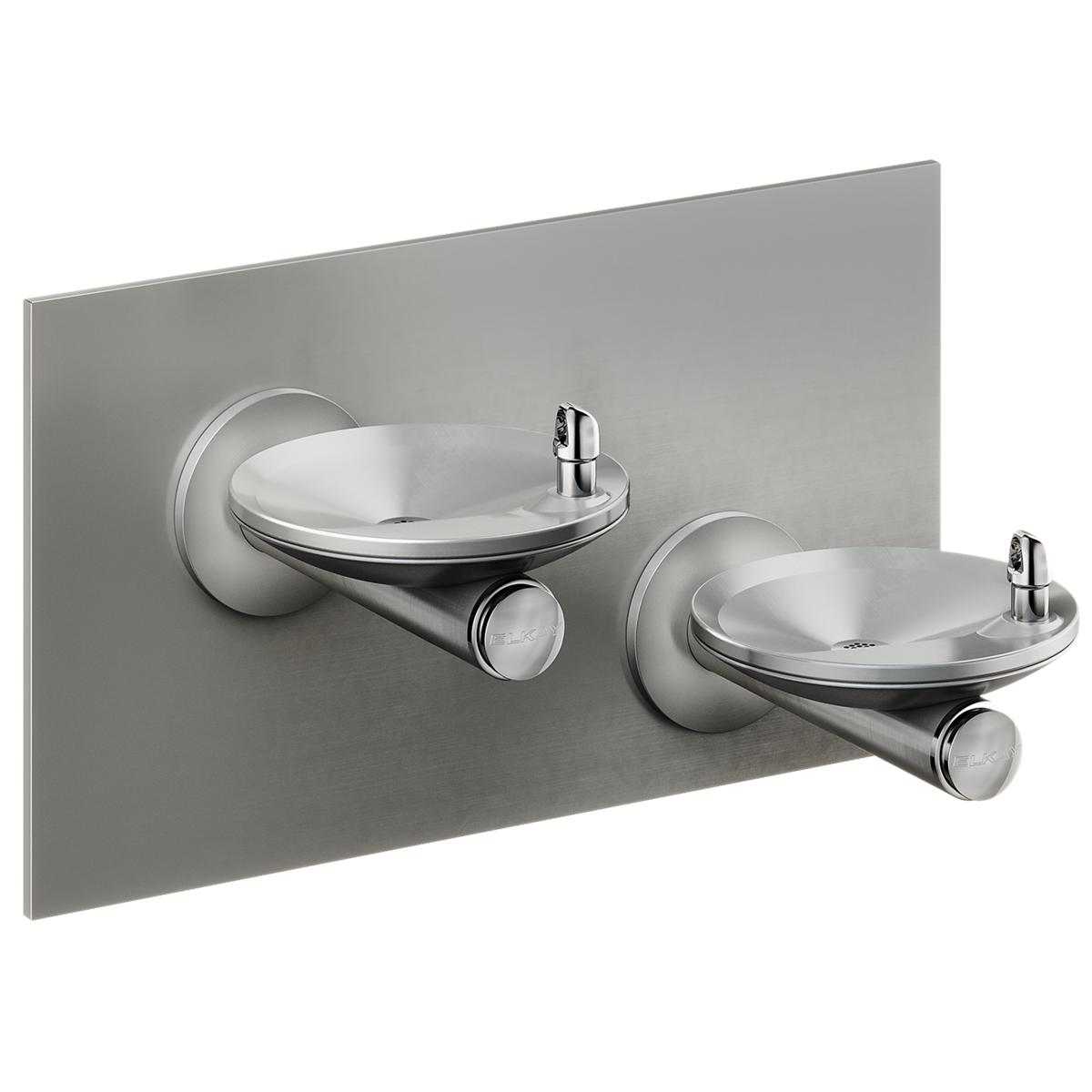

The Elkay EDFPBVM117FPK is a non-filtered bi-level drinking fountain, wall-mount. It features a stainless steel body. This model is certified lead-free for potable-water installations.
SwirlFlo® architectural drinking fountains feature sleek styling with a Contoured oval basin designed to provide a splash-resistant surface.
Features
- Patented stainless steel design enhances any architectural design, whether classic landmark or cutting edge.
- Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.

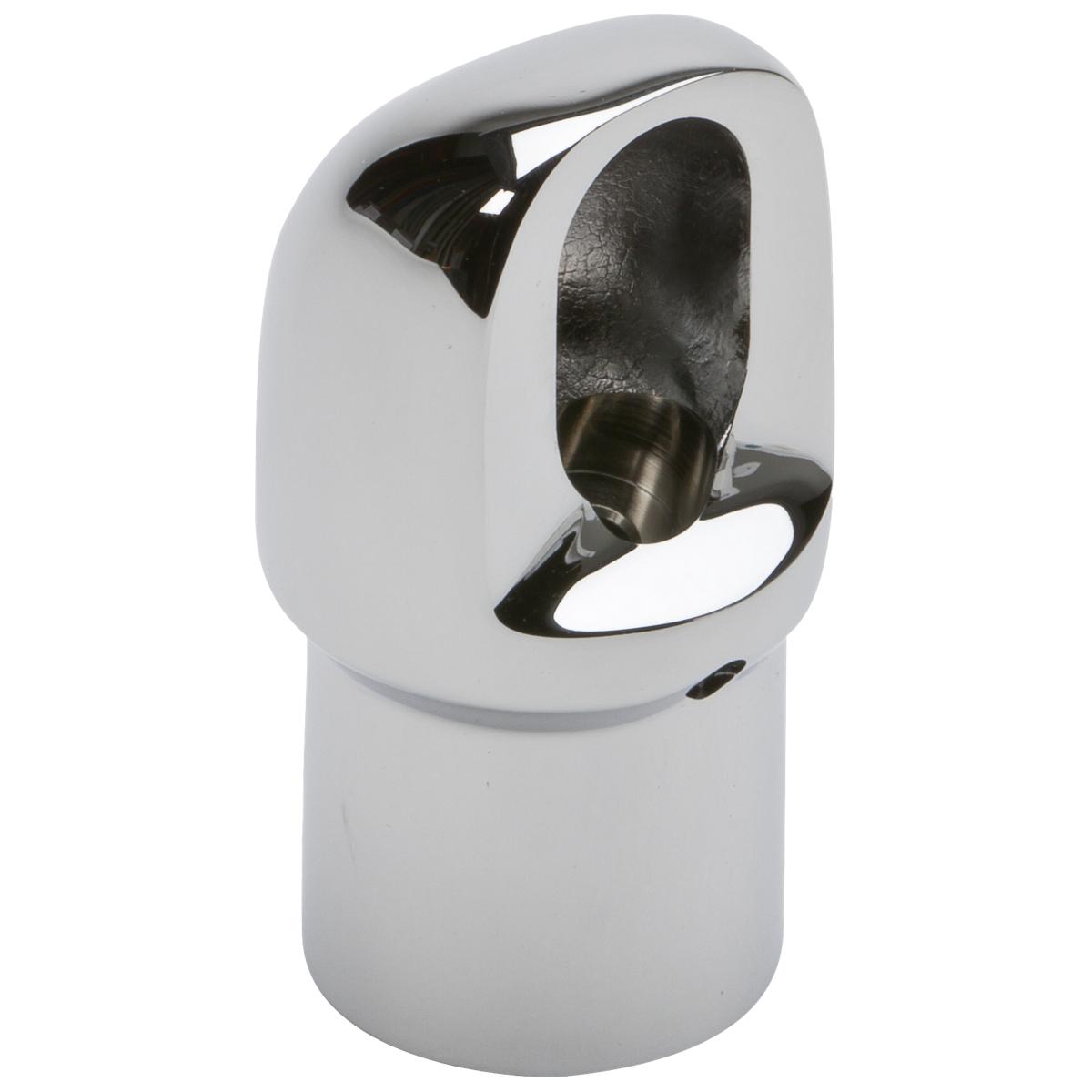

- Vandal-resistant bubblers feature chrome plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
- Stainless steel finish is corrosion resistant and attractive.
- One-piece back panel eliminates unsightly seams.
- Freeze-resistant models extend outdoor usage season.
- Rated for indoor or outdoor use.
Common Questions
- Is this unit filtered?
- No, this is a non-filtered unit.
- Does this satisfy the ADA hi/lo pair requirement?
- Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.
- Is this refrigerated?
- No, this unit dispenses ambient-temperature water only.
- Does this need an electrician?
- No, it requires no electrical connection.
- How does this mount?
- Wall-Mount installation.
Specifications
- Type: SwirlFlo Bi-Level Vandal Resistant Fountain Non-Filtered Non-Refrigerated Freeze Resistant Stainless
- Body Material: Stainless Steel
- Operation: Push Button
- Country of Origin: United States
- MPN: EDFPBVM117FPK
- Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
- Lead-Free: Yes
- Refrigerated: No
- Filtered: No
- Stations Served: 2
- Bi-Level: Yes
- Bubbler Style: Vandal Resistant
- Electrical Requirement: No Electrical Required
- Installation Location: Indoor/Outdoor
- Overall Length (in): 38.5
- Overall Width (in): 19.0
- Overall Height (in): 21.9375
- Freeze Resistant: Yes
Product Information
Details
| Series | EDFPBVM117FPK | Device Type | SwirlFlo Bi-Level Vandal Resistant Fountain Non-Filtered Non-Refrigerated Freeze Resistant Stainless |
| Lead Free | Yes | Body Material | Stainless Steel |
| Operation | Push Button | Freeze Proof | Yes |
| Baa | USA | Electrical requirement | No Electrical Required |
| Installation location | Indoor/Outdoor | Overall height in | 21.9375 in |
| Overall length in | 38.5 in | Overall width in | 19.0 in |
| Bilevel | Yes | Bubbler style | Vandal Resistant |
| Stations | 2 | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-61 |
| NSF-372 | ADA |
Compare with similar products
| Series | EDFPBVM117FPK
| VRC8S
| EDFPBV114C
| EDFPBMV117C
| LVRCTL8WSPRO-FLP4
| LVRC8WSPRO-FLP4
|
| Country Of Origin | United States
| United States
| United States
| United States
| — | — |
| Spec Sheet | ||||||
| Install Sheet | — | — | ||||
| Device Type | SwirlFlo Bi-Level Vandal Resistant Fountain Non-Filtered Non-Refrigerated Freeze Resistant Stainless
| Wall Mount Vandal Resistant ADA Cooler Non-filtered Refrigerated Stainless
| SwirlFlo Single Vandal Resistant Fountain Non-Filtered Non-Refrigerated Stainless
| SwirlFlo Bi-Level Vandal Resistant Fountain Mechanical Bubbler with In-Wall Carrier Non-Filtered Non-Refrigerated Stainless
| Elkay® Pro Filtration™ VR Bottle Filling Station & Bi-Level ADA
| Elkay® Pro Filtration™ VR Bottle Filling Station & Single ADA
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Operation | Push Button
| Push Button
| Push Button
| Push Button
| Sensor
| Sensor
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
| ADA, NSF-372, NSF-42, NSF-53, UL-399, UL
| ADA, NSF-372, NSF-42, NSF-53, UL-399, UL
|
