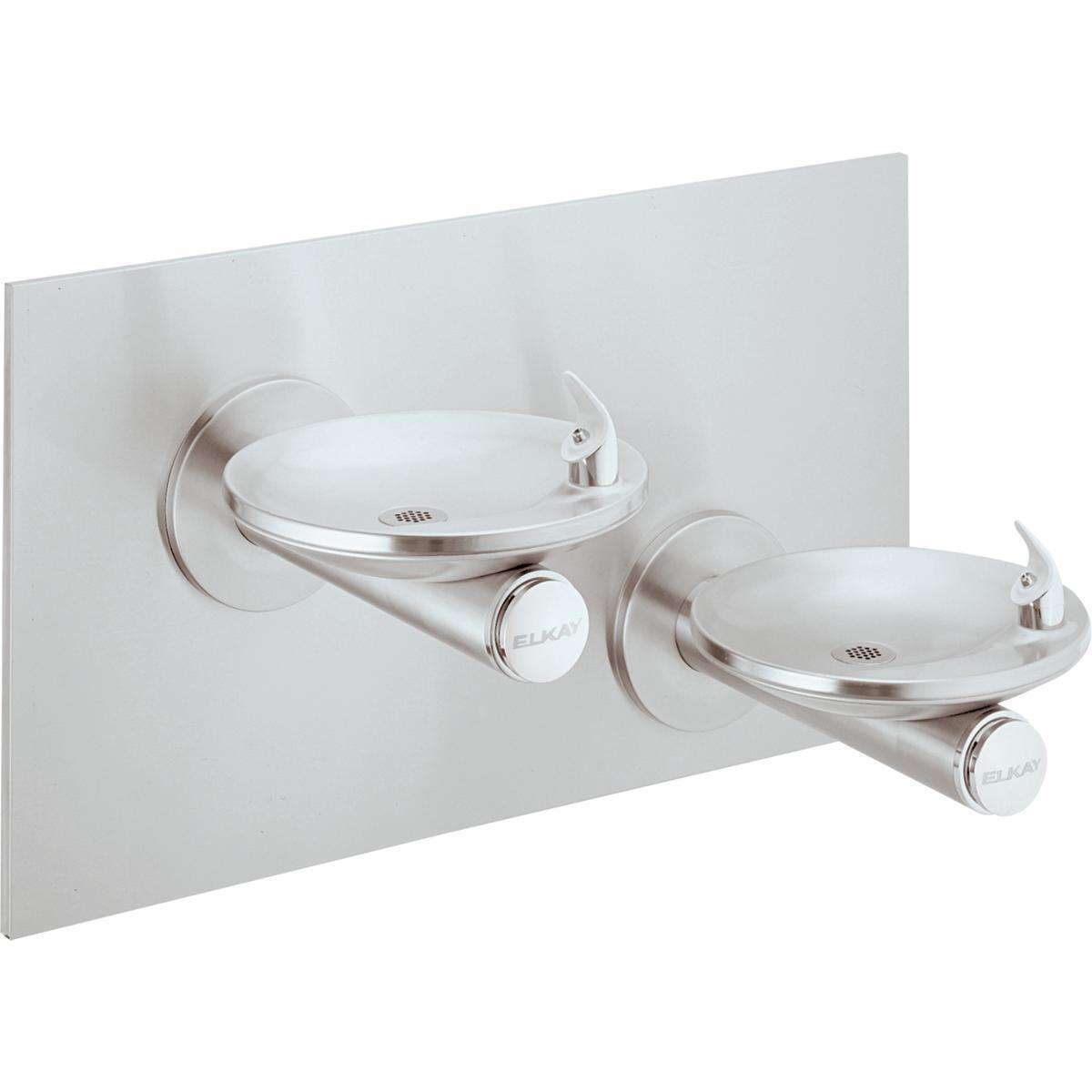

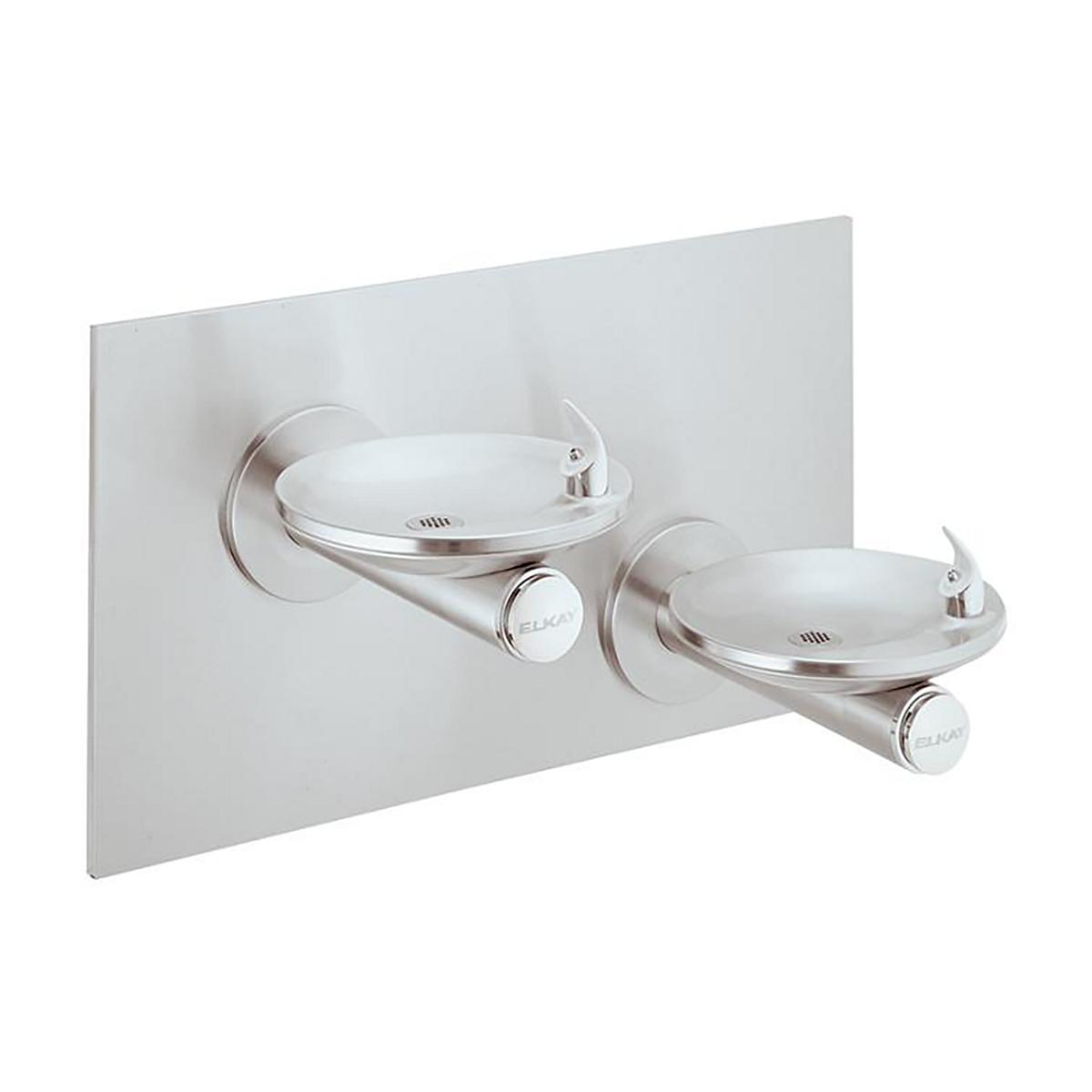

Elkay SwirlFlo Bi-Level Fountain Non-Filtered Non-Refrigerated, Stainless EDFPBM117K

The Elkay EDFPBM117K is a non-filtered bi-level drinking fountain, wall-mount. It features a stainless steel body. This model is certified lead-free for potable-water installations.

SwirlFlo® architectural drinking fountains feature sleek styling with a Contoured oval basin designed to provide a splash-resistant surface.

Features

• Patented stainless steel design enhances any architectural design, whether classic landmark or cutting edge.
• Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.
• Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
• Stainless steel finish is corrosion resistant and attractive.
• One-piece back panel eliminates unsightly seams.
• Rated for indoor or outdoor use.

Common Questions

Is this unit filtered?

No, this is a non-filtered unit.

Does this satisfy the ADA hi/lo pair requirement?

Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.

Is this refrigerated?

No, this unit dispenses ambient-temperature water only.

Does this need an electrician?

No, it requires no electrical connection.

How does this mount?

Wall-Mount installation.

Specifications

• Type: SwirlFlo Bi-Level Fountain Mechanical Bubbler with Backplate Non-Filtered Non-Refrigerated Stainless
• Body Material: Stainless Steel
• Operation: Push Button
• Country of Origin: United States
• MPN: EDFPBM117K
• Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
• Lead-Free: Yes
• Refrigerated: No
• Filtered: No
• Stations Served: 2
• Bi-Level: Yes
• Bubbler Style: Flexi-Guard Safety Bubbler
• Electrical Requirement: No Electrical Required
• Installation Location: Indoor/Outdoor
• Overall Length (in): 38.5
• Overall Width (in): 19.0
• Overall Height (in): 21.9375
