Specifications
Description

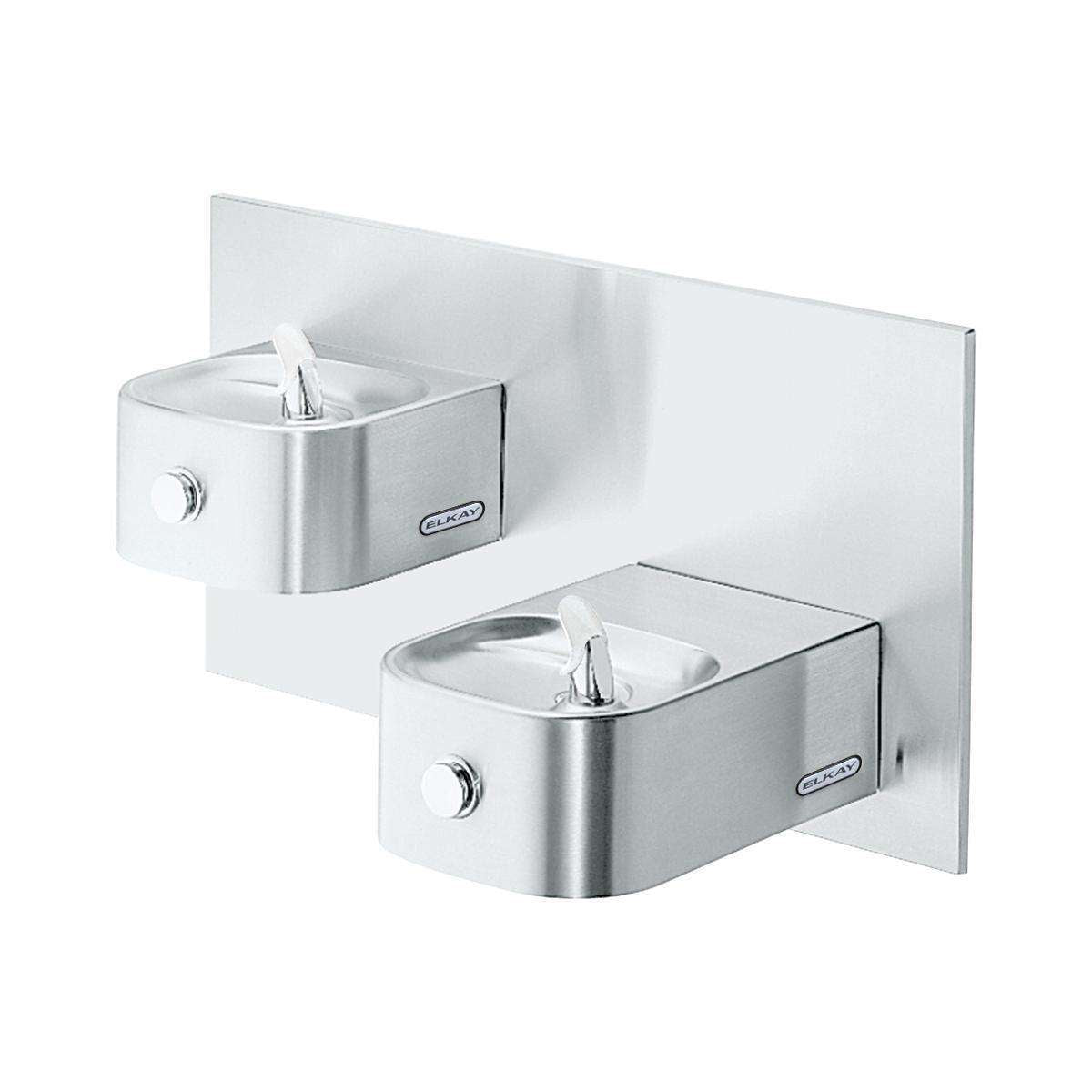

The Elkay EDFP217C is a non-filtered bi-level drinking fountain, wall-mount. It features a stainless steel body. This model is certified lead-free for potable-water installations.
Soft Sides® architectural drinking fountains feature softly rounded corners and a Contoured basin designed to provide a splash-resistant surface.
Features
- Contoured fountain provides an attractive and safe product.
- Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.
- Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
- Stainless steel finish is corrosion resistant and attractive.
- Bottom cover plate conceals plumbing and internal components.
- Rated for indoor or outdoor use.
Common Questions
- Is this unit filtered?
- No, this is a non-filtered unit.
- Does this satisfy the ADA hi/lo pair requirement?
- Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.
- Is this refrigerated?
- No, this unit dispenses ambient-temperature water only.
- Does this need an electrician?
- No, it requires no electrical connection.
- How does this mount?
- Wall-Mount installation.
Specifications
- Type: Soft Sides Bi-Level Fountain Non-Filtered Non-Refrigerated Stainless
- Body Material: Stainless Steel
- Operation: Push Button
- Country of Origin: United States
- MPN: EDFP217C
- Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
- Lead-Free: Yes
- Refrigerated: No
- Filtered: No
- Stations Served: 2
- Bi-Level: Yes
- Bubbler Style: Flexi-Guard Safety Bubbler
- Electrical Requirement: No Electrical Required
- Installation Location: Indoor/Outdoor
- Overall Length (in): 38.5
- Overall Width (in): 19.375
- Overall Height (in): 20.375
Product Information
Details
| Series | EDFP217C | Device Type | Soft Sides Bi-Level Fountain Non-Filtered Non-Refrigerated Stainless |
| Lead Free | Yes | Body Material | Stainless Steel |
| Operation | Push Button | Baa | USA |
| Electrical requirement | No Electrical Required | Installation location | Indoor/Outdoor |
| Overall height in | 20.375 in | Overall length in | 38.5 in |
| Overall width in | 19.375 in | Bilevel | Yes |
| Bubbler style | Flexi-Guard Safety Bubbler | Stations | 2 |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-61 |
| NSF-372 | ADA |
Compare with similar products
| Series | EDFP217C
| LZOOSTL8SC
| LZOOSTL8LC
| EZOOSTL8LC
| LZSTL8WS_P_FAMILY
| LZSTL8WSSP-W1
|
| Country Of Origin | United States
| United States
| United States
| United States
| — | — |
| Spec Sheet | ||||||
| Install Sheet | — | |||||
| Device Type | Soft Sides Bi-Level Fountain Non-Filtered Non-Refrigerated Stainless
| Dual Hands-free Activation Bi-level ADA Cooler Filtered Refrigerated Stainless
| Dual Hands-free Activation Bi-level ADA Cooler Filtered Refrigerated Light Gray
| Dual Hands-free Activation Bi-level ADA Cooler Non-filtered Refrigerated Light Gray
| Enhanced Filtered Connected Bottle Filling Station & Bi-Level ADA Cooler Midnight Black Lead Reduction Drop Down Wrapper
| Enhanced Connected Bottle Filler & Bi-Level ADA Cooler
|
| Lead Free | Yes | Yes | Yes | Yes | — | — |
| Body Material | Stainless Steel
| Stainless Steel
| — | — | Stainless Steel
| Stainless Steel
|
| Operation | Push Button
| Sensor
| Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ADA, NSF-42, UL-399, UL
| ADA, NSF-42, UL-399, UL
|
