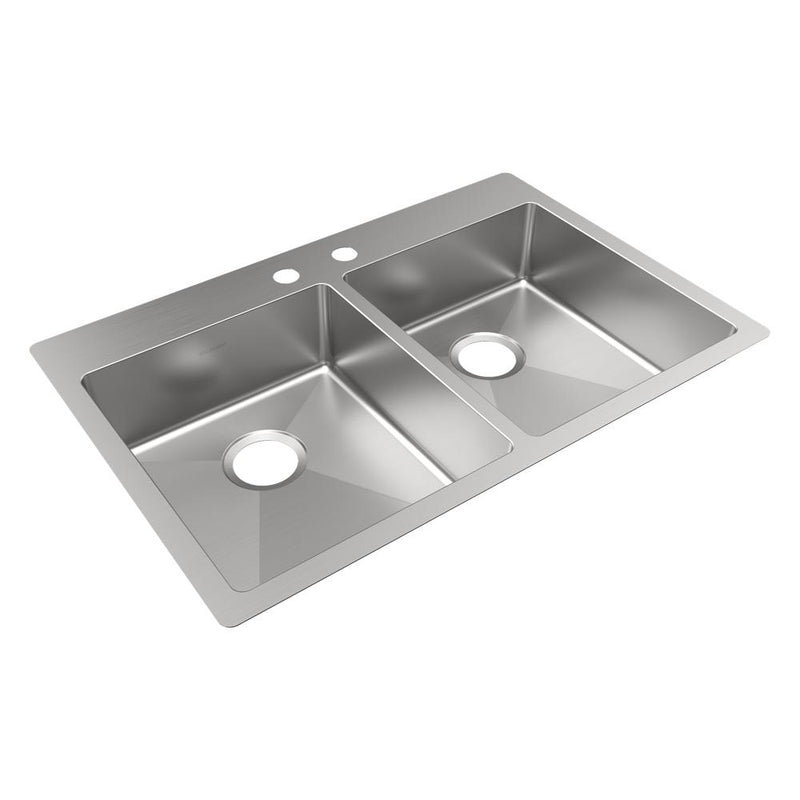

Elkay Crosstown 18 Gauge Stainless Steel 33" x 22" x 6", Equal 2-Hole Double Bowl Dual Mount ADA Sink ECTSRAD3322602

The Elkay ECTSRAD3322602 is a Crosstown 18 Gauge Stainless Steel 33" x 22" x 6", Equal 2-Hole Double Bowl Dual Mount ADA Sink. It features a stainless steel body.

The Elkay Crosstown® collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.

Features

• ADA COMPLIANT: Product is ADA compliant when properly installed
• Slim Rim™: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look
• DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks
• 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty
• Sound Guard®: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink
• TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean
• U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation means less time under the sink for an easier install
• DRAIN OPENING: Sink drain opening measures 3-1/2"
• DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows
• CABINET SIZE: Minimum cabinet size for this sink is 36"

Common Questions

What size cabinet does this need?

A minimum 36" wide base cabinet.

What does 18-gauge mean?

18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has full spray sides and bottom with sides and bottom pads for added quiet.

Is this ADA compliant?

Yes, this model meets ADA accessibility requirements for bowl depth.

Will my faucet fit?

Check your existing hole pattern against this sink's drilling: 2.

Specifications

• Type: Crosstown® 18 Gauge Stainless Steel 33" x 22" x 6", Equal 2-Hole Double Bowl Dual Mount ADA Sink
• Outlet Size: 3-1/2"
• Body Material: Stainless Steel
• MPN: ECTSRAD3322602
• Certifications: ASME A112.19.3/CSA B45.4, ADA
• Number of Bowls: 2
• Bowl Configuration: Equal Double
• Minimum Cabinet Size (in): 36
• Bowl Dimensions: 14-3/4" x 16-3/4" x 6";14-3/4" x 16-3/4" x 6"
• Drain Location: Rear Center
• Gauge: 18
• Sound Deadening: Full spray sides and bottom with Sides and Bottom pads
• Template Included: Yes
• Mounting Hardware: Part # 54300008 included
• Mount Type: Dual-Mount
• Coating / Finish: , Polished Satin
• Faucet Holes: 2
• Overall Length (in): 33.0
• Overall Width (in): 22.0
• Overall Height (in): 6.0
