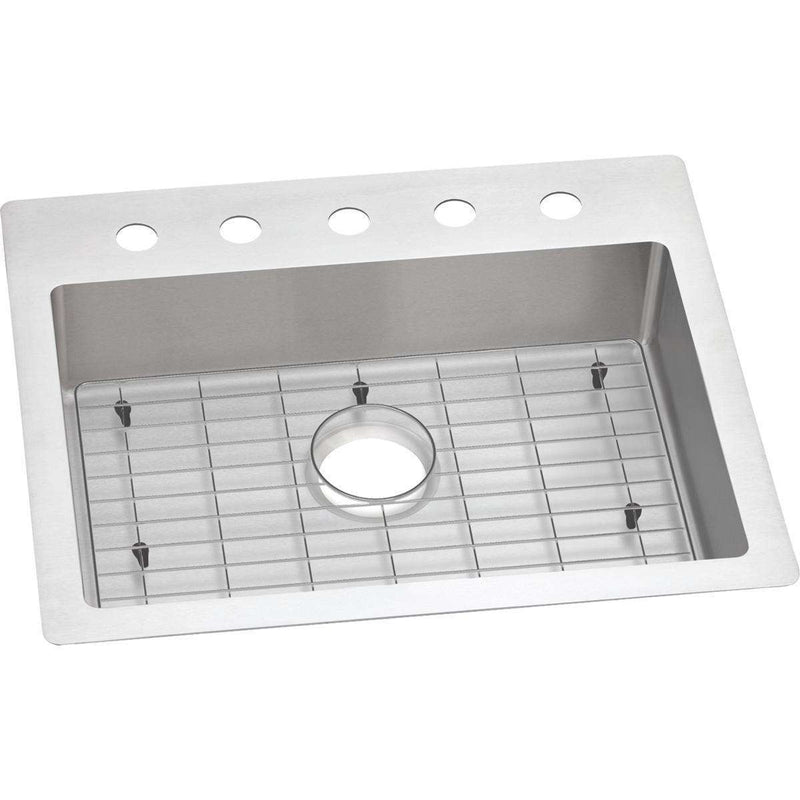

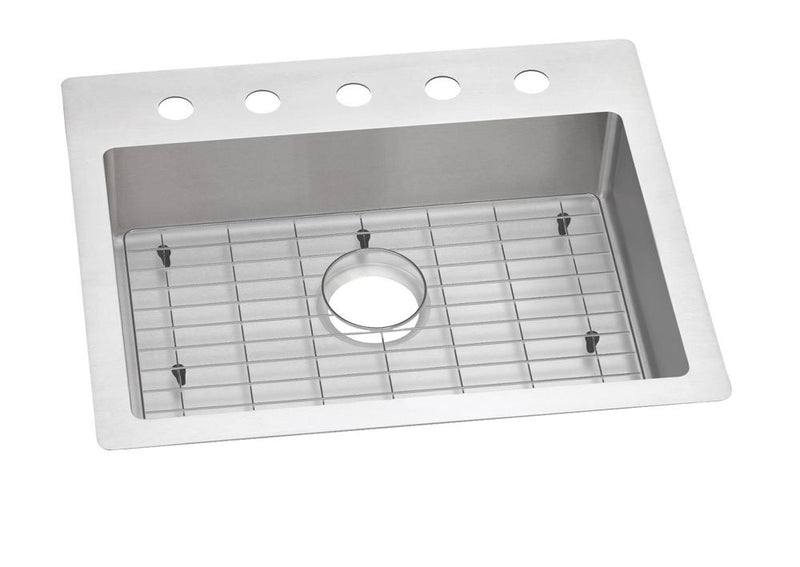

The Elkay ECTSRAD25226TBG5 is a Crosstown 18 Gauge Stainless Steel 25" x 22" x 6" 5-Hole Single Bowl Dual Mount ADA Sink Kit. It features a stainless steel body.
The Elkay Crosstown® collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
Features
- ADA COMPLIANT: Product is ADA compliant when properly installed
- Slim Rim™: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look
- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty
- Sound Guard®: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink
- TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation means less time under the sink for an easier install
- DRAIN OPENING: Sink drain opening measures 3-1/2"
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows
- KIT INCLUDES: ECTSRAD25226T sink, CTXBG2115 bottom grid; conveniently packaged together to save you time
Common Questions
- What size cabinet does this need?
- A minimum 30" wide base cabinet.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has full spray sides and bottom with sides and bottom pads for added quiet.
- Is this ADA compliant?
- Yes, this model meets ADA accessibility requirements for bowl depth.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 5.
- What is included in the kit?
- This kit includes: CTXBG2115 Bottom Grid.
Specifications
-
Type: Crosstown® 18 Gauge Stainless Steel 25" x 22" x 6" 5-Hole Single Bowl Dual Mount ADA Sink Kit
-
Outlet Size: 3-1/2"
-
Body Material: Stainless Steel
-
MPN: ECTSRAD25226TBG5
-
Certifications: ADA
-
Number of Bowls: 1
-
Minimum Cabinet Size (in): 30
-
Bowl Dimensions: 22-1/2" x 16-3/4" x 6"
-
Drain Location: Rear Center
-
Gauge: 18
-
Sound Deadening: Full spray sides and bottom with Sides and Bottom pads
-
Template Included: Yes
-
Mounting Hardware: Part # 64090022 included for drop-in
-
Design Features: Tight Corners;Drain Opening;Disposal Ready
-
Mount Type: Dual-Mount
-
Coating / Finish: Polished Satin
-
Faucet Holes: 5
-
Overall Length (in): 25.0
-
Overall Width (in): 22.0
-
Overall Height (in): 6.0
-
Kit Includes: CTXBG2115 Bottom Grid
