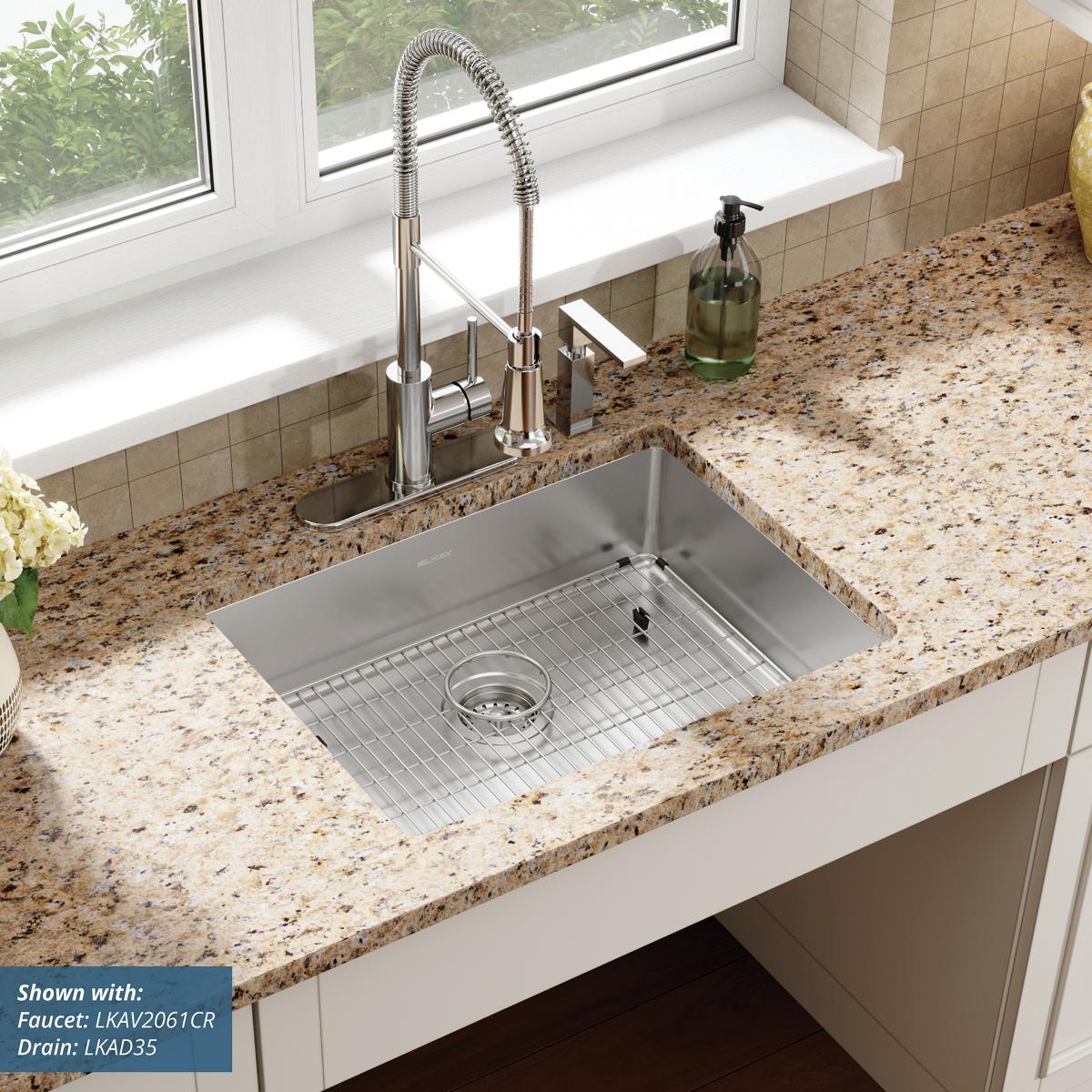

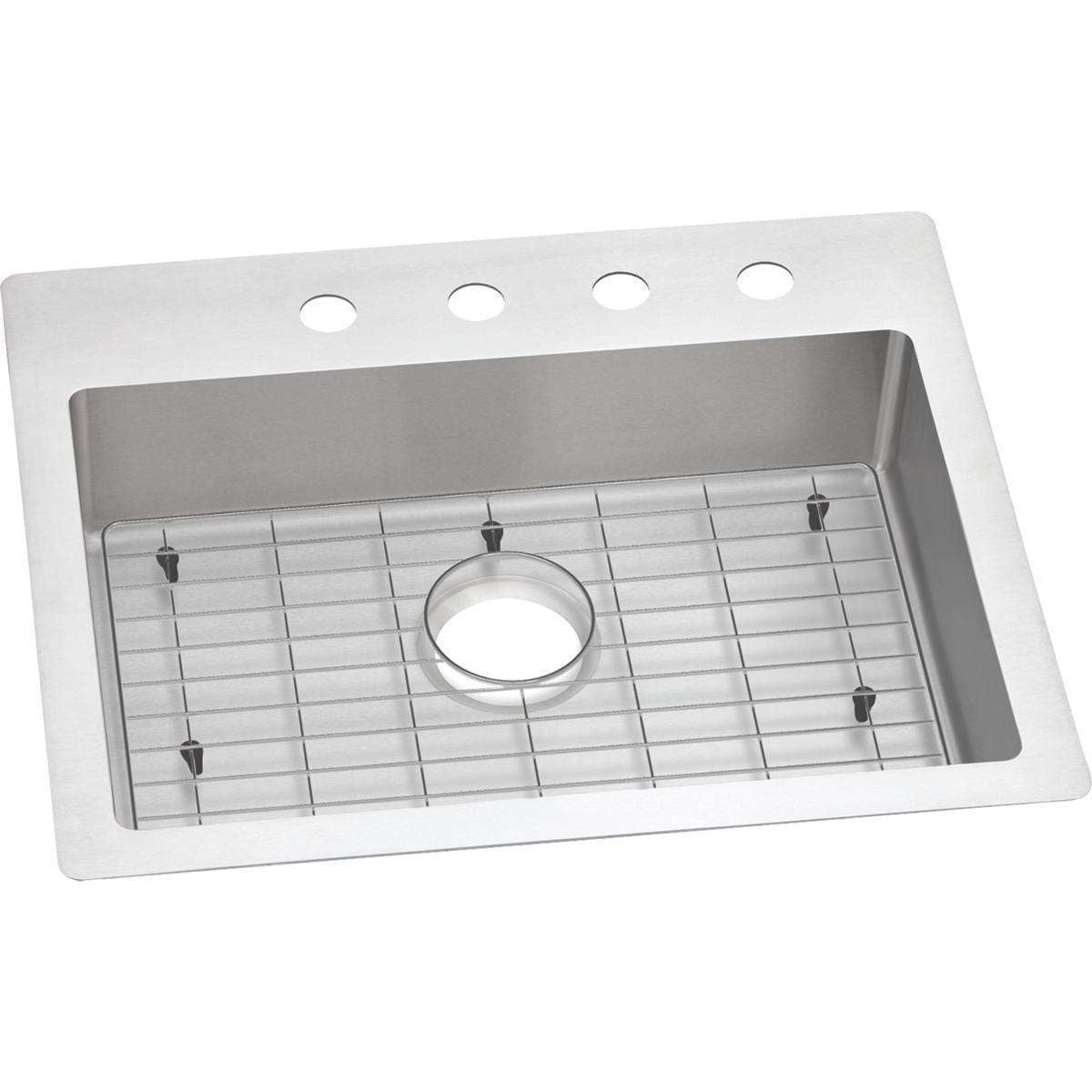

Elkay Crosstown 18 Gauge Stainless Steel 25" x 22" x 6" 4-Hole Single Bowl Dual Mount ADA Sink Kit ECTSRAD25226TBG4

The Elkay ECTSRAD25226TBG4 is a Crosstown 18 Gauge Stainless Steel 25" x 22" x 6", 4-Hole Single Bowl Dual Mount ADA Sink Kit. It features a stainless steel body.

The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.

Features

• ADA COMPLIANT: Product is ADA compliant when properly installed.
• SLIM RIM: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look.
• SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
• 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
• SOUND GUARD: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink.
• TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.
• U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
• DRAIN OPENING: Sink drain opening measures 3-1/2".
• DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.
• CABINET SIZE: Minimum cabinet size for this sink is 30".

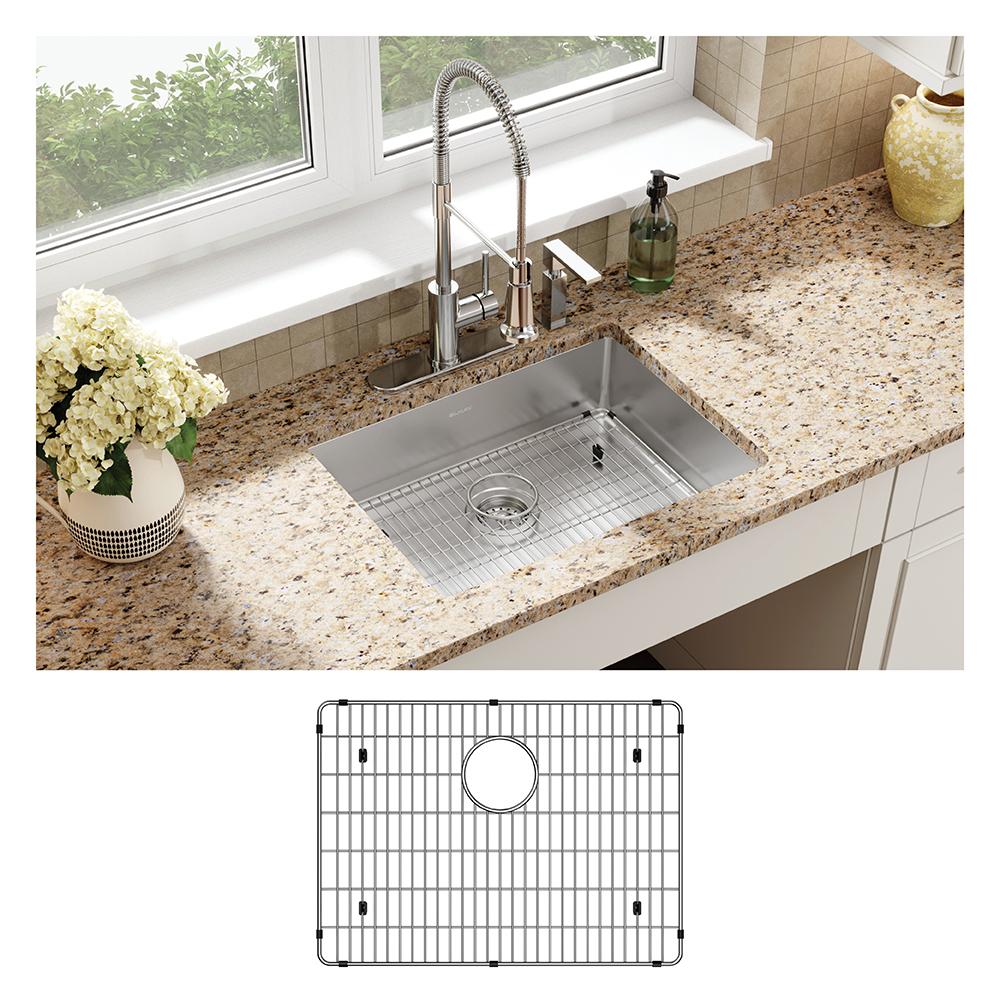

• KIT INCLUDES: ECTSRAD25226T sink, CTXBG2115 bottom grid; conveniently packaged together to save you time.

Common Questions

What size cabinet does this need?

A minimum 30" wide base cabinet.

What does 18-gauge mean?

18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has full spray sides and bottom with sides and bottom pads for added quiet.

Is this ADA compliant?

Yes, this model meets ADA accessibility requirements for bowl depth.

Will my faucet fit?

Check your existing hole pattern against this sink's drilling: 4.

What is included in the kit?

This kit includes: CTXBG2115 Bottom Grid.

Specifications

• Type: Crosstown 18 Gauge Stainless Steel 25" x 22" x 6", 4-Hole Single Bowl Dual Mount ADA Sink Kit
• Outlet Size: 3-1/2"
• Body Material: Stainless Steel
• Country of Origin: China
• MPN: ECTSRAD25226TBG4
• Certifications: ASME A112.19.3/CSA B45.4, IAPMO, ADA
• Number of Bowls: 1
• Minimum Cabinet Size (in): 30

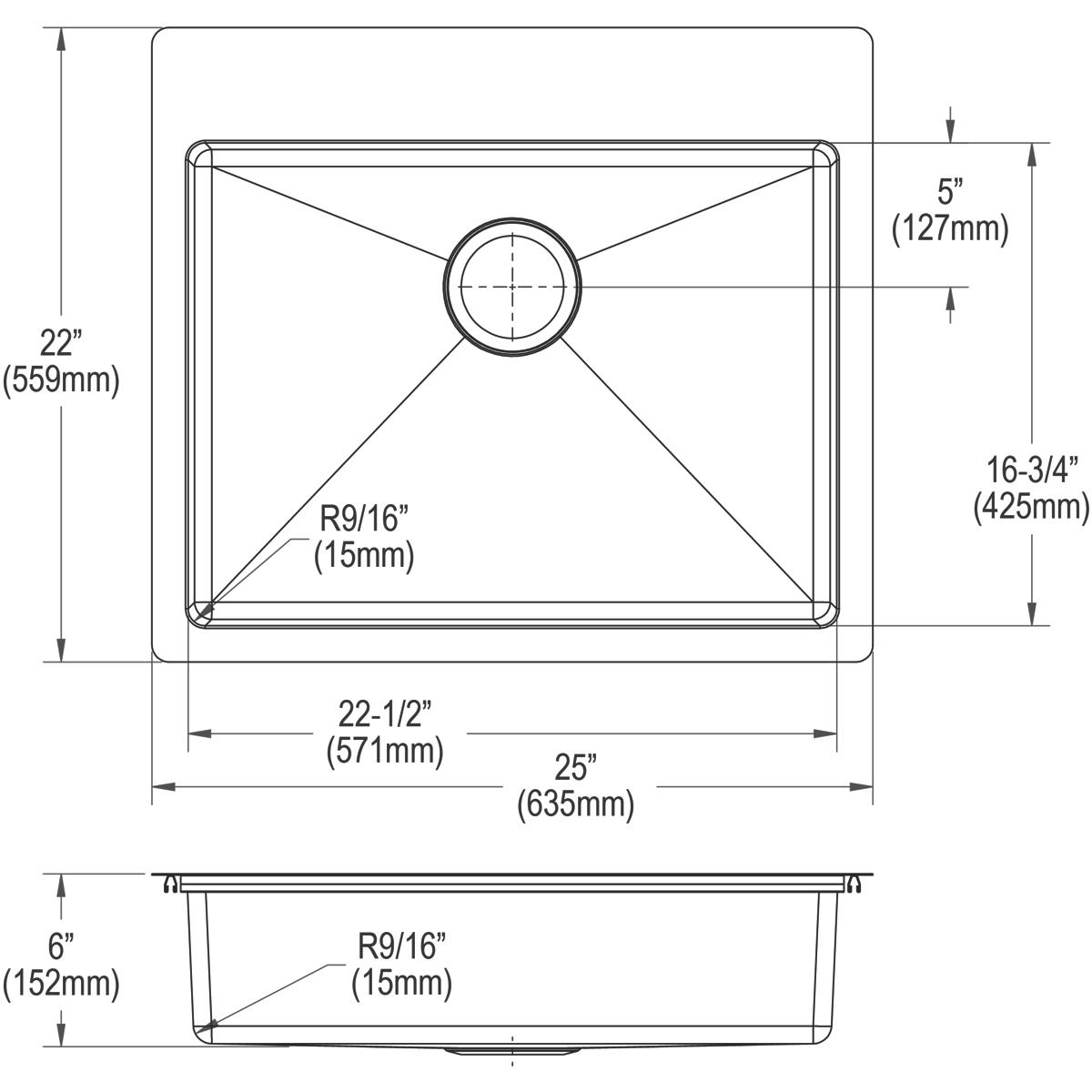

• Bowl Dimensions: 22-1/2" x 16-3/4" x 6"
• Drain Location: Rear Center
• Gauge: 18
• Sound Deadening: Full spray sides and bottom with Sides and Bottom pads
• Template Included: Yes
• Mounting Hardware: Part # 64090022 included for drop-in installation for countertops thicker than 3/4" (19mm) up to 1-1/2" (38.1mm) thick.
• Mount Type: Dual-Mount
• Coating / Finish: Polished Satin
• Faucet Holes: 4
• Overall Length (in): 25.0
• Overall Width (in): 22.0
• Overall Height (in): 6.0
• Kit Includes: CTXBG2115 Bottom Grid
• Countertop Cutout: 24-3/8" x 21-3/8" (619mm x 543mm) with 1/2" (12mm) corner radius
• Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001179.dxf
