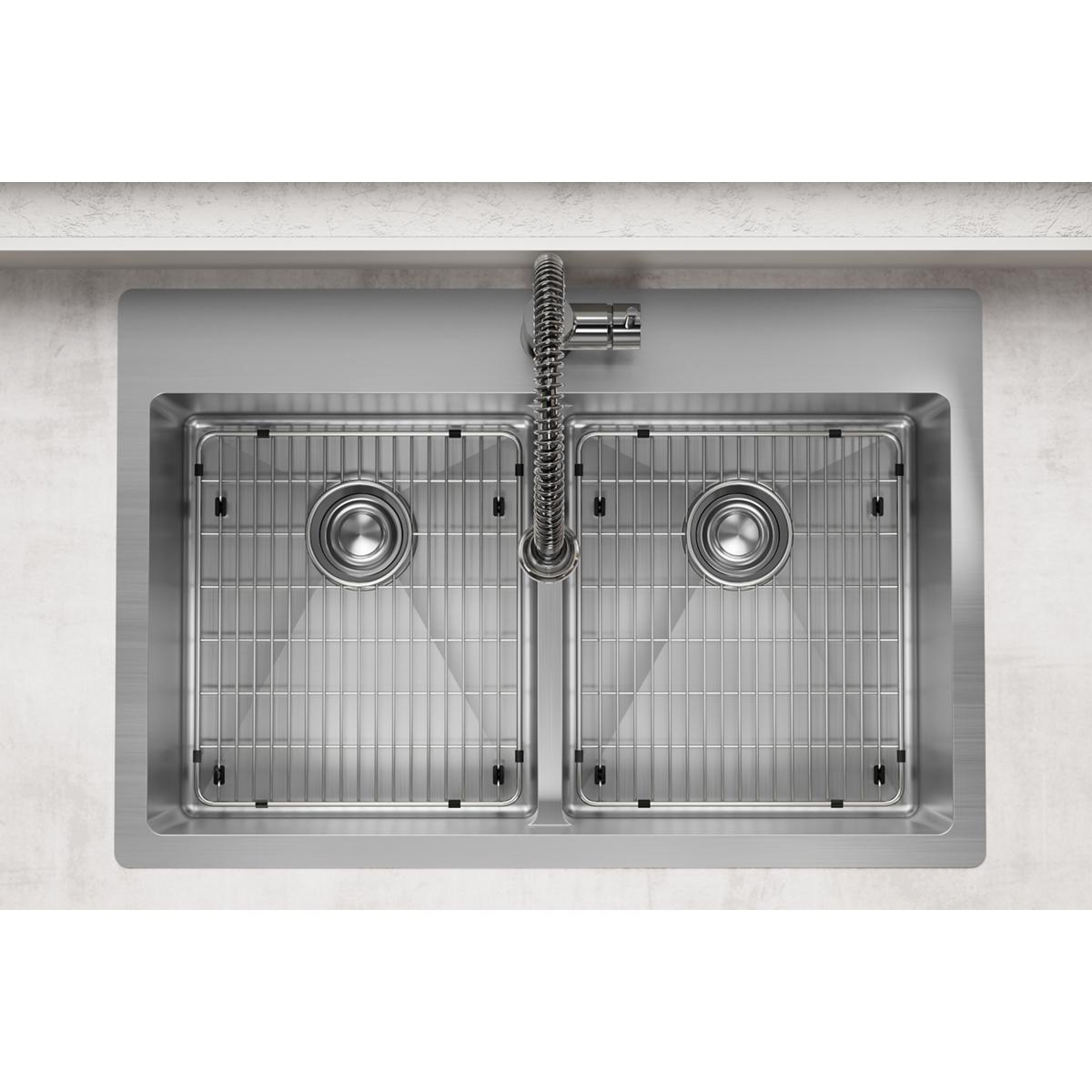

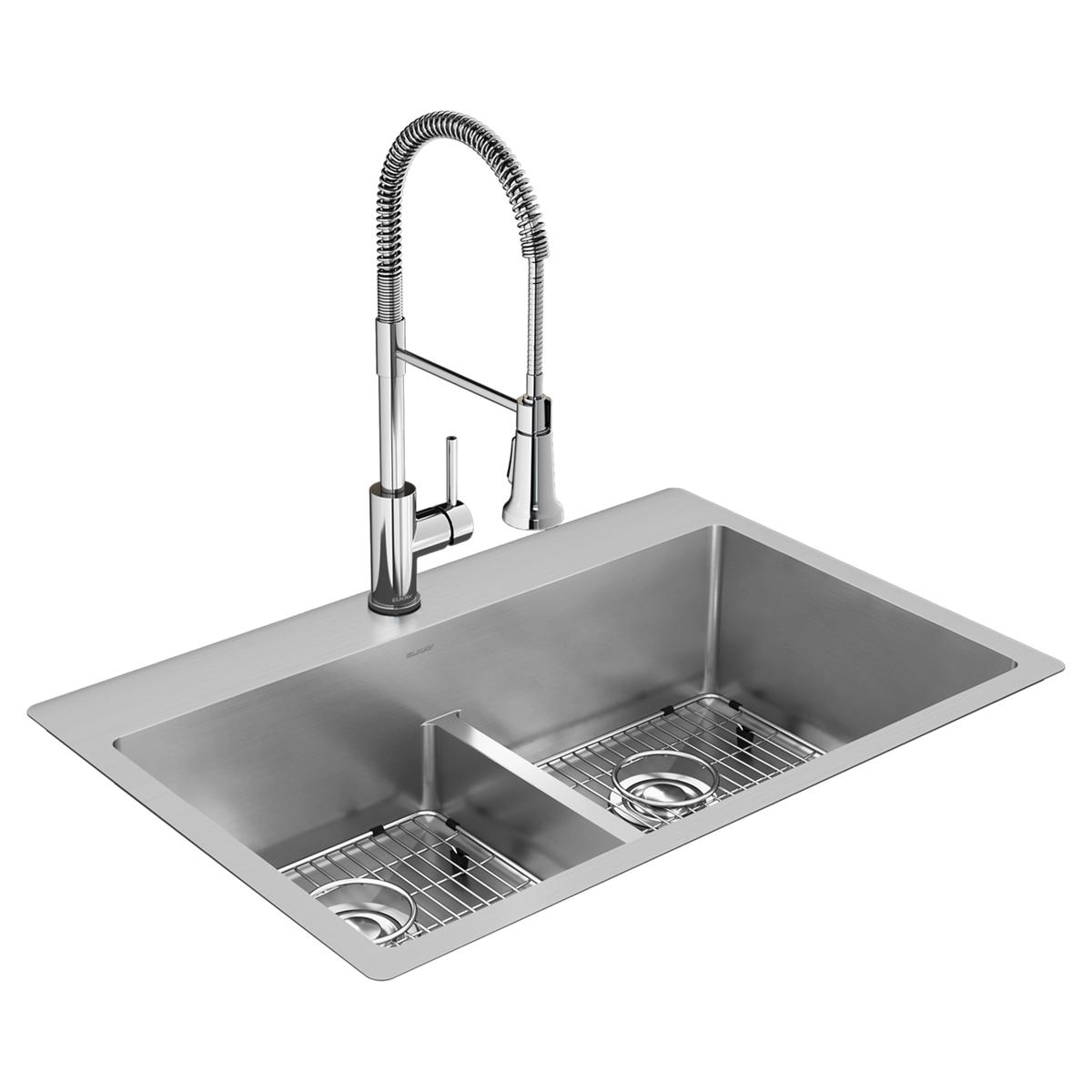

Elkay Crosstown 18 Gauge Stainless Steel 33" x 22" x 9" 1-Hole Equal Double Bowl Dual Mount Sink Kit with Aqua Divide and Faucet ECTSRA33229TFC

The Elkay ECTSRA33229TFC is a Crosstown 18 Gauge Stainless Steel 33" x 22" x 9", 1-Hole Equal Double Bowl Dual Mount Sink Kit with Aqua Divide and Faucet. It features a stainless steel body.

The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.

Features

• AQUA DIVIDE: Low center divider allows pan handles to extend over center and makes it easy to wash large items, like baking sheets, over both bowls.
• SLIM RIM: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look.
• DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
• 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
• SOUND GUARD: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink.
• TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.
• U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
• DRAIN OPENING: Sink drain opening measures 3-1/2".
• DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.
• CABINET SIZE: Minimum cabinet size for this sink is 36".

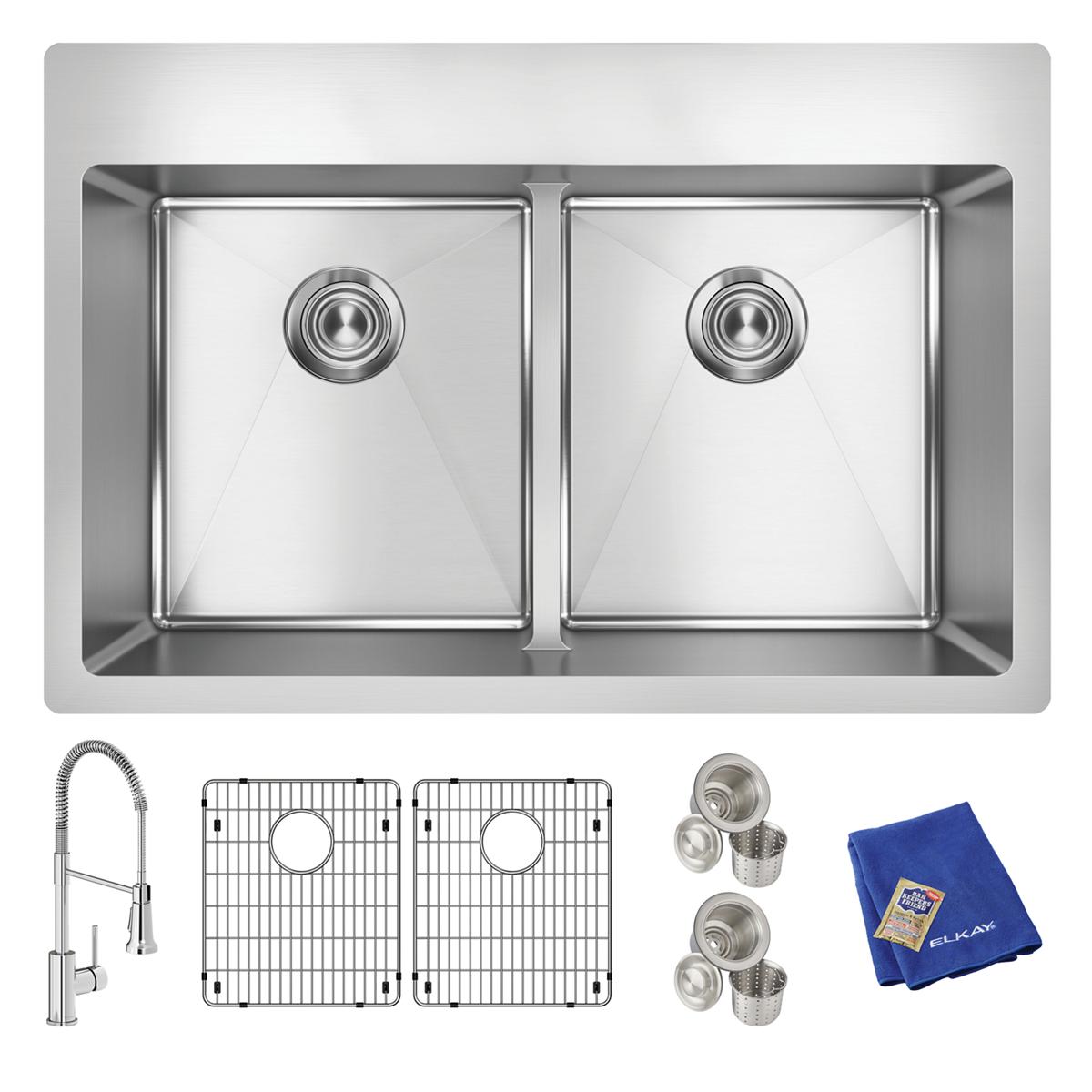

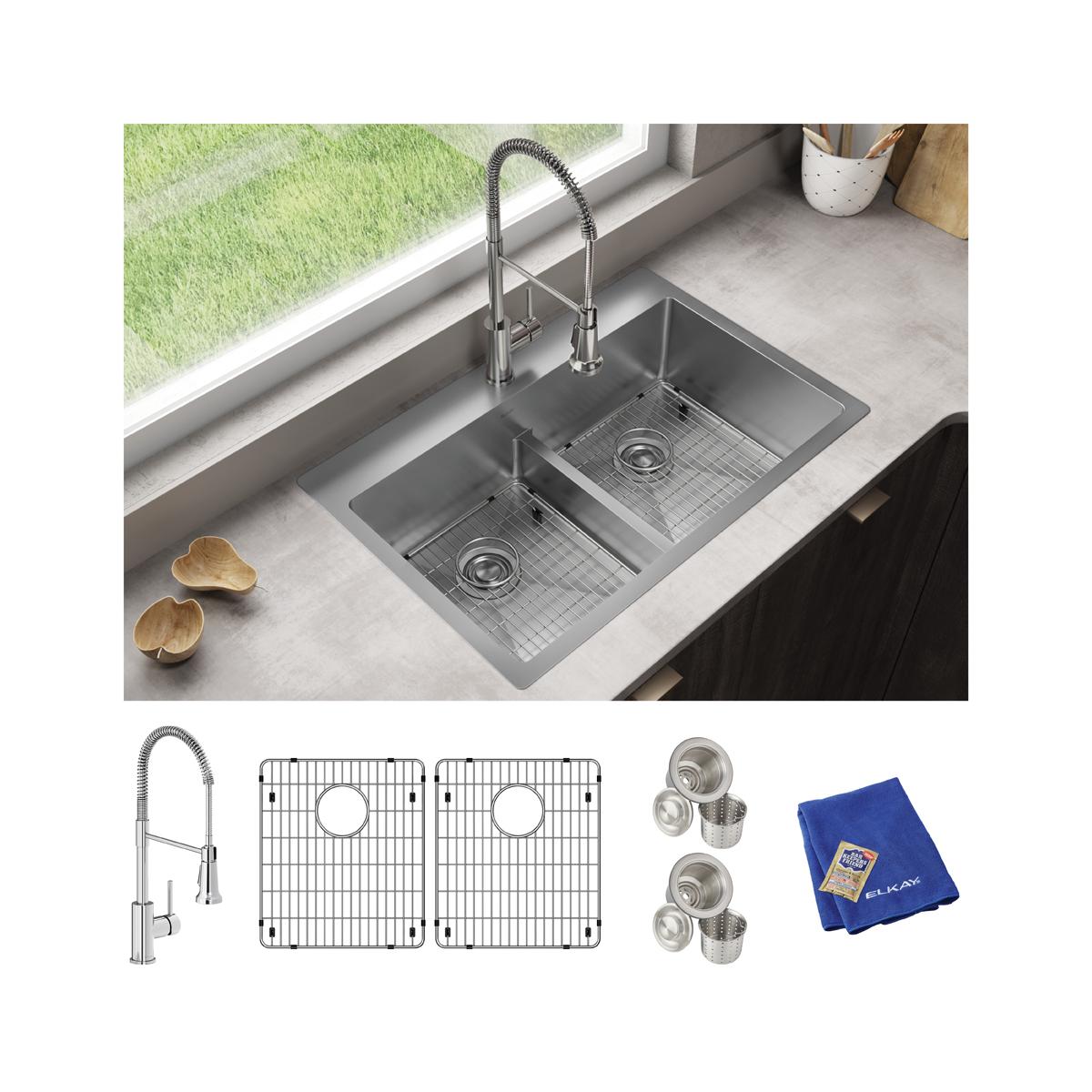

• KIT INCLUDES: ECTSRA33229T sink, one LKAV2061CR faucet, two CTXBG1315 bottom grids, two LKDD deep strainer drains; conveniently packaged together to save you time.

Common Questions

What size cabinet does this need?

A minimum 36" wide base cabinet.

What does 18-gauge mean?

18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has full spray sides and bottom with sides and bottom pads for added quiet.

Will my faucet fit?

Check your existing hole pattern against this sink's drilling: 1.

What is included in the kit?

This kit includes: LKAV2061CR faucet, two CTXBG1315 bottom grids, two LKDD drains, Bar Keeper's Friend cleanser, microfiber towel.

Specifications

• Type: Crosstown 18 Gauge Stainless Steel 33" x 22" x 9", 1-Hole Equal Double Bowl Dual Mount Sink Kit with Aqua Divide and Faucet
• Outlet Size: 3-1/2"
• Body Material: Stainless Steel
• Country of Origin: China
• MPN: ECTSRA33229TFC
• Certifications: ASME A112.19.3/CSA B45.4
• Number of Bowls: 2
• Bowl Configuration: Equal Double
• Minimum Cabinet Size (in): 36

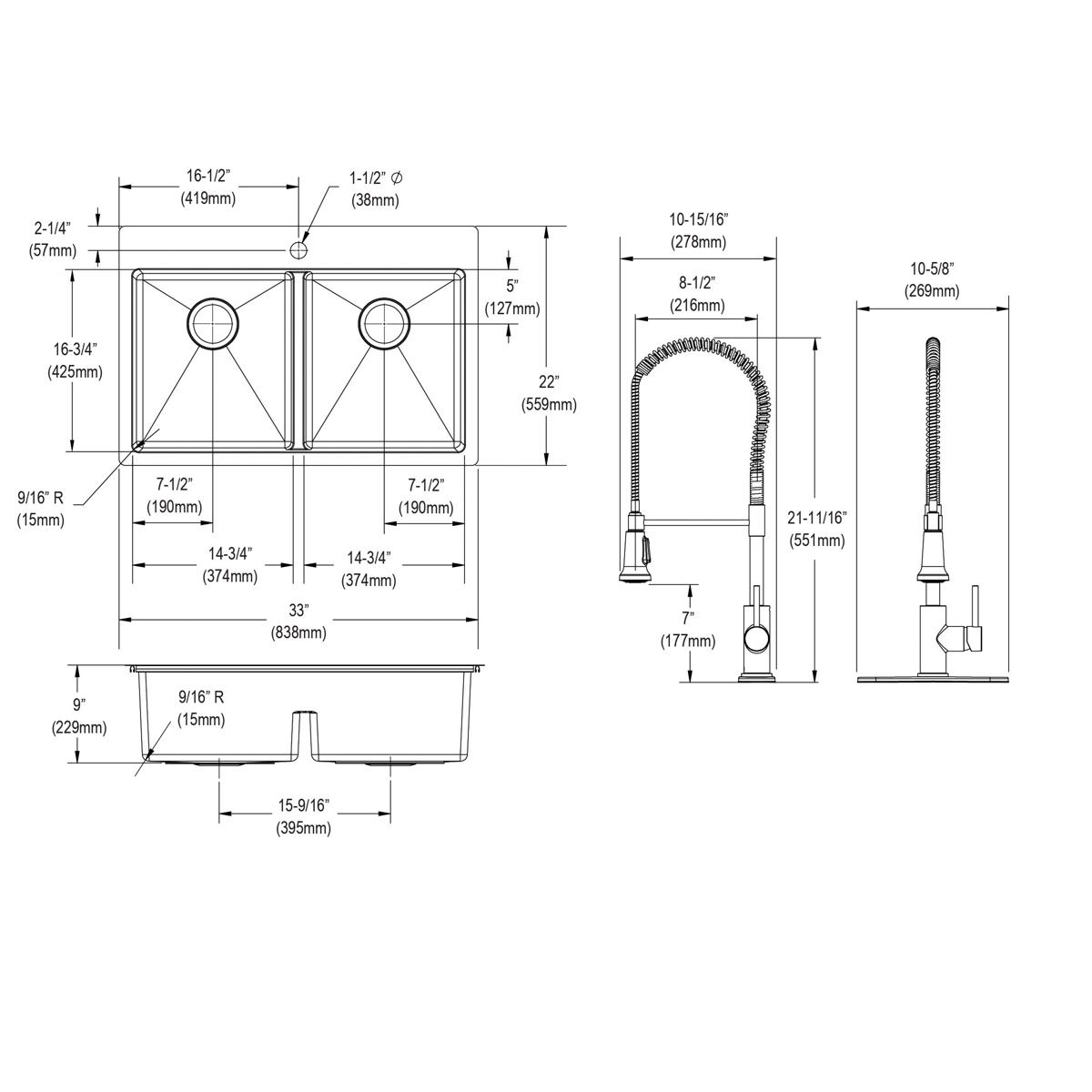

• Bowl Dimensions: 14-3/4" x 16-3/4" x 9";14-3/4" x 16-3/4" x 9"
• Drain Size, Bowl 2 (in): 3.5
• Drain Location: Rear Center
• Gauge: 18
• Sound Deadening: Full spray sides and bottom with Sides and Bottom pads
• Template Included: Yes
• Mounting Hardware: Part # 54300008 included
• Mount Type: Dual-Mount
• Coating / Finish: Polished Satin
• Faucet Holes: 1
• Overall Length (in): 33.0
• Overall Width (in): 22.0
• Overall Height (in): 9.0
• Kit Includes: LKAV2061CR faucet, two CTXBG1315 bottom grids, two LKDD drains, Bar Keeper's Friend cleanser, microfiber towel
• Countertop Cutout: 32-3/8" x 21-3/8" (822mm x 543mm) with 1/2" (12mm) corner radius
• Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001180.dxf
