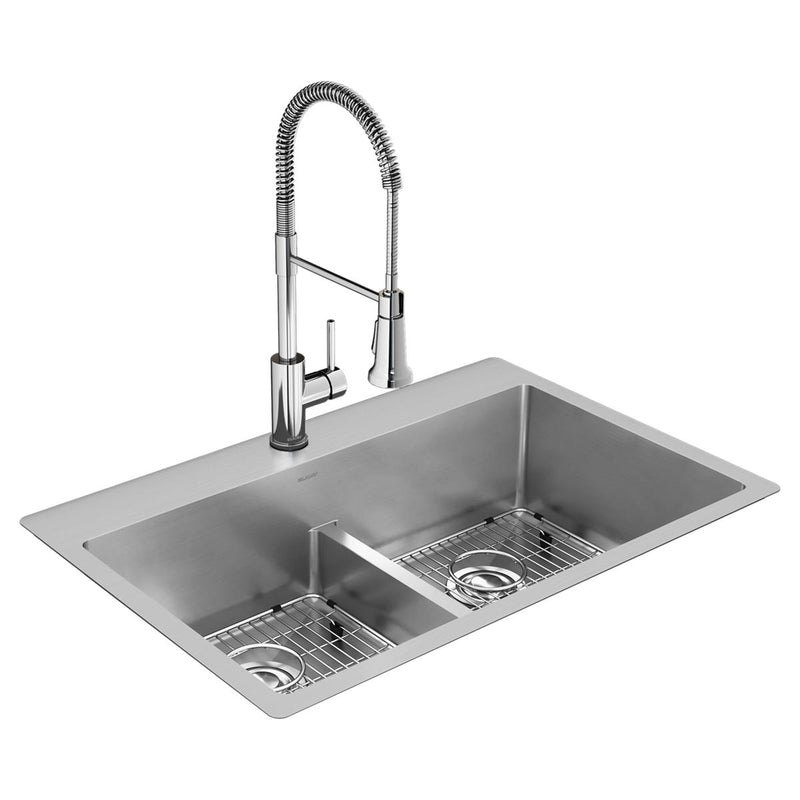

The Elkay ECTSRA33229TFC is a Crosstown 18 Gauge Stainless Steel 33" x 22" x 9", 1-Hole Equal Double Bowl Dual Mount Sink Kit with Aqua Divide and Faucet. It features a stainless steel body.
The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
Features
- AQUA DIVIDE: Low center divider allows pan handles to extend over center and makes it easy to wash large items, like baking sheets, over both bowls.
- SLIM RIM: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look.
- DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- SOUND GUARD: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink.
- TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.
- CABINET SIZE: Minimum cabinet size for this sink is 36".
- KIT INCLUDES: ECTSRA33229T sink, one LKAV2061CR faucet, two CTXBG1315 bottom grids, two LKDD deep strainer drains; conveniently packaged together to save you time.
Common Questions
- What size cabinet does this need?
- A minimum 36" wide base cabinet.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has full spray sides and bottom with sides and bottom pads for added quiet.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 1.
- What is included in the kit?
- This kit includes: LKAV2061CR faucet, two CTXBG1315 bottom grids, two LKDD drains, Bar Keeper's Friend cleanser, microfiber towel.
Specifications
-
Type: Crosstown 18 Gauge Stainless Steel 33" x 22" x 9", 1-Hole Equal Double Bowl Dual Mount Sink Kit with Aqua Divide and Faucet
-
Outlet Size: 3-1/2"
-
Body Material: Stainless Steel
-
Country of Origin: China
-
MPN: ECTSRA33229TFC
-
Certifications: ASME A112.19.3/CSA B45.4
-
Number of Bowls: 2
-
Bowl Configuration: Equal Double
-
Minimum Cabinet Size (in): 36
-
Bowl Dimensions: 14-3/4" x 16-3/4" x 9";14-3/4" x 16-3/4" x 9"
-
Drain Size, Bowl 2 (in): 3.5
-
Drain Location: Rear Center
-
Gauge: 18
-
Sound Deadening: Full spray sides and bottom with Sides and Bottom pads
-
Template Included: Yes
-
Mounting Hardware: Part # 54300008 included
-
Mount Type: Dual-Mount
-
Coating / Finish: Polished Satin
-
Faucet Holes: 1
-
Overall Length (in): 33.0
-
Overall Width (in): 22.0
-
Overall Height (in): 9.0
-
Kit Includes: LKAV2061CR faucet, two CTXBG1315 bottom grids, two LKDD drains, Bar Keeper's Friend cleanser, microfiber towel
-
Countertop Cutout: 32-3/8" x 21-3/8" (822mm x 543mm) with 1/2" (12mm) corner radius
-
Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001180.dxf
