Description
The Elkay ECTSR15159TBG3 is a Crosstown 18 Gauge Stainless Steel 15" x 15" x 9", 3-Hole Single Bowl Dual Mount Bar Sink Kit. It features a stainless steel body.
The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
Features

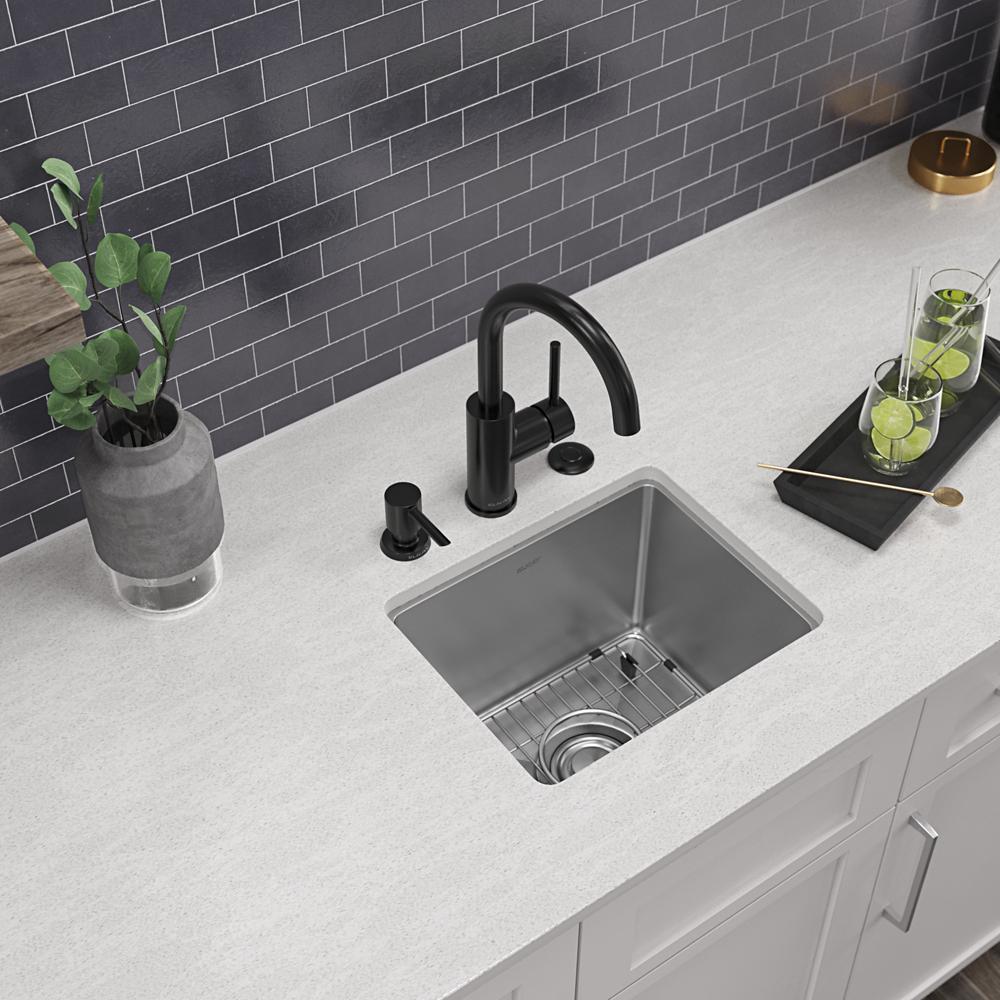

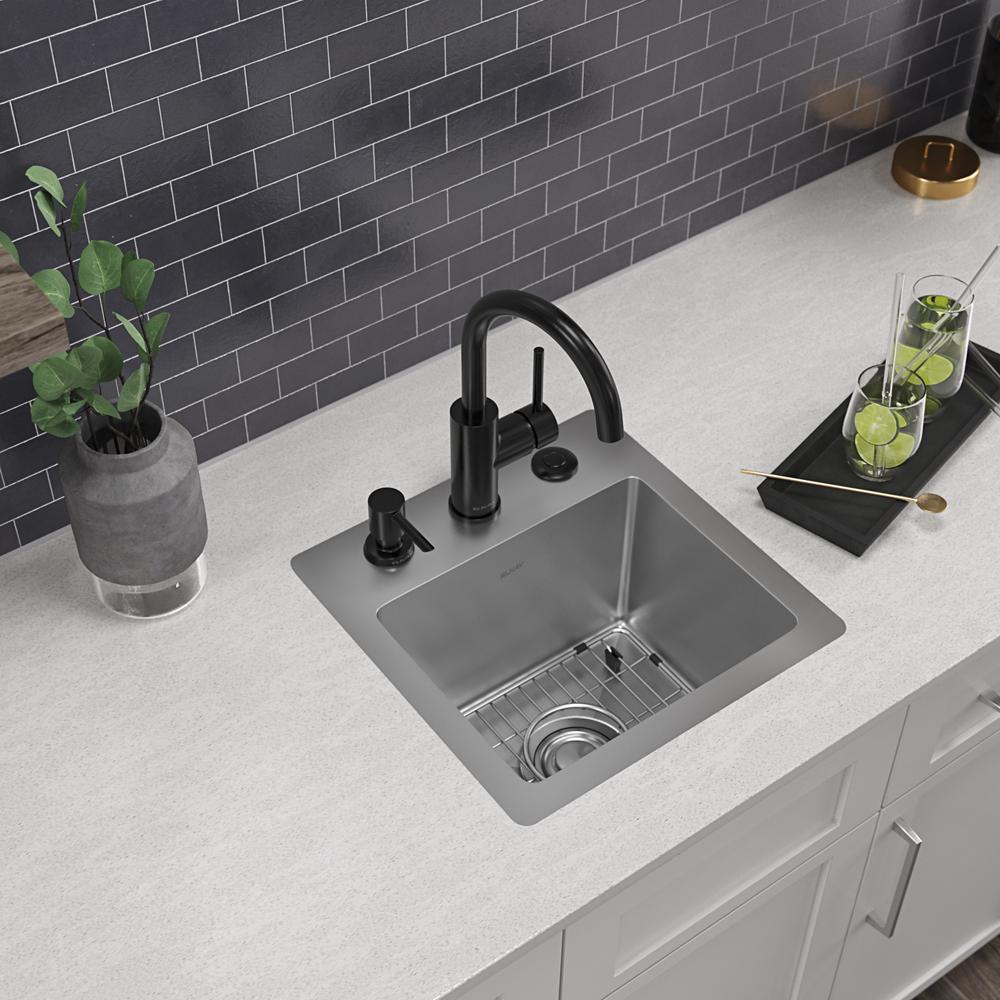

- SLIM RIM: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- SOUND GUARD: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink.
- TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.
- EXTRA DEEP BOWL: High-capacity bowl offers more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.
- CABINET SIZE: Minimum cabinet size for this sink is 18".

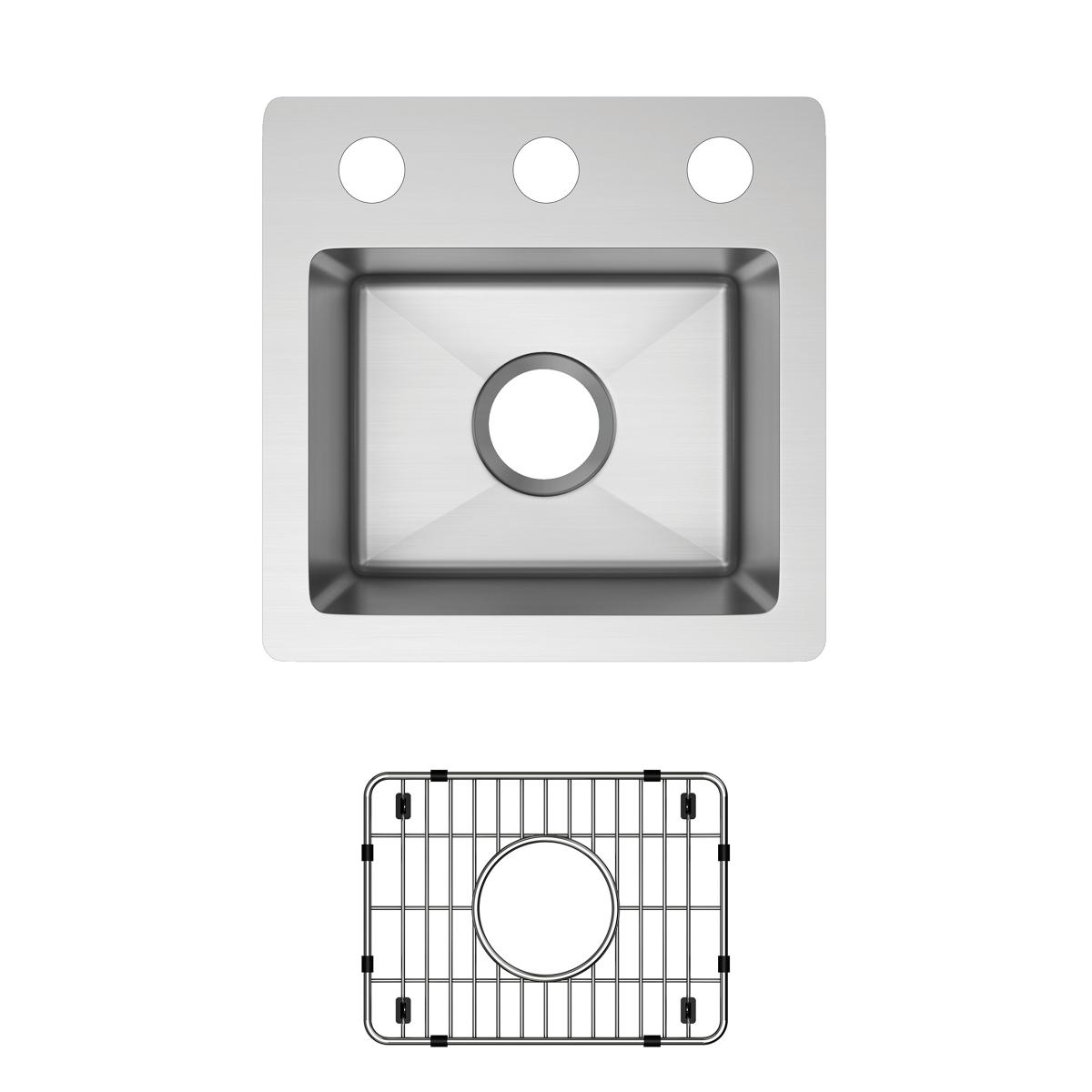

- KIT INCLUDES: ECTSR15159T sink, CTXBG118 bottom grid; conveniently packaged together to save you time.
Common Questions
- What size cabinet does this need?
- A minimum 18" wide base cabinet.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has full spray sides and bottom with sides and bottom pads for added quiet.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 3.
- What is included in the kit?
- This kit includes: CTXBG118 Bottom Grid.
Specifications
- Type: Crosstown 18 Gauge Stainless Steel 15" x 15" x 9", 3-Hole Single Bowl Dual Mount Bar Sink Kit
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: China
- MPN: ECTSR15159TBG3
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO
- Number of Bowls: 1
- Minimum Cabinet Size (in): 18

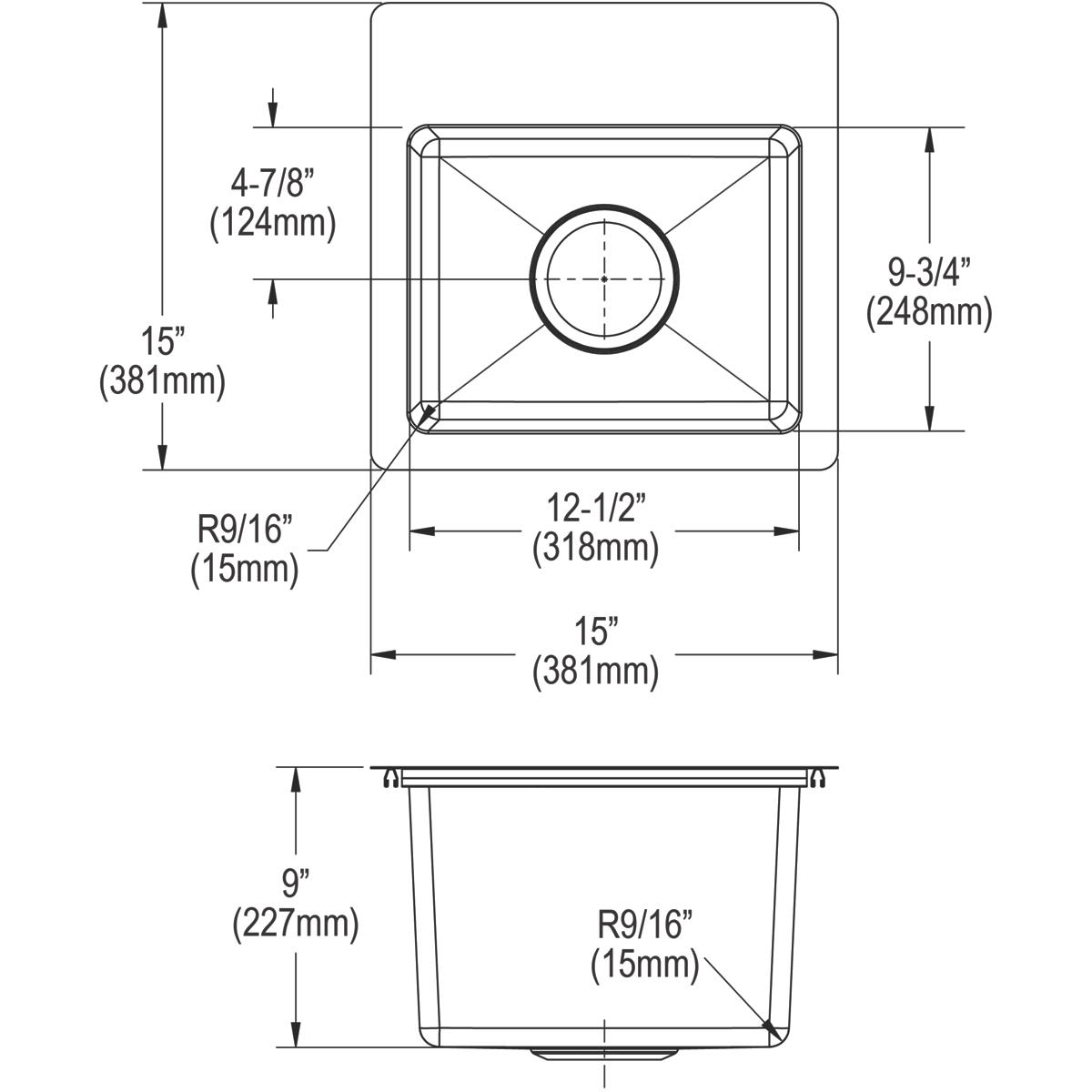

- Bowl Dimensions: 12-1/2" x 9-3/4" x 9"
- Drain Location: Center
- Gauge: 18
- Sound Deadening: Full spray sides and bottom with Sides and Bottom pads
- Template Included: Yes
- Mounting Hardware: Part # 64090022 included for drop-in installation for countertops thicker than 3/4" (19mm) up to 1-1/2" (38.1mm) thick.
- Mount Type: Dual-Mount
- Coating / Finish: Polished Satin
- Faucet Holes: 3
- Overall Length (in): 15.0
- Overall Width (in): 15.0
- Overall Height (in): 9.0
- Kit Includes: CTXBG118 Bottom Grid
- Countertop Cutout: 14-3/8" x 14-3/8" (365mm x 365mm) with 1/2" (12mm) corner radius
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001178.dxf
Product Information
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | ECTSR15159TBG | Device Type | Crosstown 18 Gauge Stainless Steel 15" x 15" x 9", 3-Hole Single Bowl Dual Mount Bar Sink Kit |
| Body Material | Stainless Steel | Contents | CTXBG118 Bottom Grid |
| Kit Includes | CTXBG118 Bottom Grid | Coating | Polished Satin |
| Hole count | 3 | Mount type | Dual-Mount |
| Overall height in | 9.0 in | Overall length in | 15.0 in |
| Overall width in | 15.0 in | Prop65 | Yes |
| Bowl count | 1 | Bowl dimensions | 12-1/2" x 9-3/4" x 9" |
| Countertop cutout dim | 14-3/8" x 14-3/8" (365mm x 365mm) with 1/2" (12mm) corner radius | Cutout template url | View |
| Drain location | Center | Gauge | 18 |
| Minimum cabinet size in | 18 | Mounting hardware | Part # 64090022 included for drop-in installation for countertops thicker than 3/4" (19mm) up to 1-1/2" (38.1mm) thick. |
| Sound deadening | Full spray sides and bottom with Sides and Bottom pads | Template included | Yes |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
