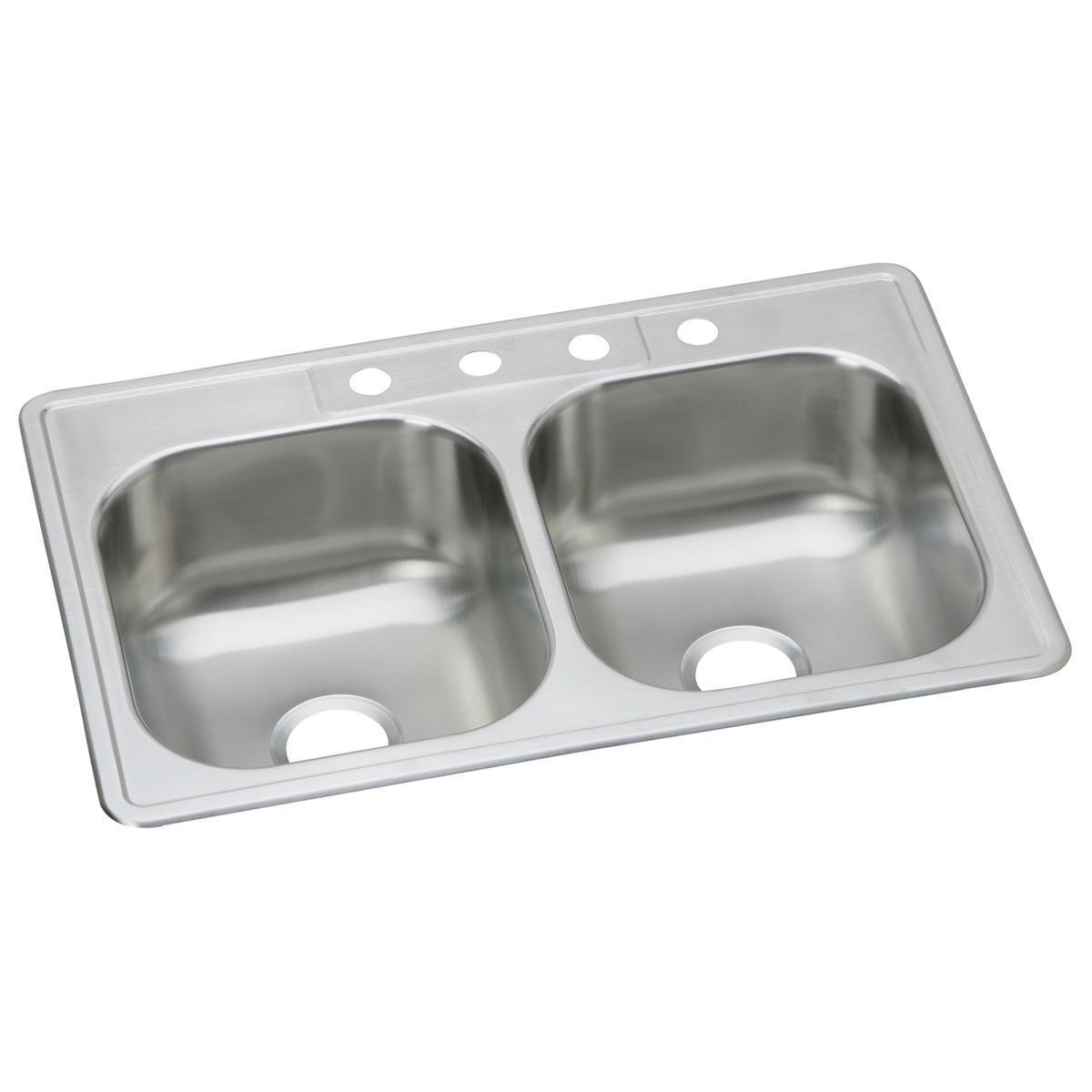

The Elkay DSEW40233223 is a Dayton Stainless Steel 33" x 22" x 8-1/16", 3-Hole Equal Double Bowl Drop-in Sink (40 Pack). It features a stainless steel body.
Dayton offers a complete line of stainless steel sinks, along with drains and accessories. From drop-in installation to undermount and dual mount styles, Dayton sinks come in an array of sizes and bowl configurations. You'll also find packages to meet every budget. Our products are backed with the quality assurance of domestic manufacturing and great customer service.
Features
- DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
- DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
- 20-GAUGE STAINLESS STEEL: Commercial grade 20-gauge thickness and 300 Series stainless steel for everyday use.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- CENTER DRAIN: Drain is conveniently placed in the center of the sink.
- MADE IN THE USA: This Elkay product is proudly made in the USA.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
Common Questions
- What size cabinet does this need?
- A minimum 36" wide base cabinet.
- Undermount or drop-in?
- This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.
- What does 20-gauge mean?
- 20 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 3.
Specifications
- Type: Dayton Stainless Steel 33" x 22" x 8-1/16", 3-Hole Equal Double Bowl Drop-in Sink (40 Pack)
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: United States
- MPN: DSEW40233223
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO
- Number of Bowls: 2
- Bowl Configuration: Equal Double
- Minimum Cabinet Size (in): 36

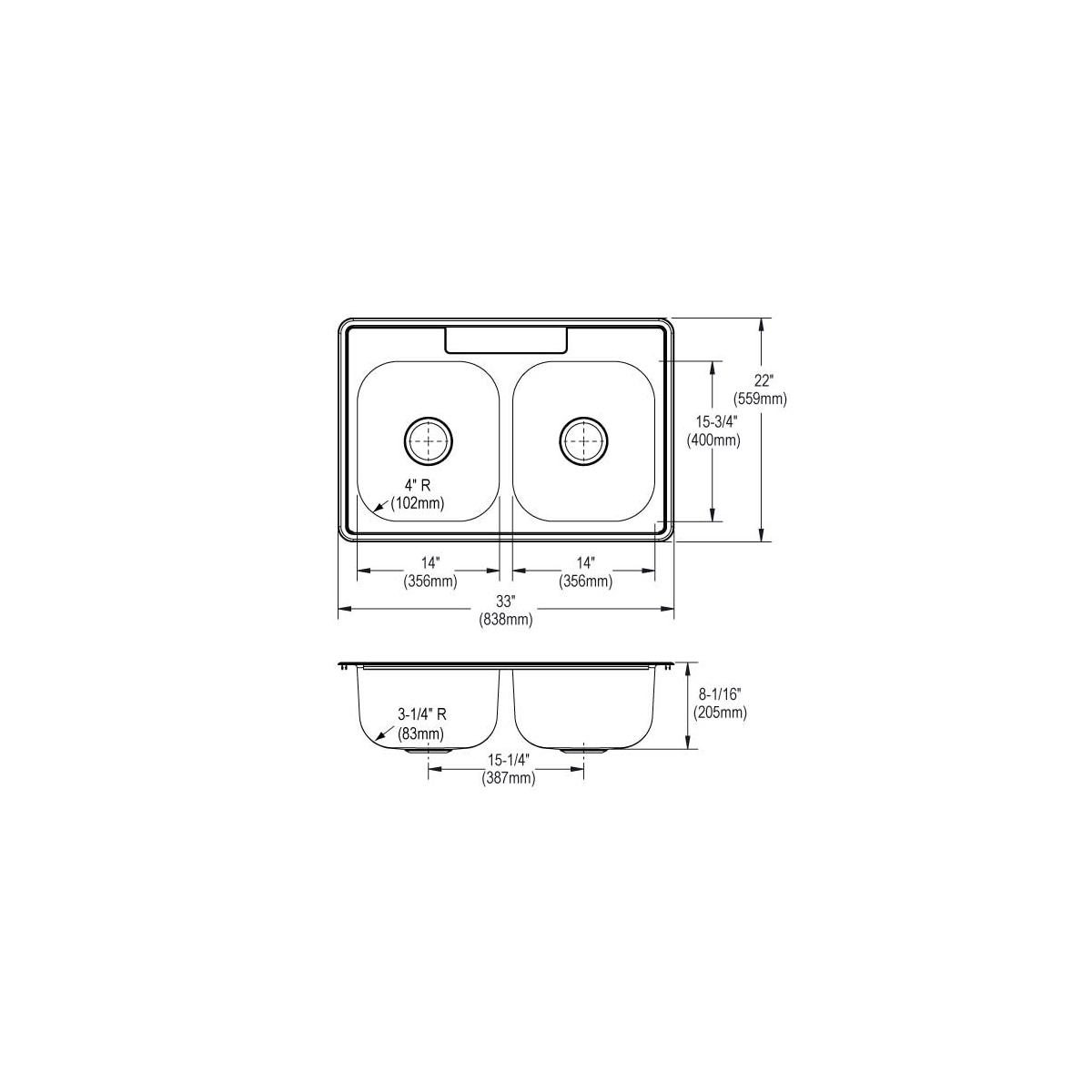

- Bowl Dimensions: 14" x 15-3/4" x 7-7/8";14" x 15-3/4" x 7-7/8"
- Drain Size, Bowl 2 (in): 3.5
- Drain Location: Center
- Gauge: 20
- Sound Deadening: Bottom only pads
- Template Included: No
- Mounting Hardware: Part # 64090012 included for countertops up to 3/4" (19mm) thick
- Mount Type: Drop-In
- Coating / Finish: Elite Satin
- Faucet Holes: 3
- Overall Length (in): 33.0
- Overall Width (in): 22.0
- Overall Height (in): 8.0625
- Countertop Cutout: 32-3/8" x 21-3/8" (822mm x 543mm) with 1-1/2" (38mm) corner radius
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001189.dxf
Product Information
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | DSEW4023322 | Device Type | Dayton Stainless Steel 33" x 22" x 8-1/16", 3-Hole Equal Double Bowl Drop-in Sink (40 Pack) |
| Body Material | Stainless Steel | Baa | USA |
| Coating | Elite Satin | Hole count | 3 |
| Mount type | Drop-In | Overall height in | 8.0625 in |
| Overall length in | 33.0 in | Overall width in | 22.0 in |
| Bowl configuration | Equal Double | Bowl count | 2 |
| Bowl dimensions | 14" x 15-3/4" x 7-7/8", 14" x 15-3/4" x 7-7/8" | Countertop cutout dim | 32-3/8" x 21-3/8" (822mm x 543mm) with 1-1/2" (38mm) corner radius |
| Cutout template url | View | Drain location | Center |
| Drain size bowl2 in | 3.5 in | Gauge | 20 |
| Minimum cabinet size in | 36 | Mounting hardware | Part # 64090012 included for countertops up to 3/4" (19mm) thick |
| Sound deadening | Bottom only pads | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
