Similar products
Specifications
Description

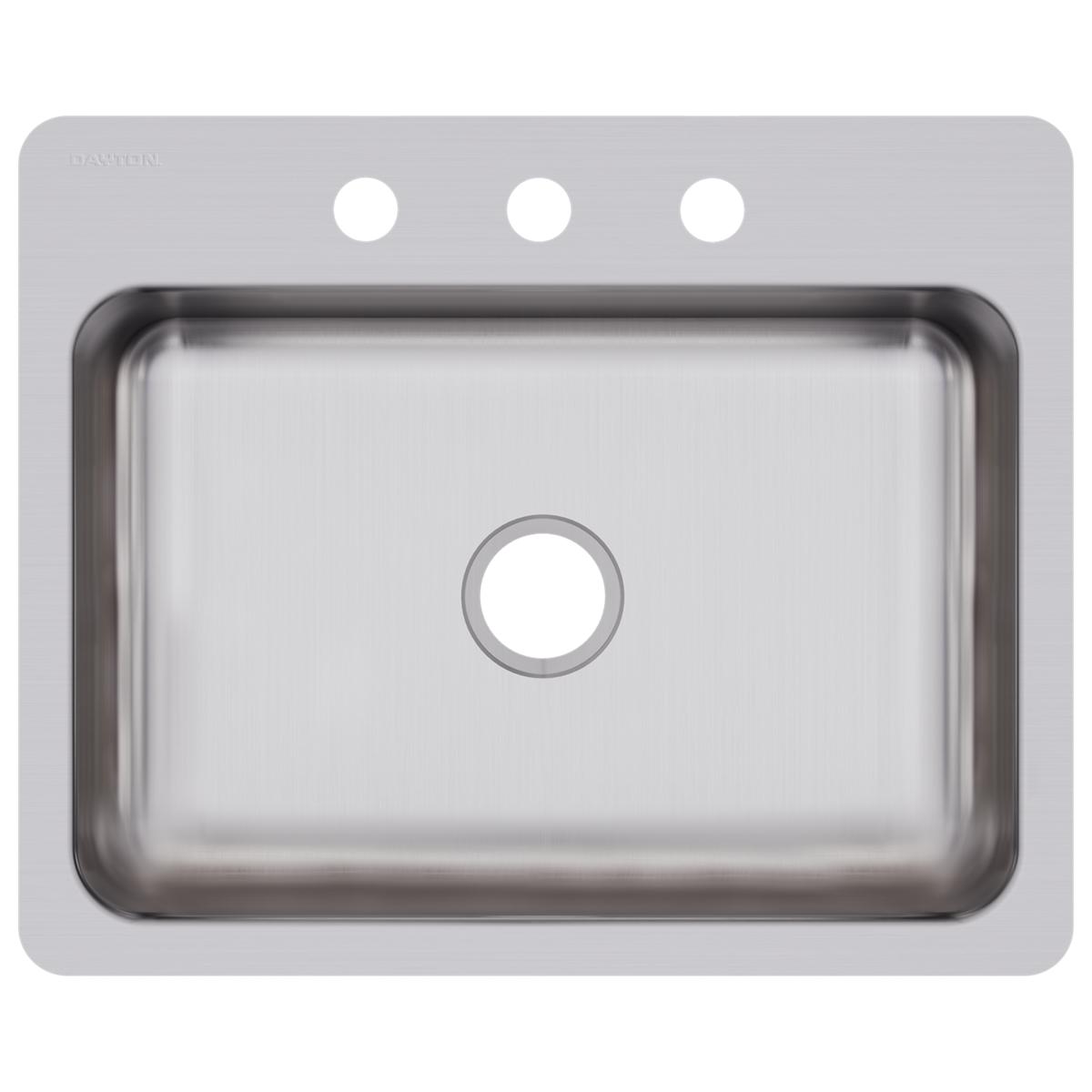

The Elkay DSESR127223 is a Dayton Stainless Steel 27" x 22" x 8", 3-Hole Single Bowl Dual Mount Sink. It features a stainless steel body.
Dayton offers a complete line of stainless steel sinks, along with drains and accessories. From drop-in installation to undermount and dual mount styles, Dayton sinks come in an array of sizes and bowl configurations. You'll also find packages to meet every budget. Our products are backed with the quality assurance of domestic manufacturing and great customer service.
Features
- SLIM RIM: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look.
- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
- 18-GAUGE STAINLESS STEEL: High-quality 18-gauge thickness and 300 Series stainless steel for lasting durability.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
- MADE IN THE USA: This Elkay product is proudly made in the USA.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- CABINET SIZE: Minimum cabinet size for this sink is 30".
Common Questions
- What size cabinet does this need?
- A minimum 30" wide base cabinet.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 3.
Specifications
- Type: Dayton Stainless Steel 27" x 22" x 8", 3-Hole Single Bowl Dual Mount Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: United States
- MPN: DSESR127223
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO
- Number of Bowls: 1
- Minimum Cabinet Size (in): 30
- Bowl Dimensions: 24" x 16" x 8"
- Drain Location: Center
- Gauge: 18
- Sound Deadening: Bottom only pads
- Template Included: No
- Mounting Hardware: Part # 64090012 included for drop-in installation for countertops up to 3/4" (19mm) thick.
- Mount Type: Dual-Mount
- Coating / Finish: Elite Satin
- Faucet Holes: 3

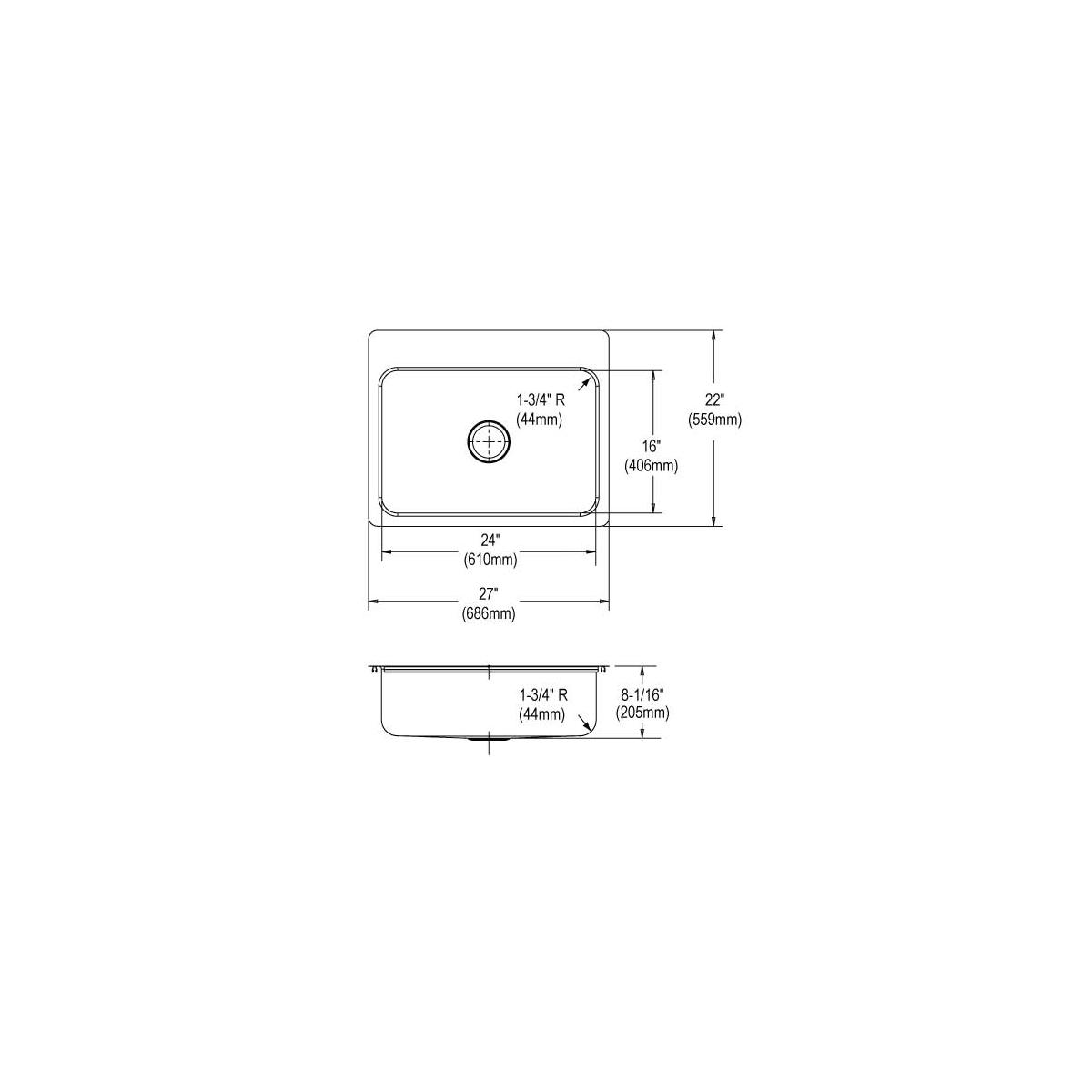

- Overall Length (in): 27.0
- Overall Width (in): 22.0
- Overall Height (in): 8.0
- Countertop Cutout: 26-3/8" x 21-3/8" (670mm x 543mm) with 1-1/2" (38mm) corner radius
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000000907.dxf
Product Information
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | DSESR12722 | Device Type | Dayton Stainless Steel 27" x 22" x 8", 3-Hole Single Bowl Dual Mount Sink |
| Body Material | Stainless Steel | Baa | USA |
| Coating | Elite Satin | Hole count | 3 |
| Mount type | Dual-Mount | Overall height in | 8.0 in |
| Overall length in | 27.0 in | Overall width in | 22.0 in |
| Bowl count | 1 | Bowl dimensions | 24" x 16" x 8" |
| Countertop cutout dim | 26-3/8" x 21-3/8" (670mm x 543mm) with 1-1/2" (38mm) corner radius | Cutout template url | View |
| Drain location | Center | Gauge | 18 |
| Minimum cabinet size in | 30 | Mounting hardware | Part # 64090012 included for drop-in installation for countertops up to 3/4" (19mm) thick. |
| Sound deadening | Bottom only pads | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
