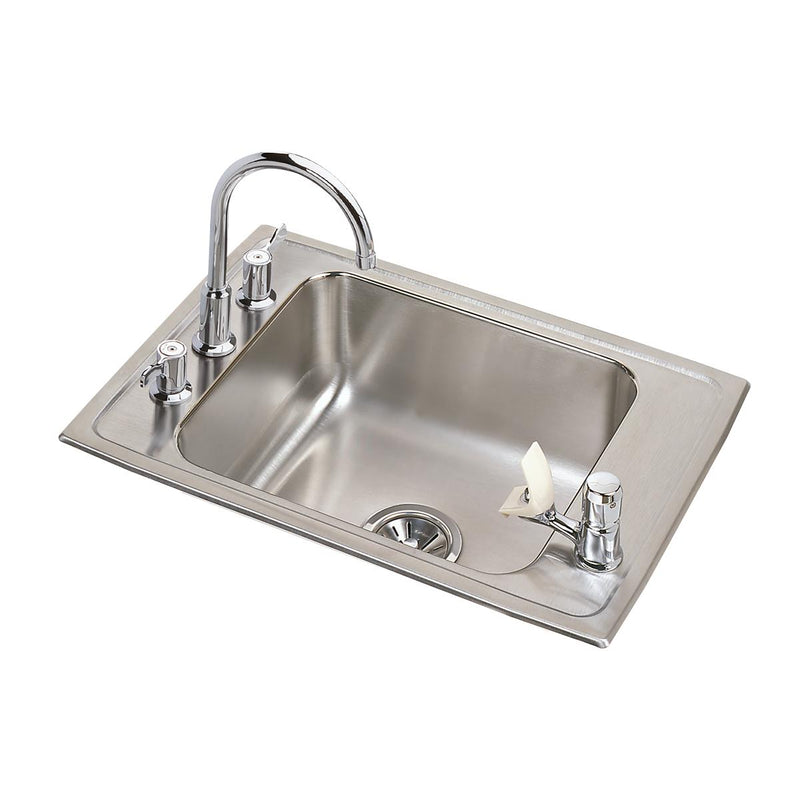

The Elkay DRKR2517C is a Lustertone Classic Stainless Steel 25" x 17" x 7-5/8", 4-Hole Single Bowl Drop-in Classroom Sink + Faucet/Bubbler Kit. It features a stainless steel body.
An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.
Features
- REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
- DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.
- CABINET SIZE: Minimum cabinet size for this sink is 27".
- KIT INCLUDES: LKD2439C faucet, LK1141A bubbler, LK35 strainer; conveniently packaged together to save you time.
Common Questions
- What size cabinet does this need?
- A minimum 30" wide base cabinet.
- Undermount or drop-in?
- This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has sides and bottom pads for added quiet.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 4.
- What is included in the kit?
- This kit includes: LKD2439C faucet, LK1141A bubbler, LK35 strainer.
Specifications
-
Type: Lustertone Classic Stainless Steel 25" x 17" x 7-5/8", 4-Hole Single Bowl Drop-in Classroom Sink + Faucet/Bubbler Kit
-
Outlet Size: 3-1/2"
-
Body Material: Stainless Steel
-
MPN: DRKR2517C
-
Certifications: ASME A112.19.3/CSA B45.4
-
Number of Bowls: 1
-
Minimum Cabinet Size (in): 30
-
Bowl Dimensions: 16" x 13-1/2" x 7-1/2"
-
Drain Location: Center
-
Gauge: 18
-
Sound Deadening: Sides and Bottom pads
-
Template Included: No
-
Mounting Hardware: Part # 64090012 included for countertops up to 3/4" (19mm) thick
-
Mount Type: Drop-In
-
Coating / Finish: Lustrous Satin
-
Faucet Holes: 4
-
Overall Length (in): 25.0
-
Overall Width (in): 17.0
-
Overall Height (in): 7.625
-
Kit Includes: LKD2439C faucet, LK1141A bubbler, LK35 strainer
-
Countertop Cutout: 24-3/8" x 16-3/8" (619mm x 416mm) with 1-1/2" (38mm) corner radius
-
Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001246.dxf
