The Elkay DLSR2722103 is a Lustertone Classic Stainless Steel 27" x 22" x 10", 3-Hole Single Bowl Dual Mount Sink. It features a stainless steel body.
An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.
Features
- REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
- SLIM RIM: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look.
- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- EXTRA DEEP BOWL: High-capacity bowl offers more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters.
- MADE IN THE USA: This Elkay product is proudly made in the USA.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.
- CABINET SIZE: Minimum cabinet size for this sink is 30".
Common Questions
- What size cabinet does this need?
- A minimum 30" wide base cabinet.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has sides and bottom pads for added quiet.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 3.
Specifications
- Type: Lustertone Classic Stainless Steel 27" x 22" x 10", 3-Hole Single Bowl Dual Mount Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: United States
- MPN: DLSR2722103
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO
- Number of Bowls: 1
- Minimum Cabinet Size (in): 30
- Bowl Dimensions: 24" x 16" x 10"
- Drain Location: Center
- Gauge: 18
- Sound Deadening: Sides and Bottom pads
- Template Included: No
- Mounting Hardware: Part # 64090012 included for drop-in installation for countertops up to 3/4" (19mm) thick.
- Mount Type: Dual-Mount
- Coating / Finish: Lustrous Satin
- Faucet Holes: 3
- Overall Length (in): 27.0
- Overall Width (in): 22.0
- Overall Height (in): 10.0

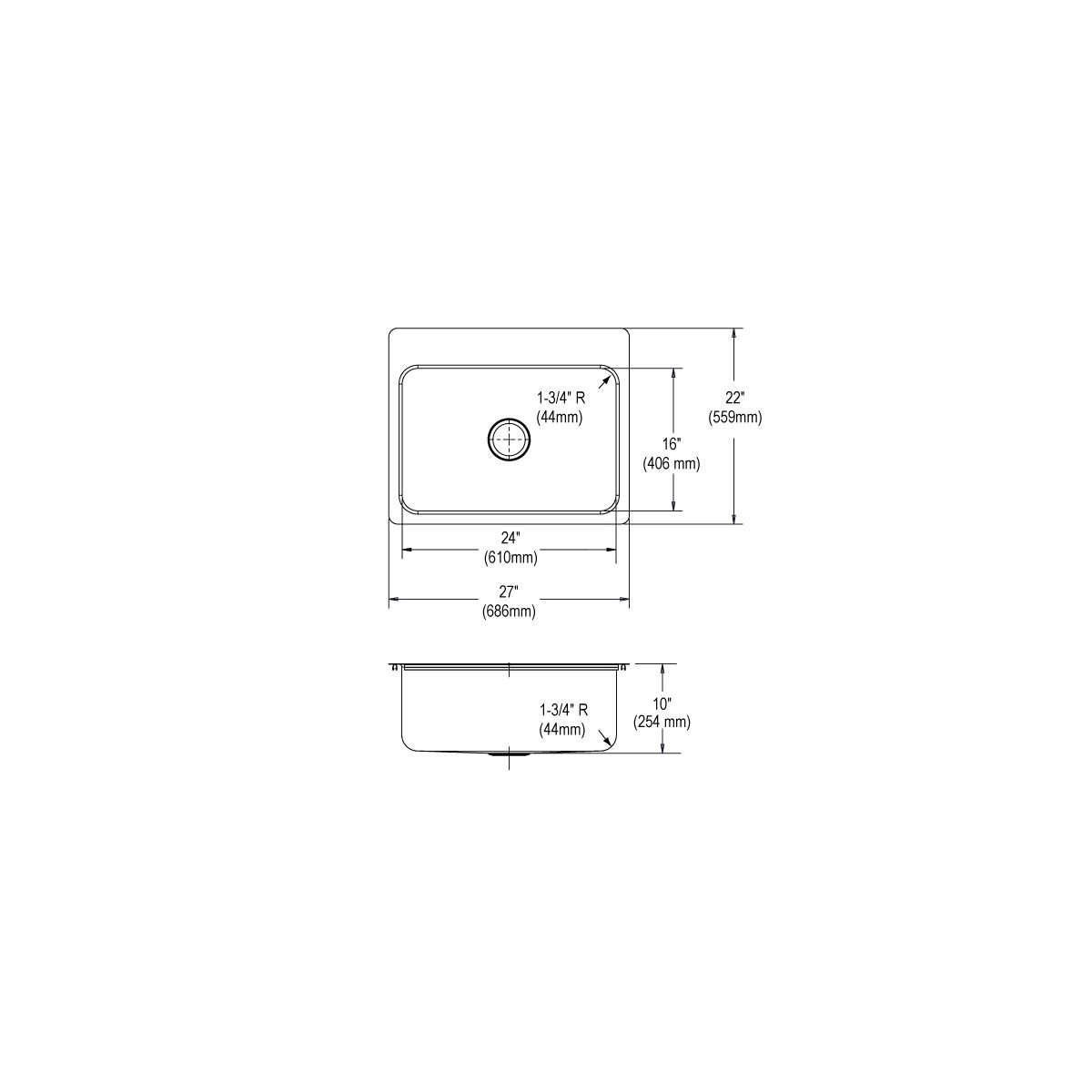

- Countertop Cutout: 26-3/8" x 21-3/8" (670mm x 543mm) with 1-1/2" (38mm) corner radius
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000000907.dxf
Product Information
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | DLSR272210 | Device Type | Lustertone Classic Stainless Steel 27" x 22" x 10", 3-Hole Single Bowl Dual Mount Sink |
| Body Material | Stainless Steel | Baa | USA |
| Coating | Lustrous Satin | Hole count | 3 |
| Mount type | Dual-Mount | Overall height in | 10.0 in |
| Overall length in | 27.0 in | Overall width in | 22.0 in |
| Bowl count | 1 | Bowl dimensions | 24" x 16" x 10" |
| Countertop cutout dim | 26-3/8" x 21-3/8" (670mm x 543mm) with 1-1/2" (38mm) corner radius | Cutout template url | View |
| Drain location | Center | Gauge | 18 |
| Minimum cabinet size in | 30 | Mounting hardware | Part # 64090012 included for drop-in installation for countertops up to 3/4" (19mm) thick. |
| Sound deadening | Sides and Bottom pads | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
