The Elkay D115162 is a Dayton Stainless Steel 15" x 15" x 5-3/16", 2-Hole Single Bowl Drop-in Bar Sink with 3-1/2" Drain Opening. It features a stainless steel body.
Dayton offers a complete line of stainless steel sinks, along with drains and accessories. From drop-in installation to undermount and dual mount styles, Dayton sinks come in an array of sizes and bowl configurations. You'll also find packages to meet every budget. Our products are backed with the quality assurance of domestic manufacturing and great customer service.
Features
- ADA COMPLIANT: Product is ADA compliant when properly installed.
- 23-GAUGE STAINLESS STEEL: Commercial grade 23-gauge thickness and 300 Series stainless steel for everyday use.
- DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- MADE IN THE USA: This Elkay product is proudly made in the USA.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- CABINET SIZE: Minimum cabinet size for this sink is 18".
Common Questions
- What size cabinet does this need?
- A minimum 18" wide base cabinet.
- Undermount or drop-in?
- This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.
- What does 23-gauge mean?
- 23 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- Is this ADA compliant?
- Yes, this model meets ADA accessibility requirements for bowl depth.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 2.
Specifications
- Type: Dayton Stainless Steel 15" x 15" x 5-3/16", 2-Hole Single Bowl Drop-in Bar Sink with 3-1/2" Drain Opening
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: United States
- MPN: D115162
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO, ADA
- Number of Bowls: 1
- Minimum Cabinet Size (in): 18
- Bowl Dimensions: 12" x 10" x 5"
- Drain Location: Center
- Gauge: 23
- Sound Deadening: Bottom only pads
- Template Included: No
- Mounting Hardware: Part # 64090004 included for countertops up to 3/4" (19mm) thick
- Mount Type: Drop-In
- Coating / Finish: Satin
- Faucet Holes: 2
- Overall Length (in): 15.0
- Overall Width (in): 15.0
- Overall Height (in): 5.1875

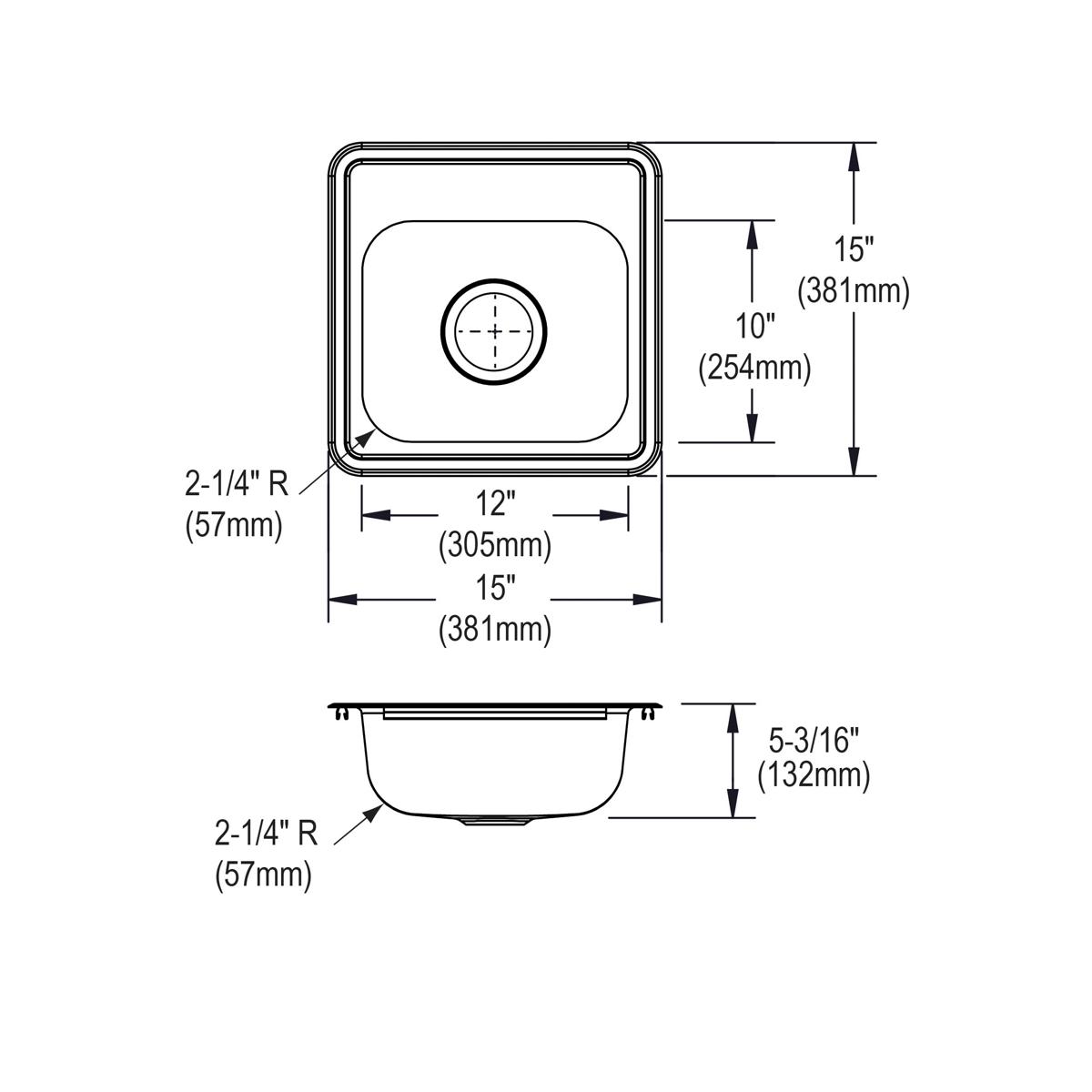

- Countertop Cutout: 14-3/8" x 14-3/8" (365mm x 365mm) with 1-1/2" (38mm) corner radius
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001240.dxf
Product Information
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | D11516 | Device Type | Dayton Stainless Steel 15" x 15" x 5-3/16", 2-Hole Single Bowl Drop-in Bar Sink with 3-1/2" Drain Opening |
| Body Material | Stainless Steel | Baa | USA |
| Coating | Satin | Hole count | 2 |
| Mount type | Drop-In | Overall height in | 5.1875 in |
| Overall length in | 15.0 in | Overall width in | 15.0 in |
| Bowl count | 1 | Bowl dimensions | 12" x 10" x 5" |
| Countertop cutout dim | 14-3/8" x 14-3/8" (365mm x 365mm) with 1-1/2" (38mm) corner radius | Cutout template url | View |
| Drain location | Center | Gauge | 23 |
| Minimum cabinet size in | 18 | Mounting hardware | Part # 64090004 included for countertops up to 3/4" (19mm) thick |
| Sound deadening | Bottom only pads | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
| ADA | — |
