The Elkay CMR43221 is a Celebrity Stainless Steel 43" x 22" x 7", 1-Hole Triple Bowl Drop-in Sink. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
- 20-GAUGE STAINLESS STEEL: Highest grade 20-gauge thickness and Type 304 stainless steel for everyday lasting durability, performance and finish.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- CENTER DRAIN: Drain is conveniently placed in the center of the sink.
- LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
- MADE IN THE USA: This Elkay product is proudly made in the USA.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.
Common Questions
- What size cabinet does this need?
- A minimum 48" wide base cabinet.
- Undermount or drop-in?
- This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.
- What does 20-gauge mean?
- 20 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 1.
Specifications
- Type: Celebrity Stainless Steel 43" x 22" x 7", 1-Hole Triple Bowl Drop-in Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: United States
- MPN: CMR43221
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO
- Number of Bowls: 3
- Bowl Configuration: Triple 40/20/40
- Minimum Cabinet Size (in): 48

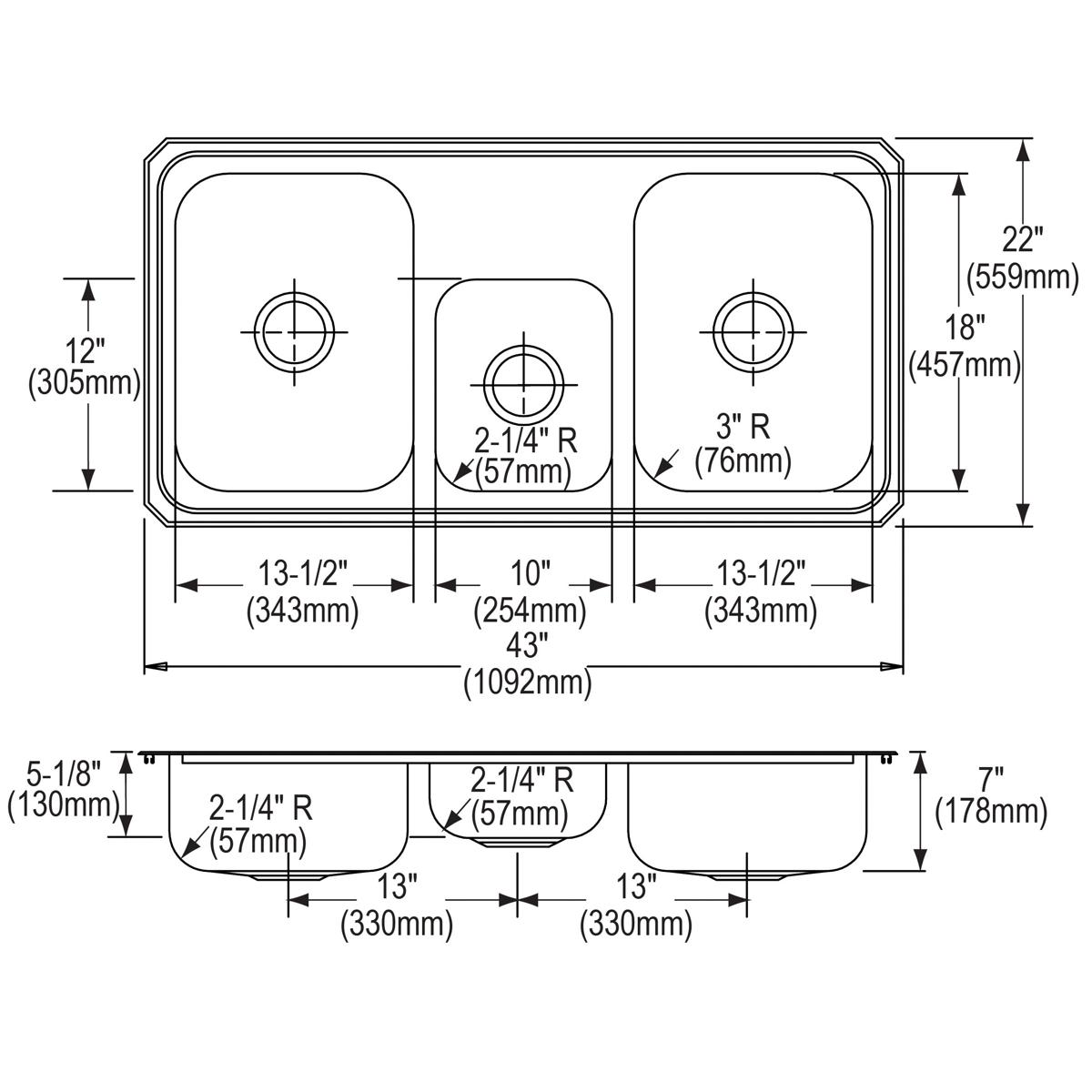

- Bowl Dimensions: 13-1/2" x 18" x 6-7/8";10" x 12" x 5";13-1/2" x 18" x 6-7/8"
- Drain Size, Bowl 2 (in): 3.5
- Drain Location: Center
- Gauge: 20
- Sound Deadening: Bottom only pads
- Template Included: No
- Mounting Hardware: Part # 64090014 included for countertops up to 3/4" (19mm) thick
- Mount Type: Drop-In
- Coating / Finish: Brushed Satin
- Faucet Holes: 1
- Overall Length (in): 43.0
- Overall Width (in): 22.0
- Overall Height (in): 7.0
- Countertop Cutout: 42-3/8" x 21-3/8" (1076mm x 543mm) with 1-1/2" (38mm) corner radius
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001286.dxf
Product Information
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | CMR4322 | Device Type | Celebrity Stainless Steel 43" x 22" x 7", 1-Hole Triple Bowl Drop-in Sink |
| Body Material | Stainless Steel | Baa | USA |
| Coating | Brushed Satin | Hole count | 1 |
| Mount type | Drop-In | Overall height in | 7.0 in |
| Overall length in | 43.0 in | Overall width in | 22.0 in |
| Bowl configuration | Triple 40/20/40 | Bowl count | 3 |
| Bowl dimensions | 13-1/2" x 18" x 6-7/8", 10" x 12" x 5", 13-1/2" x 18" x 6-7/8" | Countertop cutout dim | 42-3/8" x 21-3/8" (1076mm x 543mm) with 1-1/2" (38mm) corner radius |
| Cutout template url | View | Drain location | Center |
| Drain size bowl2 in | 3.5 in | Gauge | 20 |
| Minimum cabinet size in | 48 | Mounting hardware | Part # 64090014 included for countertops up to 3/4" (19mm) thick |
| Sound deadening | Bottom only pads | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
