Specifications
Description

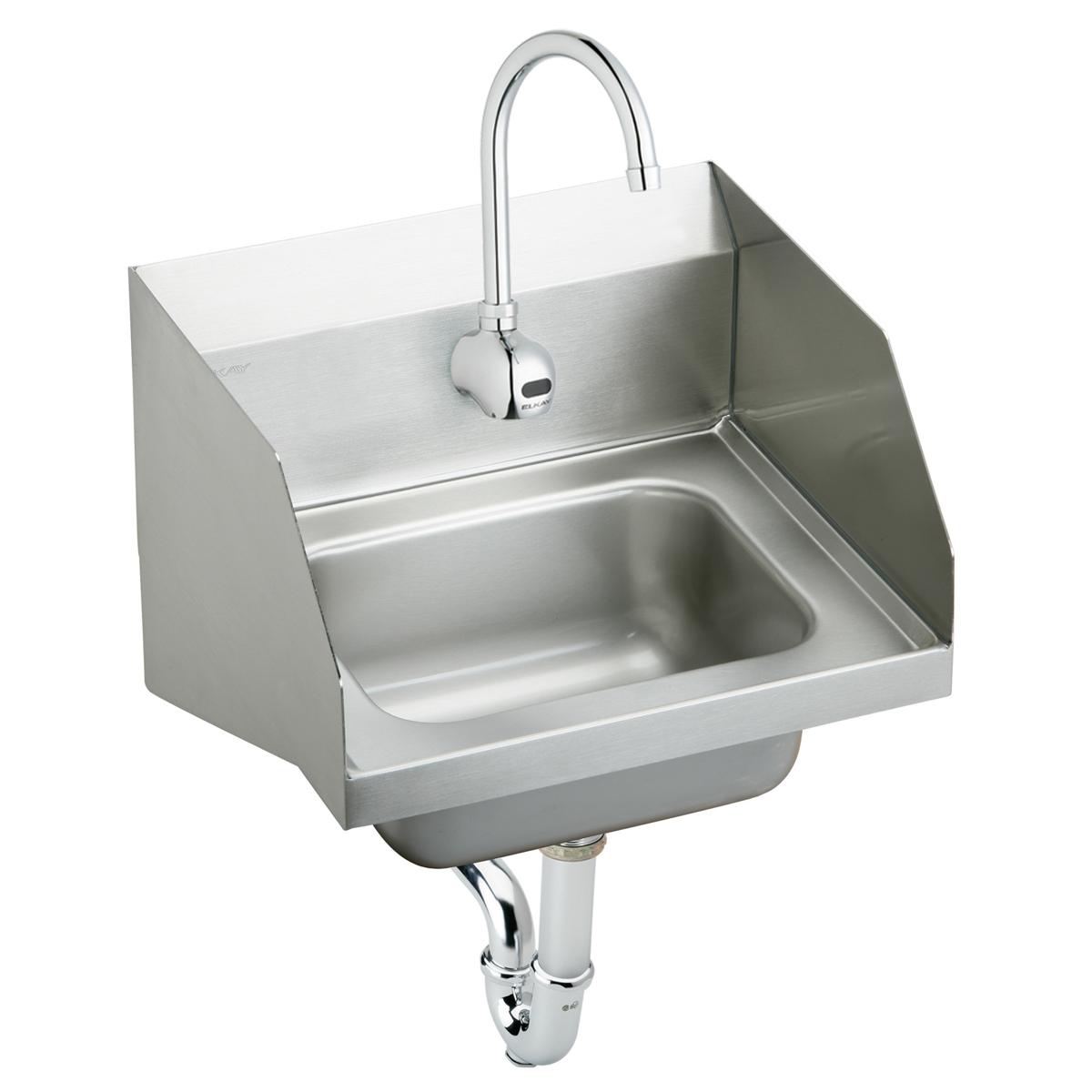

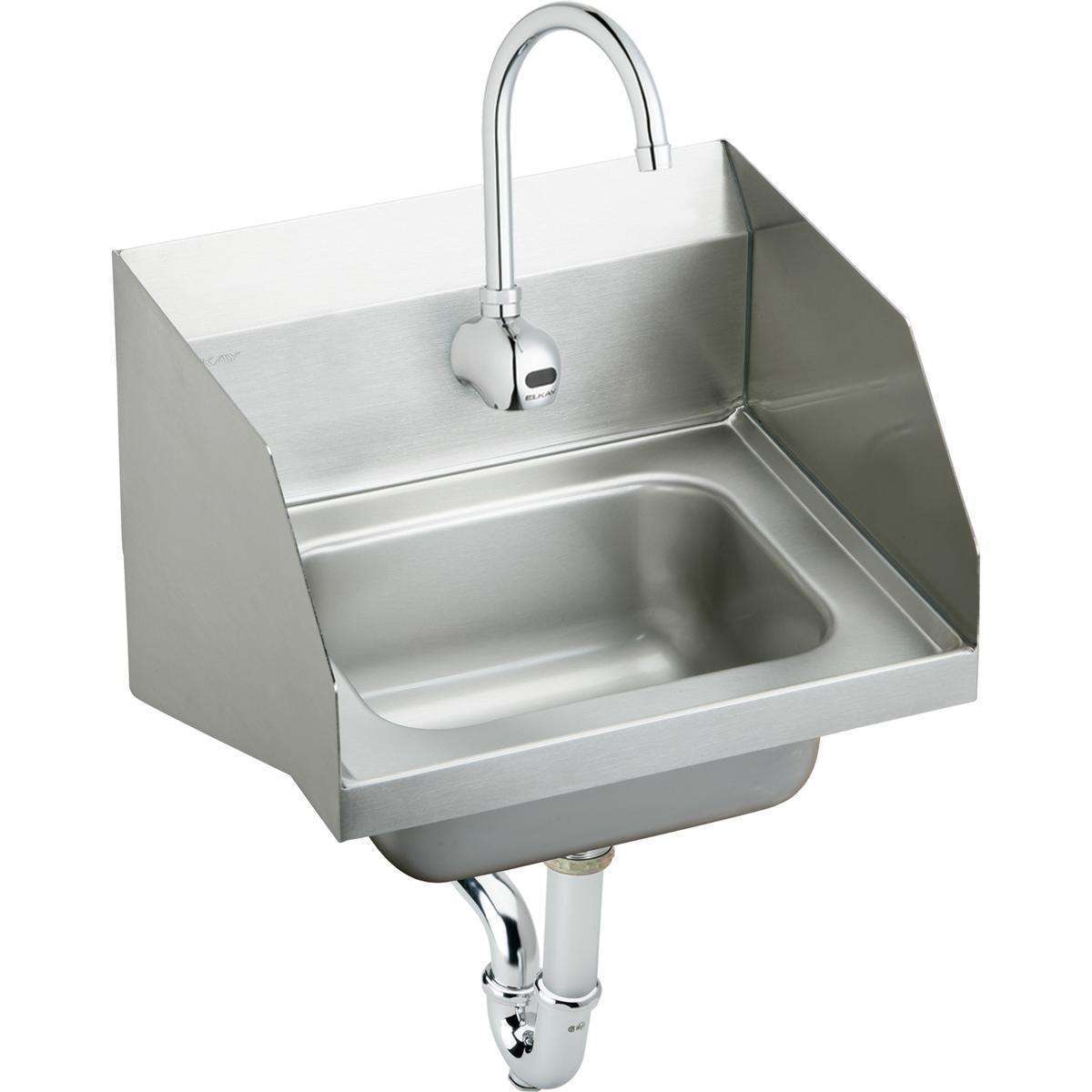

The Elkay CHS1716LRSSACTMC is a Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- Type 304 stainless steel basin.
- 1-3/4" radius coved corners.
- 7" high, full-length backsplash with 45-degree angle sloped top.
- Exposed surfaces have a brushed finish.
- 2" drain opening.
- Easy to clean and sanitize.
- Furnished with hanger and integral stainless steel support brackets.

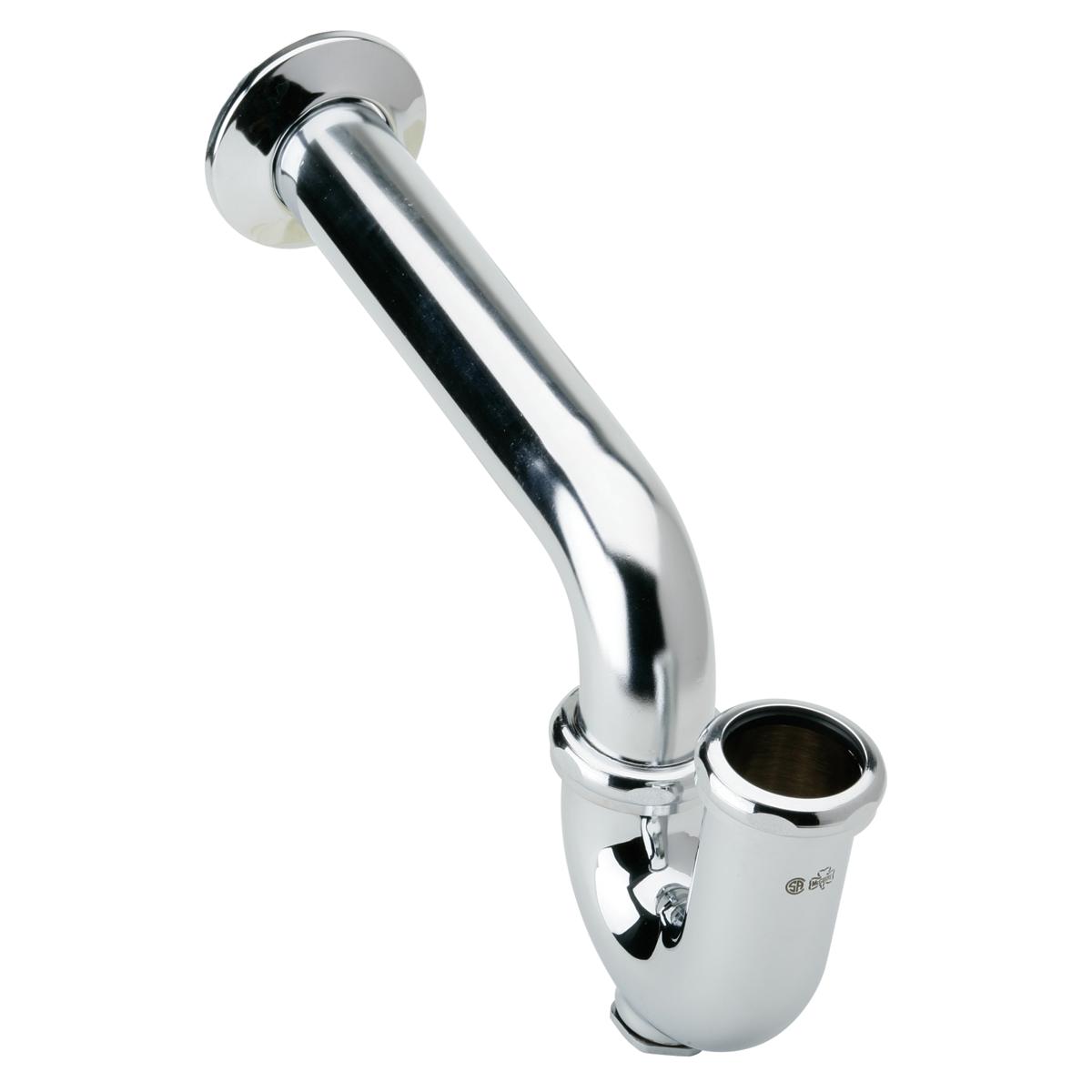

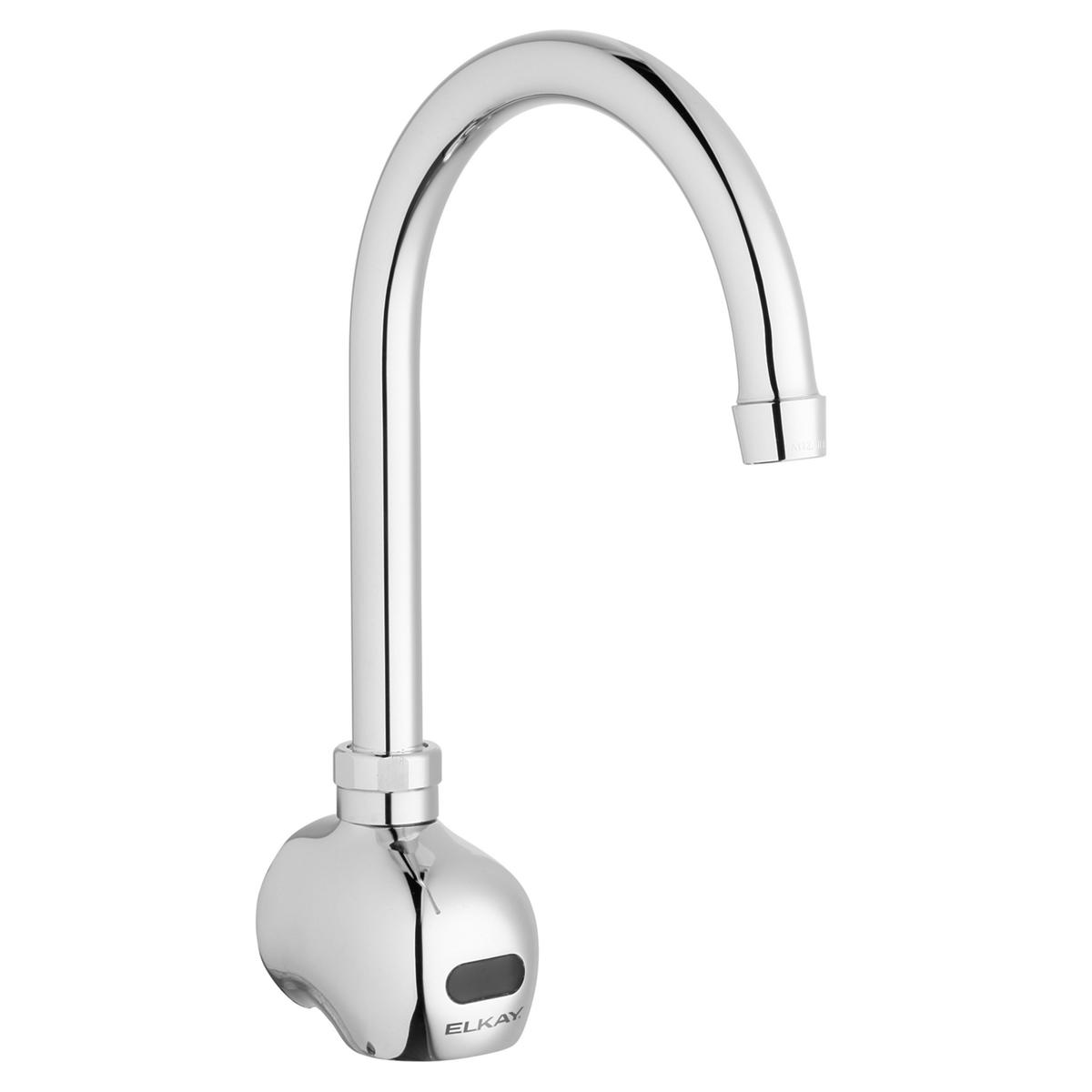

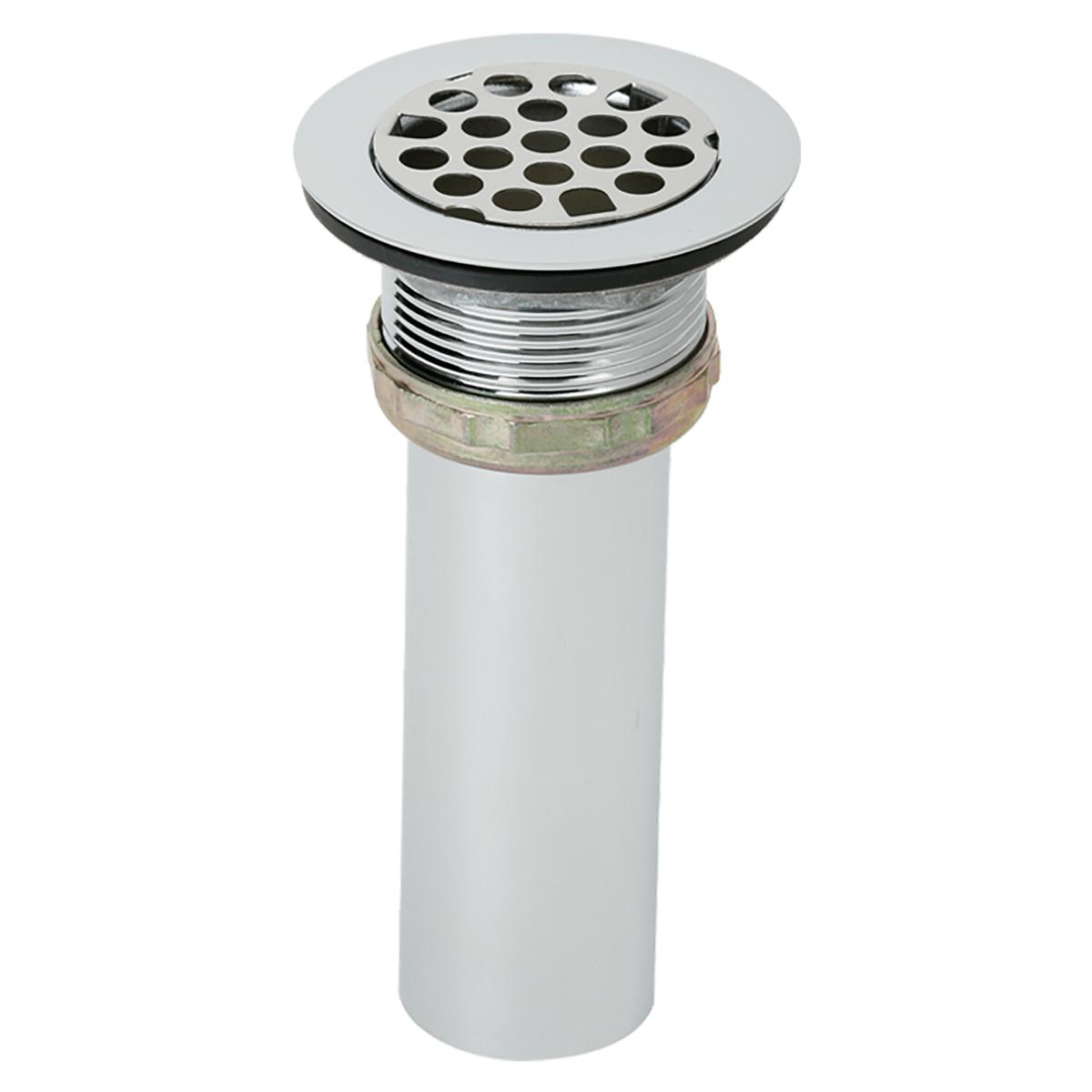

- KIT INCLUDES: CHS1716 sink, one each LKB722C AC/battery-powered sensor faucet, LK723 thermostatic mixing valve, LK8 drain fitting, and LK500 P-trap.
Common Questions
- What does 20-gauge mean?
- 20 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 1.
- What is included in the kit?
- This kit includes: CHS1716 sink, one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve, one LK8 drain fitting, one LK500 P-trap.
Specifications
- Type: Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
- Outlet Size: 2"
- Body Material: Stainless Steel
- MPN: CHS1716LRSSACTMC
- Certifications: ASME A112.19.3/CSA B45.4, NSF-2
- Number of Bowls: 1
- Bowl Dimensions: 12" x 9-1/4" x 6"
- Drain Location: Center
- Gauge: 20
- Mount Type: Wall-Mount
- Coating / Finish: Buffed Satin
- Faucet Holes: 1
- Overall Length (in): 16.75
- Overall Width (in): 15.5
- Overall Height (in): 13.0
- Kit Includes: CHS1716 sink, one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve, one LK8 drain fitting, one LK500 P-trap
Dimensions
| Outlet Size | 2" | — | — |
Details
| Series | CHS1716LRSSACTMC | Device Type | Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit |
| Body Material | Stainless Steel | Contents | CHS1716 sink, one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve, one LK8 drain fitting, one LK500 P-trap |
| Baa | USA | Coating | Buffed Satin |
| Hole count | 1 | Mount type | Wall-Mount |
| Overall height in | 13.0 in | Overall length in | 16.75 in |
| Overall width in | 15.5 in | Bowl count | 1 |
| Bowl dimensions | 12" x 9-1/4" x 6" | Drain location | Center |
| Gauge | 20 | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-2 |
Compare with similar products
| Contents | CHS1716 sink, one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve, one LK8 drain fitting, one LK500 P-trap
| CHSP1716 sink, LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK8 grid drain fitting, one LK500 P-trap
| CHSP1716 sink, one LK399A foot control, one LK395A spout, one LK8 grid drain fitting, and one LK500 P-trap
| CHS1716 sink, one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK723 thermostatic mixing valve, one LK8 drain fitting, one LK500 P-trap
| CHS1716 sink, one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK724 mechanical mixing valve, one LK8 drain fitting, one LK500 P-trap
| CHS1716 sink, one LKB722C sensor faucet with AC plug-in / 4 AA batteries, one LK8 drain fitting, one LK500 P-trap
|
| Series | CHS1716LRSSACTMC
| CHSP1716SACC
| CHSP1716LRSC
| CHS1716SACTMC
| CHS1716SACMC
| CHS1716SACC
|
| Country Of Origin | — | — | — | United States
| China
| — |
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
| Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit
|
| Outlet Size | 2"
| 1-1/2"
| 1-1/2"
| 2"
| 2"
| 2"
|
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
|
