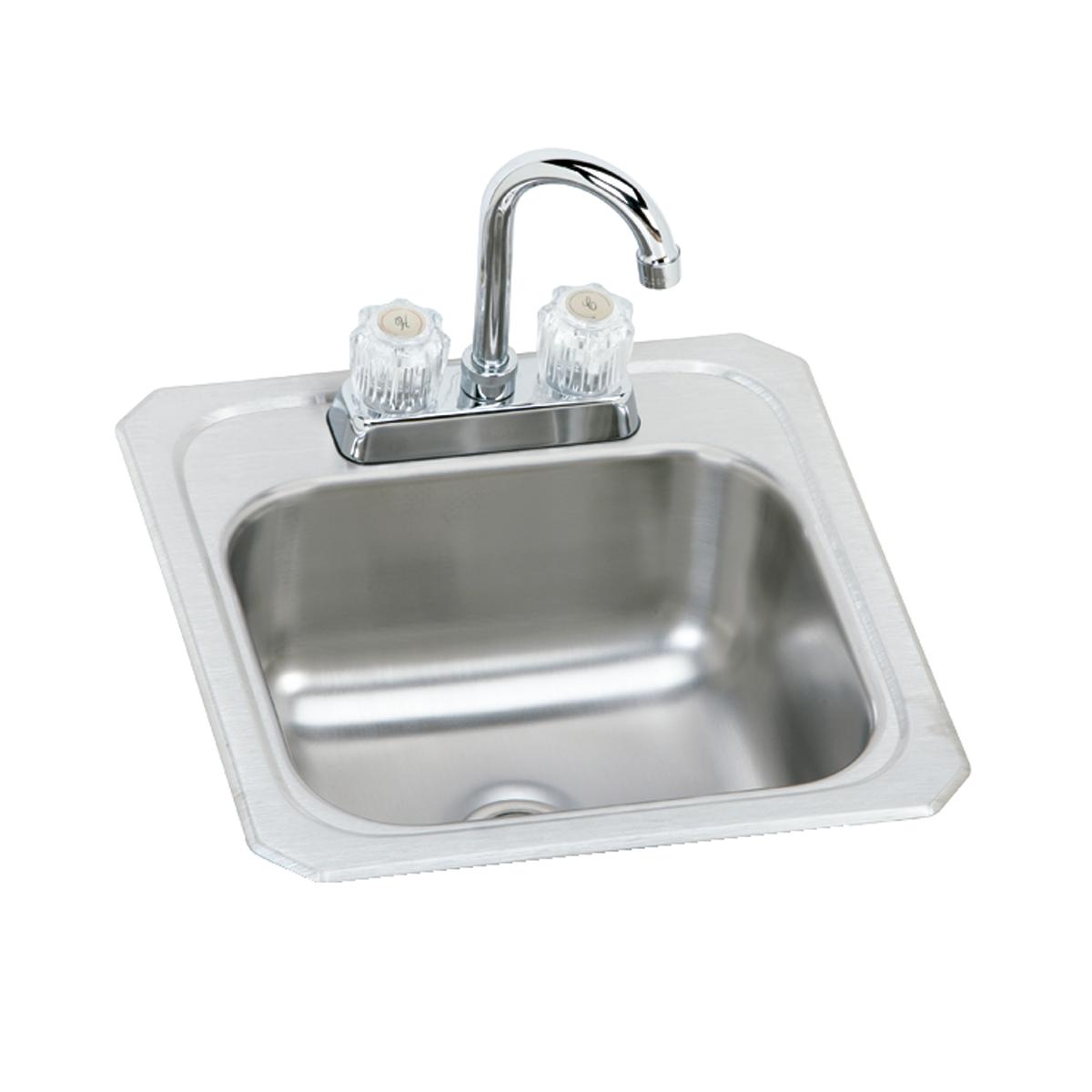

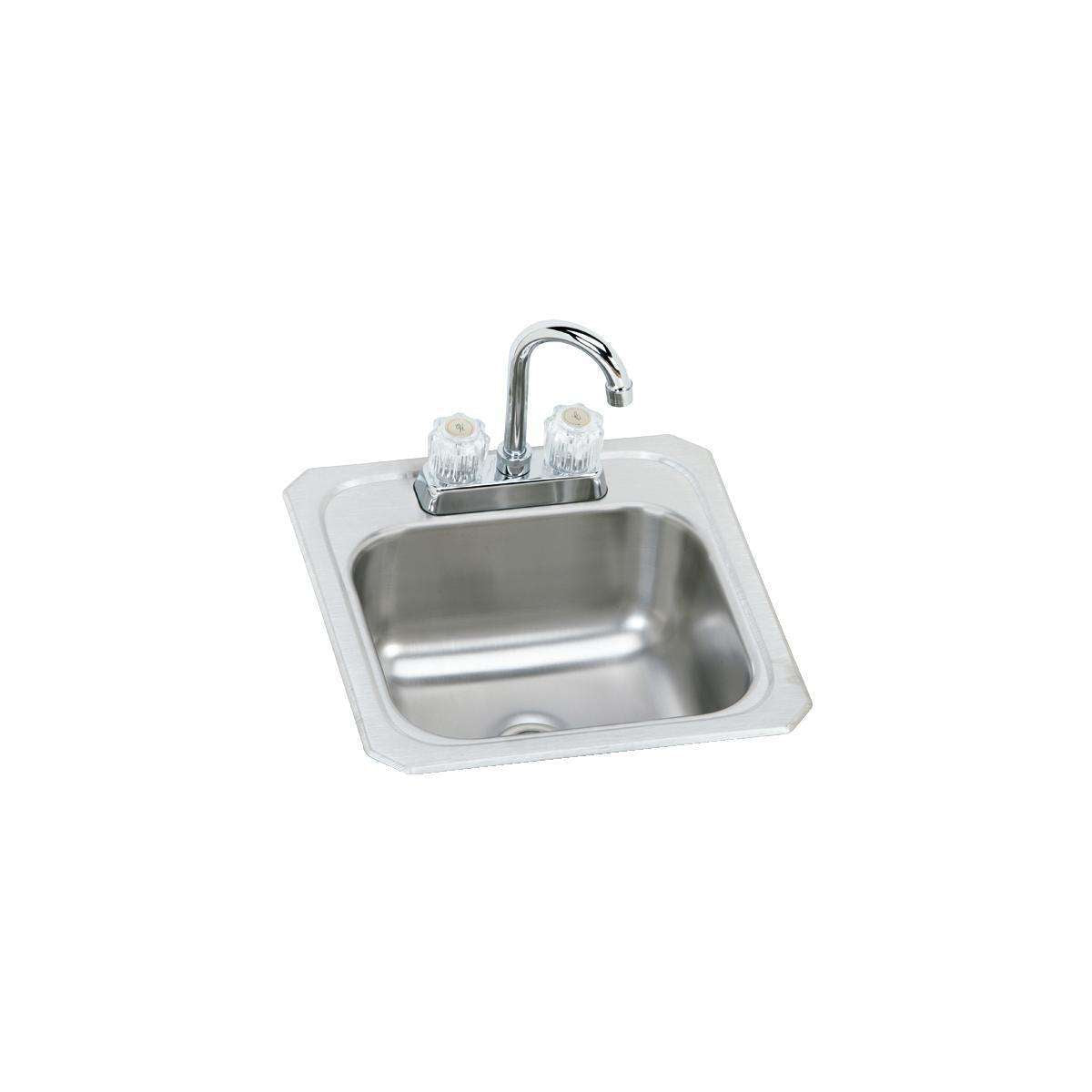

The Elkay BCRA150C is a Celebrity Stainless Steel 15" x 15" x 6-1/8", 2-Hole Single Bowl Drop-in Bar Sink + Faucet Kit. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
- 20-GAUGE STAINLESS STEEL: Highest grade 20-gauge thickness and Type 304 stainless steel for everyday lasting durability, performance and finish.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- CENTER DRAIN: Drain is conveniently placed in the center of the sink.
- DRAIN OPENING: Sink drain opening measures 2".
- CABINET SIZE: Minimum cabinet size for this sink is 18".
- KIT INCLUDES: BCR15 sink, LKA2475LF faucet, LK58 drain; conveniently packaged together to save you time.
Common Questions
- What size cabinet does this need?
- A minimum 18" wide base cabinet.
- Undermount or drop-in?
- This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.
- What does 20-gauge mean?
- 20 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 2.
- What is included in the kit?
- This kit includes: LKA2475LF faucet, LK58 drain.
Specifications
- Type: Celebrity Stainless Steel 15" x 15" x 6-1/8", 2-Hole Single Bowl Drop-in Bar Sink + Faucet Kit
- Outlet Size: 2"
- Body Material: Stainless Steel
- MPN: BCRA150C
- Certifications: ASME A112.19.3/CSA B45.4
- Number of Bowls: 1
- Minimum Cabinet Size (in): 18
- Bowl Dimensions: 12" x 10" x 6"
- Drain Location: Center
- Gauge: 20
- Sound Deadening: Bottom only pads
- Template Included: No
- Mounting Hardware: Part # 64090008 included for countertops up to 3/4" (19mm) thick
- Mount Type: Drop-In
- Coating / Finish: Brushed Satin
- Faucet Holes: 2
- Overall Length (in): 15.0
- Overall Width (in): 15.0
- Overall Height (in): 6.125
- Kit Includes: LKA2475LF faucet, LK58 drain

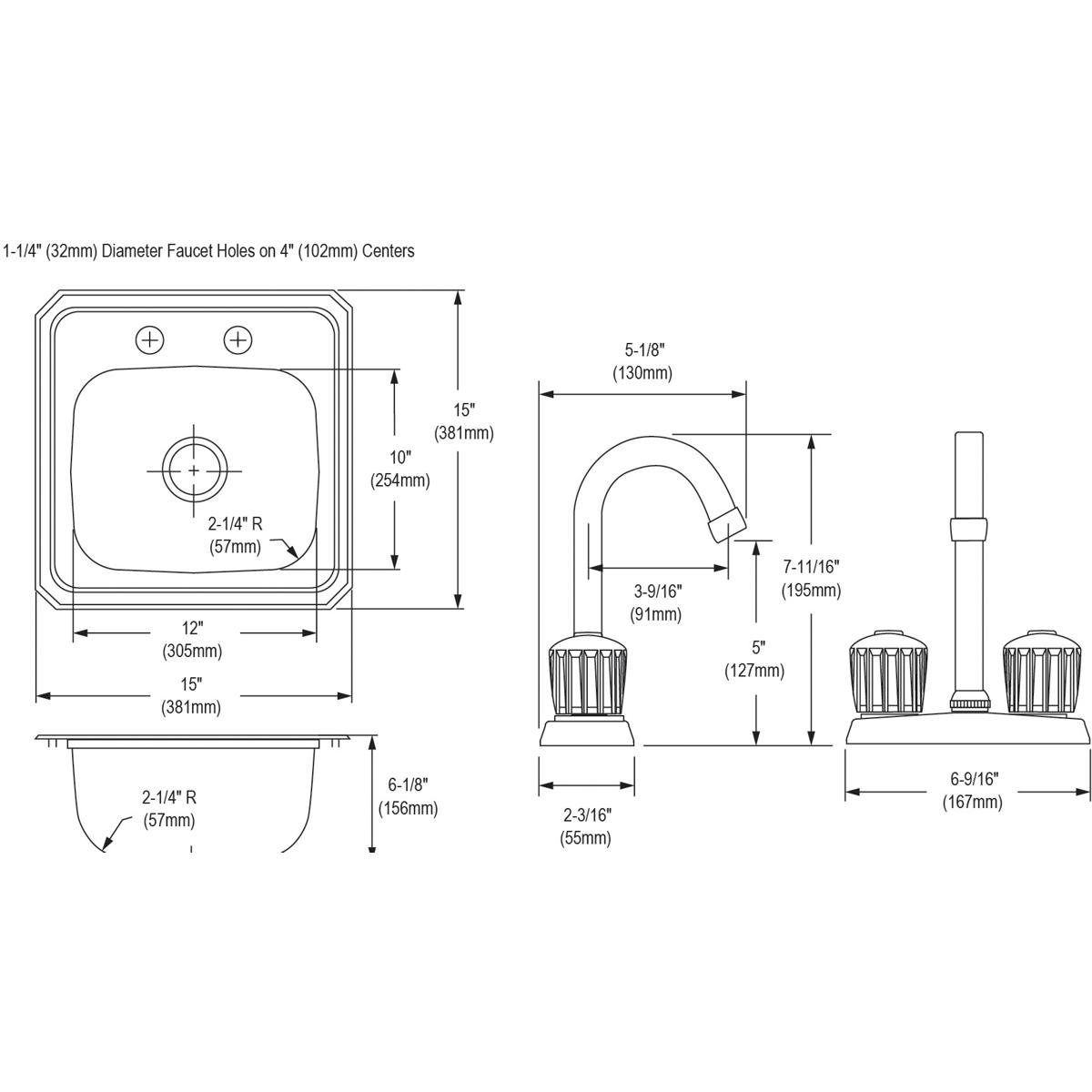

- Countertop Cutout: 14-3/8" x 14-3/8" (365mm x 365mm) with 1-1/2" (38mm) corner radius
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001240.dxf
Dimensions
| Outlet Size | 2" | — | — |
Details
| Series | BCRA150C | Device Type | Celebrity Stainless Steel 15" x 15" x 6-1/8", 2-Hole Single Bowl Drop-in Bar Sink + Faucet Kit |
| Body Material | Stainless Steel | Contents | LKA2475LF faucet, LK58 drain |
| Coating | Brushed Satin | Hole count | 2 |
| Mount type | Drop-In | Overall height in | 6.125 in |
| Overall length in | 15.0 in | Overall width in | 15.0 in |
| Bowl count | 1 | Bowl dimensions | 12" x 10" x 6" |
| Countertop cutout dim | 14-3/8" x 14-3/8" (365mm x 365mm) with 1-1/2" (38mm) corner radius | Cutout template url | View |
| Drain location | Center | Gauge | 20 |
| Minimum cabinet size in | 18 | Mounting hardware | Part # 64090008 included for countertops up to 3/4" (19mm) thick |
| Sound deadening | Bottom only pads | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | — |
Compare with similar products
| Contents | LKA2475LF faucet, LK58 drain
| — | — | — | — | LKOBG1616SS bottom grid LKQS35BK drain LKCLKIT maintenance Kit
|
| Series | BCRA150C
| D11721
| ELX1616
| ELX1616
| ELX1616
| ELG1616C
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Celebrity Stainless Steel 15" x 15" x 6-1/8", 2-Hole Single Bowl Drop-in Bar Sink + Faucet Kit
| Dayton Stainless Steel 17" x 21-1/4" x 6-1/2", 2-Hole Single Bowl Drop-in Bar Sink
| Quartz Luxe® 15-3/4" x 15-3/4" x 7.7 Single Bowl Dual Mount Bar Sink Sandstone
| Quartz Luxe® 15-3/4" x 15-3/4" x 7.7 Single Bowl Dual Mount Bar Sink Arctic Fox
| Quartz Luxe 15-3/4" x 15-3/4" x 7.7 Single Bowl Dual Mount Bar Sink Obsidian
| Quartz Classic® 15-3/4" x 15-3/4" x 7.7 Single Bowl Dual Mount Bar Sink Kit Graphite
|
| Outlet Size | 2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
|
| Body Material | Stainless Steel
| Stainless Steel
| Quartz
| Quartz
| Quartz
| Quartz
|
| Certifications | ASME A112.19.3/CSA B45.4
| ASME A112.19.3/CSA B45.4, IAPMO, ADA
| IAPMO
| IAPMO
| IAPMO
| IAPMO
|
