Specifications
Description

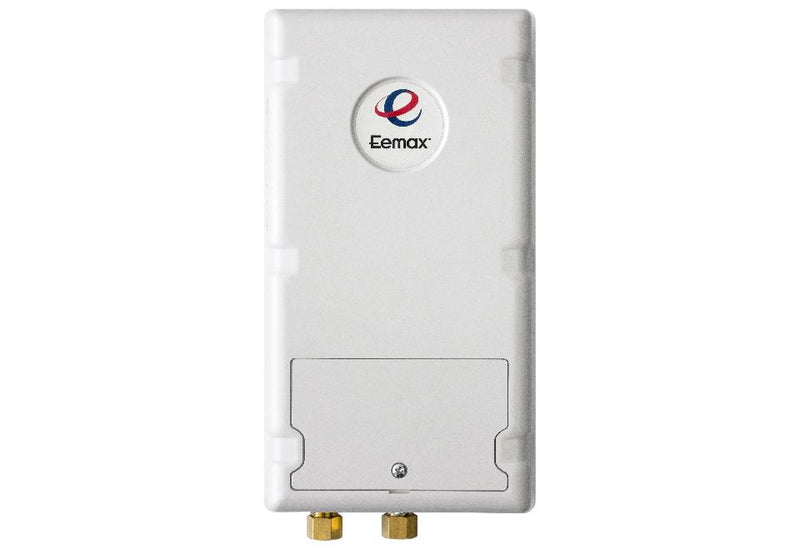

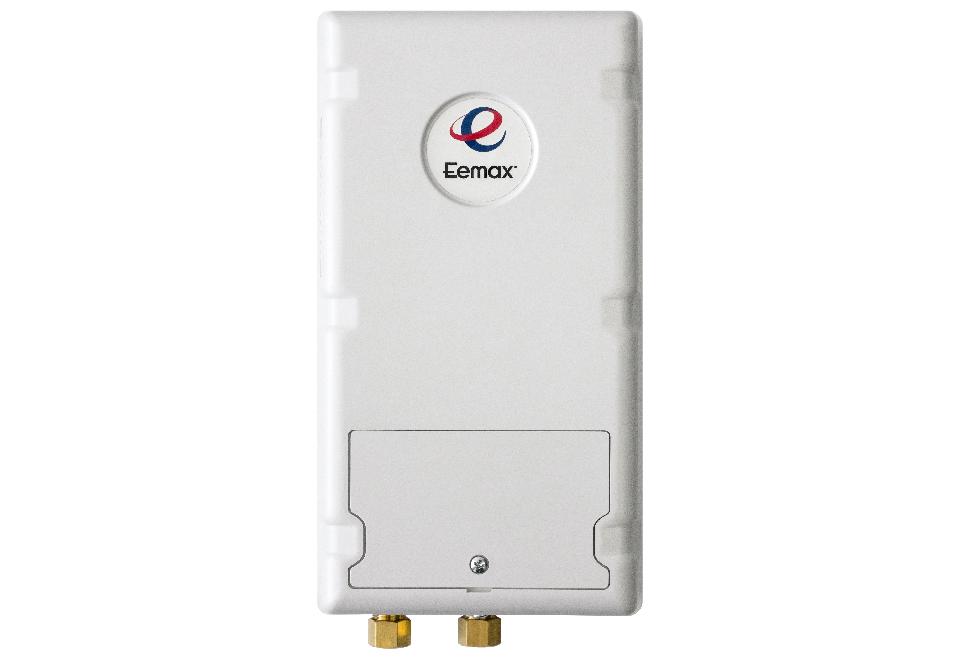

The Eemax SPEX3512T EE is a 3.5 kW, 120V, single phase electric tankless water heater from the LavAdvantage line, configured for emergency eyewash. This model is certified lead-free for potable-water installations.
3.5kW 120V Electric Tankless Water Heater
Features
- Thermostatic heater ideal for fixed or variable flow applications
- Low flow activation with 0.2 GPM turn on flow rate
- Mounts in any orientation for a flexible installation
Common Questions
- What electrical service does it need?
- It needs a 120V single phase supply, on 1 x 30A breaker circuits; Eemax recommends 10 AWG wire. Size the circuit to local code.
- What flow turns the heater on?
- The elements switch on at 0.2 GPM. Below that flow, water passes through unheated, so match it to the fixture's aerator or flow restrictor.
- What water temperature does it deliver?
- It delivers outlet water, 70°F to 90°F, per Eemax's model data.
- How long does it take to ship?
- Eemax states a lead time of about 5 business days from order.
Specifications
- Water Connection: 3/8"
- Connection: Compression
- Country of Origin: United States
- Warranty: 5-year limited on leaks, 1-year on parts
- MPN: SPEX3512T EE
- Certifications: UL, C-UL, ANSI/ISEA Z358.1
- Lead-Free: Yes
- Power (W): 3500
- Voltage: 120V
- Phase: Single Phase
- Circuits x Breaker: 1 x 30A
- Recommended Wire Size: 10 AWG
- Application: Emergency Eyewash
- Temperature Control: Thermostatic
- Activation Flow (GPM): 0.2
- Min Outlet Temperature (°F): 70
- Max Outlet Temperature (°F): 90
- Min Operating Pressure (psi): 35
- Max Operating Pressure (psi): 150
- Height (in): 9
- Width (in): 5
- Depth (in): 3
- Temperature Rise: 48F @ 0.5 GPM 24F @ 1.0 GPM 12F @ 2.0 GPM
- Lead Time (business days): 5
Product Information
Dimensions
| Size Nominal | 3/8" | End Connection | Compression |
Details
| Series | LavAdvantage | Lead Free | Yes |
| Outlet Temp Min °F | 70.0 °F | Outlet Temp Max °F | 90.0 °F |
| Applications | Emergency Eyewash | Electrical phase | Single Phase |
| Electrical requirement | 120V | Lead time days | 5 |
| Operating pressure max psi | 150.0 PSI | Operating pressure min psi | 35 PSI |
| Overall height in | 9.0 in | Overall length in | 5.0 in |
| Overall width in | 3.0 in | Rated watts | 3500 |
Certifications & Standards
| UL | C-UL |
| ANSI/ISEA Z358.1 | — |
Compare with similar products
| Outlet Temp Min °F | 70.0 °F | 70.0 °F | — | — | — | — |
| Outlet Temp Max °F | 90.0 °F | 90.0 °F | 90.0 °F | 90.0 °F | 90.0 °F | 90.0 °F |
| Applications | Emergency Eyewash
| Emergency Eyewash
| Emergency Eyewash
| Emergency Eyewash
| Emergency Eyewash
| Emergency Eyewash
|
| Series | LavAdvantage
| LavAdvantage
| Three Phase
| Three Phase
| Three Phase
| Three Phase
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Size Nominal | 3/8"
| 3/8"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Compression
| Compression
| Compression
| Compression
| Compression
| Compression
|
| Certifications | UL, C-UL, ANSI/ISEA Z358.1
| UL, C-UL, ANSI/ISEA Z358.1
| C-UL, ANSI/ISEA Z358.1
| C-UL, ANSI/ISEA Z358.1
| C-UL, ANSI/ISEA Z358.1
| C-UL, ANSI/ISEA Z358.1
|
